Model # SL-SV550P Official Panasonic cd player

Here are the diagrams and repair parts for Official Panasonic SL-SV550P cd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Jack K2HC104B0013
#NI

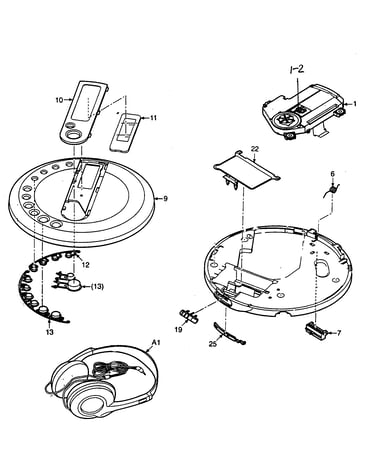

Cabinet parts diagram

Jack

Part #K2HC104B0013

The manufacturer no longer makes this part, and there's no substitute part

Oscillator ERY32SB075VA
#NI

Cabinet parts diagram

Oscillator

Part #ERY32SB075VA

The manufacturer no longer makes this part, and there's no substitute part

Jack RJJ43K09-C
#NI

Cabinet parts diagram

Jack

Part #RJJ43K09-C

The manufacturer no longer makes this part, and there's no substitute part

Lcd Panel RGP1007-X
#11

Cabinet parts diagram

Lcd panel

Part #RGP1007-X

The manufacturer no longer makes this part, and there's no substitute part

Pick Up RAF0240A
#1-2

Cabinet parts diagram

Pick up

Part #RAF0240A

The manufacturer no longer makes this part, and there's no substitute part

Lcd Ornament RGK1642-S
#10

Cabinet parts diagram

Lcd ornament

Part #RGK1642-S

The manufacturer no longer makes this part, and there's no substitute part

Button RGU2198-S
#12

Cabinet parts diagram

Button

Part #RGU2198-S

The manufacturer no longer makes this part, and there's no substitute part

Service Manual AD0302029C1
#NI

Cabinet parts diagram

Service manual

Part #AD0302029C1

The manufacturer no longer makes this part, and there's no substitute part

Traverse Deck Asy RAE0240Z-M
#1

Cabinet parts diagram

Traverse deck asy

Part #RAE0240Z-M

The manufacturer no longer makes this part, and there's no substitute part

Ffc Holder RMR1514-K
#7

Cabinet parts diagram

Ffc holder

Part #RMR1514-K

The manufacturer no longer makes this part, and there's no substitute part
