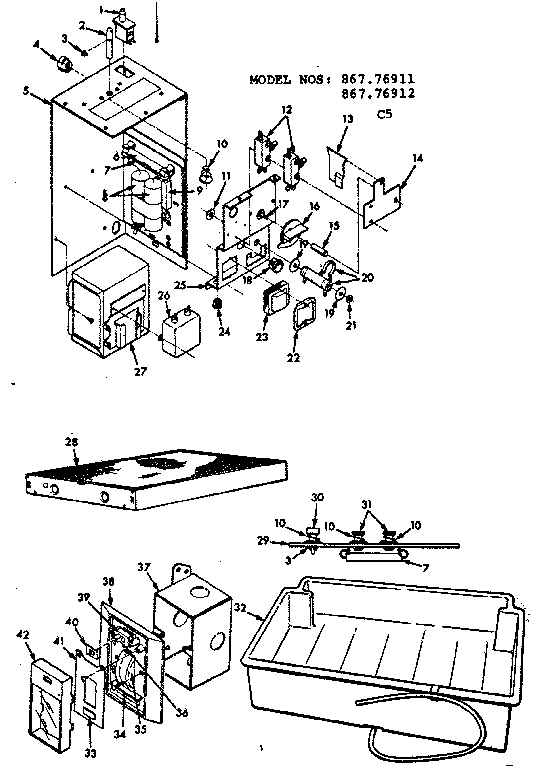

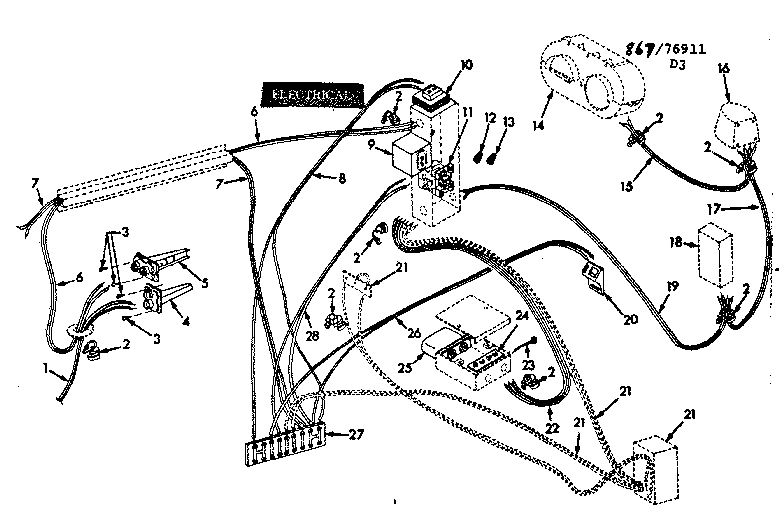

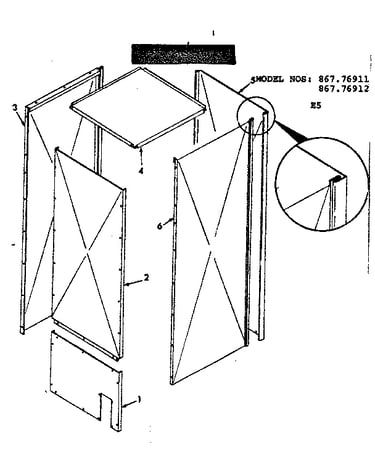

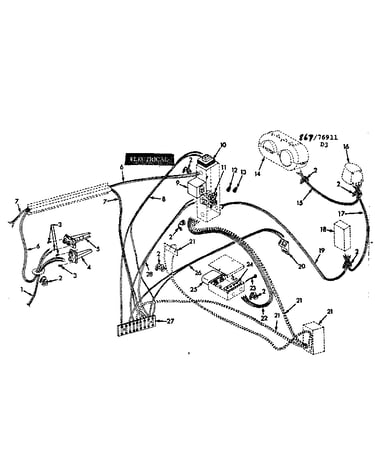

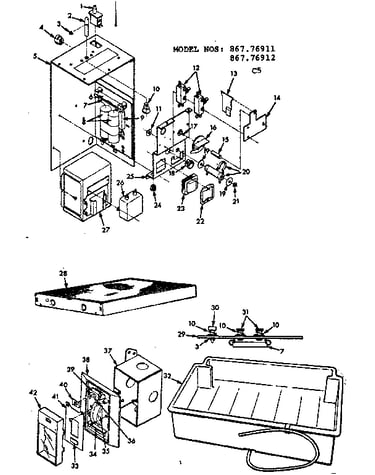

Kenmore 86776911 all conditioner Parts
Here are the diagrams and repair parts for Kenmore 86776911 all conditioner, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for 86776911 All Conditioner
#NI
All parts diagram
Contactor
Part #72988Replaced by #90-244
Manufacturer substitutionThis part replaces 72988. Substitute parts can look different from the original.In Stock$31.2316% OFF Phone Price : $37.23
Qty
Thermocouple
Part #40096Replaced by #H06E-36
Manufacturer substitutionThis part replaces 40096. Substitute parts can look different from the original.In Stock$16.8911% OFF Phone Price : $18.89QtyMotor 1/4 Hp
Part #73141
The manufacturer no longer makes this part, and there's no substitute part

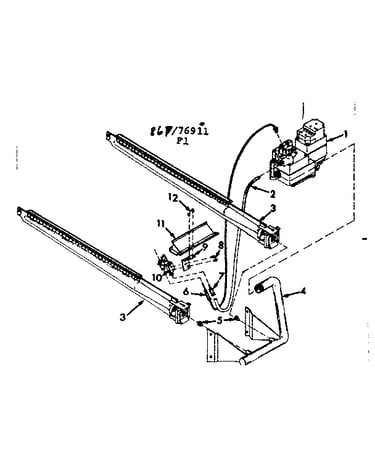

Burner & manifold assembly diagram
Crosslighter
Part #81319Replaced by #81319
Manufacturer substitutionThis part replaces 81319. Substitute parts can look different from the original.In Stock$45.69QtyBurner & manifold assembly diagram
Tubing Pilot
Part #69455Replaced by #100108370
Manufacturer substitutionThis part replaces 69455. Substitute parts can look different from the original.In Stock$64.56QtyGas Valve
Part #73519Replaced by #36C03-333
Manufacturer substitutionThis part replaces 73519. Substitute parts can look different from the original.In Stock$314.94$12.00 OFF Phone Price : $326.94QtyRelay
Part #80086Replaced by #90-341

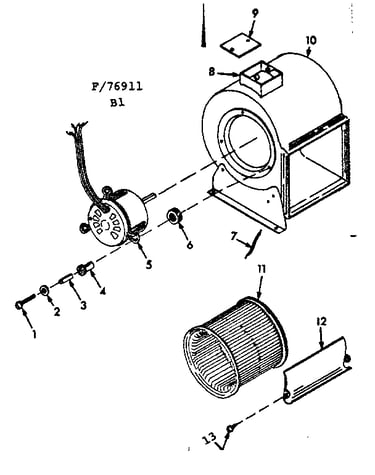

Manufacturer substitutionThis part replaces 80086. Substitute parts can look different from the original.In Stock$23.0021% OFF Phone Price : $29.00QtyH-q blower assembly diagram
Washer
Part #446188Replaced by #STD551025

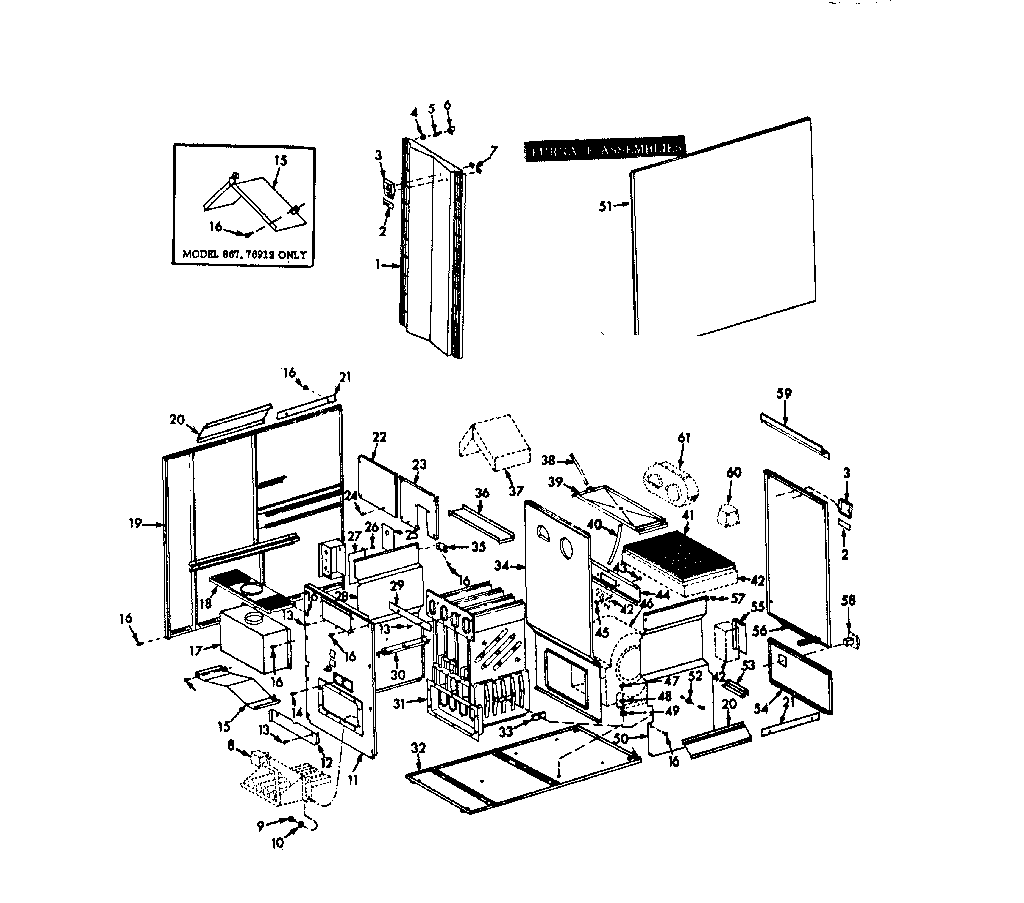

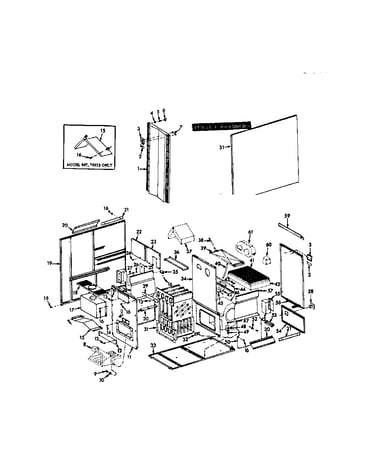

Manufacturer substitutionThis part replaces 446188. Substitute parts can look different from the original.In Stock$36.61QtyFurnace assemblies diagram
Washer
Part #106261Replaced by #STD551025
Manufacturer substitutionThis part replaces 106261. Substitute parts can look different from the original.In Stock$36.61Qty#NI
All parts diagram
Blower Wheel
Part #72411Replaced by #601210
Manufacturer substitutionThis part replaces 72411. Substitute parts can look different from the original.In Stock$260.91Qty
