GE
Warming Drawer

Model # PW9000DF1BB Official GE warming drawer

Here are the diagrams and repair parts for Official GE PW9000DF1BB warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

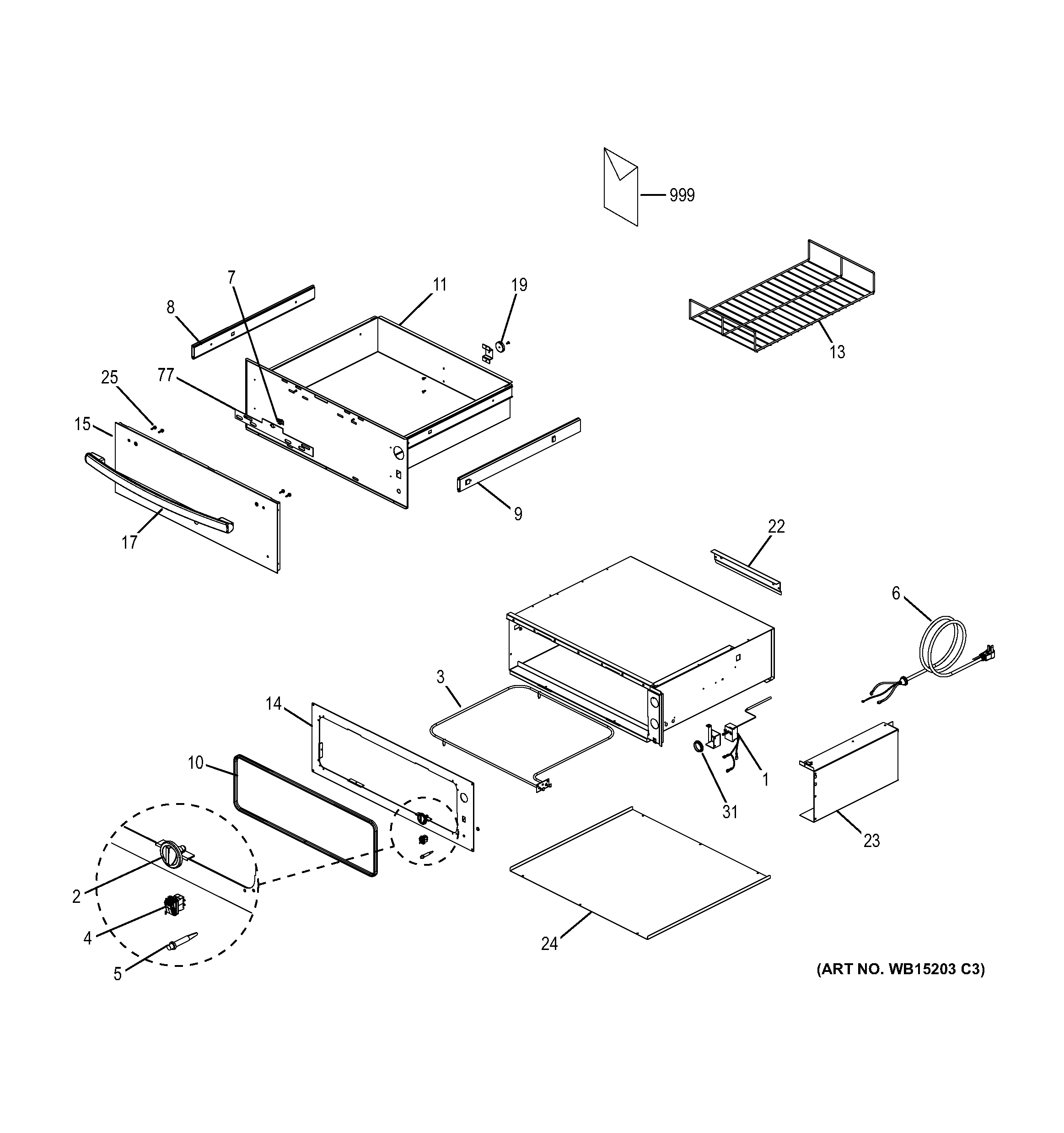

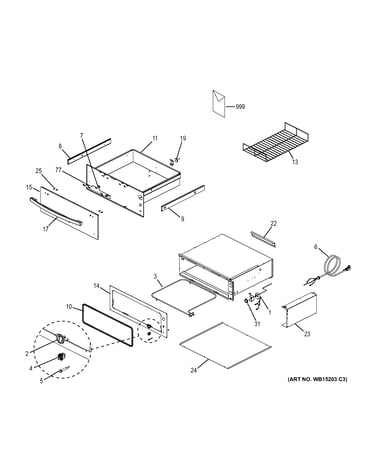

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Cover WB56X10780
#24

Hood parts diagram

Cover

Part #WB56X10780

In Stock
Gasket Seal WB02X11289
#10

Hood parts diagram

Gasket seal

Part #WB02X11289

$63.74
7% OFF Phone Price : $68.74
In Stock
Warming Drawer Frame Front Panel WB56X20217
#14

Hood parts diagram

Warming drawer frame front panel

Part #WB56X20217

In Stock
Heating Element WB44X10029
#3

Hood parts diagram

Heating element

Part #WB44X10029

$86.69
5% OFF Phone Price : $91.69
In Stock
Bracket WB02X11553
#22

Hood parts diagram

Bracket

Part #WB02X11553

In Stock
Unitized Pan WB32X20221
#11

Hood parts diagram

Unitized pan

Part #WB32X20221

In Stock
Rocker Switch WB24X10206
#4

Hood parts diagram

Rocker switch

Part #WB24X10206

$44.39
10% OFF Phone Price : $49.39
In Stock
Wire Rack WB48X10045
#13

Hood parts diagram

Wire rack

Part #WB48X10045

$143.09
7% OFF Phone Price : $153.09
In Stock
Magnet Closure WB02X10592
#19

Hood parts diagram

Magnet closure

Part #WB02X10592

In Stock
Hex Screw Hi WB01X20224
#25

Hood parts diagram

Hex screw hi

Part #WB01X20224

In Stock
