Model # 11319749 Official Craftsman 3/4-hp capacitor start electric motor

Here are the diagrams and repair parts for Official Craftsman 11319749 3/4-hp capacitor start electric motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Retaining Ring 30783
#23

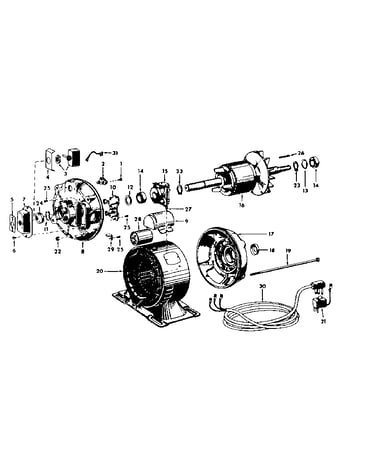

Unit diagram

Retaining ring

Part #30783

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 37163
#13

Unit diagram

Spring washer

Part #37163

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 37046
#28

Unit diagram

Capacitor

Part #37046

The manufacturer no longer makes this part, and there's no substitute part

Rotor Assembly 37170
#16

Unit diagram

Rotor assembly

Part #37170

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cap 37083
#24

Unit diagram

Bearing cap

Part #37083

The manufacturer no longer makes this part, and there's no substitute part

Protector 37036
#2

Unit diagram

Protector

Part #37036

The manufacturer no longer makes this part, and there's no substitute part

Term Cover 37174
#7

Unit diagram

Term cover

Part #37174

The manufacturer no longer makes this part, and there's no substitute part

Plate Indica 24248
#5

Unit diagram

Plate indica

Part #24248

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 37161
#14

Unit diagram

Ball bearing

Part #37161

The manufacturer no longer makes this part, and there's no substitute part

Screw S-1412
#27

Unit diagram

Screw

Part #S-1412

The manufacturer no longer makes this part, and there's no substitute part
