Model # KCDS250S2 Official KitchenAid garbage disposal
Here are the diagrams and repair parts for Official KitchenAid KCDS250S2 garbage disposal, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts forKCDS250S2 Garbage Disposal
- #14

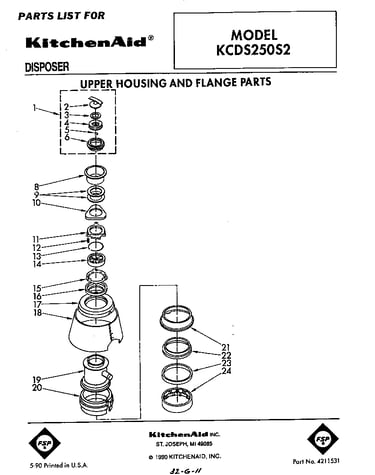

Upper housing and flange diagram
Mounting gasketPart #4211334
Replaced by #WP4211334
?Manufacturer substitutionThis part replaces 4211334. Substitute parts can look different from the original.This item is not returnable$22.59 |21% OFF Phone Price : $28.59In Stock - #2
Upper housing and flange diagram
Handle, stopperPart #4211354
The manufacturer no longer makes this part, and there's no substitute part
- #22
Upper housing and flange diagram
Gasket, shredderPart #4211365
The manufacturer no longer makes this part, and there's no substitute part
- #1
Upper housing and flange diagram
Stopper assemblyPart #4211463
The manufacturer no longer makes this part, and there's no substitute part
- #9

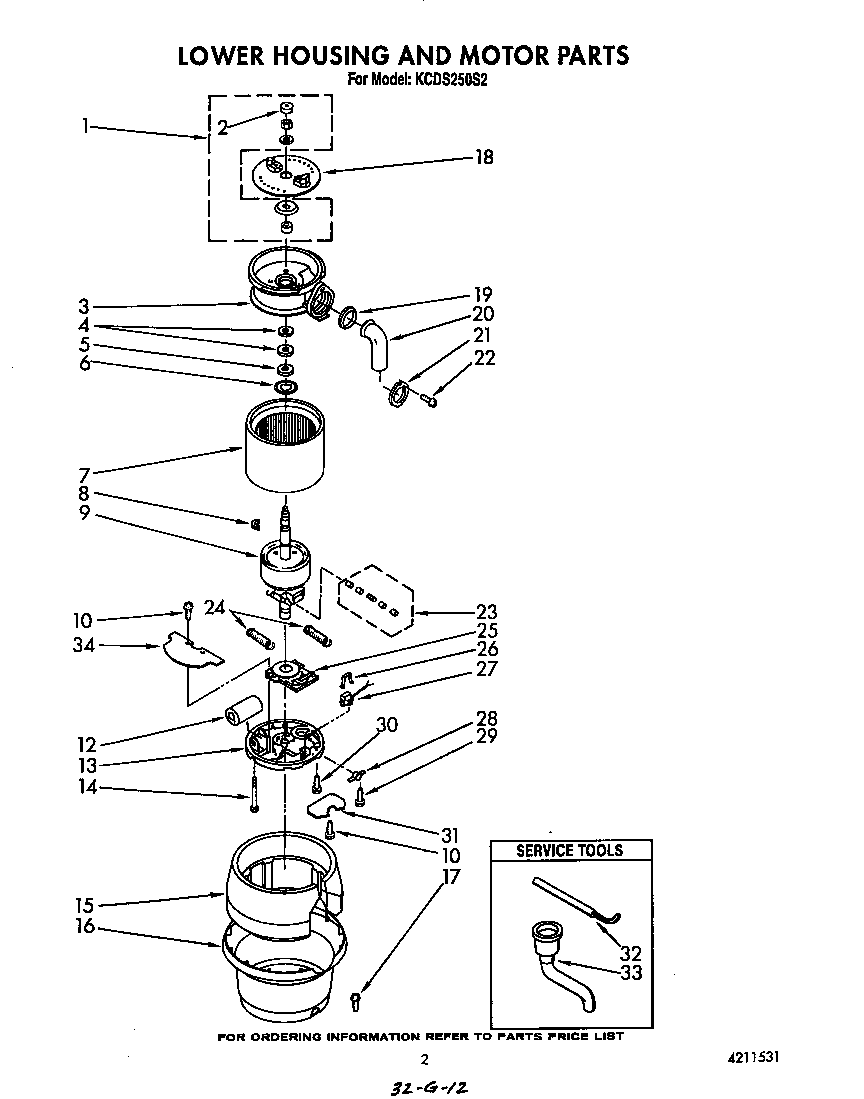

Lower housing and motor diagram
Rotor & shaft assembly (includes illus. no. 24)Part #4211494
The manufacturer no longer makes this part, and there's no substitute part
- #26
Lower housing and motor diagram
Clip, overloadPart #4211383
The manufacturer no longer makes this part, and there's no substitute part
- #24
Lower housing and motor diagram
Spring (2)Part #4211378
The manufacturer no longer makes this part, and there's no substitute part
- #23
Lower housing and motor diagram
Transfer assemblyPart #4211468
The manufacturer no longer makes this part, and there's no substitute part
- #13
Lower housing and motor diagram
End frame assembly (lower)Part #4211470
The manufacturer no longer makes this part, and there's no substitute part
- #29
Lower housing and motor diagram
Screw, clamp (2)Part #4211388
The manufacturer no longer makes this part, and there's no substitute part
