Model # 625349241 Official Kenmore neutralizer

Here are the diagrams and repair parts for Official Kenmore 625349241 neutralizer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |

Clip 1205500
#9

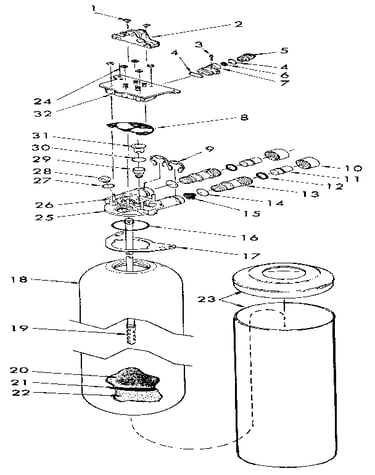

Tank assembly diagram

Clip

Part #1205500

Replaced by #7116713

?
Manufacturer substitution
This part replaces 1205500. Substitute parts can look different from the original.
BEST SELLER
$19.86
9% OFF Phone Price : $21.86
In Stock
Washer 900570
#12

Tank assembly diagram

Washer

Part #900570

Replaced by #7170335

?
Manufacturer substitution
This part replaces 900570. Substitute parts can look different from the original.
This item is not returnable
$9.39
10% OFF Phone Price : $10.39
In Stock
Water Filtration System Filtering Sand, 10-lb 501783
#21

Tank assembly diagram

Water filtration system filtering sand, 10-lb

Part #501783

Replaced by #0501783

?
Manufacturer substitution
This part replaces 501783. Substitute parts can look different from the original.
$30.59
16% OFF Phone Price : $36.59
In Stock
Tube 507615
#11

Tank assembly diagram

Tube

Part #507615

Replaced by #0507615

?
Manufacturer substitution
This part replaces 507615. Substitute parts can look different from the original.
This item is not returnable
$19.86
9% OFF Phone Price : $21.86
In Stock
Flow Washer 509537
#6

Tank assembly diagram

Flow washer

Part #509537

Replaced by #0509537

?
Manufacturer substitution
This part replaces 509537. Substitute parts can look different from the original.
In Stock
Cover 7090315
#40

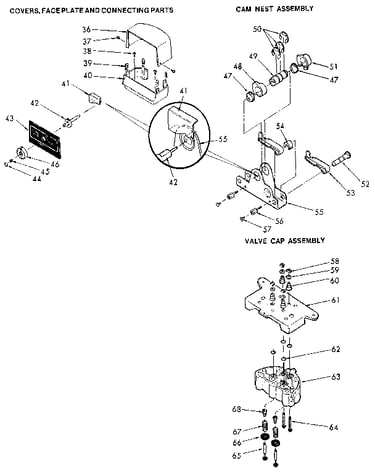

Cam nest and valve assembly diagram

Cover

Part #7090315

In Stock
Face Plate 7093363
#43

Cam nest and valve assembly diagram

Face plate

Part #7093363

In Stock
U-plate 7060467
#55

Cam nest and valve assembly diagram

U-plate

Part #7060467

In Stock
Icp Bearing 7011434
#47

Cam nest and valve assembly diagram

Icp bearing

Part #7011434

This item is not returnable
In Stock
Shroud 7092210
#23

Tank assembly diagram

Shroud

Part #7092210

In Stock
