Model #706596164 Craftsman tool chest

Here are the diagrams and repair parts for Craftsman 706596164 tool chest, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 14 parts

    Tool Chest Decal#10

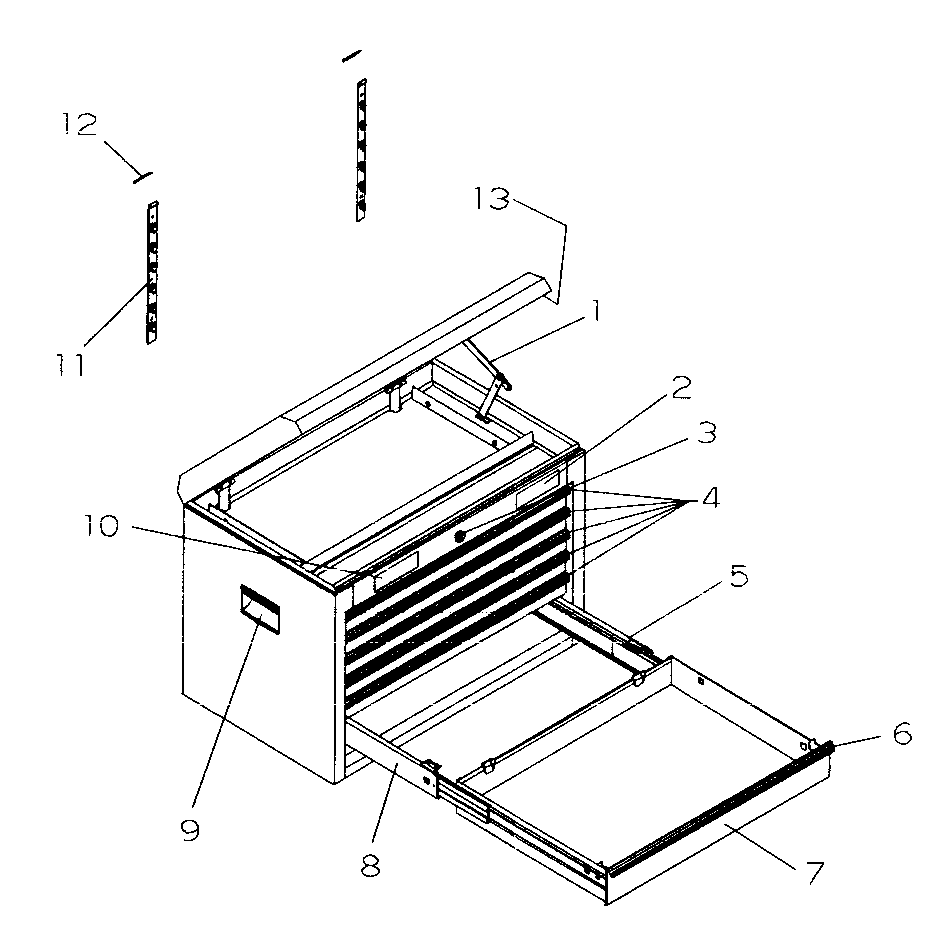

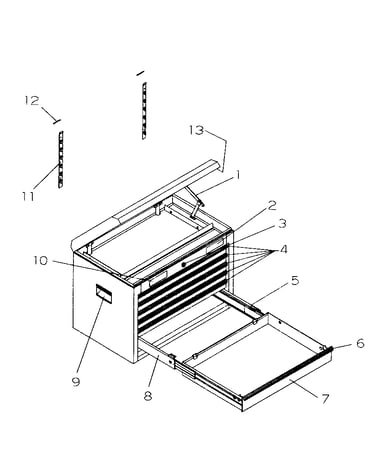

    Tool chest Diagram

    Tool chest decal

    Part #M15228A1

    The manufacturer no longer makes this part, and there's no substitute part

    Tool Chest Handle#9

    Tool chest Diagram

    Tool chest handle

    Part #M12833

    The manufacturer no longer makes this part, and there's no substitute part

    Cover Clip#13

    Tool chest Diagram

    Cover clip

    Part #M15524A1

    The manufacturer no longer makes this part, and there's no substitute part

    Tool Cabinet Drawer Trim#6

    Tool chest Diagram

    Tool cabinet drawer trim

    Part #M12842

    The manufacturer no longer makes this part, and there's no substitute part

    Tool Chest Lock Bar#11

    Tool chest Diagram

    Tool chest lock bar

    Part #T16514-EBK

    The manufacturer no longer makes this part, and there's no substitute part

    Tool Chest Door Hinge Pin#12

    Tool chest Diagram

    Tool chest door hinge pin

    Part #M1495

    The manufacturer no longer makes this part, and there's no substitute part

    Lock#3

    Tool chest Diagram

    Lock

    Part #M12918A35-SS

    The manufacturer no longer makes this part, and there's no substitute part

    Cover Stop#1

    Tool chest Diagram

    Cover stop

    Part #27275

    The manufacturer no longer makes this part, and there's no substitute part

    Tool Chest Drawer Slide, Left#8

    Tool chest Diagram

    Tool chest drawer slide, left

    Part #M15863

    The manufacturer no longer makes this part, and there's no substitute part

    Tool Chest Instruction Sheet#NI

    Tool chest Diagram

    Tool chest instruction sheet

    Part #F1198

    The manufacturer no longer makes this part, and there's no substitute part
