Craftsman
Power Sander

Model # 31511650 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 31511650 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

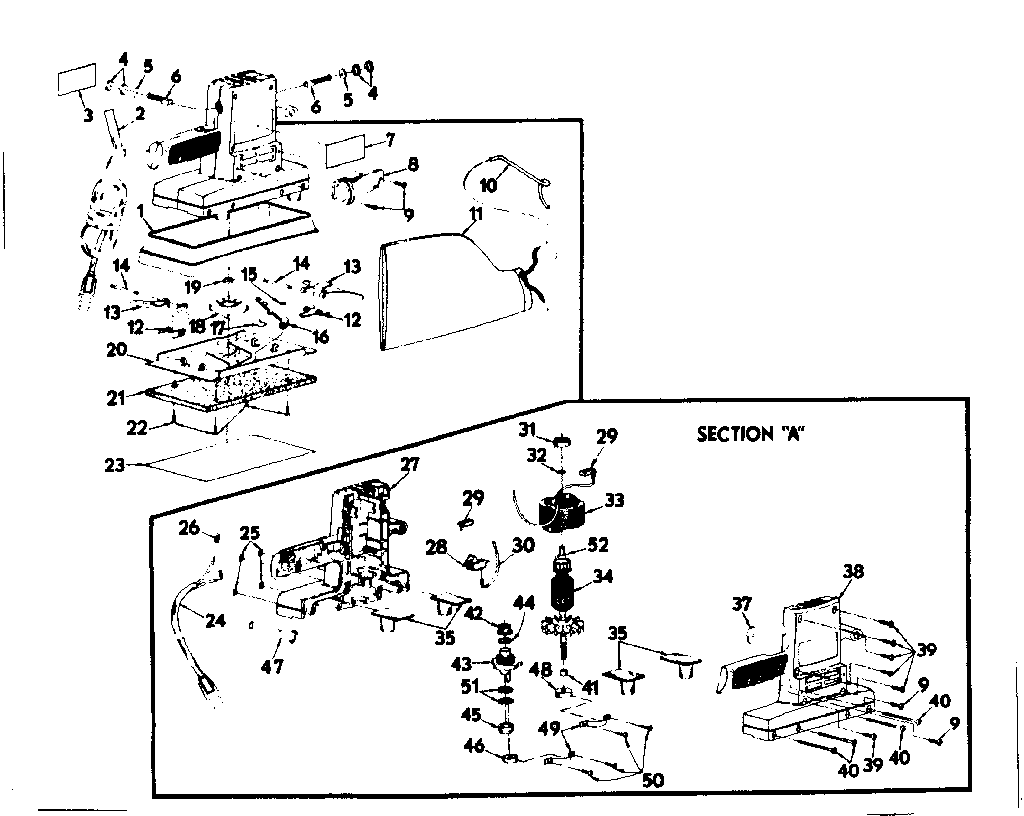

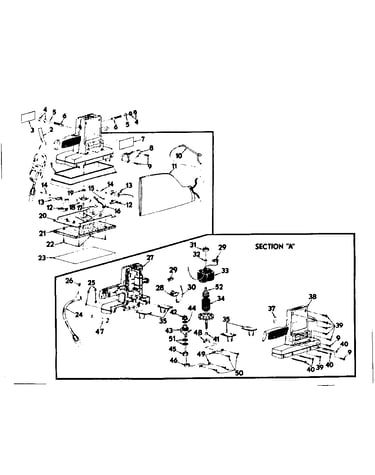

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Spring Washer 620789-003
#19

Unit parts diagram

Spring washer

Part #620789-003

The manufacturer no longer makes this part, and there's no substitute part

Gear Shaft 607372-002
#43

Unit parts diagram

Gear shaft

Part #607372-002

The manufacturer no longer makes this part, and there's no substitute part

Bearing 607370-001
#42

Unit parts diagram

Bearing

Part #607370-001

The manufacturer no longer makes this part, and there's no substitute part

Bushing 713513-817
#52

Unit parts diagram

Bushing

Part #713513-817

The manufacturer no longer makes this part, and there's no substitute part

Bearing 607640-001
#46

Unit parts diagram

Bearing

Part #607640-001

The manufacturer no longer makes this part, and there's no substitute part

Spring 616783-002
#17

Unit parts diagram

Spring

Part #616783-002

The manufacturer no longer makes this part, and there's no substitute part

Nut 706404-007
#25

Unit parts diagram

Nut

Part #706404-007

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 610515-001
#3

Unit parts diagram

Logo plate

Part #610515-001

The manufacturer no longer makes this part, and there's no substitute part

Bearing Block 612987-001
#18

Unit parts diagram

Bearing block

Part #612987-001

The manufacturer no longer makes this part, and there's no substitute part

Stator Pad 623552-001
#37

Unit parts diagram

Stator pad

Part #623552-001

The manufacturer no longer makes this part, and there's no substitute part
