Skil
Circular Saw

Model # 77 TYPE 17 Official Skil power saw

Here are the diagrams and repair parts for Official Skil 77-TYPE-17 power saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Washer 25067
#4

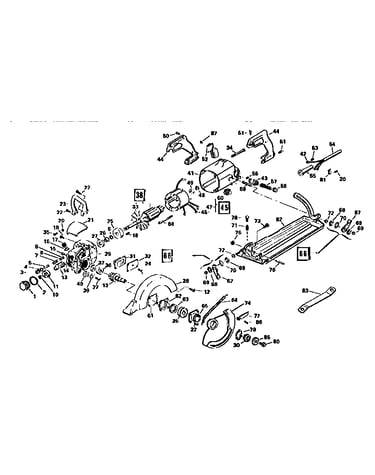

Unit parts diagram

Washer

Part #25067

The manufacturer no longer makes this part, and there's no substitute part

Rubber Bumper 319494
#40

Unit parts diagram

Rubber bumper

Part #319494

The manufacturer no longer makes this part, and there's no substitute part

Washer 23331
#2

Unit parts diagram

Washer

Part #23331

The manufacturer no longer makes this part, and there's no substitute part

Spring 23394
#7

Unit parts diagram

Spring

Part #23394

The manufacturer no longer makes this part, and there's no substitute part

Oil Plug 23384
#17

Unit parts diagram

Oil plug

Part #23384

The manufacturer no longer makes this part, and there's no substitute part

Screw 315380
#50

Unit parts diagram

Screw

Part #315380

The manufacturer no longer makes this part, and there's no substitute part

Motor Housing 352051
#41

Unit parts diagram

Motor housing

Part #352051

The manufacturer no longer makes this part, and there's no substitute part

Upp Guard 352103
#28

Unit parts diagram

Upp guard

Part #352103

The manufacturer no longer makes this part, and there's no substitute part

Hinge Pin 319932
#76

Unit parts diagram

Hinge pin

Part #319932

The manufacturer no longer makes this part, and there's no substitute part

Screw 328924
#86

Unit parts diagram

Screw

Part #328924

The manufacturer no longer makes this part, and there's no substitute part
