Kenmore 86762681 gas-fired space saver furnace Parts

Here are the diagrams and repair parts for Kenmore 86762681 gas-fired space saver furnace, as well as links to manuals and error code tables, if available.

Kenmore 86762681 gas-fired space saver furnace
By Schematic

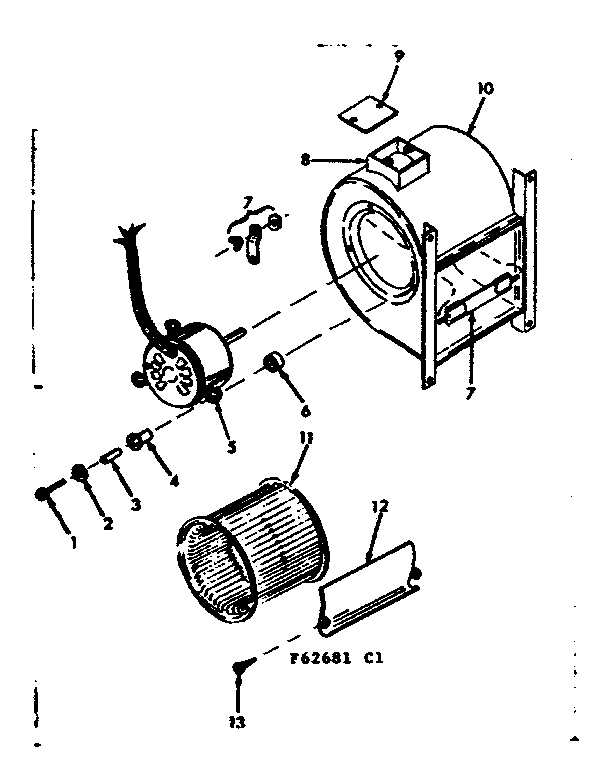

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for86762681 Gas-Fired Space Saver Furnace

  • Conctr Panel for Kenmore 86762681 - Part 69914

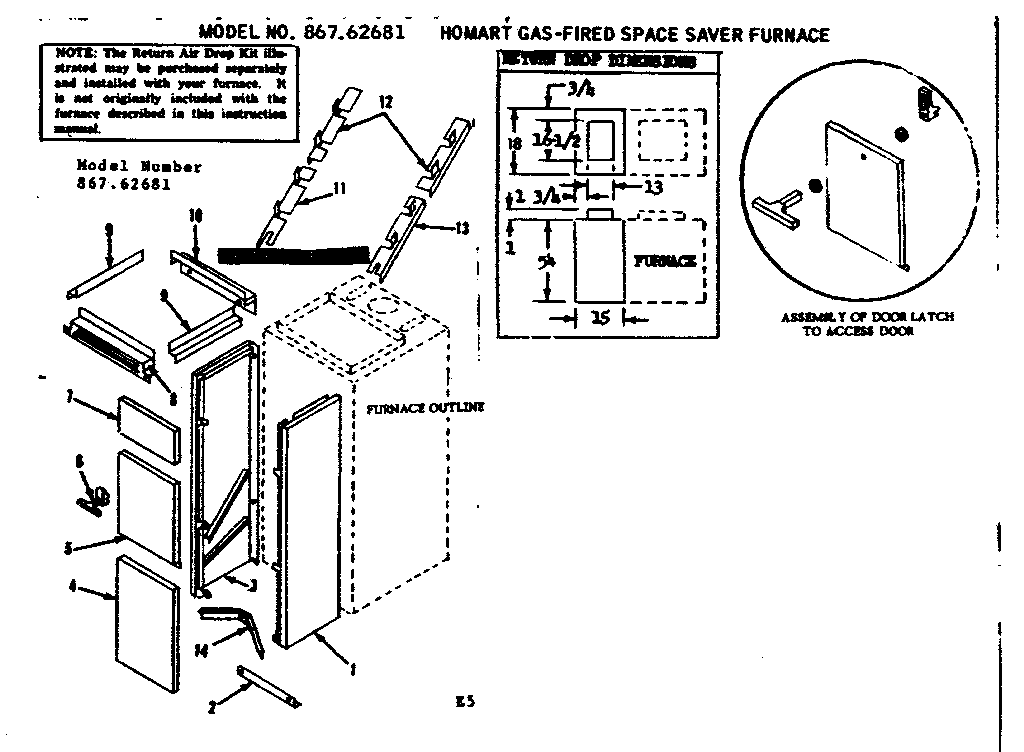

    Return air drop diagram

    Conctr Panel

    Part #69914

    The manufacturer no longer makes this part, and there's no substitute part

  • #burner Pilot Gas Incl Key 19 for Kenmore 86762681 - Part N/P

    #burner Pilot Gas Incl Key 19

    Part #N/P

    The manufacturer no longer makes this part, and there's no substitute part

  • Panel for Kenmore 86762681 - Part 69873

    Return air drop diagram

    Panel

    Part #69873

    The manufacturer no longer makes this part, and there's no substitute part

  • Liner for Kenmore 86762681 - Part 69139

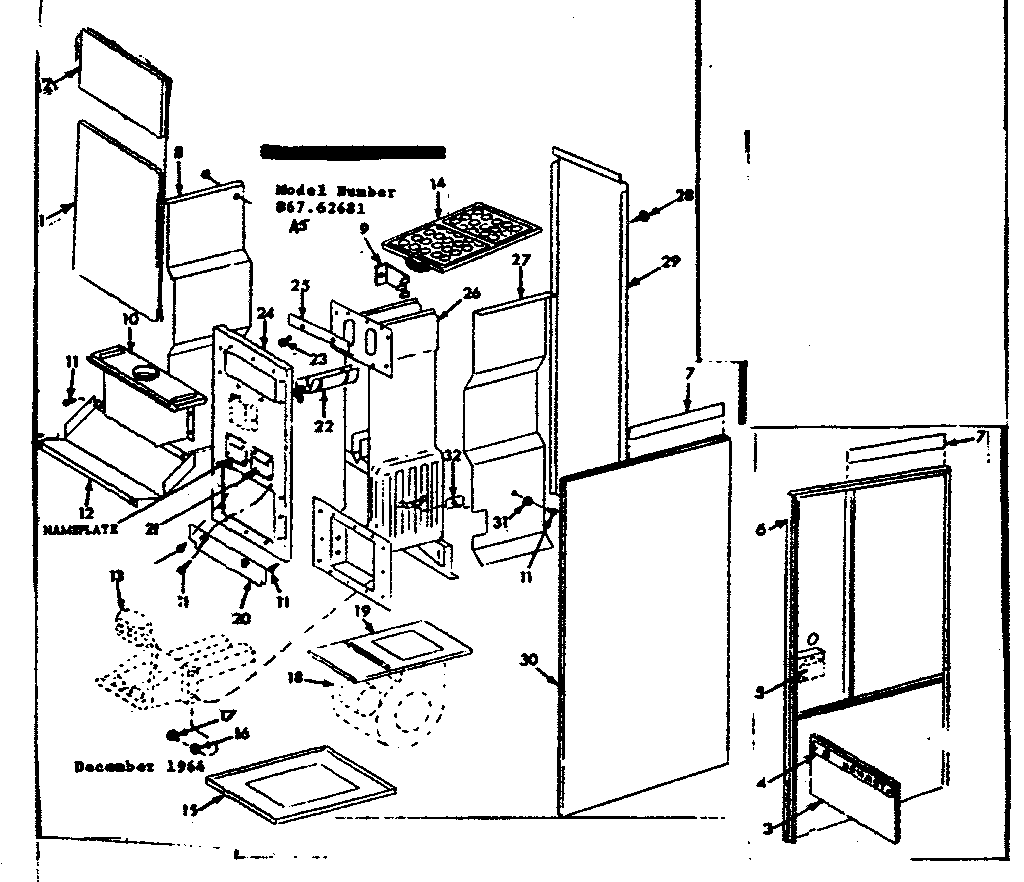

    Furnace assemblies diagram

    Liner

    Part #69139

    The manufacturer no longer makes this part, and there's no substitute part

  • Door Fan for Kenmore 86762681 - Part 69320

    Door Fan

    Part #69320

    The manufacturer no longer makes this part, and there's no substitute part

  • Plenum for Kenmore 86762681 - Part 69291

    Furnace assemblies diagram

    Plenum

    Part #69291

    The manufacturer no longer makes this part, and there's no substitute part

  • Limit Control for Kenmore 86762681 - Part 69287

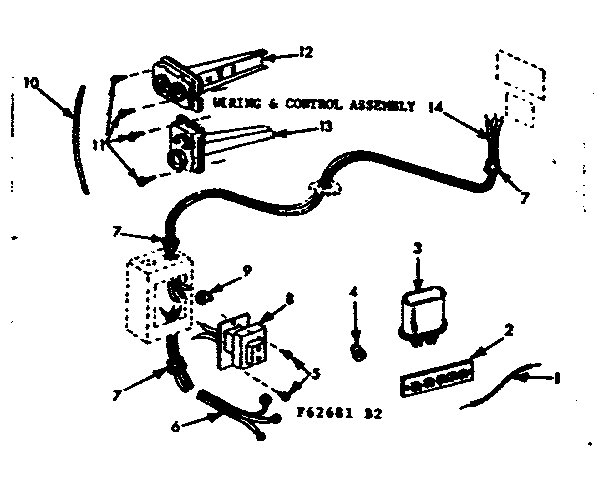

    Wiring & control assembly diagram

    Limit Control

    Part #69287

    The manufacturer no longer makes this part, and there's no substitute part

  • Jumper Wire for Kenmore 86762681 - Part 72299

    Wiring & control assembly diagram

    Jumper Wire

    Part #72299

    The manufacturer no longer makes this part, and there's no substitute part

  • Bushing Wire for Kenmore 86762681 - Part 61450

    Wiring & control assembly diagram

    Bushing Wire

    Part #61450

    The manufacturer no longer makes this part, and there's no substitute part

  • Washer for Kenmore 86762681 - Part 122158

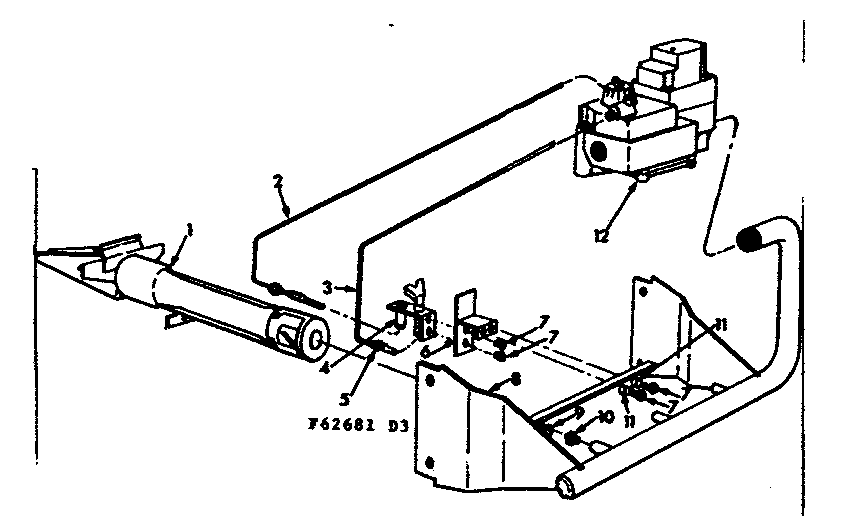

    Burner and manifold assembly diagram

    Washer

    Part #122158

    The manufacturer no longer makes this part, and there's no substitute part
