Magic Chef
Countertop Microwave

Model # CM46F-8P-02 Official Magic Chef microwave

Here are the diagrams and repair parts for Official Magic Chef CM46F-8P-02 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

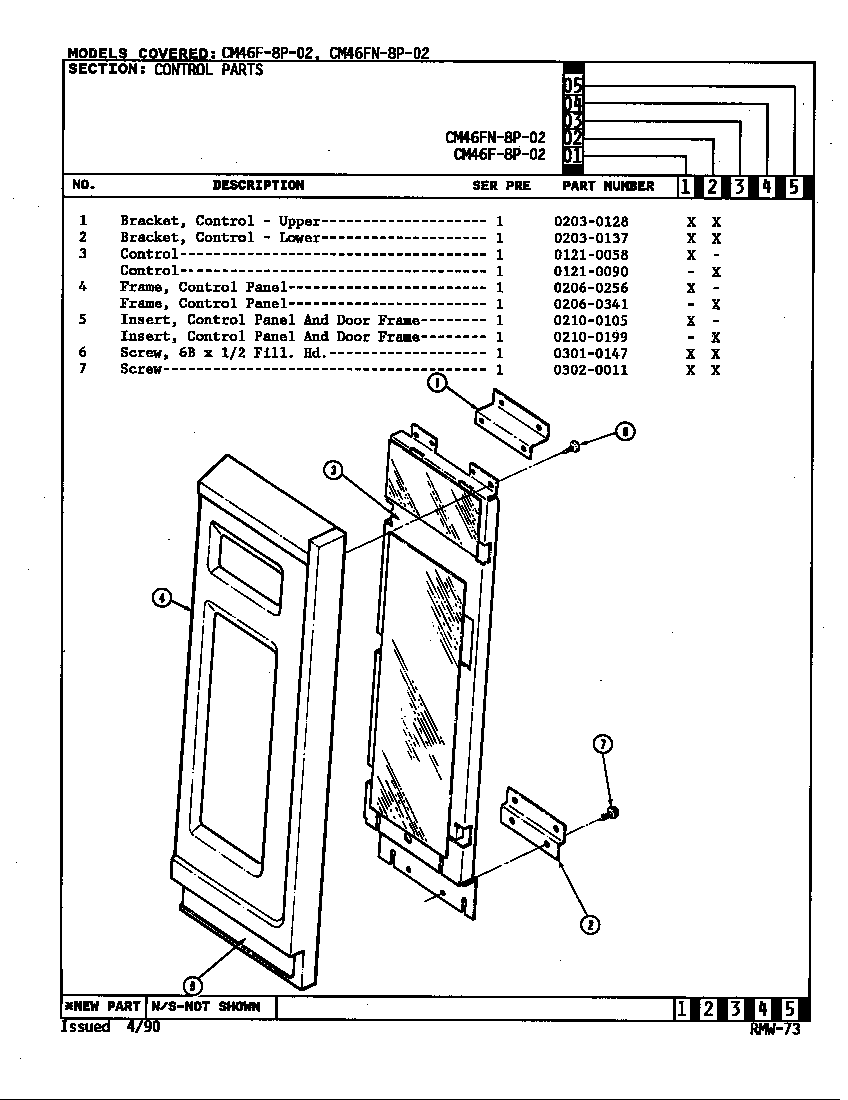

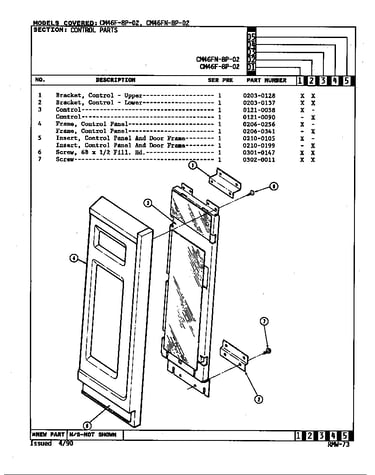

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Light Bulb 01060024
#23

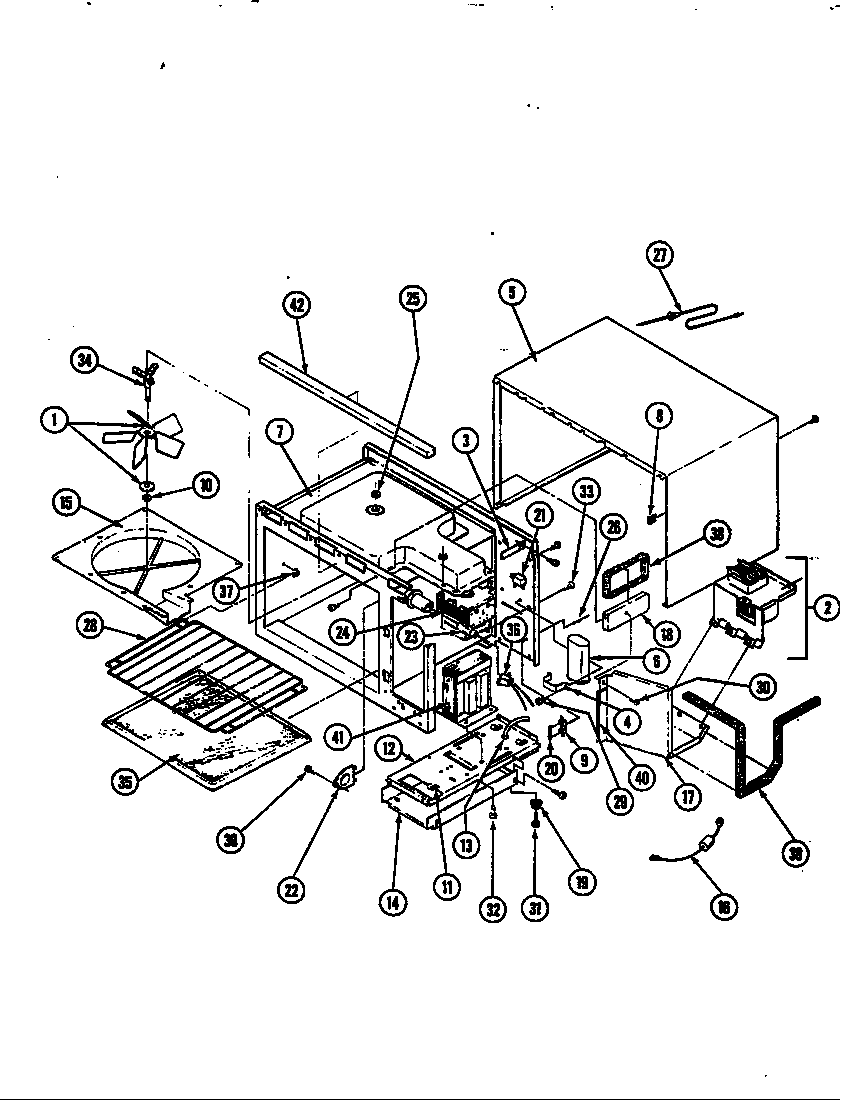

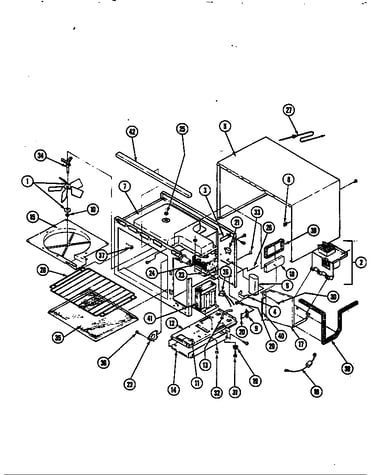

Base & cavity diagram

Light bulb

Part #01060024

Replaced by #WPA3167501

?
Manufacturer substitution
This part replaces 01060024. Substitute parts can look different from the original.
$30.98 |
14% OFF Phone Price : $35.98
In Stock
Screw 03010135
#14

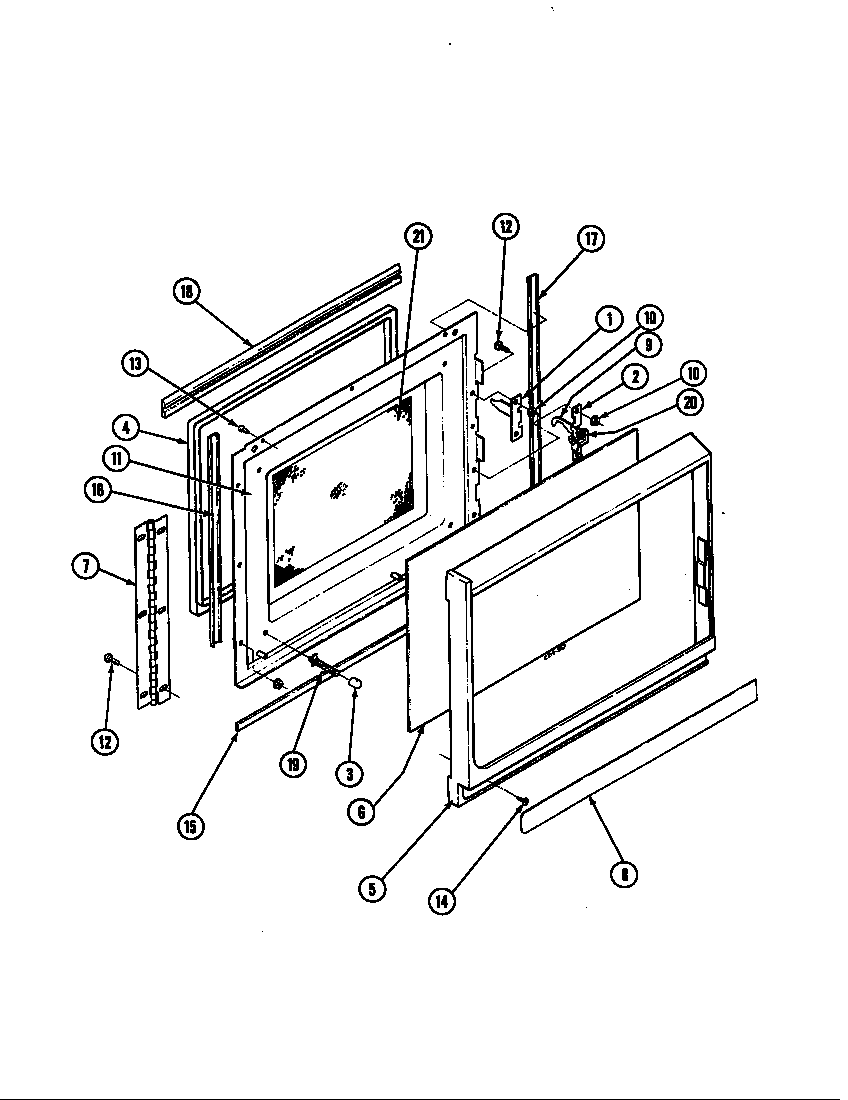

Door diagram

Screw

Part #03010135

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 03010135. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Rivet Pop 03060002
#26A

Base & cavity diagram

Rivet pop

Part #03060002

Replaced by #WP210720

?
Manufacturer substitution
This part replaces 03060002. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Door Latch 02190056
#9

Door diagram

Door latch

Part #02190056

The manufacturer no longer makes this part, and there's no substitute part

Bushing 03140008
#3

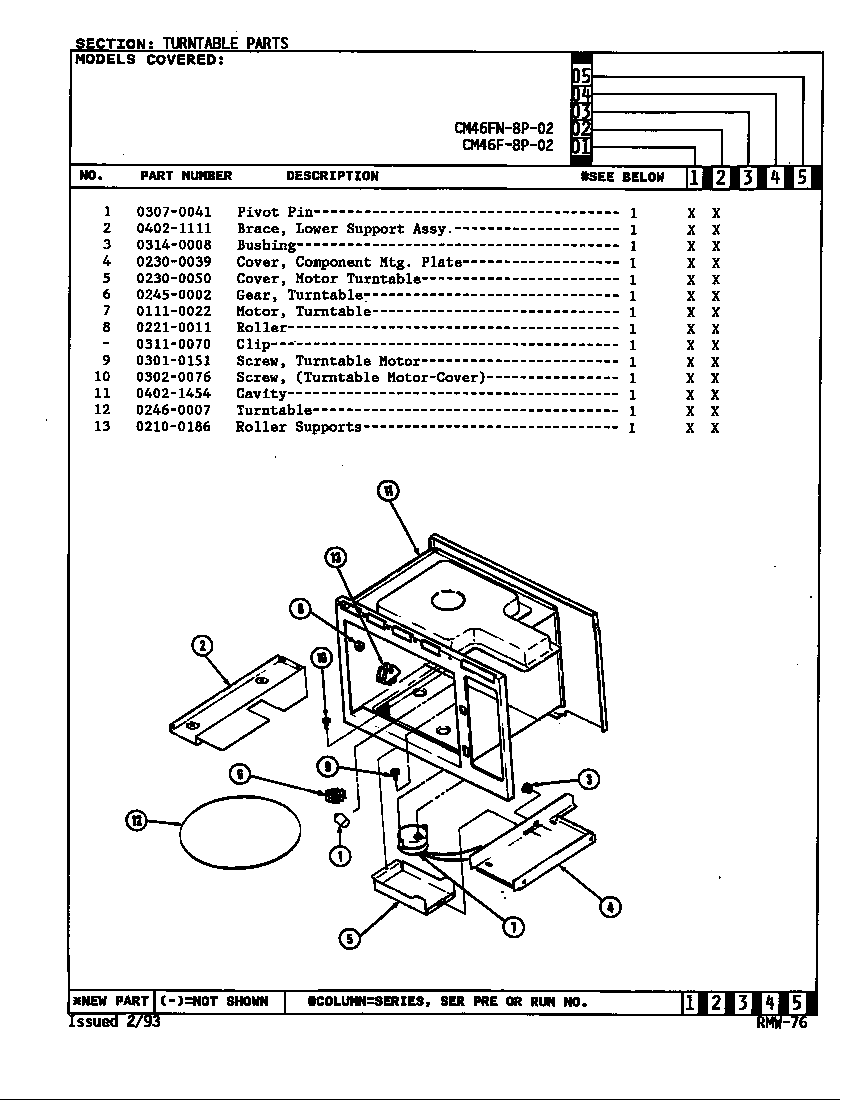

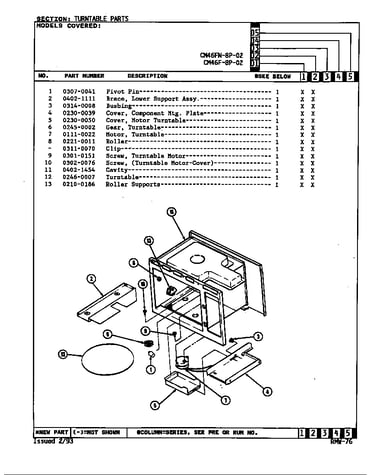

Turntable diagram

Bushing

Part #03140008

The manufacturer no longer makes this part, and there's no substitute part

Stirrer Cover 02300045
#15

Base & cavity diagram

Stirrer cover

Part #02300045

The manufacturer no longer makes this part, and there's no substitute part

Bumper 02100135
#3

Door diagram

Bumper

Part #02100135

The manufacturer no longer makes this part, and there's no substitute part

"switch, Seco" 01140038
#10

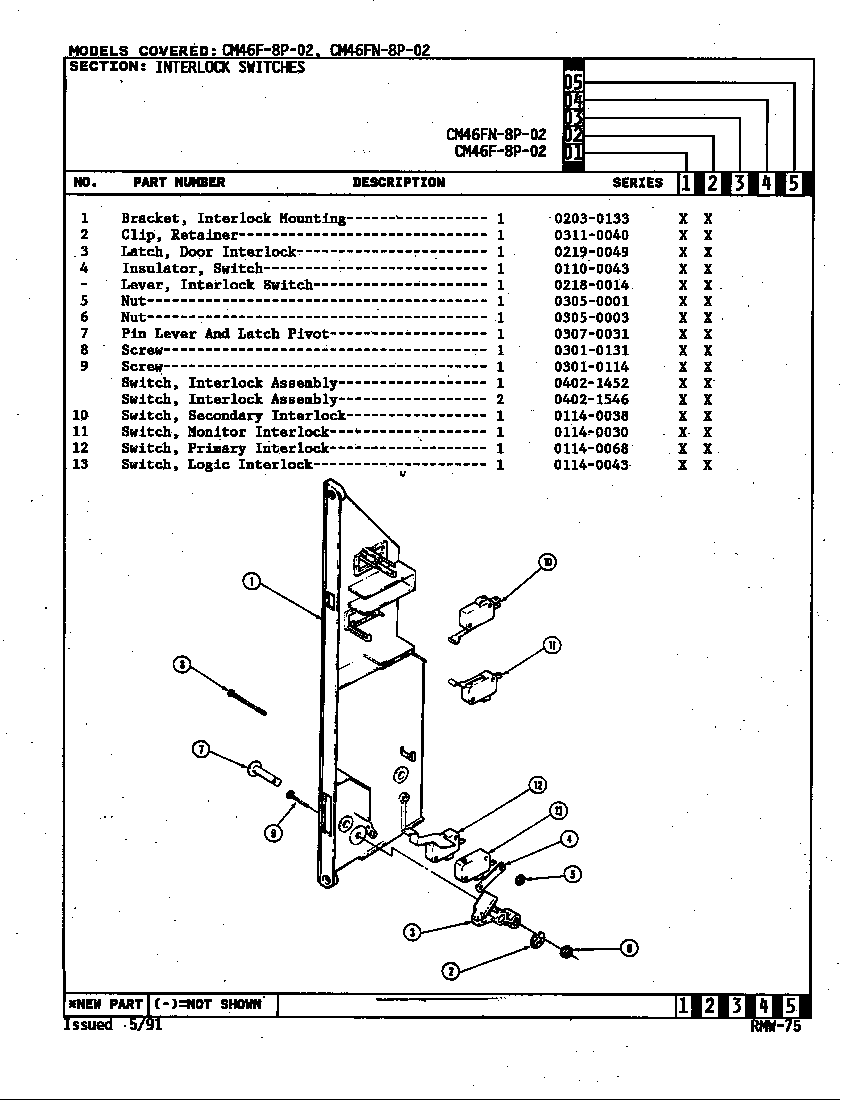

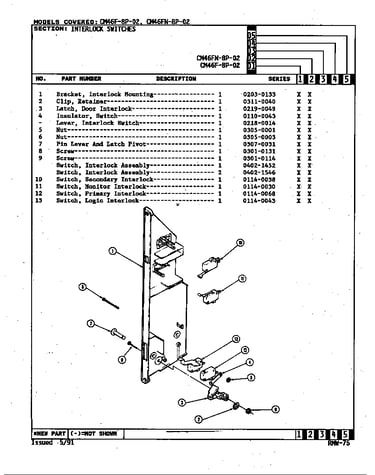

Interlock switches diagram

"switch, seco"

Part #01140038

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Clip 03110027
#8

Base & cavity diagram

Cabinet clip

Part #03110027

The manufacturer no longer makes this part, and there's no substitute part

Brace 04021111
#2

Turntable diagram

Brace

Part #04021111

The manufacturer no longer makes this part, and there's no substitute part
