Model # MMV5219FW3 Official Maytag microwave/hood combo

Here are the diagrams and repair parts for Official Maytag MMV5219FW3 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

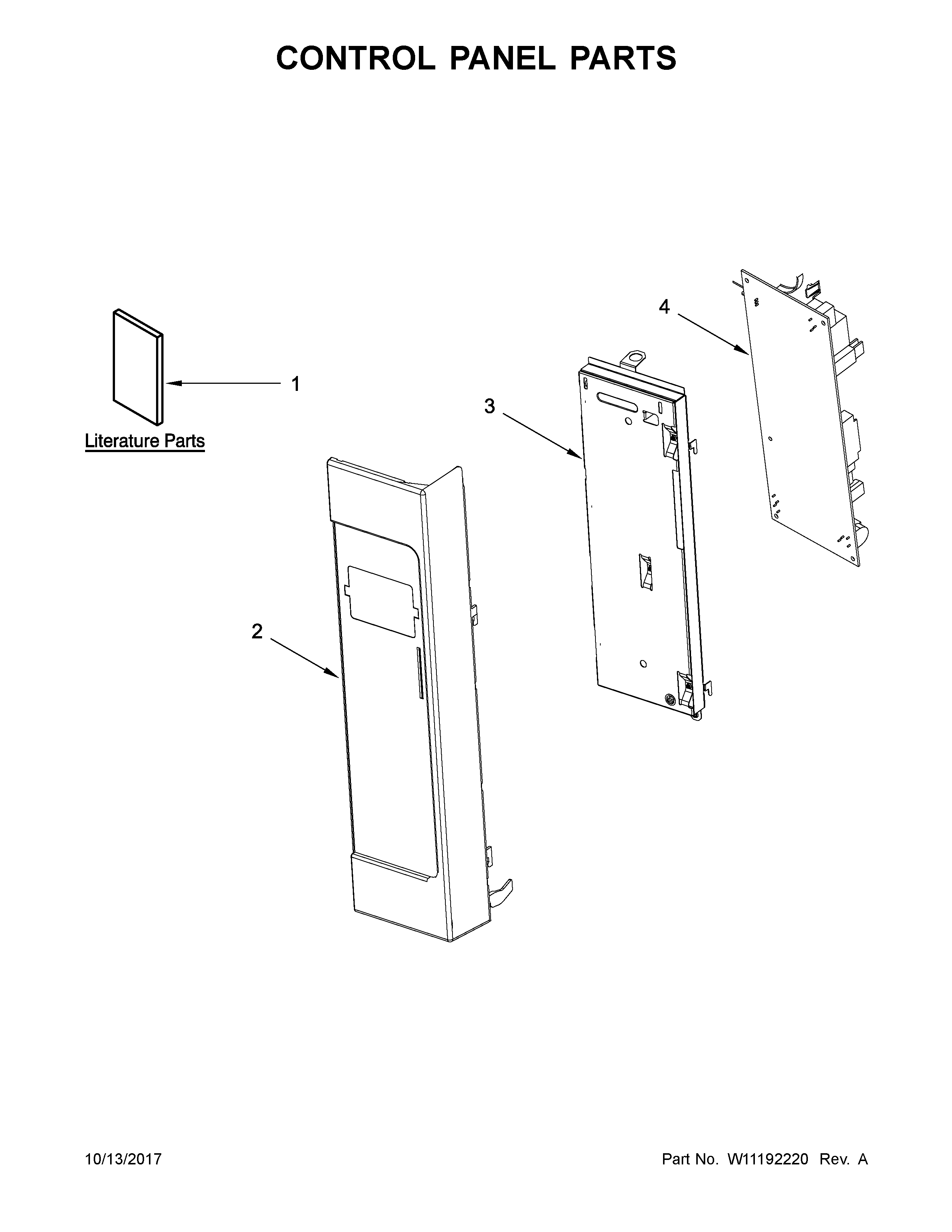

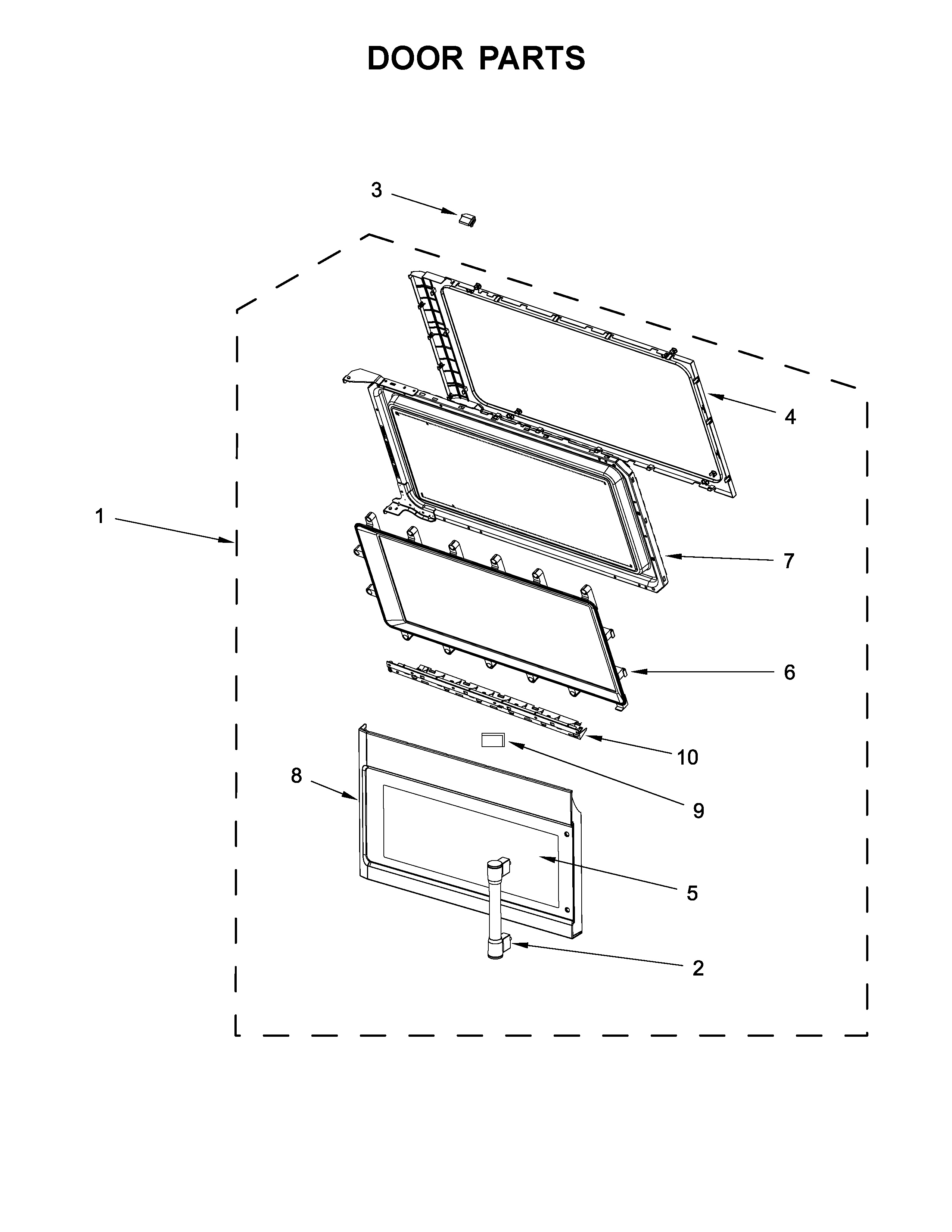

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 102 parts  |

Microwave/hood Light Bulb 8206232
#2

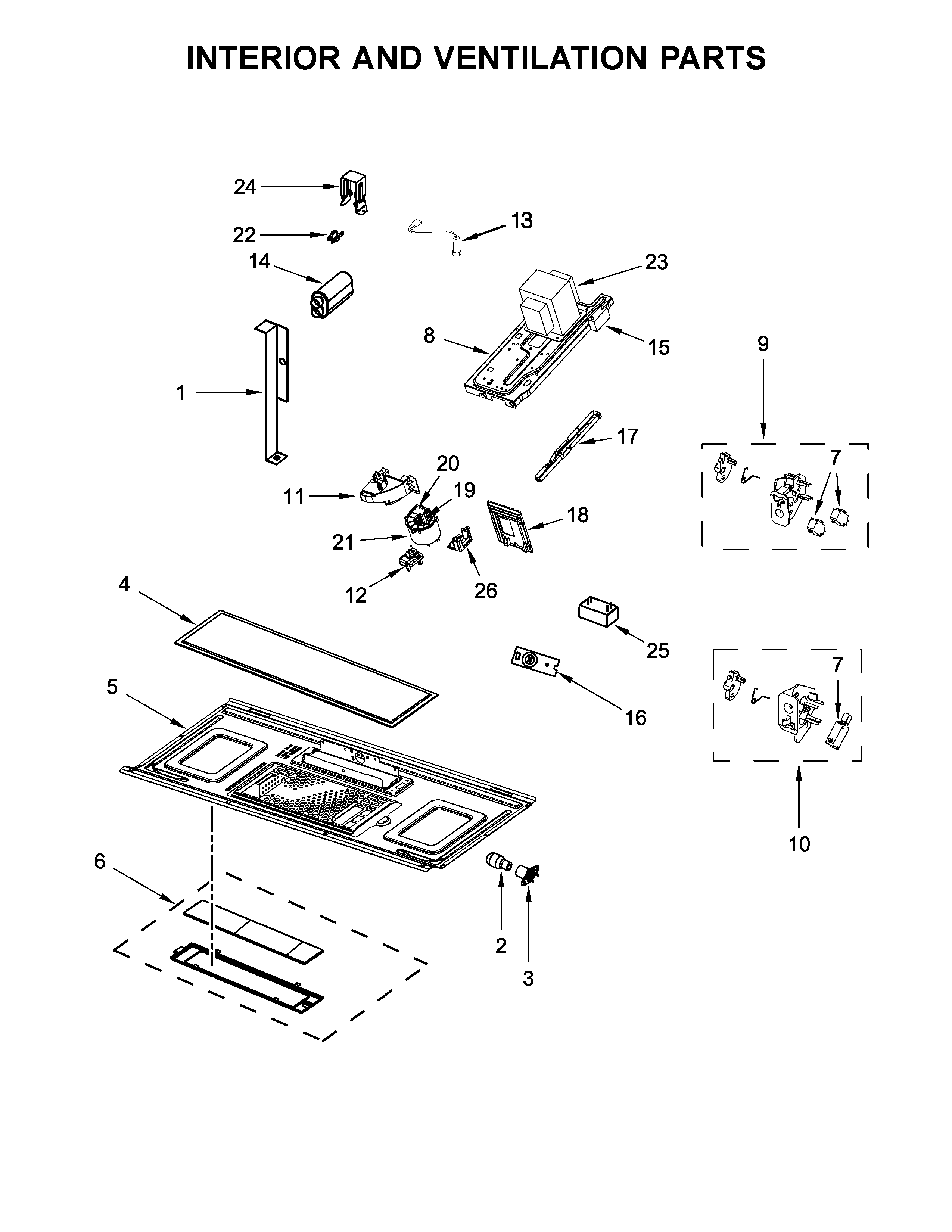

Interior and ventilation parts diagram

Microwave/hood light bulb

Part #8206232

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
BEST SELLER
$9.30
42% OFF MSRP : $16.00
Back Order
Lamp Assembly 4393681
#3

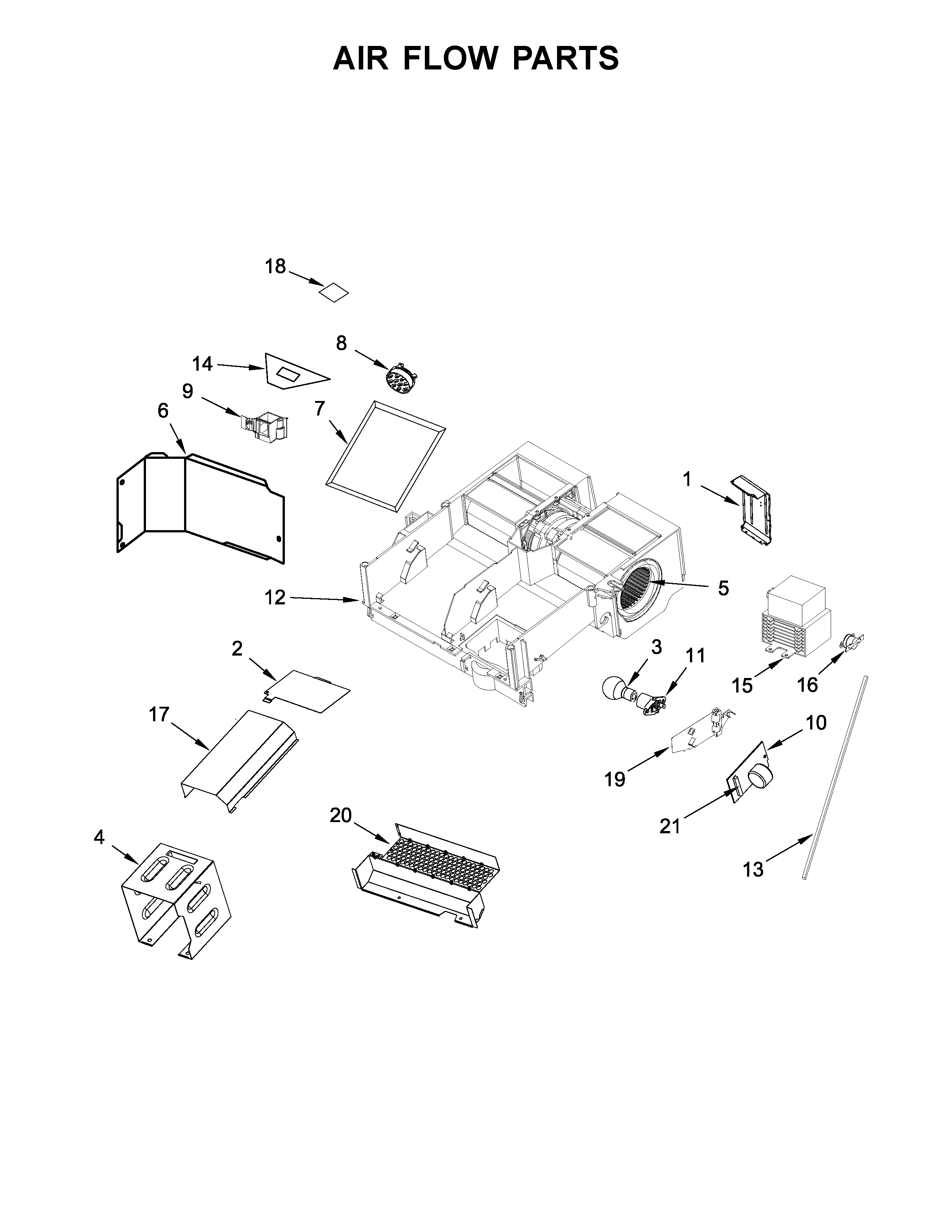

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$9.30
42% OFF MSRP : $16.00
Back Order
Microwave Waveguide Cover W10533497
#1

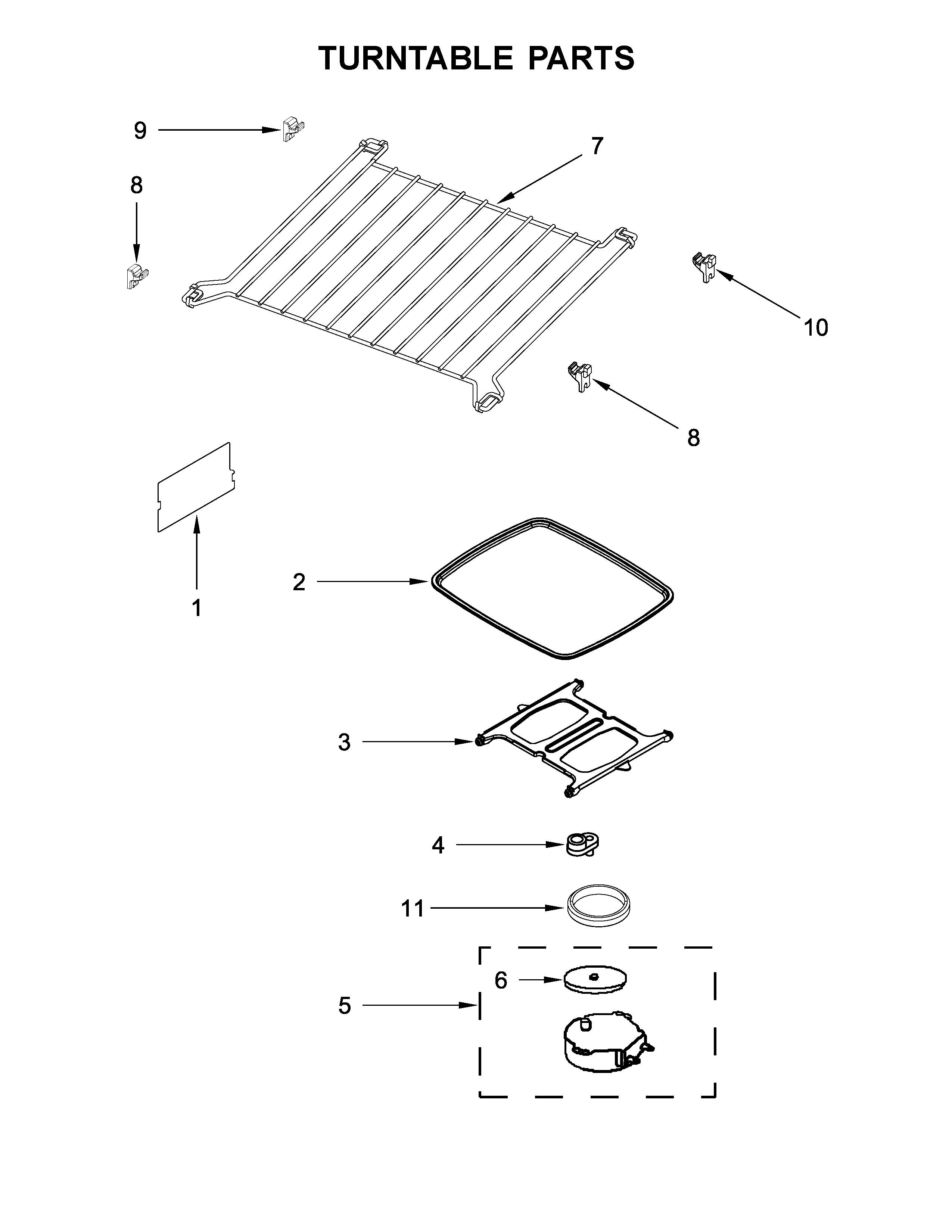

Turntable parts diagram

Microwave waveguide cover

Part #W10533497

BEST SELLER
This item is not returnable
$16.25
11% OFF Phone Price : $18.25
In Stock
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$35.32
12% OFF Phone Price : $40.32
In Stock
Filter 8206230
#7

Air flow parts diagram

Filter

Part #8206230

Replaced by #8206230A

?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
BEST SELLER
$11.14
15% OFF Phone Price : $13.14
In Stock
Microwave Installation Template W10190018
#NI

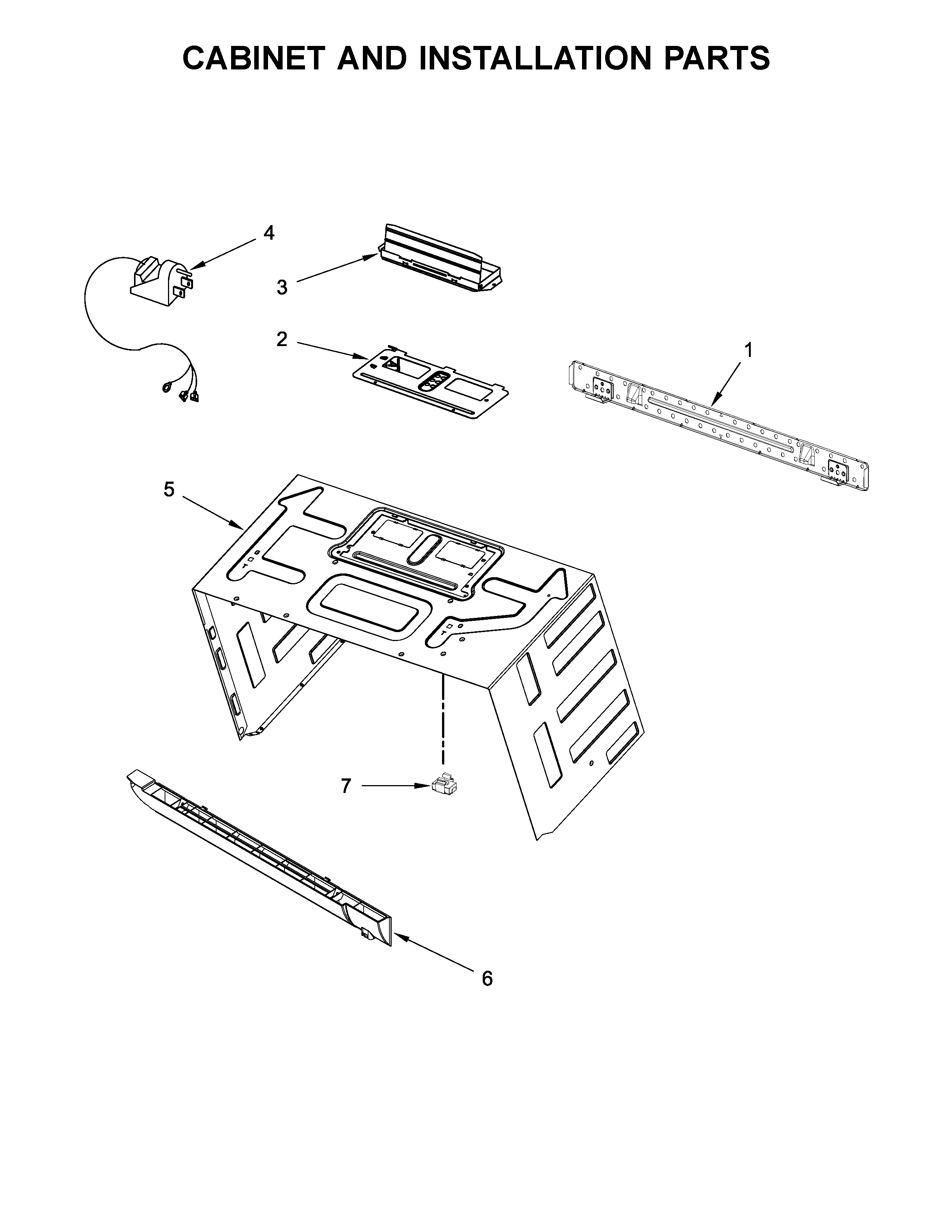

Cabinet and installation parts diagram

Microwave installation template

Part #W10190018

BEST SELLER
This item is not returnable
$6.39
14% OFF Phone Price : $7.39
In Stock
Microwave Installation Hardware Kit (replaces W10811221) W10821385
#NI

Cabinet and installation parts diagram

Microwave installation hardware kit (replaces w10811221)

Part #W10821385

BEST SELLER
$50.70
23% OFF MSRP : $66.00
In Stock
Microwave Mounting Nut (replaces W10110862) W10596040
#7

Cabinet and installation parts diagram

Microwave mounting nut (replaces w10110862)

Part #W10596040

This item is not returnable
$4.99
17% OFF Phone Price : $5.99
In Stock
Microwave Vent Grille (black) (replaces W10533491) W10701697
#6A

Cabinet and installation parts diagram

Microwave vent grille (black) (replaces w10533491)

Part #W10701697

$42.34
12% OFF MSRP : $48.00
In Stock
Microwave Glass Cooking Tray W10289909
#2

Turntable parts diagram

Microwave glass cooking tray

Part #W10289909

$56.06
10% OFF MSRP : $62.00
In Stock
