Sharp AF-R55BX air conditioner

Sharp AF-R55BX air conditioner Parts

Here are the diagrams and repair parts for Sharp AF-R55BX air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for AF-R55BX Air Conditioner

  • Spacer for Sharp AF-R55BX - Part PSPA-A085JBE0

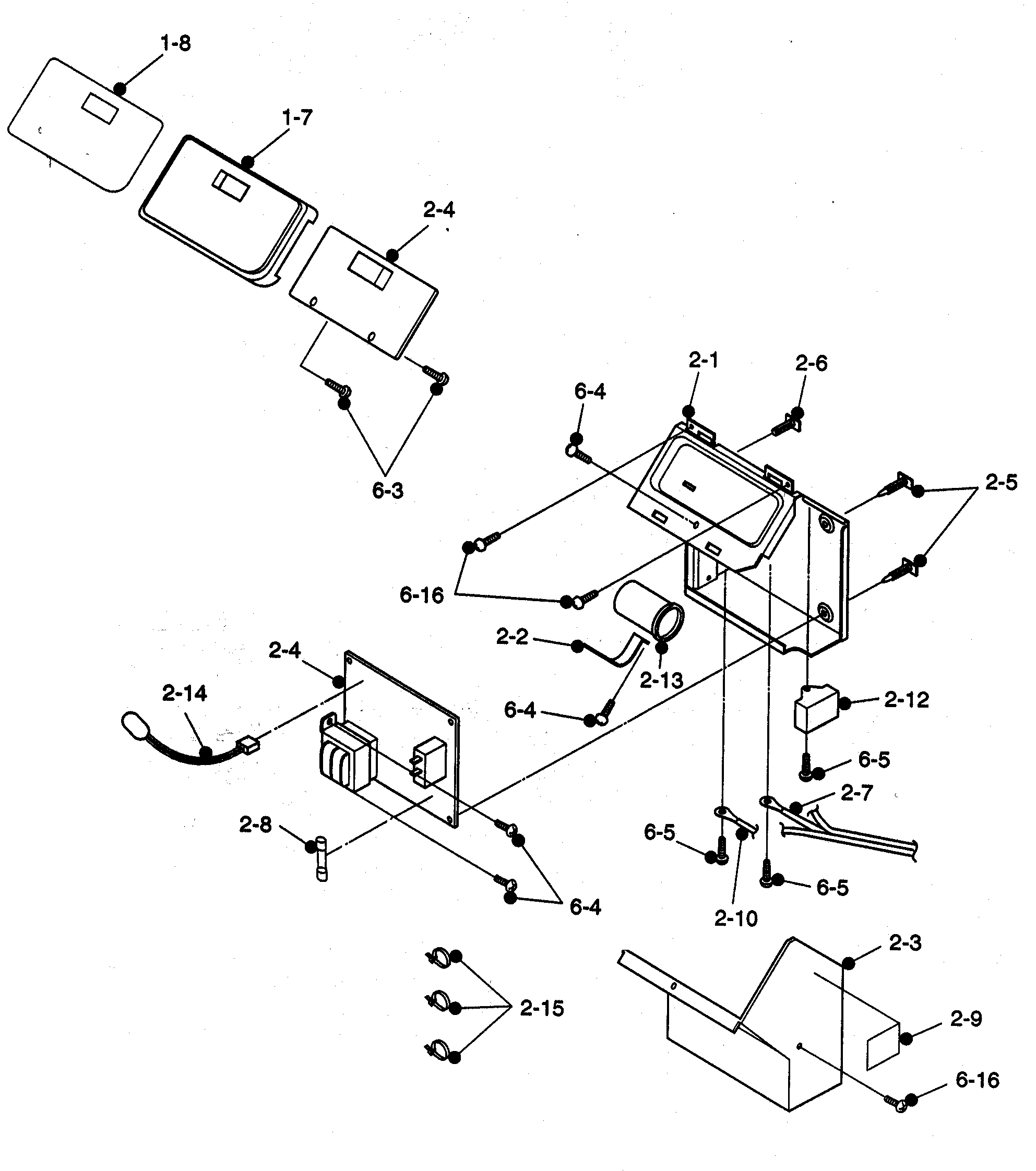

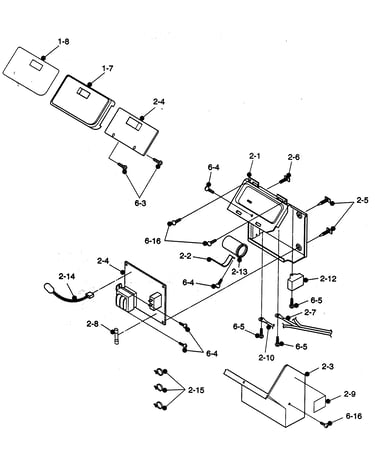

    Control box parts diagram

    Spacer

    Part #PSPA-A085JBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Compressor Cushion for Sharp AF-R55BX - Part GLEG-A089JBE0

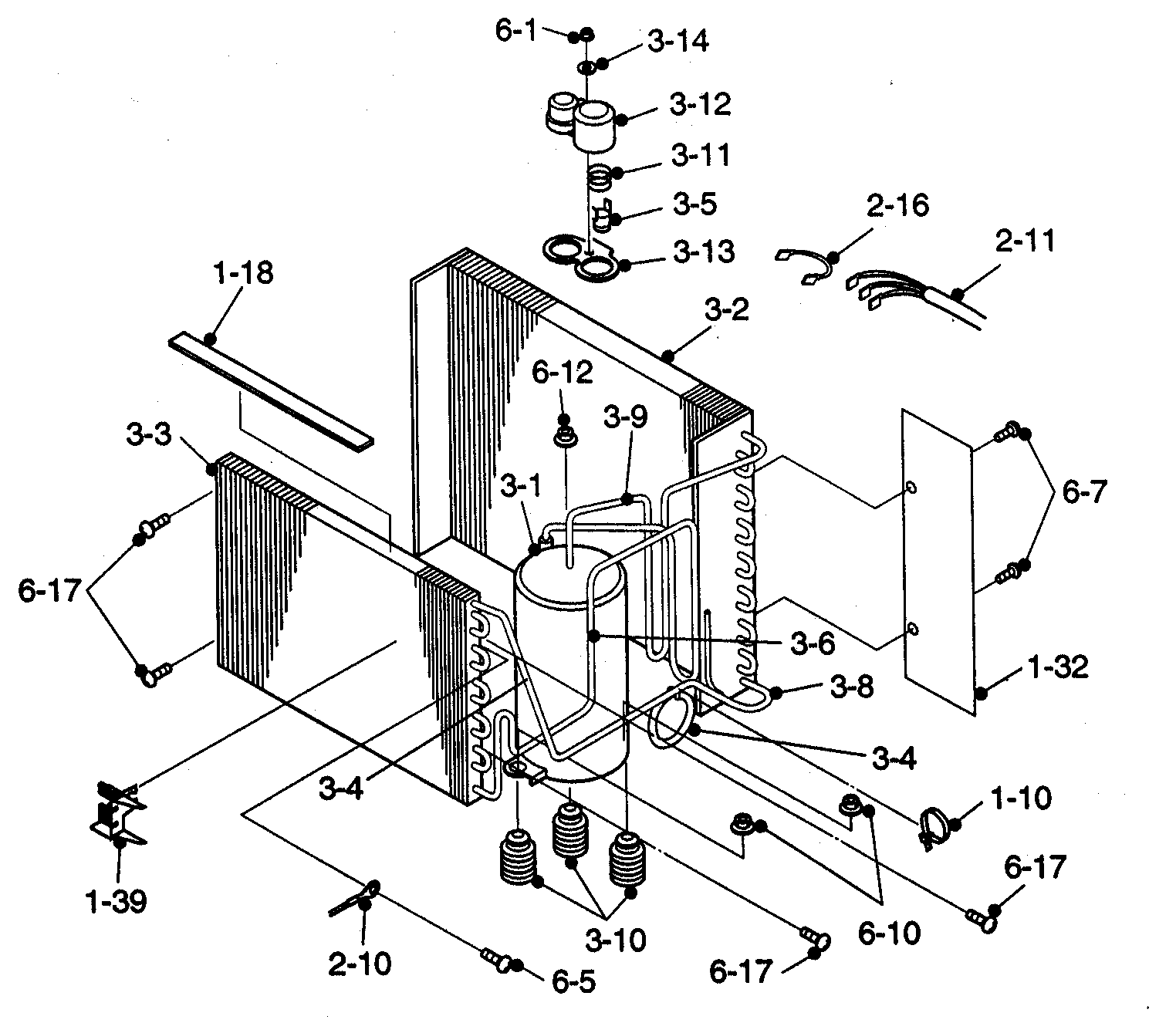

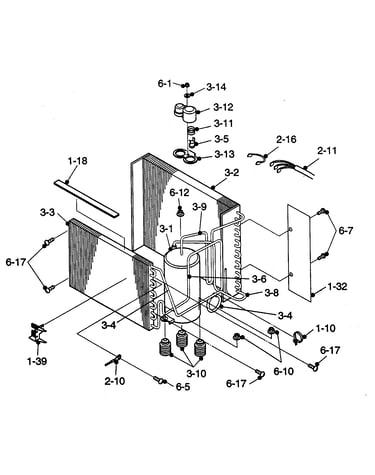

    Cycle parts diagram

    Compressor Cushion

    Part #GLEG-A089JBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Spring for Sharp AF-R55BX - Part MSPR-A133JBE0

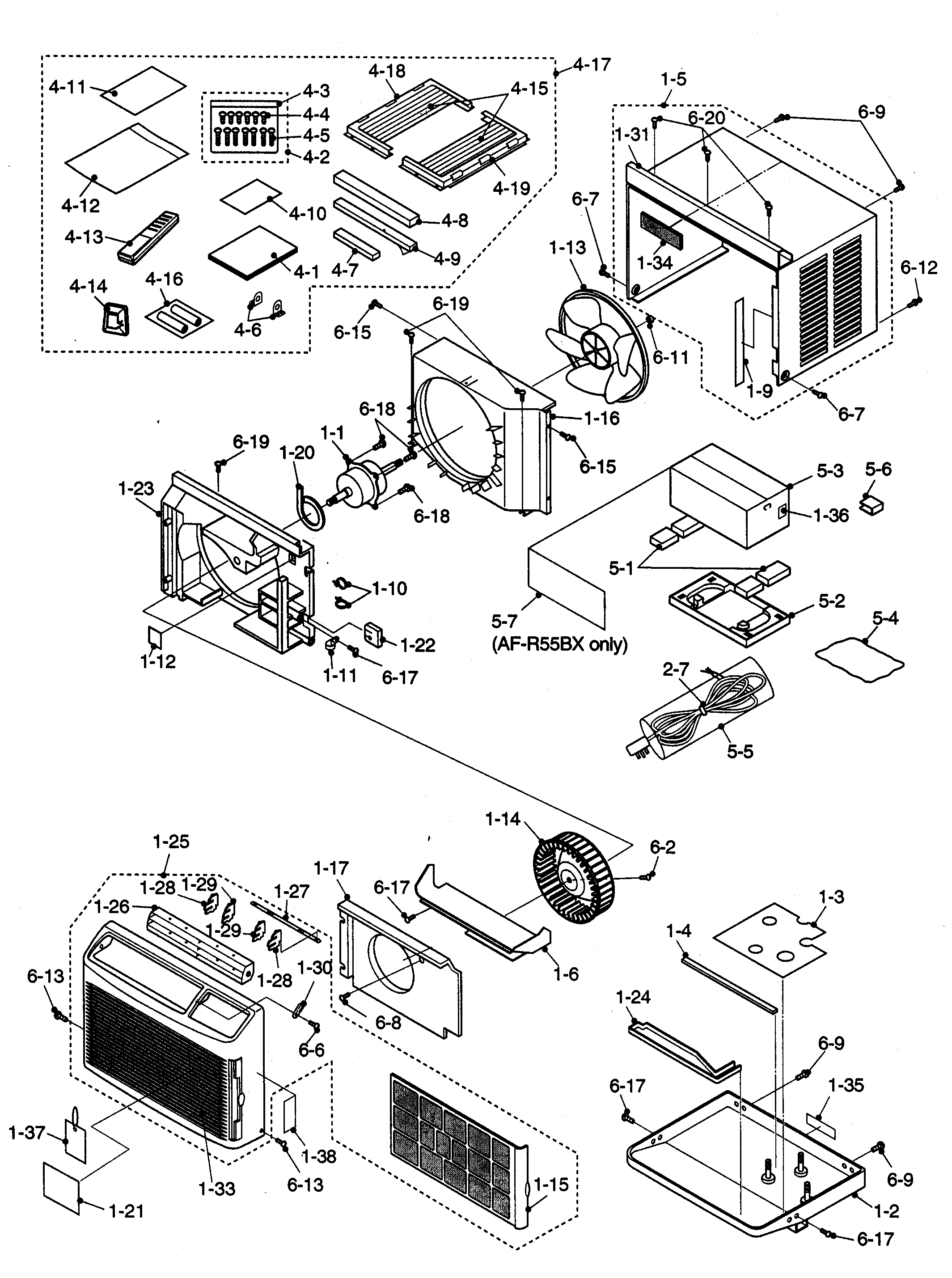

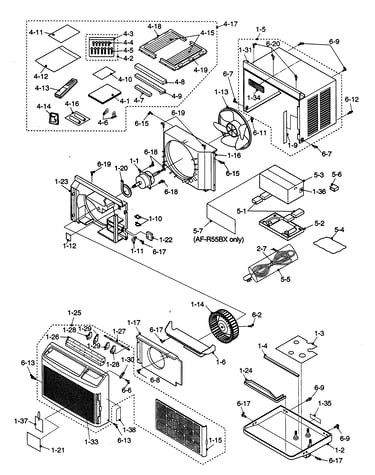

    Cabinet parts diagram

    Spring

    Part #MSPR-A133JBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Insulator for Sharp AF-R55BX - Part PSEL-B845JBE0

    Cabinet parts diagram

    Insulator

    Part #PSEL-B845JBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Spacer for Sharp AF-R55BX - Part PSPA-A084JBE0

    Control box parts diagram

    Spacer

    Part #PSPA-A084JBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Lead Wire for Sharp AF-R55BX - Part QW-VZC561JBE0

    Control box parts diagram

    Lead Wire

    Part #QW-VZC561JBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Plate for Sharp AF-R55BX - Part DPLT-A038JBW0

    Control box parts diagram

    Plate

    Part #DPLT-A038JBW0

    The manufacturer no longer makes this part, and there's no substitute part

  • Seal for Sharp AF-R55BX - Part PSEL-A969JBE0

    Cycle parts diagram

    Seal

    Part #PSEL-A969JBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Ac Cord for Sharp AF-R55BX - Part QACC-A244JBE0

    Cabinet parts diagram

    Ac Cord

    Part #QACC-A244JBE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Angle Assembly for Sharp AF-R55BX - Part DPLT-A056JBWZ

    Control box parts diagram

    Angle Assembly

    Part #DPLT-A056JBWZ

    The manufacturer no longer makes this part, and there's no substitute part
