Model # DCR-SX83/B Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-SX83-B digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

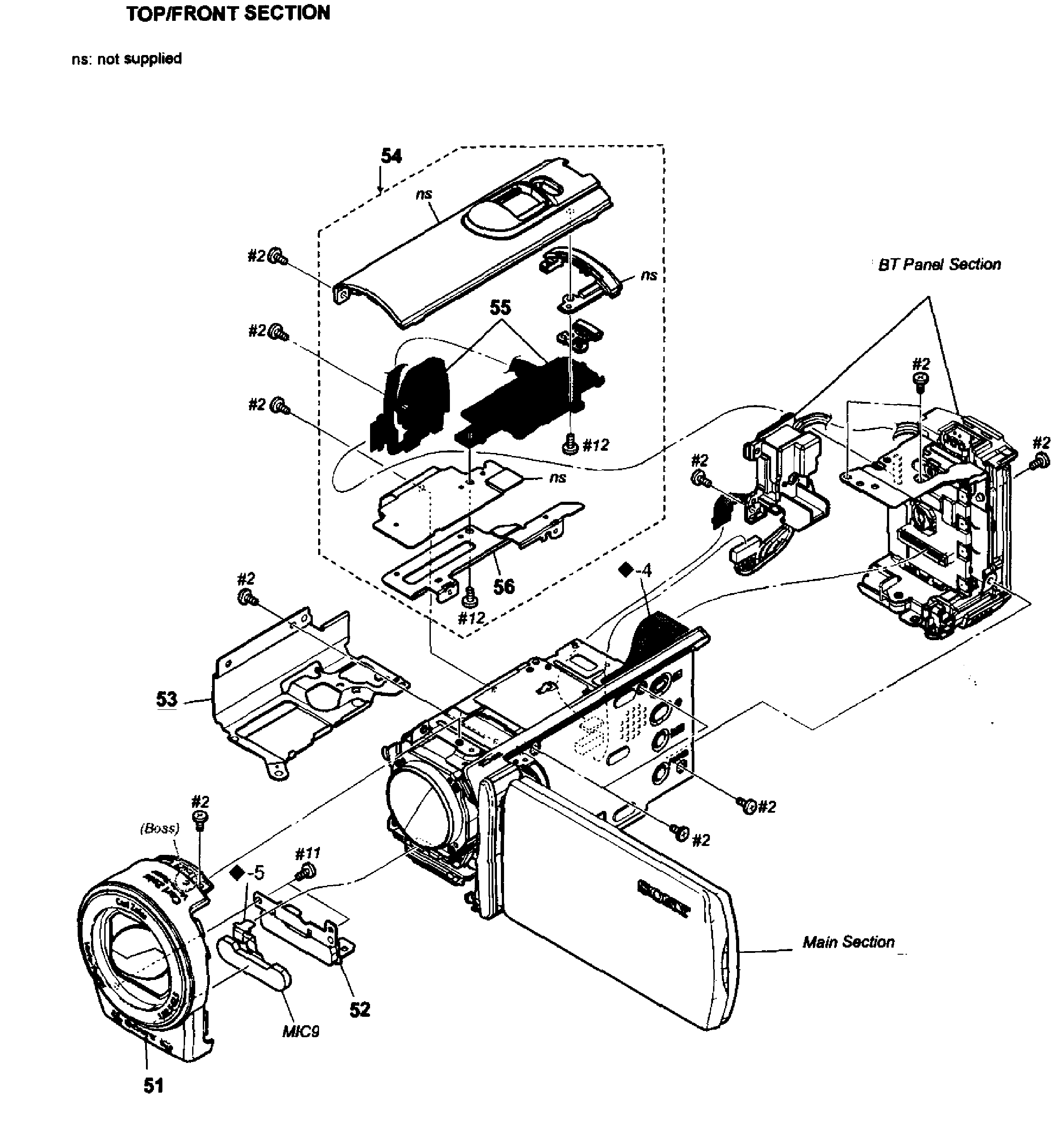

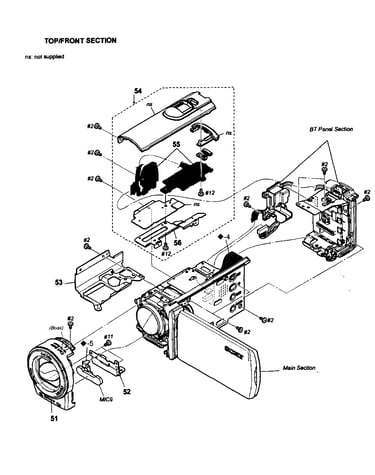

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Jk395 Pcb A1756549A
#203

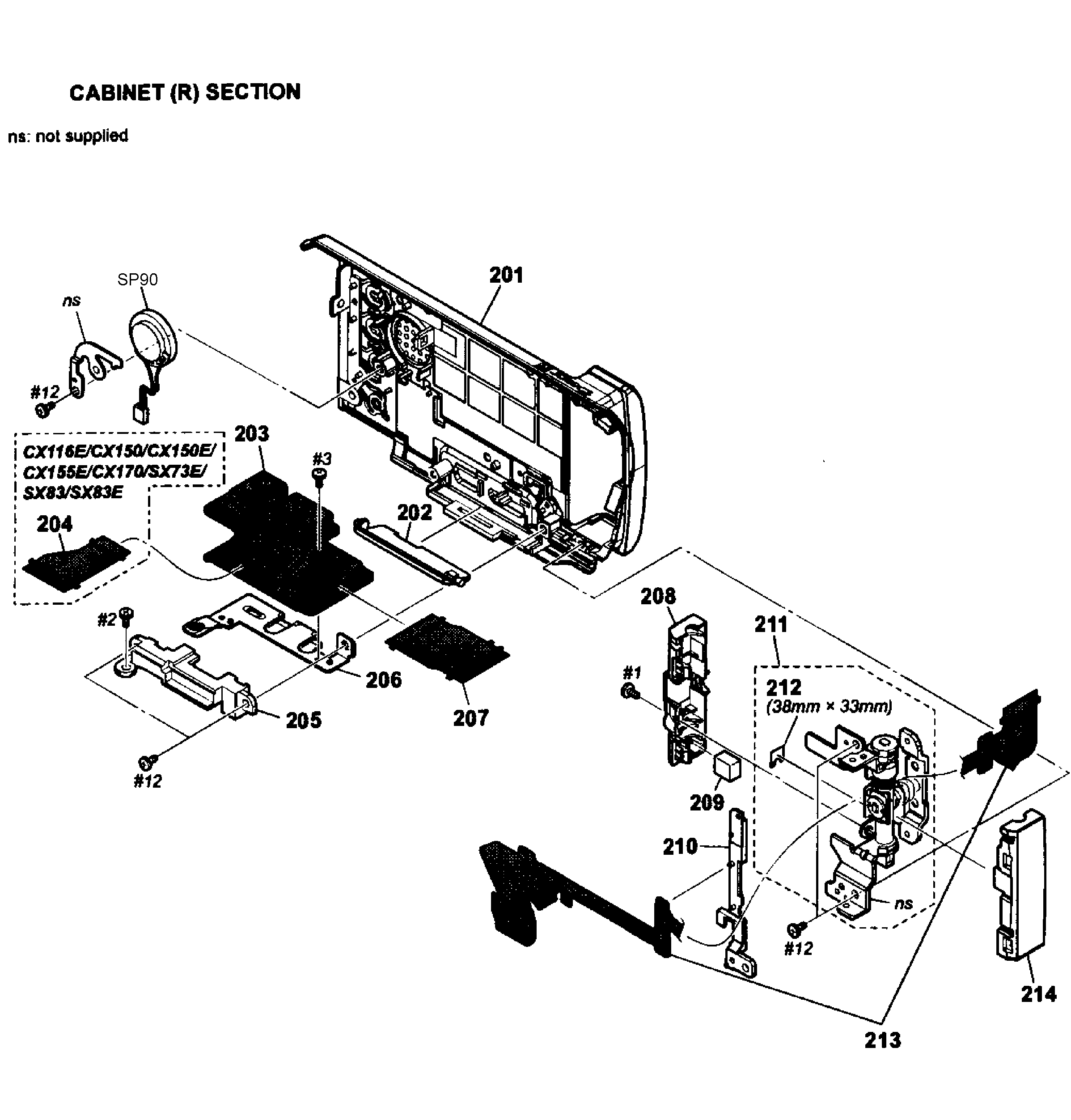

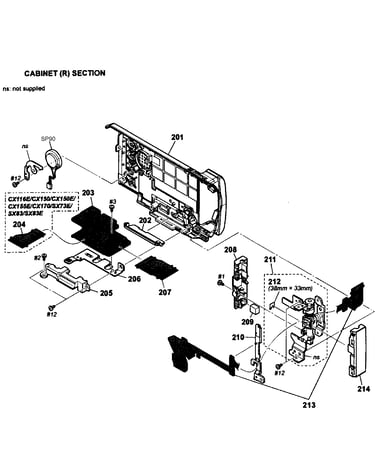

Right assy diagram

Jk395 pcb

Part #A1756549A

$194.36
In Stock
Vc590 Pcb A1757119A
#106

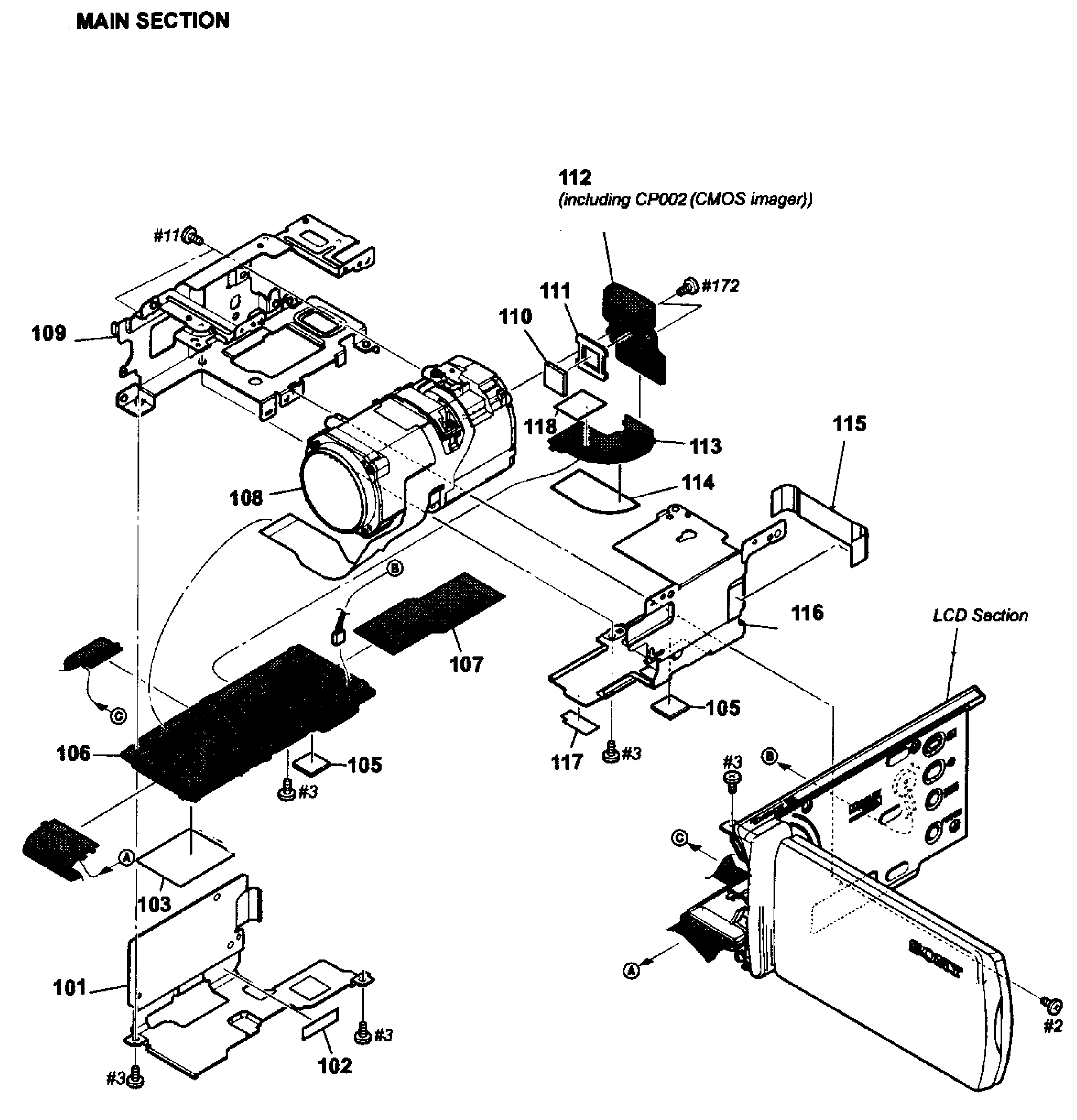

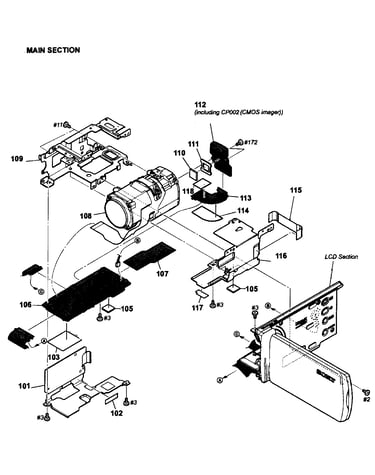

Main assy diagram

Vc590 pcb

Part #A1757119A

$224.57
In Stock
Magnet 147150411
#209

Right assy diagram

Magnet

Part #147150411

$10.31
In Stock
Battery Holder 175661561
#BH73

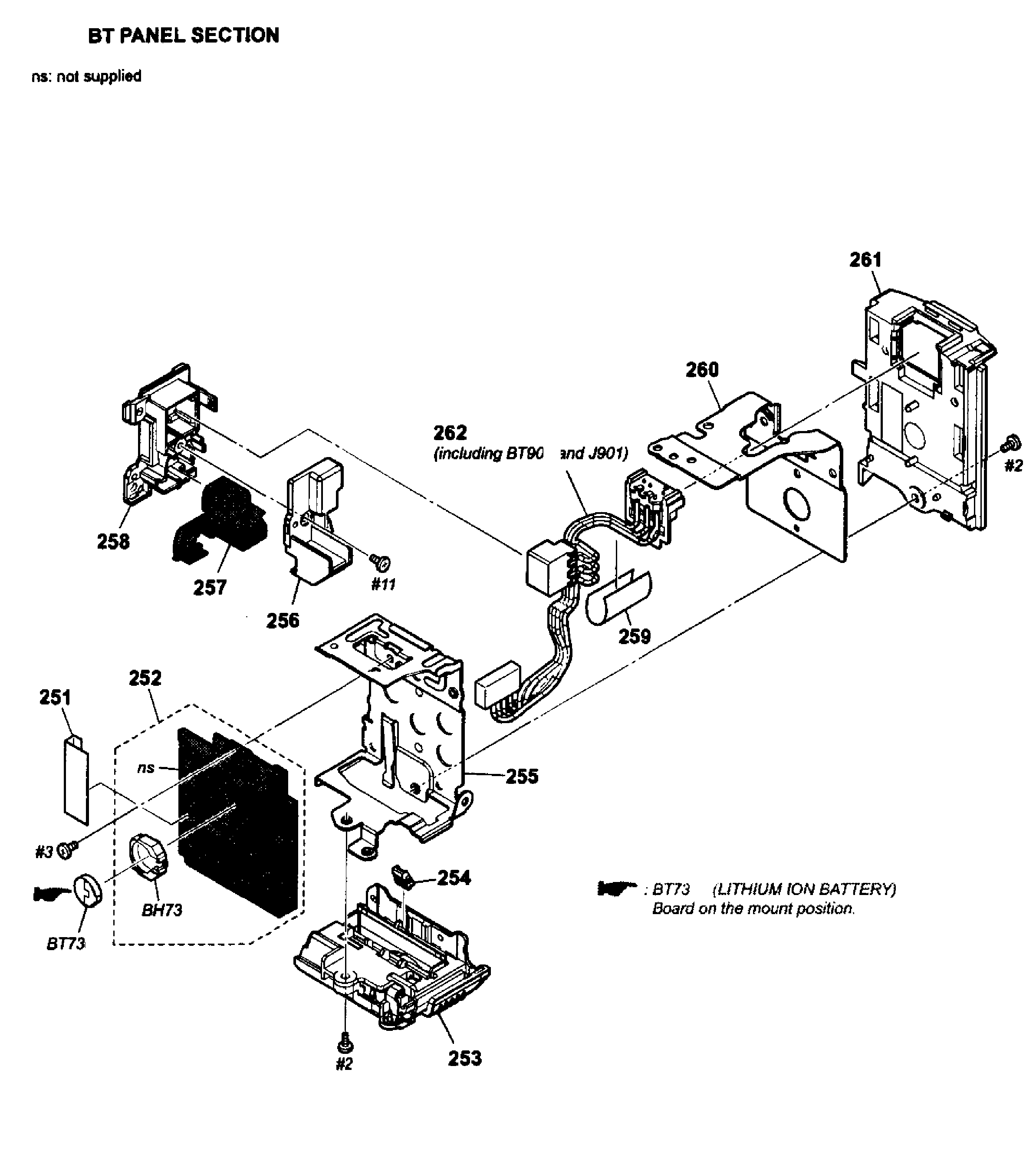

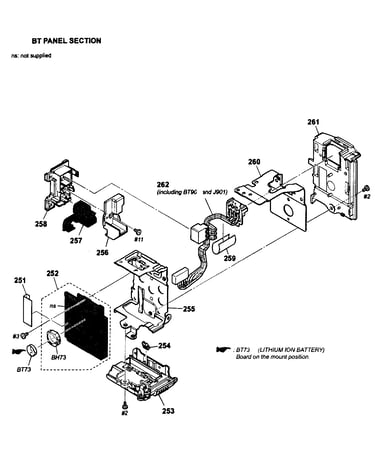

Bt assy diagram

Battery holder

Part #175661561

$22.71
In Stock
Cabinet P A1757229A
#151

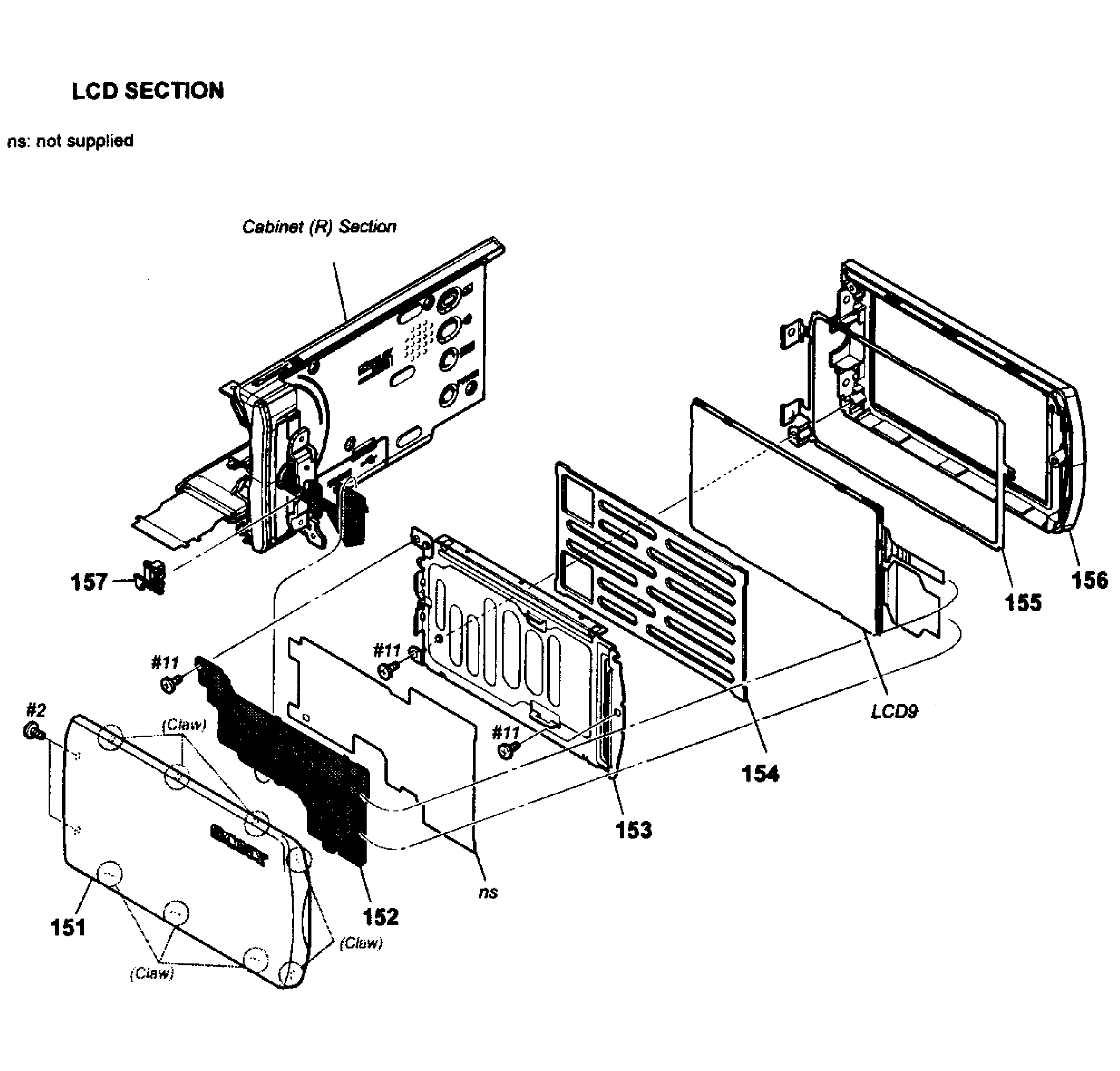

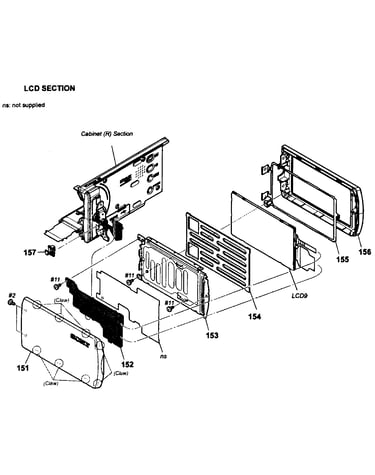

Lcd assy diagram

Cabinet p

Part #A1757229A

$38.40
In Stock
A/v Cable 183464611
#NI

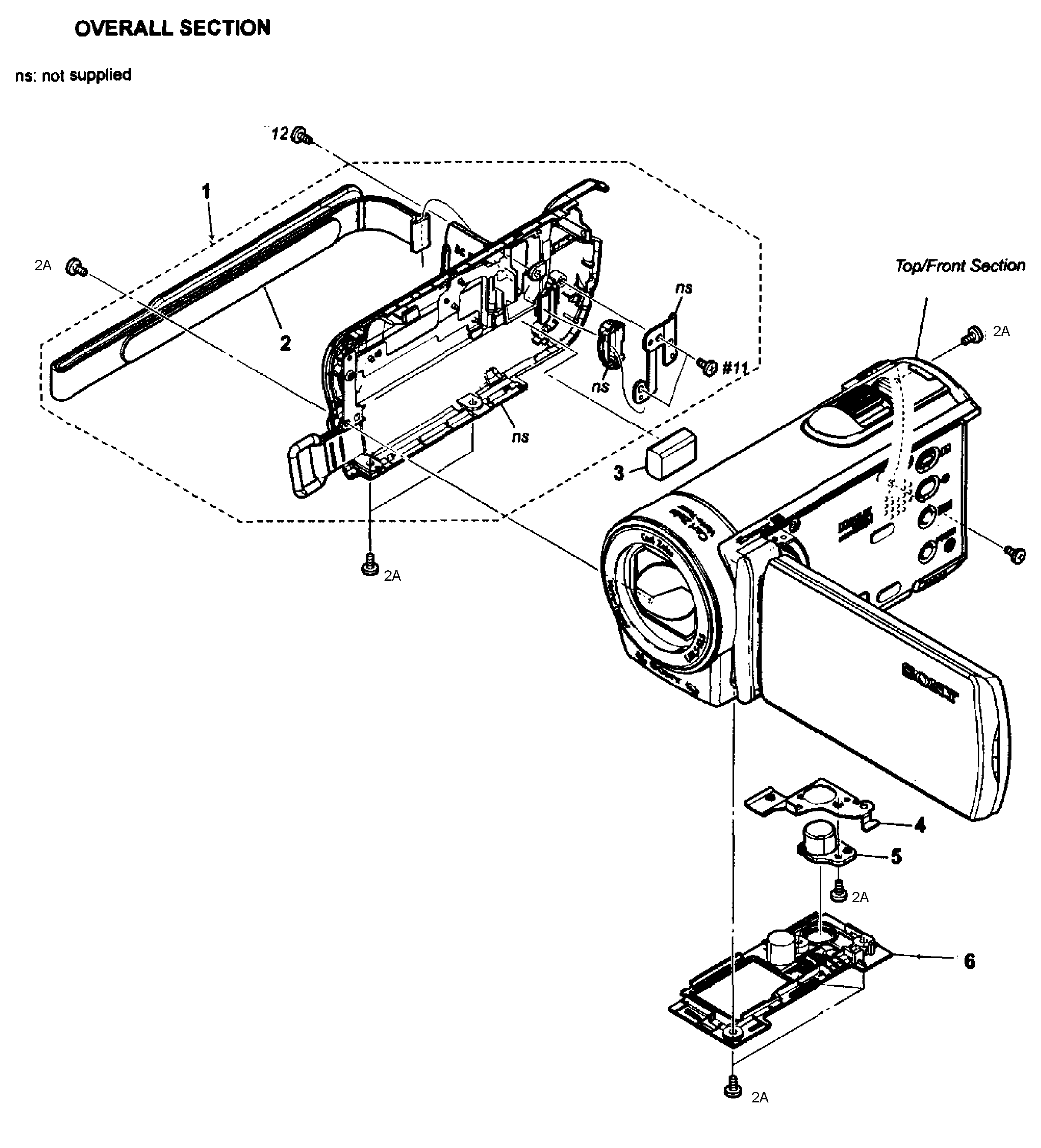

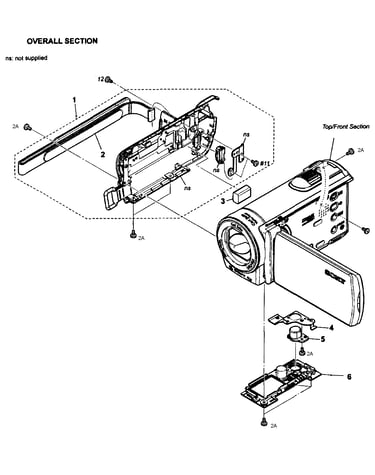

Overall assy diagram

A/v cable

Part #183464611

$43.03
In Stock
Screw 308020421
Screw

Part #308020421

This item is not returnable
$3.15
In Stock
Screw 307889011
Screw

Part #307889011

The manufacturer no longer makes this part, and there's no substitute part

Usb Cable 183599331
#NI

Overall assy diagram

Usb cable

Part #183599331

The manufacturer no longer makes this part, and there's no substitute part

Device, Lens Lsv1181a 884886501
#108

Main assy diagram

Device, lens lsv1181a

Part #884886501

The manufacturer no longer makes this part, and there's no substitute part
