Makita
Drill/Driver

Model # 8412DWG Official Makita drill

Here are the diagrams and repair parts for Official Makita 8412DWG drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Leaf Spring 232053-3
Leaf spring

Part #232053-3

The manufacturer no longer makes this part, and there's no substitute part

Screw 911143-2
#3

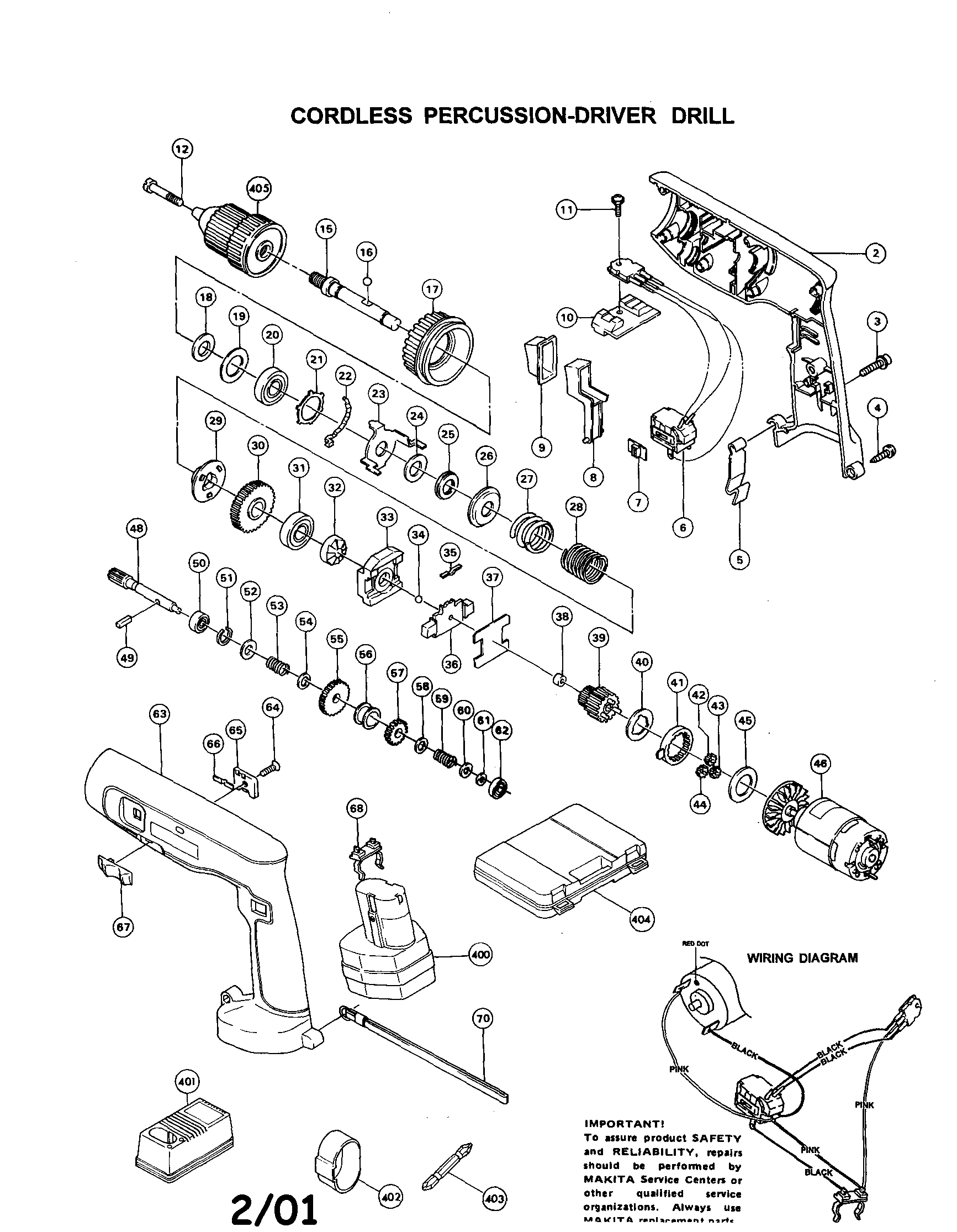

Cordless percussion-driver drill diagram

Screw

Part #911143-2

The manufacturer no longer makes this part, and there's no substitute part

Bearing 211031-6
#50

Cordless percussion-driver drill diagram

Bearing

Part #211031-6

The manufacturer no longer makes this part, and there's no substitute part

Bearing 214019-5
#38

Cordless percussion-driver drill diagram

Bearing

Part #214019-5

The manufacturer no longer makes this part, and there's no substitute part

Washer 253777-8
#52

Cordless percussion-driver drill diagram

Washer

Part #253777-8

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 211101-1
#31

Cordless percussion-driver drill diagram

Ball bearing

Part #211101-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 251425-3
#12

Cordless percussion-driver drill diagram

Screw

Part #251425-3

The manufacturer no longer makes this part, and there's no substitute part

Washer Frn 253794-8
#45

Cordless percussion-driver drill diagram

Washer frn

Part #253794-8

The manufacturer no longer makes this part, and there's no substitute part

Steel Ball 216011-7
#16

Cordless percussion-driver drill diagram

Steel ball

Part #216011-7

The manufacturer no longer makes this part, and there's no substitute part

Set Plate 343579-1
#5

Cordless percussion-driver drill diagram

Set plate

Part #343579-1

The manufacturer no longer makes this part, and there's no substitute part
