Model # 183332010 Official Kenmore 55 gas water heater

Here are the diagrams and repair parts for Official Kenmore 183332010 55 gas water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Insulation 013231
#10A

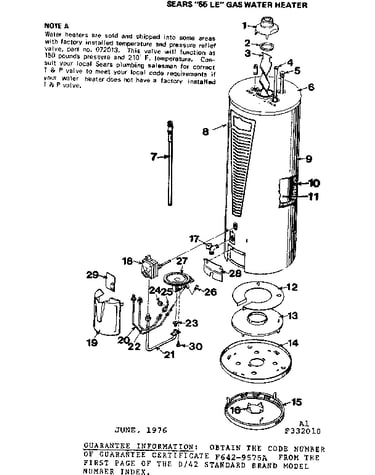

Replacement parts diagram

Insulation

Part #013231

Replaced by #0130231

?
Manufacturer substitution
This part replaces 013231. Substitute parts can look different from the original.
This item is not returnable
$6.90
In Stock
F/183.330812 026007
#4A

Replacement parts diagram

F/183.330812

Part #026007

The manufacturer no longer makes this part, and there's no substitute part

F/183.332010 Only 119820-52
#1A

Replacement parts diagram

F/183.332010 only

Part #119820-52

The manufacturer no longer makes this part, and there's no substitute part

Drain 017009
#17

Replacement parts diagram

Drain

Part #017009

The manufacturer no longer makes this part, and there's no substitute part

F/183.332210 & 183.333210 008030
#13B

Replacement parts diagram

F/183.332210 & 183.333210

Part #008030

The manufacturer no longer makes this part, and there's no substitute part

F/183.332210 & 183.333210 119485-52
#1B

Replacement parts diagram

F/183.332210 & 183.333210

Part #119485-52

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 018172
#18

Replacement parts diagram

Thermostat

Part #018172

The manufacturer no longer makes this part, and there's no substitute part

F/183.333210 Only 119877-52
#6C

Replacement parts diagram

F/183.333210 only

Part #119877-52

The manufacturer no longer makes this part, and there's no substitute part

F/183.331410 183.331210 183.331510 F145-0091
#25

Replacement parts diagram

F/183.331410 183.331210 183.331510

Part #F145-0091

The manufacturer no longer makes this part, and there's no substitute part

F/183.332010 Only 008031
#13A

Replacement parts diagram

F/183.332010 only

Part #008031

The manufacturer no longer makes this part, and there's no substitute part
