Weatherking
Air Handler

Model # WHGME-200ZL Official Weatherking air handler

Here are the diagrams and repair parts for Official Weatherking WHGME-200ZL air handler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

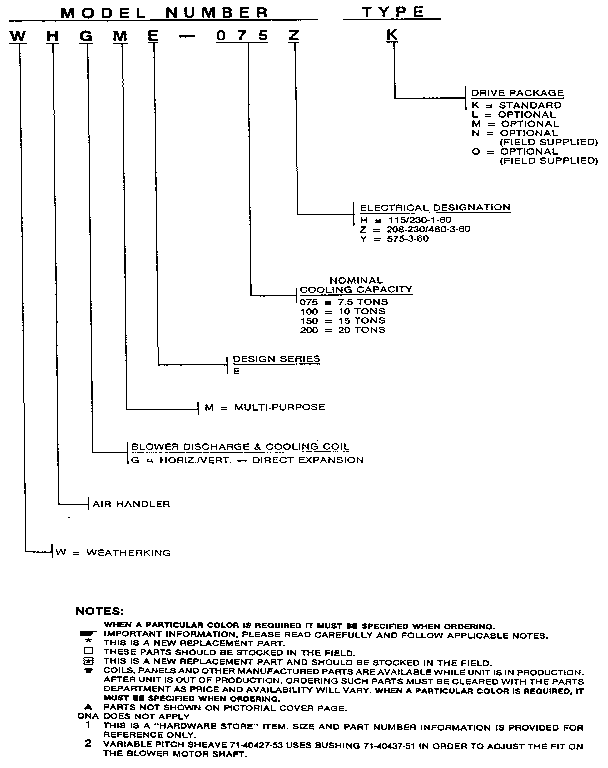

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Drain Pan Ay AS-90213-01
#37

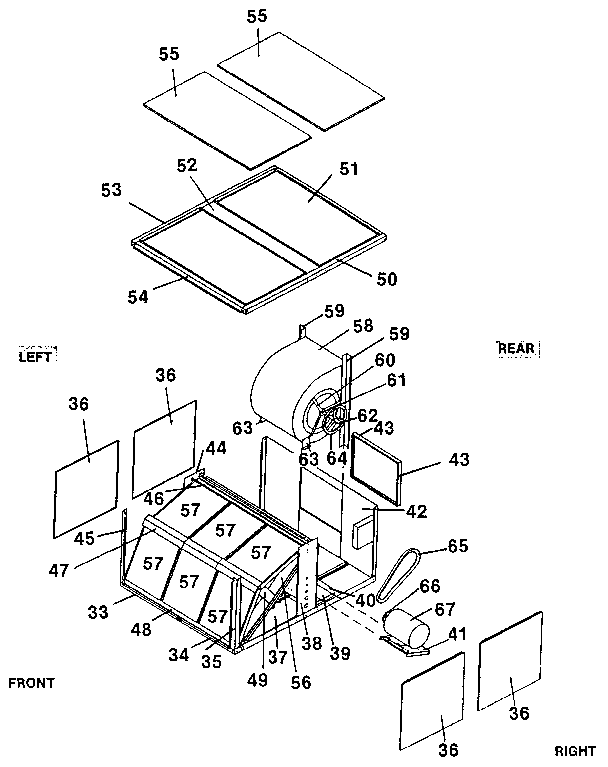

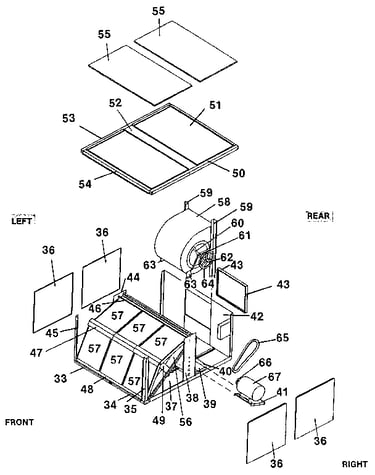

Functional replacement parts diagram

Drain pan ay

Part #AS-90213-01

$571.63
In Stock
Blower Housing 70-42291-02
#58

Functional replacement parts diagram

Blower housing

Part #70-42291-02

$970.22
In Stock
Bearing Bracket 70-42284-04
#60

Functional replacement parts diagram

Bearing bracket

Part #70-42284-04

$95.69
In Stock
Bearing 70-21037-05
#61

Functional replacement parts diagram

Bearing

Part #70-21037-05

$175.06
In Stock
Key AE-72654-01
#62A

Functional replacement parts diagram

Key

Part #AE-72654-01

$7.60
In Stock
Blwr Spprt A AE-90210-01
#63

Functional replacement parts diagram

Blwr spprt a

Part #AE-90210-01

$16.11
In Stock
Top Pan Frt AS-90389-09
#54

Functional replacement parts diagram

Top pan frt

Part #AS-90389-09

The manufacturer no longer makes this part, and there's no substitute part

Expnsn Valve 61-42347-01
#56A

Functional replacement parts diagram

Expnsn valve

Part #61-42347-01

The manufacturer no longer makes this part, and there's no substitute part

Floor Assembly - Left AS-90289-02
#33

Functional replacement parts diagram

Floor assembly - left

Part #AS-90289-02

The manufacturer no longer makes this part, and there's no substitute part

Filter 54-17531-06
#57

Functional replacement parts diagram

Filter

Part #54-17531-06

The manufacturer no longer makes this part, and there's no substitute part
