Sony
Digital Camcorder

Model #HDR-PJ260V Sony camcorder

Here are the diagrams and repair parts for Sony HDR-PJ260V camcorder, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

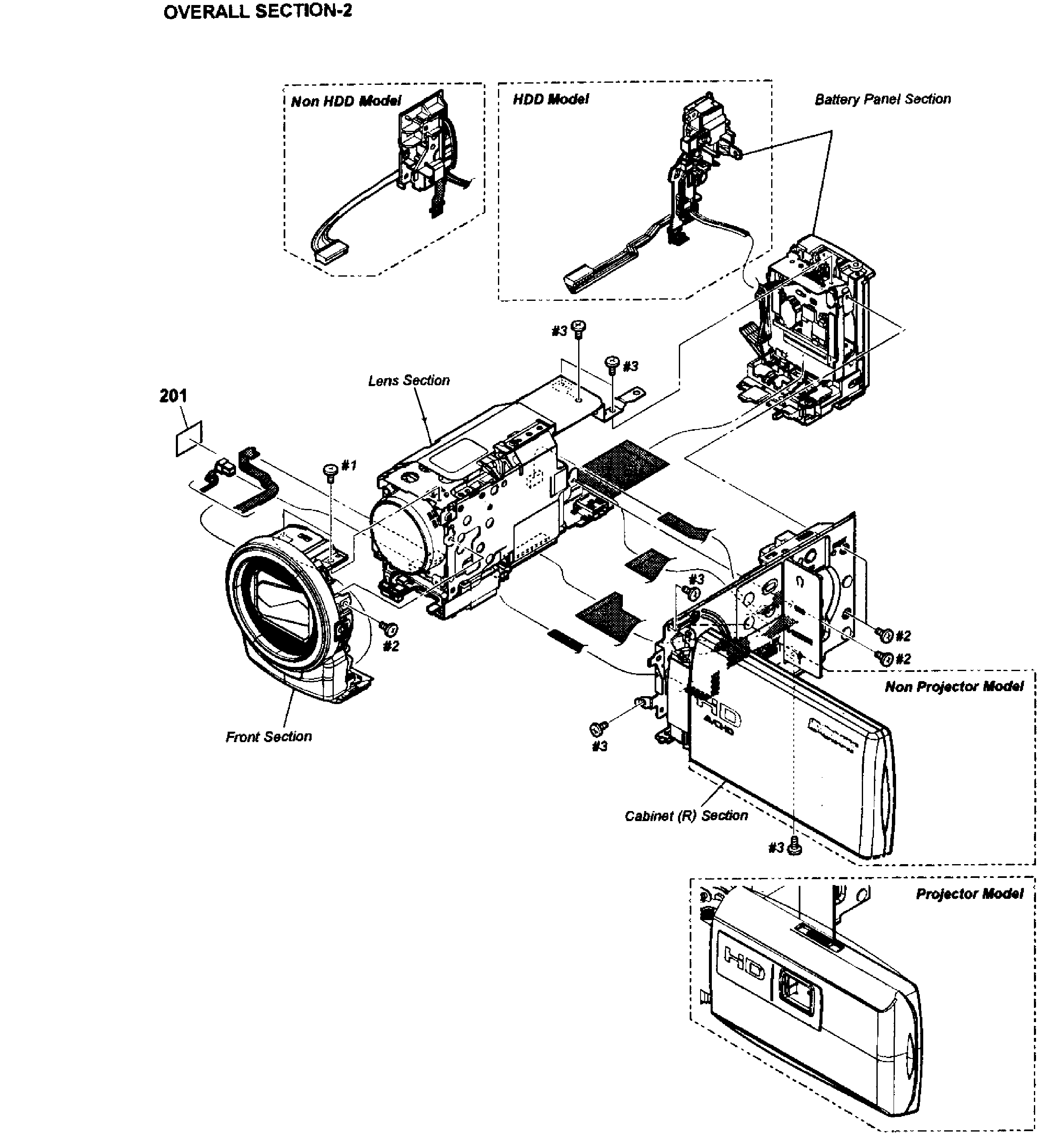

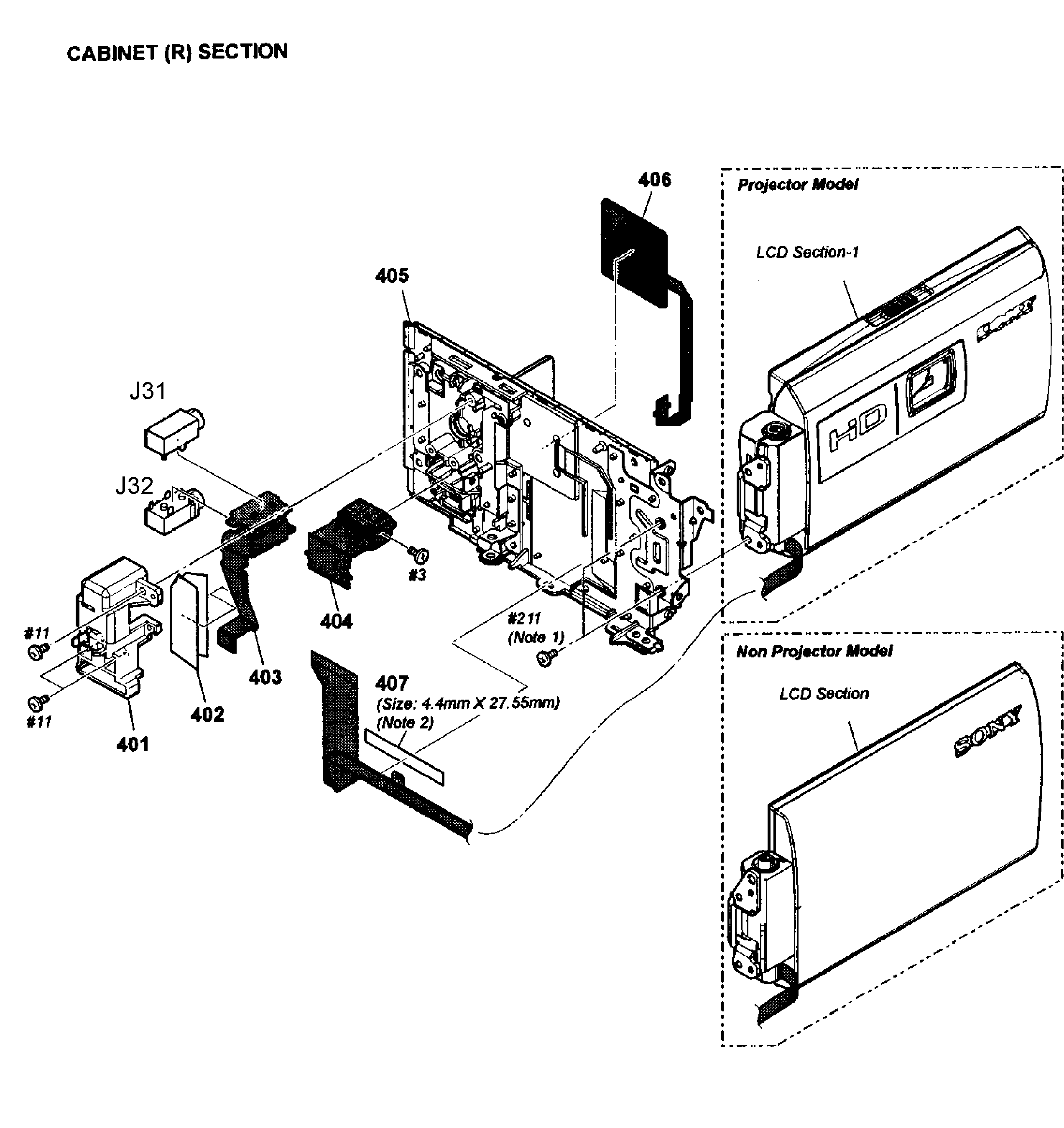

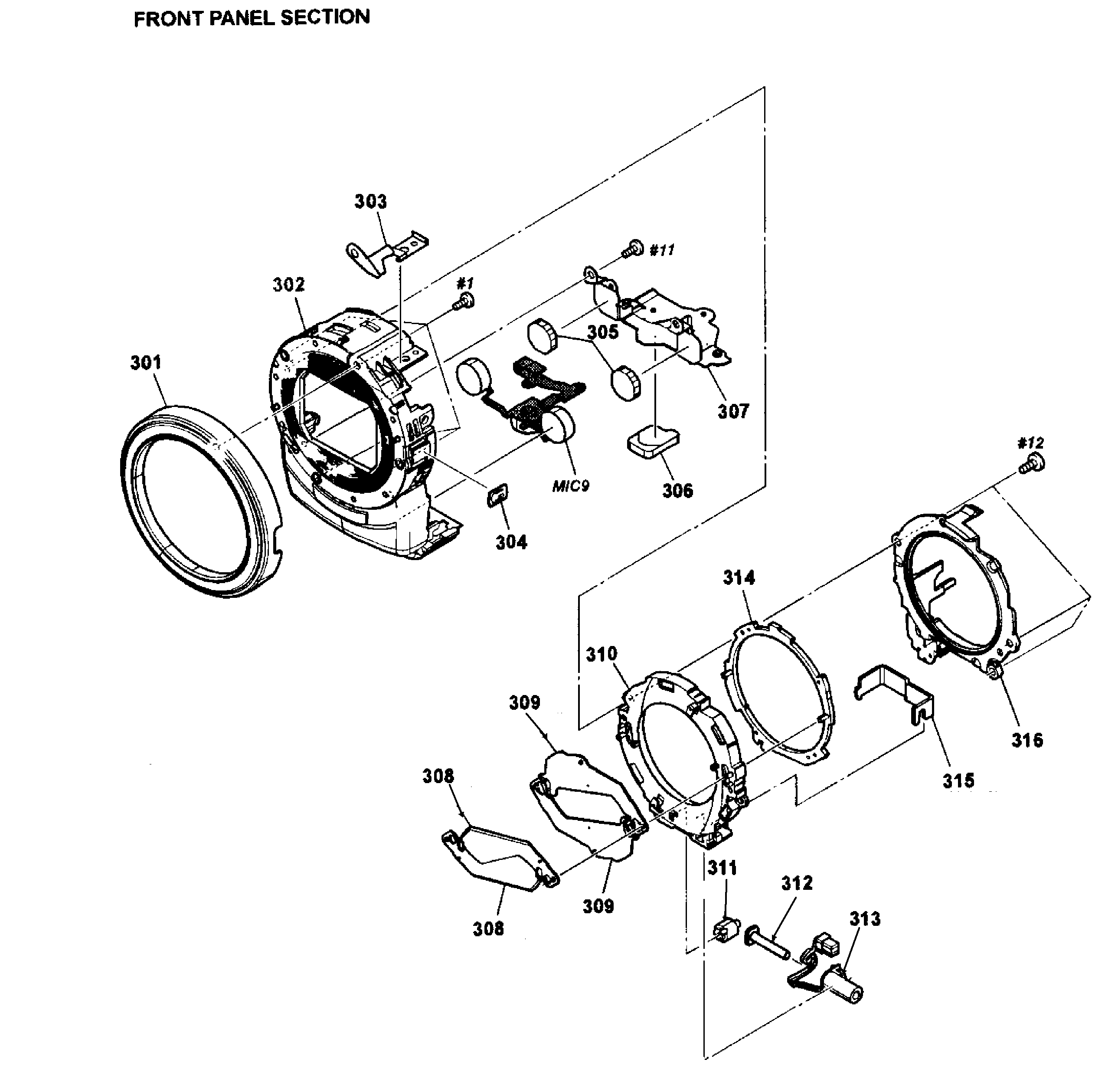

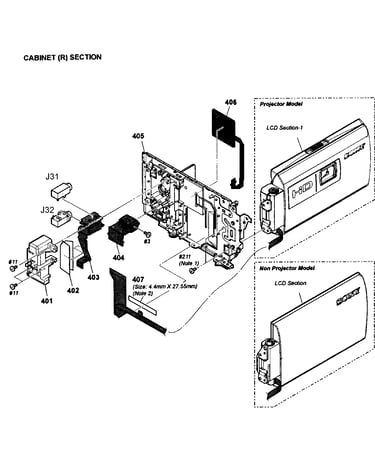

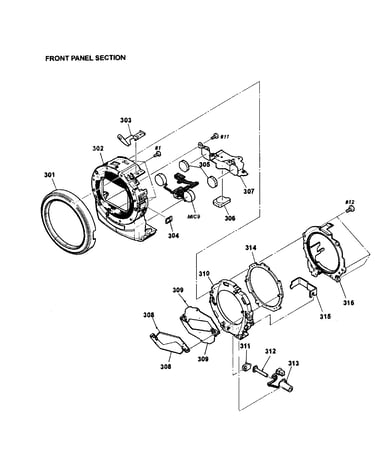

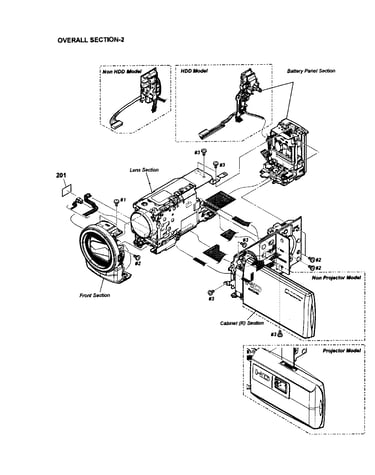

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 137 parts

Panel Sheet

#512

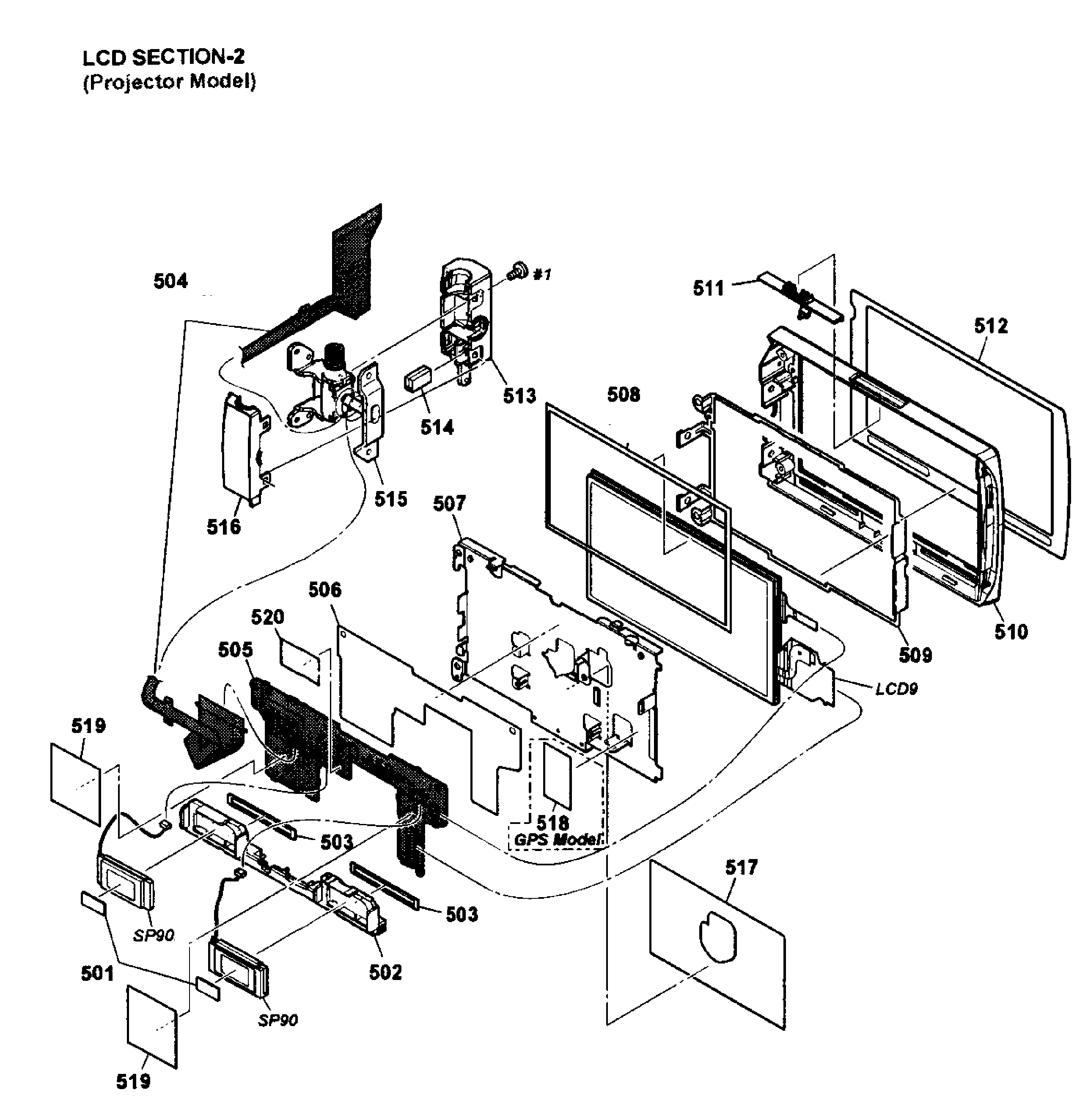

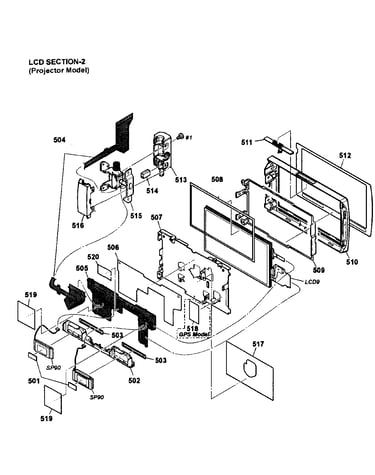

Lcd-2 Diagram

Panel sheet

Part #427235501
$14.61

In Stock

Insulation

#457

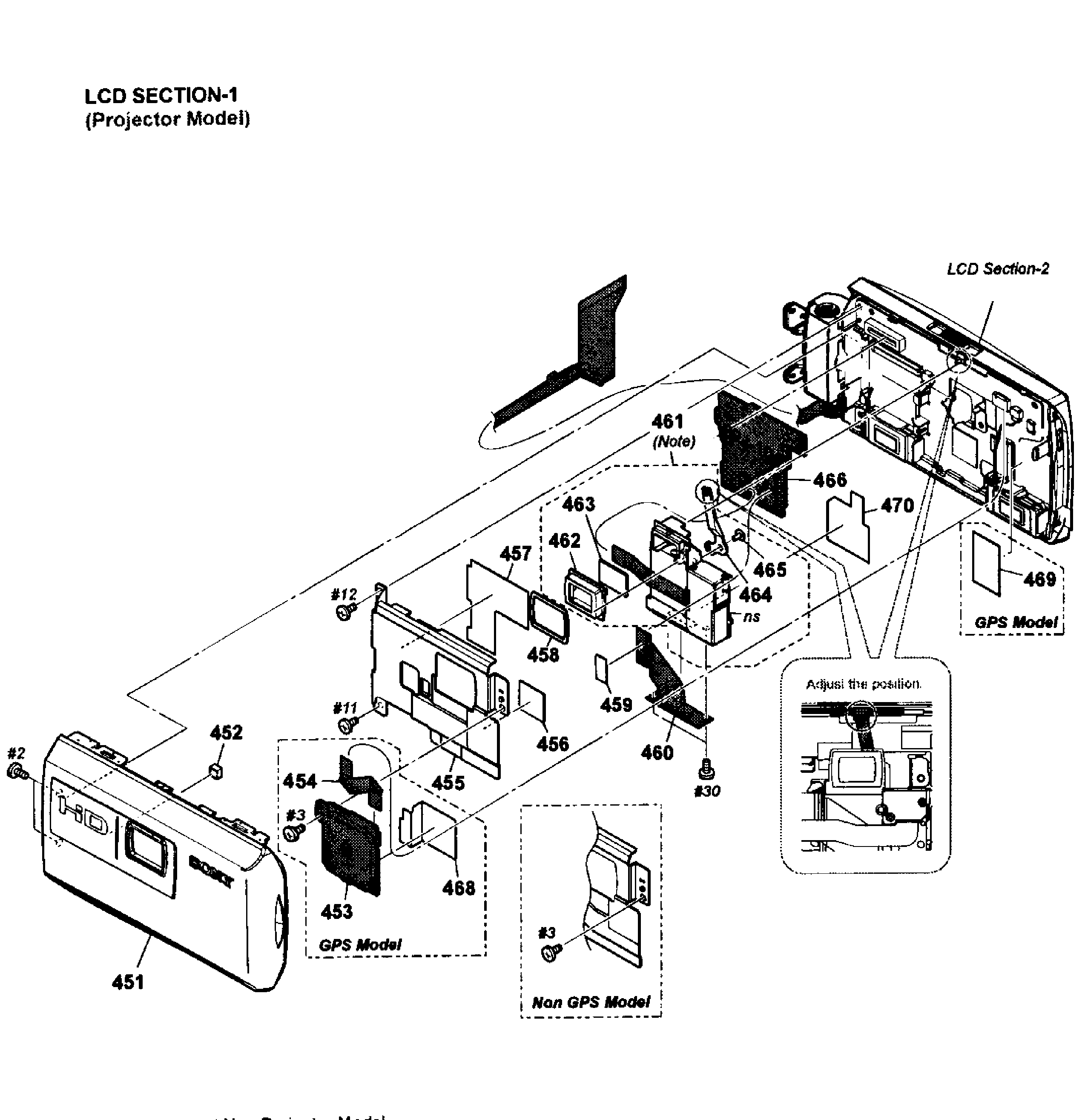

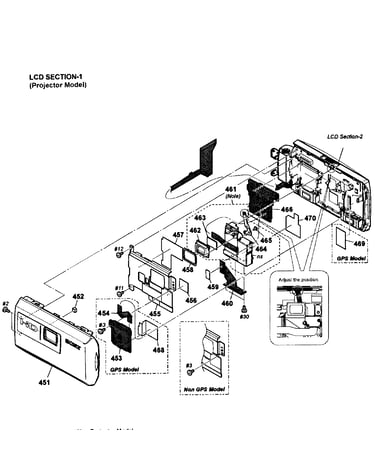

Lcd-1 Diagram

Insulation

Part #427235601
$8.74

In Stock

Cushion

#458

Lcd-1 Diagram

Cushion

Part #427235801
This item is not returnable
$5.65

In Stock

Sheet Shield

#356

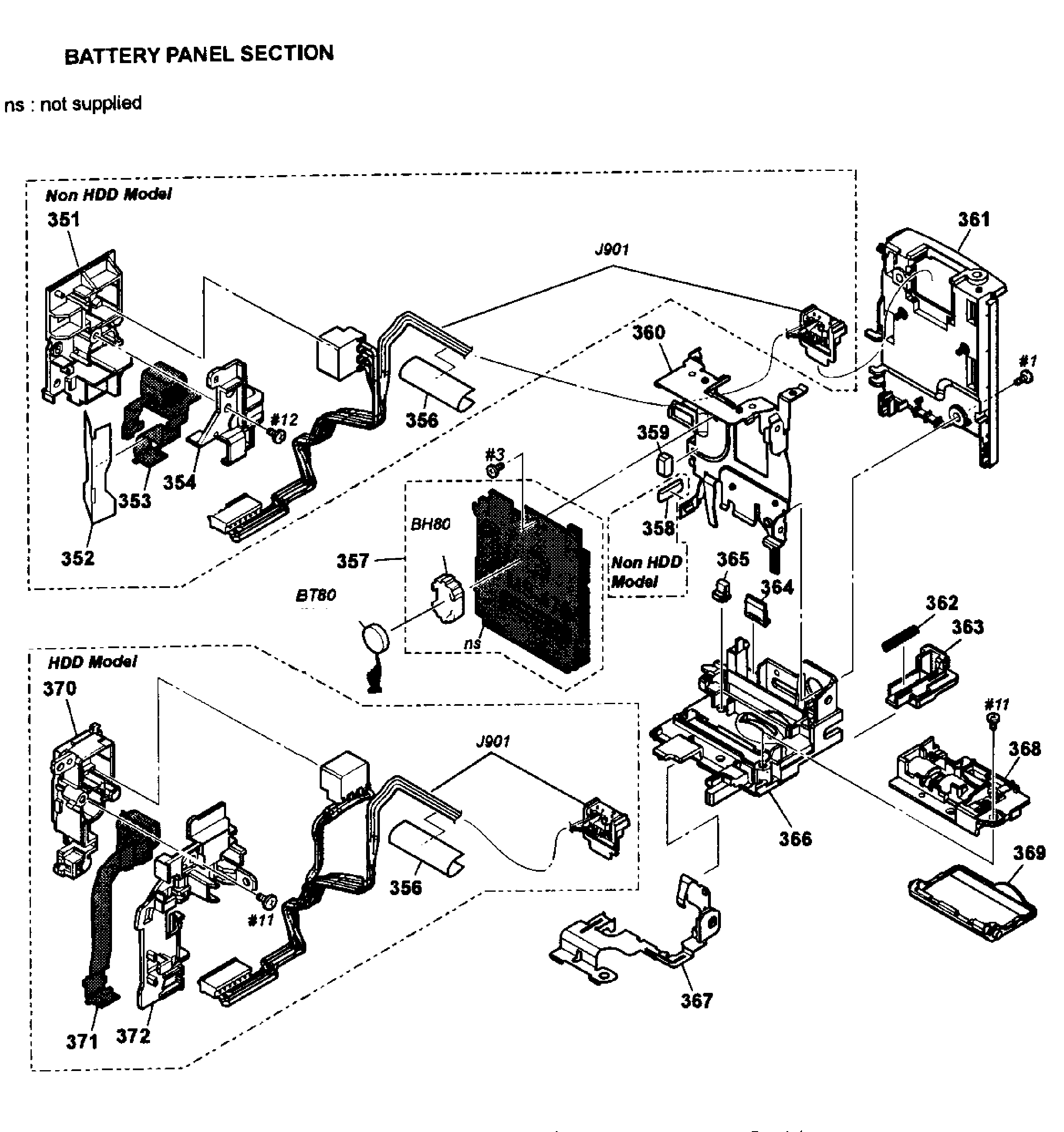

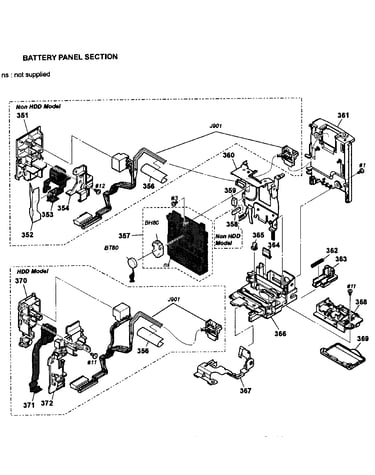

Bp assy Diagram

Sheet shield

Part #427413001
$10.31

In Stock

Sheet

#154

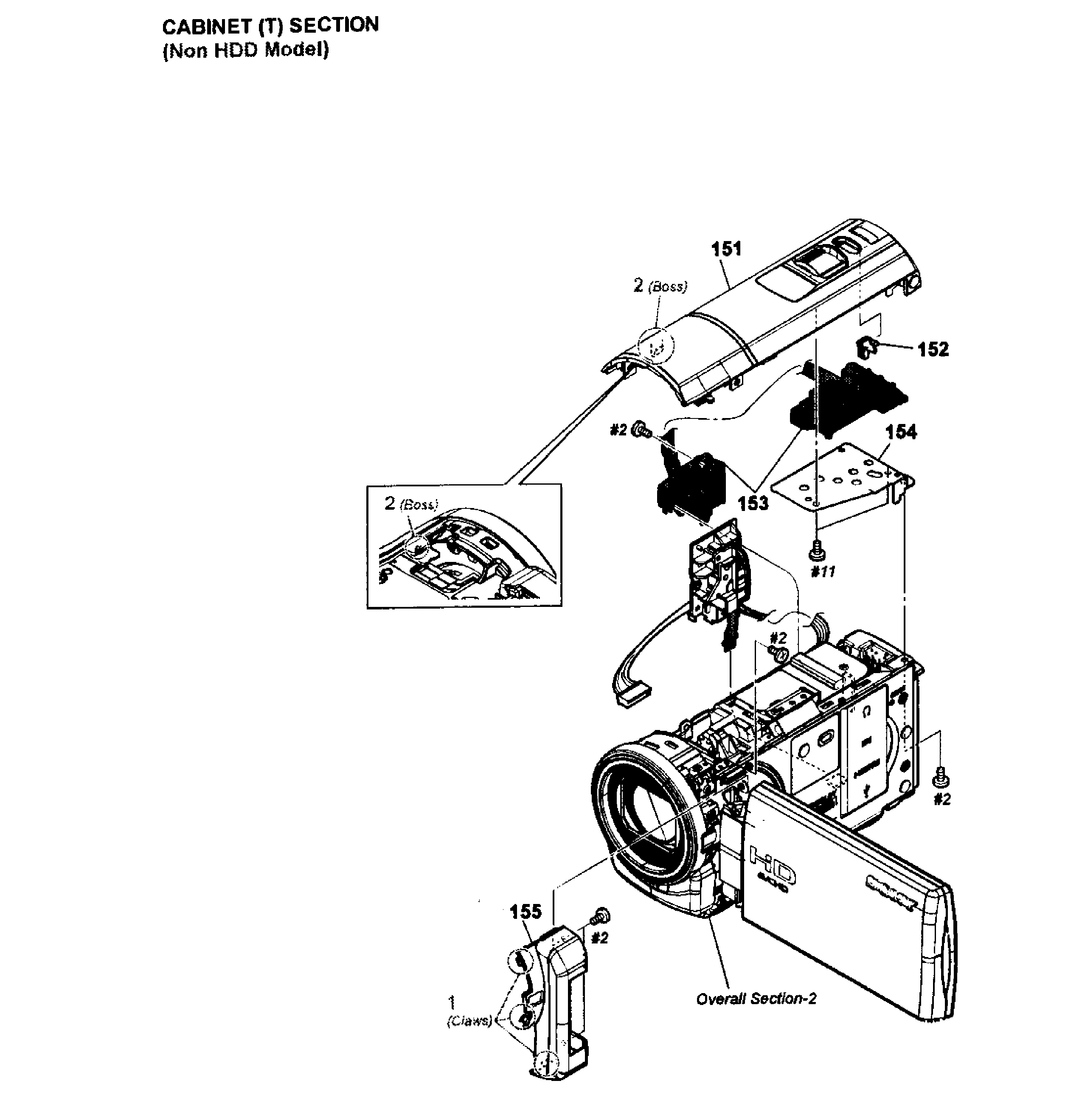

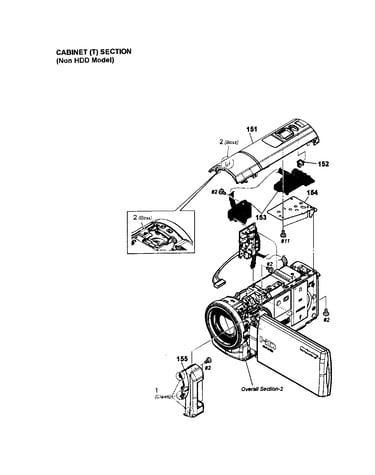

Top cainet Diagram

Sheet

Part #427169301
This item is not returnable
$4.41

In Stock

Gasket

#359

Bp assy Diagram

Gasket

Part #427196201
This item is not returnable
$2.65

In Stock

Sheet Shield

#269

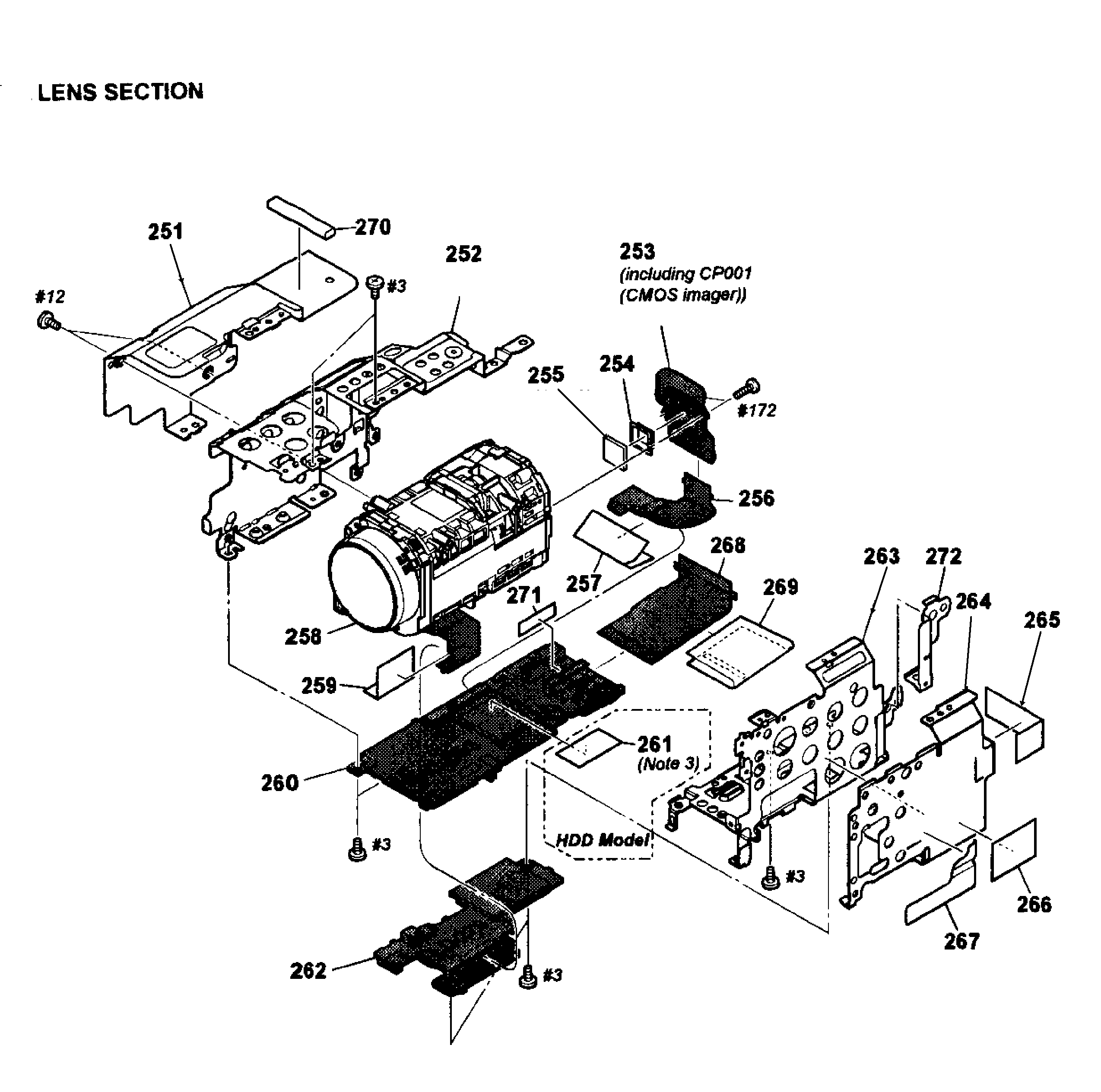

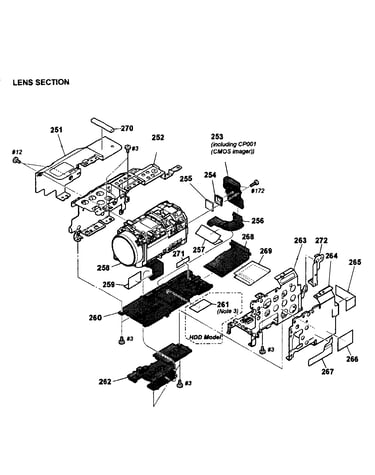

Lens assy Diagram

Sheet shield

Part #427205001
$15.95

In Stock

Cover Glas

#462

Lcd-1 Diagram

Cover glas

Part #429876401
$15.95

In Stock

DC HOLDER

#60

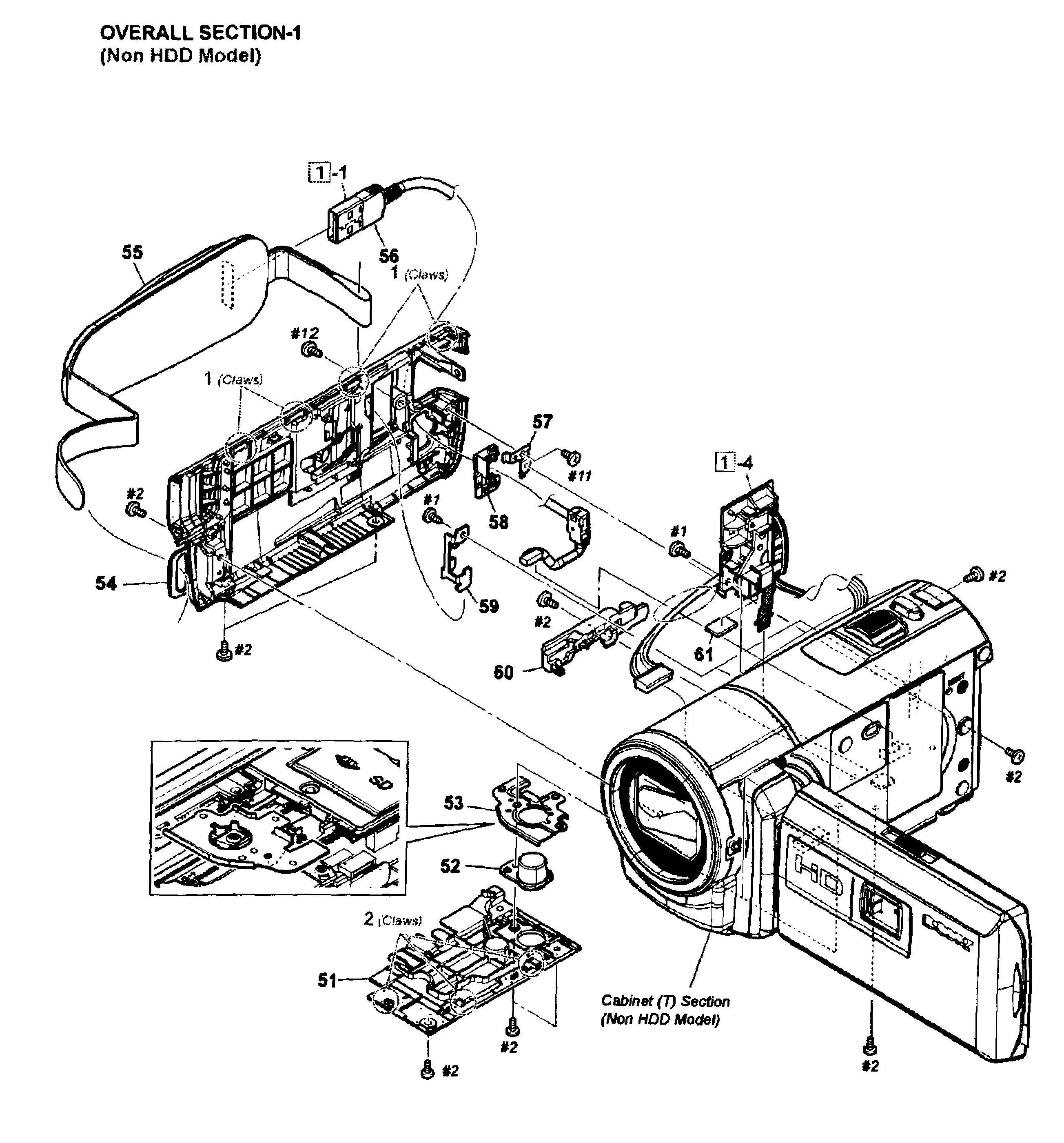

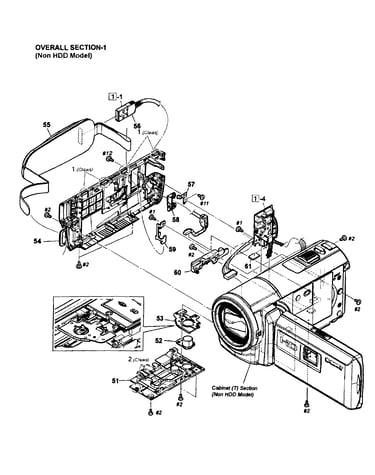

Section-1 Diagram

Dc holder

Part #429887801
This item is not returnable
$2.49

In Stock

Heat Sink

#455

Lcd-1 Diagram

Heat sink

Part #429888301
$13.24

In Stock
