Whirlpool MW8600XS1 microwave Parts

Here are the diagrams and repair parts for Whirlpool MW8600XS1 microwave, as well as links to manuals and error code tables, if available.

Whirlpool MW8600XS1 microwave
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forMW8600XS1 Microwaves

  • Shelf Trim for Whirlpool MW8600XS1 - Part 313614

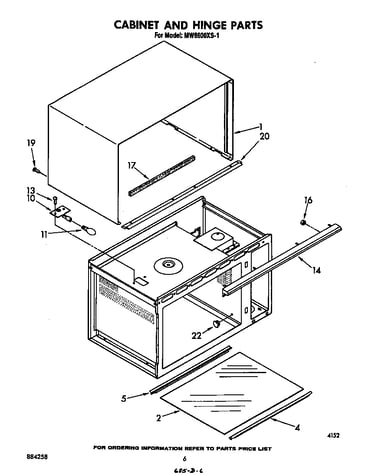

    Cabinet and hinge diagram

    Shelf Trim

    Part #313614

    The manufacturer no longer makes this part, and there's no substitute part

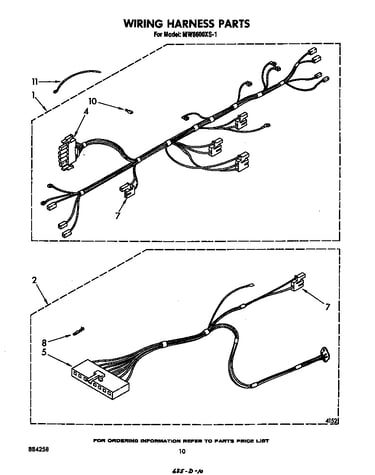

  • Wire (black) for Whirlpool MW8600XS1 - Part 242828

    #NI

    All parts diagram

    Wire (black)

    Part #242828

    The manufacturer no longer makes this part, and there's no substitute part

  • Voltage Wire for Whirlpool MW8600XS1 - Part 313130

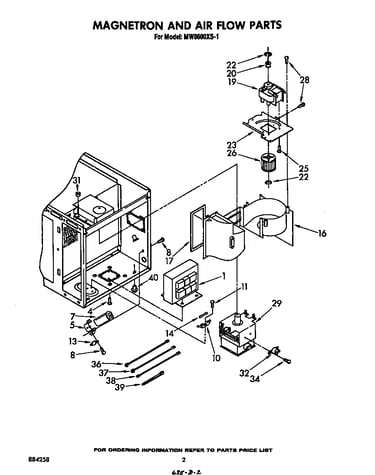

    Magnetron and airflow diagram

    Voltage Wire

    Part #313130

    The manufacturer no longer makes this part, and there's no substitute part

  • Support for Whirlpool MW8600XS1 - Part 313739

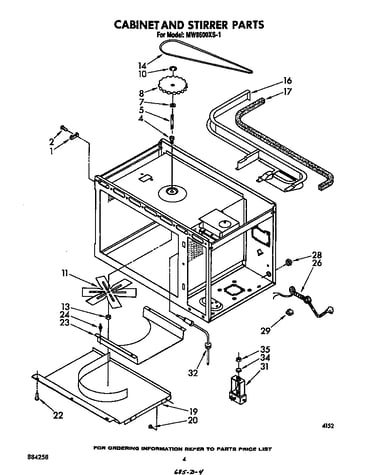

    Cabinet and stirrer diagram

    Support

    Part #313739

    The manufacturer no longer makes this part, and there's no substitute part

  • Lamp Socket for Whirlpool MW8600XS1 - Part 330514

    Cabinet and hinge diagram

    Lamp Socket

    Part #330514

    The manufacturer no longer makes this part, and there's no substitute part

  • Stirrer Cover for Whirlpool MW8600XS1 - Part 313563

    Cabinet and stirrer diagram

    Stirrer Cover

    Part #313563

    The manufacturer no longer makes this part, and there's no substitute part

  • Trm-b/i Bl for Whirlpool MW8600XS1 - Part 832991

    #NI

    All parts diagram

    Trm-b/i Bl

    Part #832991

    The manufacturer no longer makes this part, and there's no substitute part

  • Pulley for Whirlpool MW8600XS1 - Part 311923

    Cabinet and stirrer diagram

    Pulley

    Part #311923

    The manufacturer no longer makes this part, and there's no substitute part

  • Shelf Trim for Whirlpool MW8600XS1 - Part 313615

    Cabinet and hinge diagram

    Shelf Trim

    Part #313615

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Whirlpool MW8600XS1 - Part 313820

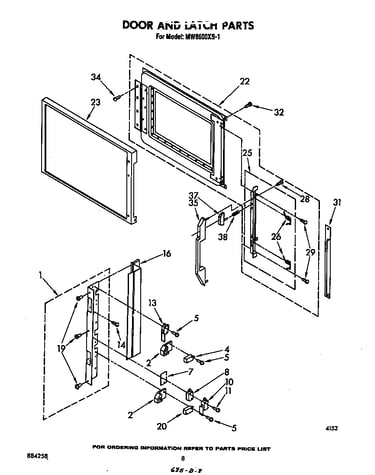

    Door and latch diagram

    Screw

    Part #313820

    The manufacturer no longer makes this part, and there's no substitute part
