Model # RC14TE/P7688113M Official Amana radarange microwave - rc-20se, rc-14se, rc-14te

Here are the diagrams and repair parts for Official Amana RC14TE-P7688113M radarange microwave - rc-20se, rc-14se, rc-14te, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

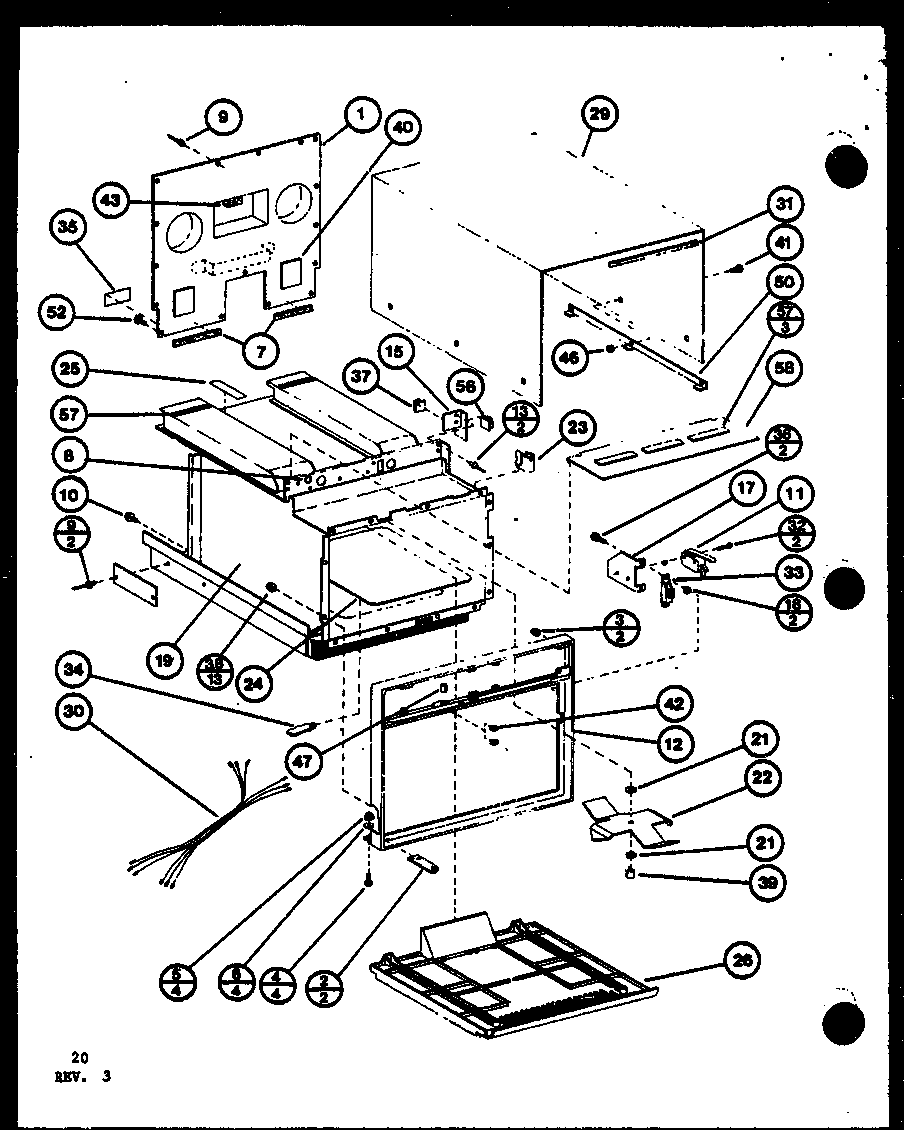

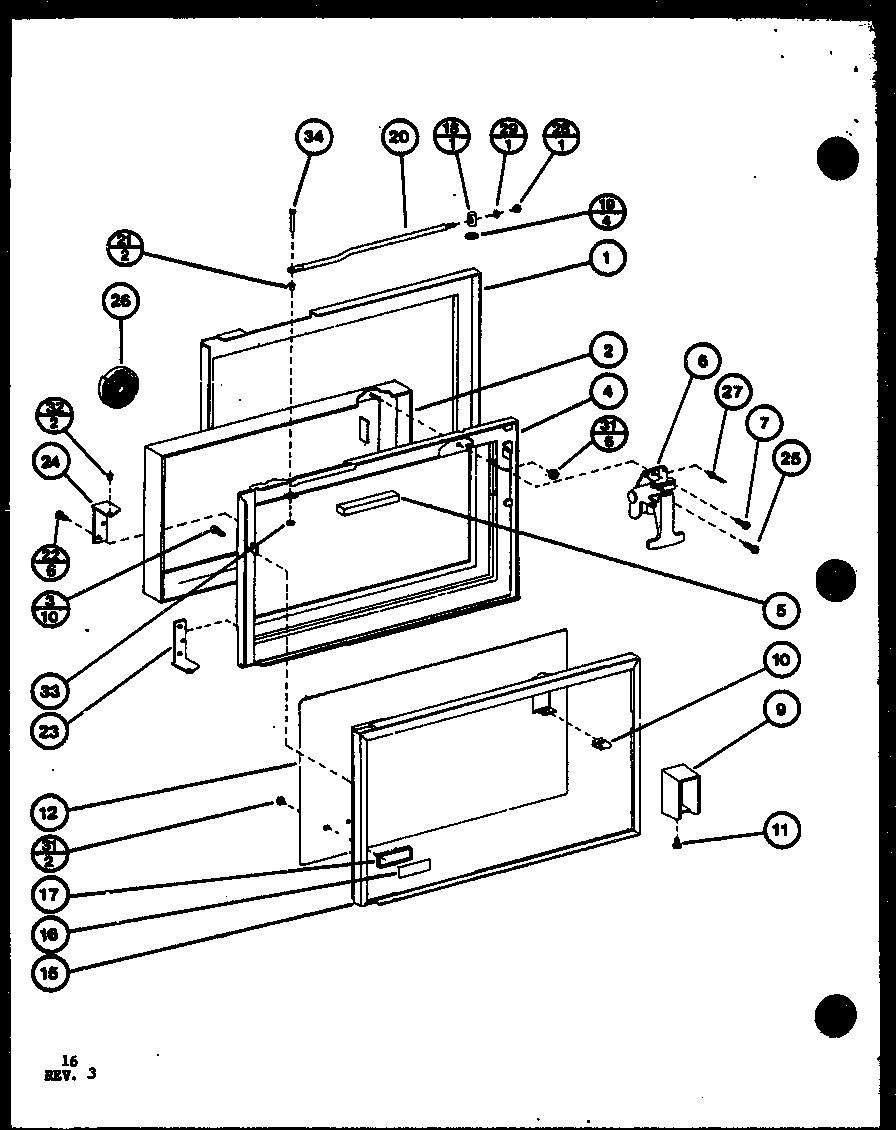

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Screw M0234029
Screw

Part #M0234029

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces M0234029. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Diode B8383102
#12

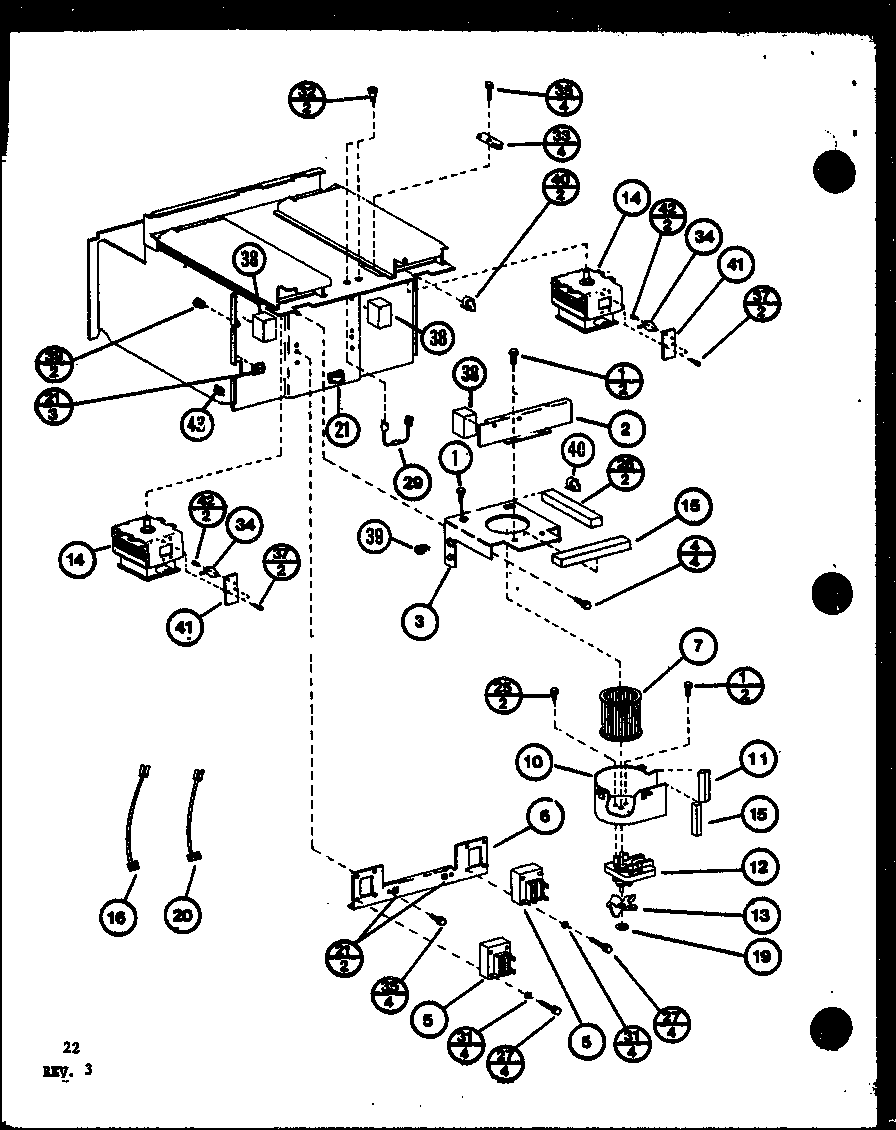

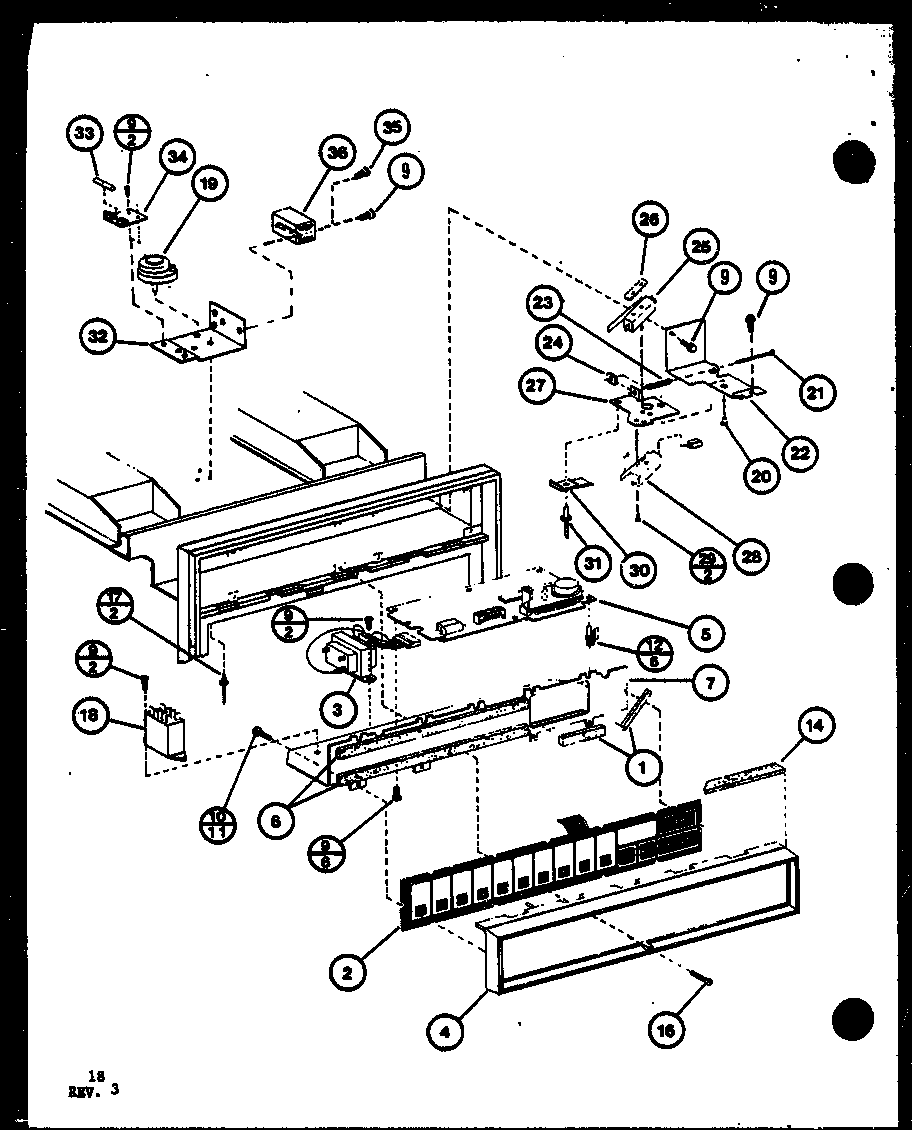

(rc14se/p7688114m) (rc14te/p7688113m) (rc20se/p7688115m) (rc14se/p7688117m) (rc14te/p7688118m) (rc20se/p7688119m) diagram

Diode

Part #B8383102

Replaced by #WP13091701

?
Manufacturer substitution
This part replaces B8383102. Substitute parts can look different from the original.
$25.29 |
17% OFF Phone Price : $30.29
In Stock
Capacitor D8547920
#8A

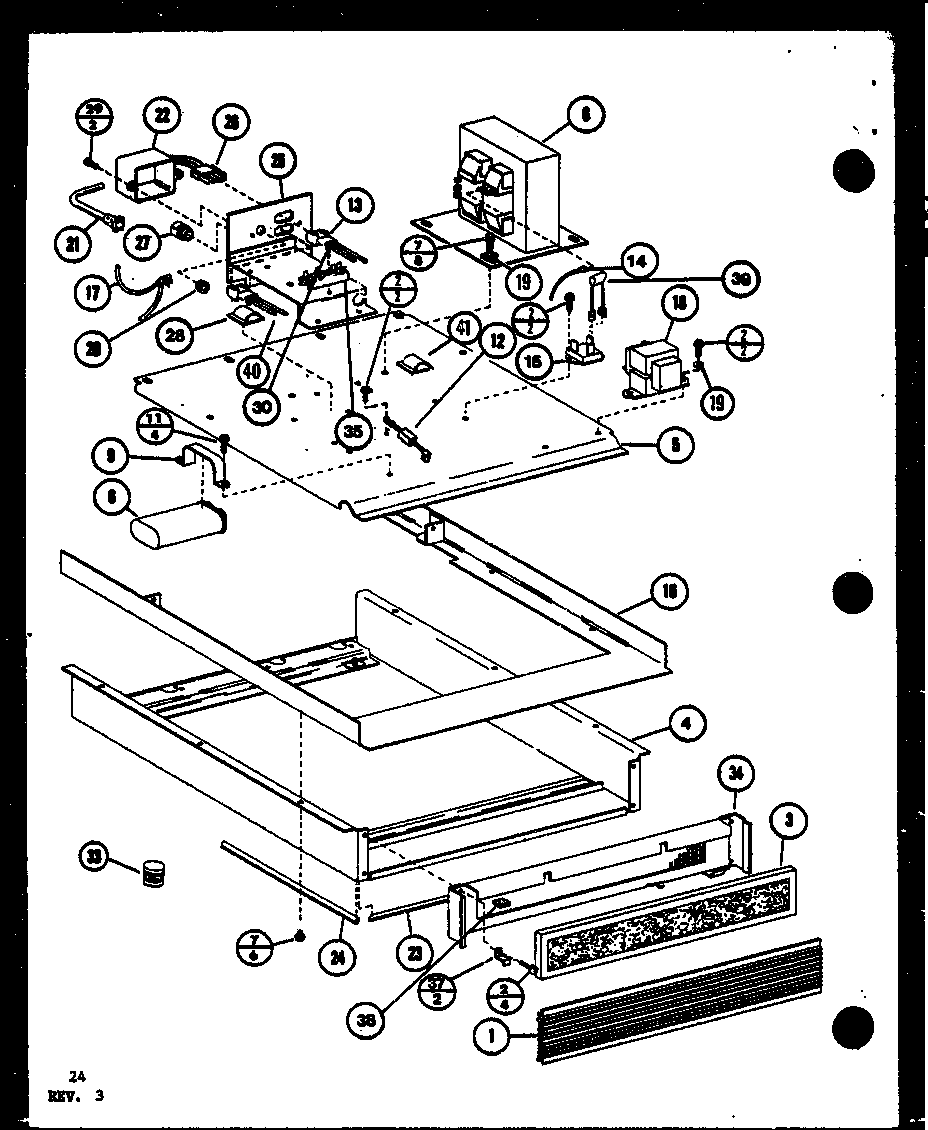

(rc14se/p7688114m) (rc14te/p7688113m) (rc20se/p7688115m) (rc14se/p7688117m) (rc14te/p7688118m) (rc20se/p7688119m) diagram

Capacitor

Part #D8547920

Replaced by #59001649

?
Manufacturer substitution
This part replaces D8547920. Substitute parts can look different from the original.
$31.49
In Stock
Screw M0234403
Screw

Part #M0234403

Replaced by #M0234403

?
Manufacturer substitution
This part replaces M0234403. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw M0216703
Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Terminal Block B5677203
Terminal block

Part #B5677203

Replaced by #B5677203

?
Manufacturer substitution
This part replaces B5677203. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw M0234030
Screw

Part #M0234030

Replaced by #M0234030

?
Manufacturer substitution
This part replaces M0234030. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Support M0590602
Support

Part #M0590602

Replaced by #M0590602

?
Manufacturer substitution
This part replaces M0590602. Substitute parts can look different from the original.
This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
Head Screw M0211217
Head screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Fuse M0805101
Fuse

Part #M0805101

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces M0805101. Substitute parts can look different from the original.
$6.68 |
13% OFF Phone Price : $7.68
In Stock
