Model # UN58H5202AFXZA-IS01 Official Samsung lcd television

Here are the diagrams and repair parts for Official Samsung UN58H5202AFXZA-IS01 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Module Wif BN59-01174A
Module wif

Part #BN59-01174A

The manufacturer no longer makes this part, and there's no substitute part

Television Power Cord 3903-000853
Television power cord

Part #3903-000853

The manufacturer no longer makes this part, and there's no substitute part

Base Stand BN96-33225B
#10

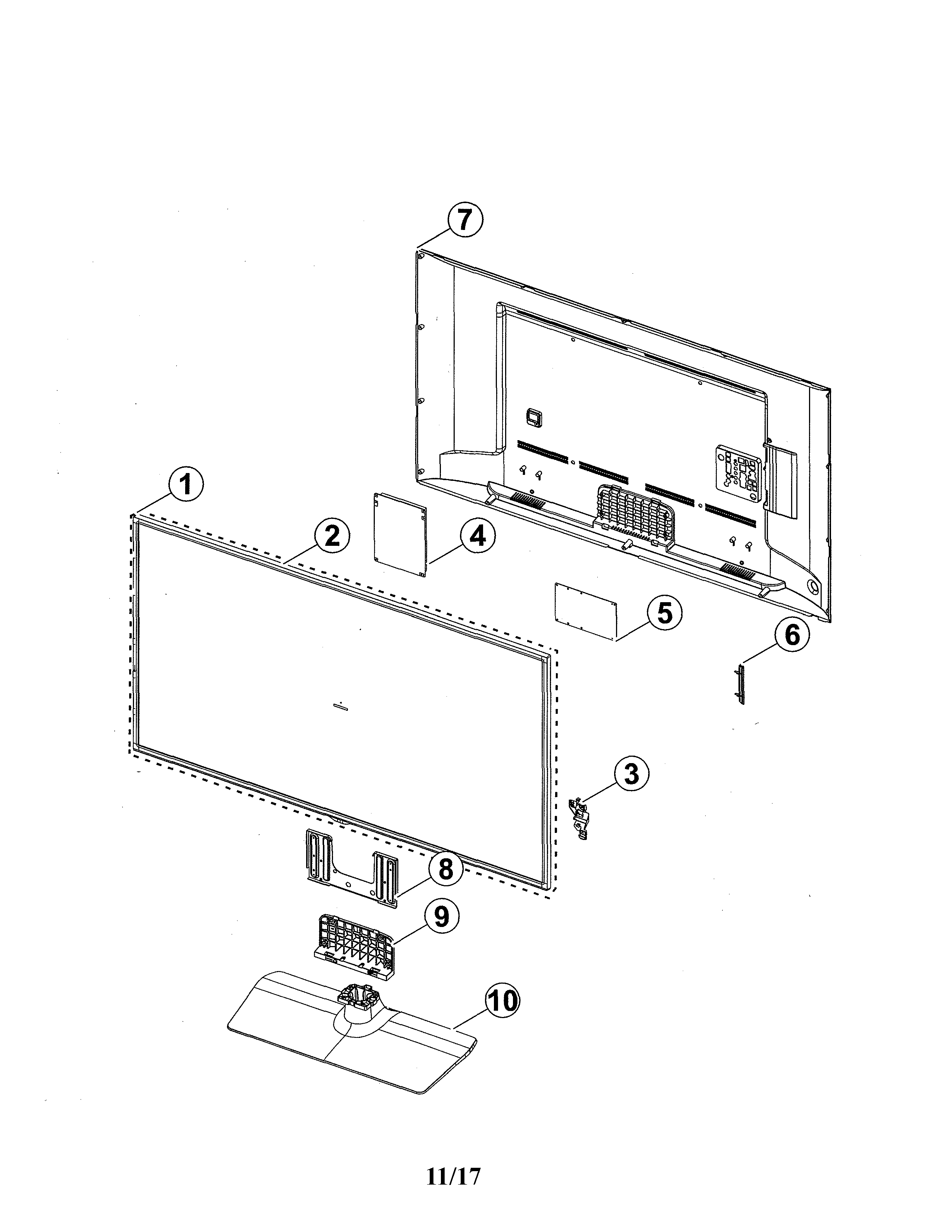

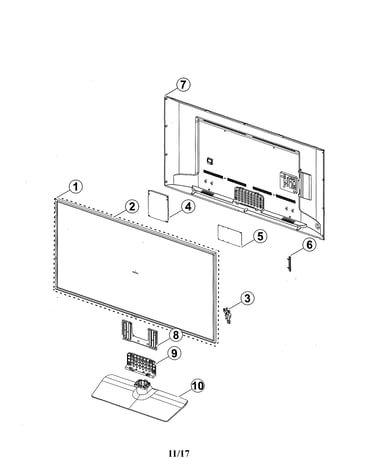

Lcd tv diagram

Base stand

Part #BN96-33225B

The manufacturer no longer makes this part, and there's no substitute part

Guide Stand BN96-33524A
#9

Lcd tv diagram

Guide stand

Part #BN96-33524A

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Front BN96-33358A
#2

Lcd tv diagram

Cabinet front

Part #BN96-33358A

The manufacturer no longer makes this part, and there's no substitute part

Home Electronics Cover Assembly BN96-33644T
#7

Lcd tv diagram

Home electronics cover assembly

Part #BN96-33644T

The manufacturer no longer makes this part, and there's no substitute part

Lead Connector BN39-01903N
Lead connector

Part #BN39-01903N

The manufacturer no longer makes this part, and there's no substitute part

Bracket BN61-07962B
#8

Lcd tv diagram

Bracket

Part #BN61-07962B

The manufacturer no longer makes this part, and there's no substitute part

Speaker-fr BN96-32113E
Speaker-fr

Part #BN96-32113E

The manufacturer no longer makes this part, and there's no substitute part

Home Electronics Pcb Assembly BN94-07903L
#5

Lcd tv diagram

Home electronics pcb assembly

Part #BN94-07903L

The manufacturer no longer makes this part, and there's no substitute part
