Craftsman
Power Sander

Model # 315112170 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315112170 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

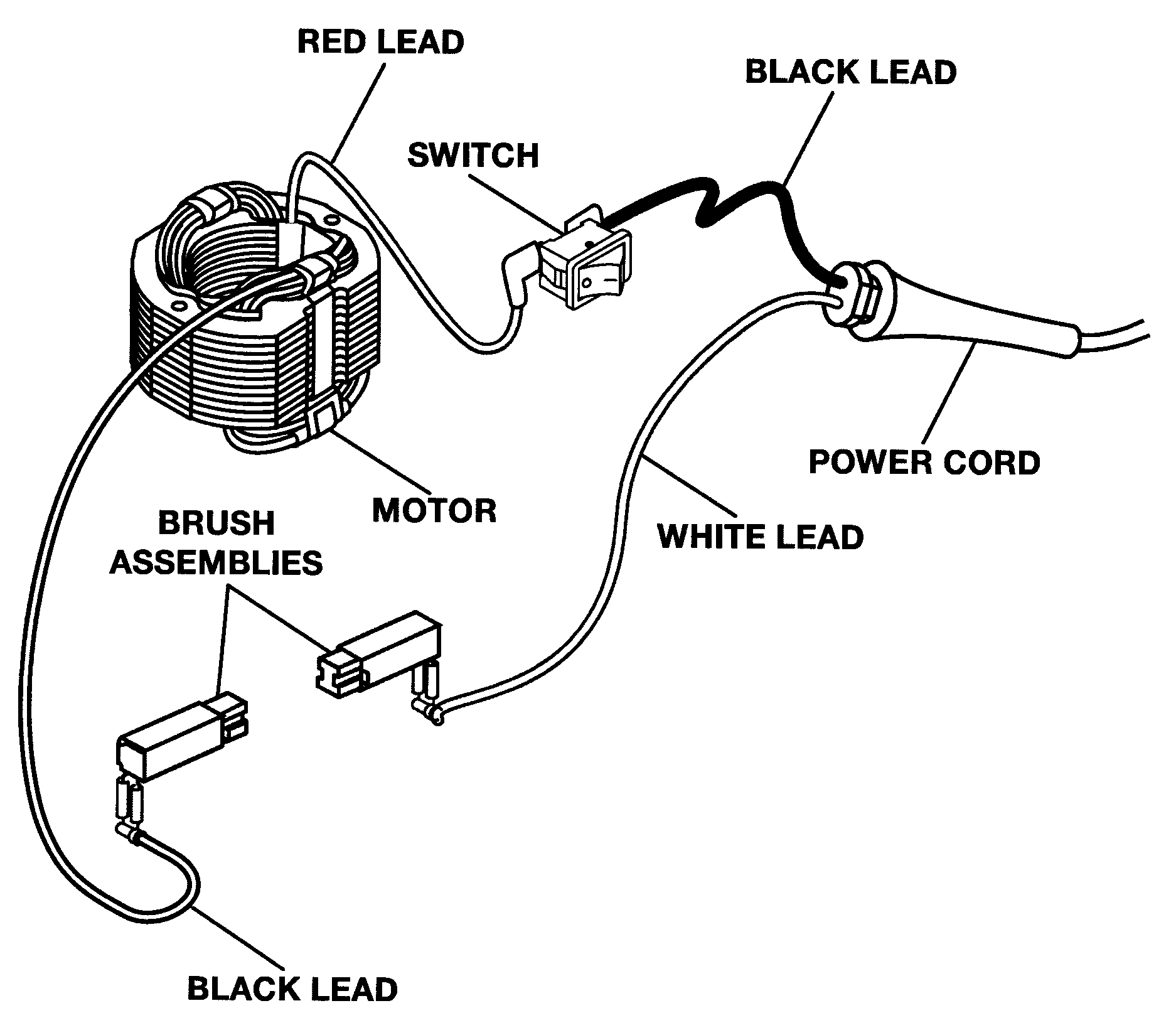

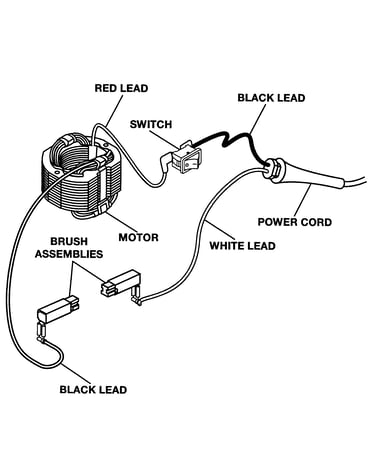

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Sander Screw, 4.2 X 16-mm 030155001002
#8

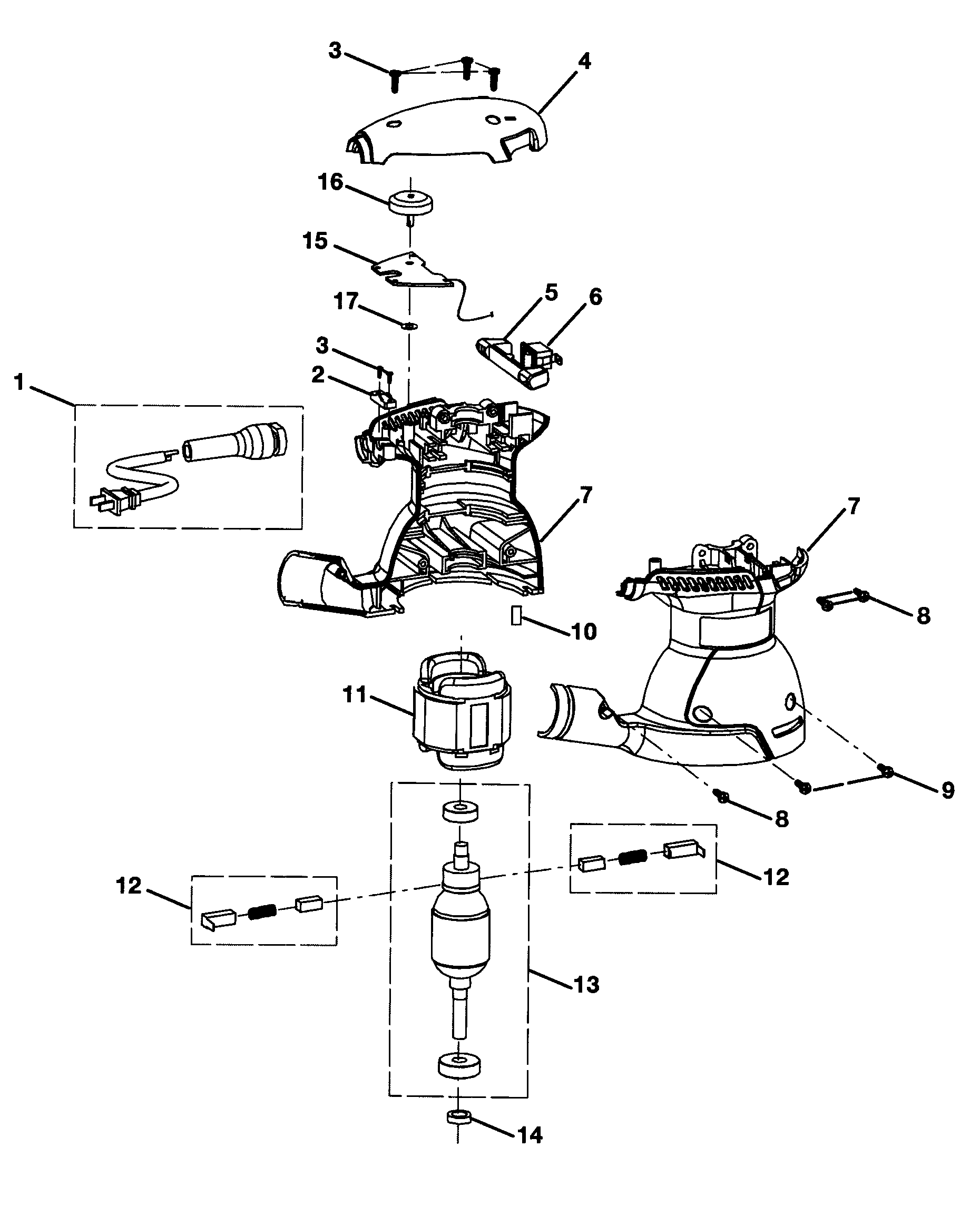

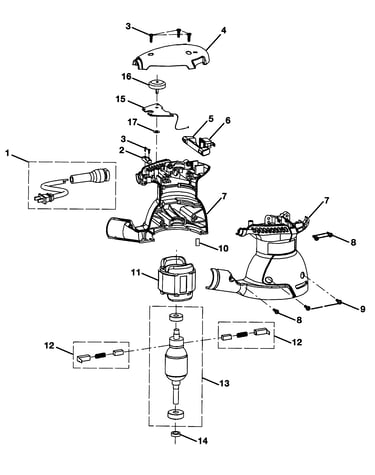

Motor diagram

Sander screw, 4.2 x 16-mm

Part #030155001002

The manufacturer no longer makes this part, and there's no substitute part

Sander Cooling Fan 030157001012
#4

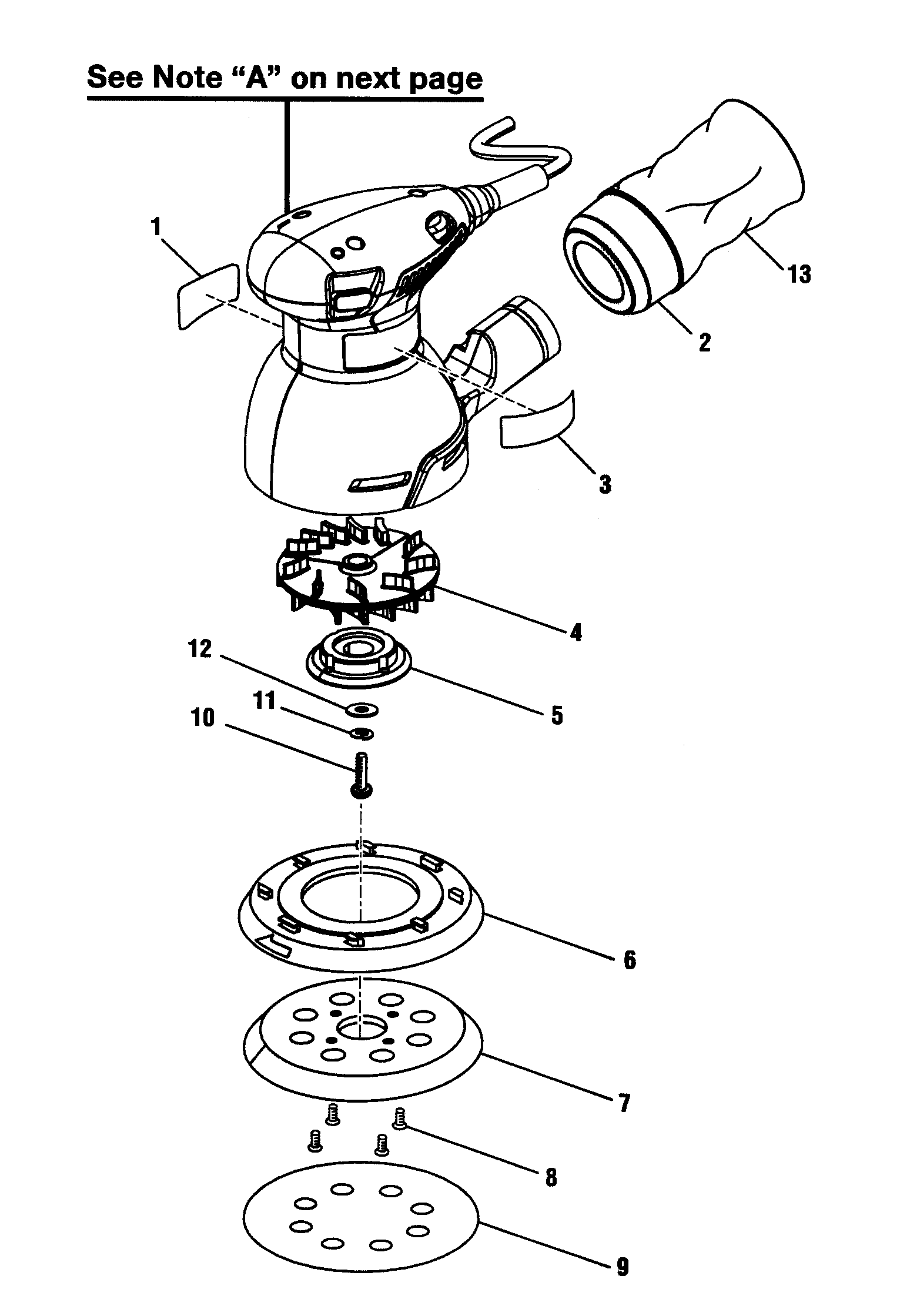

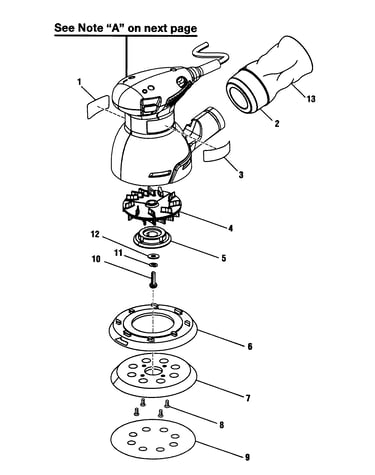

Sander diagram

Sander cooling fan

Part #030157001012

The manufacturer no longer makes this part, and there's no substitute part

Sander Dust Bag 030157001023
#13

Sander diagram

Sander dust bag

Part #030157001023

The manufacturer no longer makes this part, and there's no substitute part

Sander Armature 030157001010
#13

Motor diagram

Sander armature

Part #030157001010

The manufacturer no longer makes this part, and there's no substitute part

Screw 030155001016
#9

Motor diagram

Screw

Part #030155001016

The manufacturer no longer makes this part, and there's no substitute part

Sander Motor Housing Rubber Plug 030155001007
#10

Motor diagram

Sander motor housing rubber plug

Part #030155001007

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly 030157001009
#11

Motor diagram

Field assembly

Part #030157001009

The manufacturer no longer makes this part, and there's no substitute part

Sander Bearing And Cap 030157001013
#5

Sander diagram

Sander bearing and cap

Part #030157001013

The manufacturer no longer makes this part, and there's no substitute part

Sander On/off Switch 030155001034
#6

Motor diagram

Sander on/off switch

Part #030155001034

The manufacturer no longer makes this part, and there's no substitute part

Screw 030157001016
#10

Sander diagram

Screw

Part #030157001016

The manufacturer no longer makes this part, and there's no substitute part
