Porter Cable
Router

Model # 86902 Official Porter Cable router

Here are the diagrams and repair parts for Official Porter Cable 86902 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |

Collet 42975
#83E

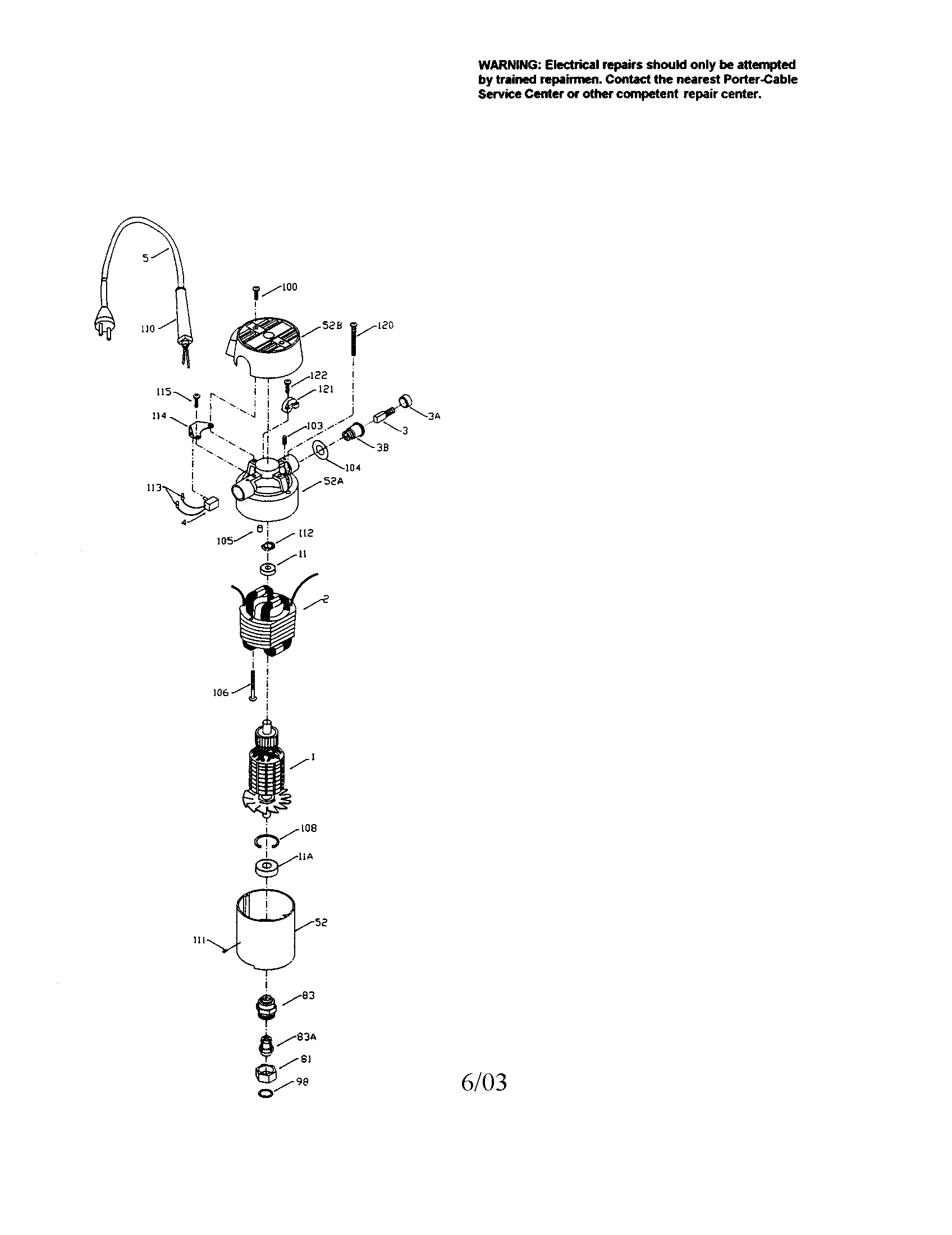

Router diagram

Collet

Part #42975

The manufacturer no longer makes this part, and there's no substitute part

Cord Clamp 874137
#121

Router diagram

Cord clamp

Part #874137

The manufacturer no longer makes this part, and there's no substitute part

Fan 874299

#NI03

All parts diagram

Fan

Part #874299

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Bearing 855284
#11

Router diagram

Power tool bearing

Part #855284

The manufacturer no longer makes this part, and there's no substitute part

Guide Pin 800835
#111

Router diagram

Guide pin

Part #800835

The manufacturer no longer makes this part, and there's no substitute part

Router Collet, 1/2-in 876671
#83H

Router diagram

Router collet, 1/2-in

Part #876671

The manufacturer no longer makes this part, and there's no substitute part

Washer 803496
#104

Router diagram

Washer

Part #803496

The manufacturer no longer makes this part, and there's no substitute part

Screw 848564
#122

Router diagram

Screw

Part #848564

The manufacturer no longer makes this part, and there's no substitute part

Snap Ring 823030
#98

Router diagram

Snap ring

Part #823030

The manufacturer no longer makes this part, and there's no substitute part

Collet 876669
#83C

Router diagram

Collet

Part #876669

The manufacturer no longer makes this part, and there's no substitute part
