Model # FH206R Official Muskin swimming pool water filter

Here are the diagrams and repair parts for Official Muskin FH206R swimming pool water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

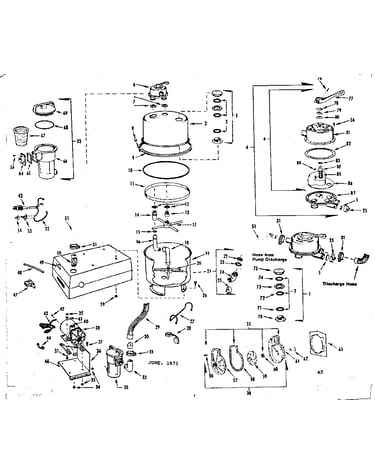

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |

Bolt 122007
#26

Replacement parts diagram

Bolt

Part #122007

The manufacturer no longer makes this part, and there's no substitute part

Screw 9421073
#34

Replacement parts diagram

Screw

Part #9421073

The manufacturer no longer makes this part, and there's no substitute part

Hose Clamp 066-6203
#31

Replacement parts diagram

Hose clamp

Part #066-6203

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 446188
#41

Replacement parts diagram

Flat washer

Part #446188

The manufacturer no longer makes this part, and there's no substitute part

Pr Indicator 12-2056
#50

Replacement parts diagram

Pr indicator

Part #12-2056

The manufacturer no longer makes this part, and there's no substitute part

Motor 01-4077
#40

Replacement parts diagram

Motor

Part #01-4077

The manufacturer no longer makes this part, and there's no substitute part

Baffle 098-7099
#63

Replacement parts diagram

Baffle

Part #098-7099

The manufacturer no longer makes this part, and there's no substitute part

Motor Cord 030-3328
#43

Replacement parts diagram

Motor cord

Part #030-3328

The manufacturer no longer makes this part, and there's no substitute part

Gasket 038-3417
#12

Replacement parts diagram

Gasket

Part #038-3417

The manufacturer no longer makes this part, and there's no substitute part

Hose Valve 102-6979
#51

Replacement parts diagram

Hose valve

Part #102-6979

The manufacturer no longer makes this part, and there's no substitute part
