Model # M260VP Official Vizio led television

Here are the diagrams and repair parts for Official Vizio M260VP led television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |

Bracket 171201018400
#11

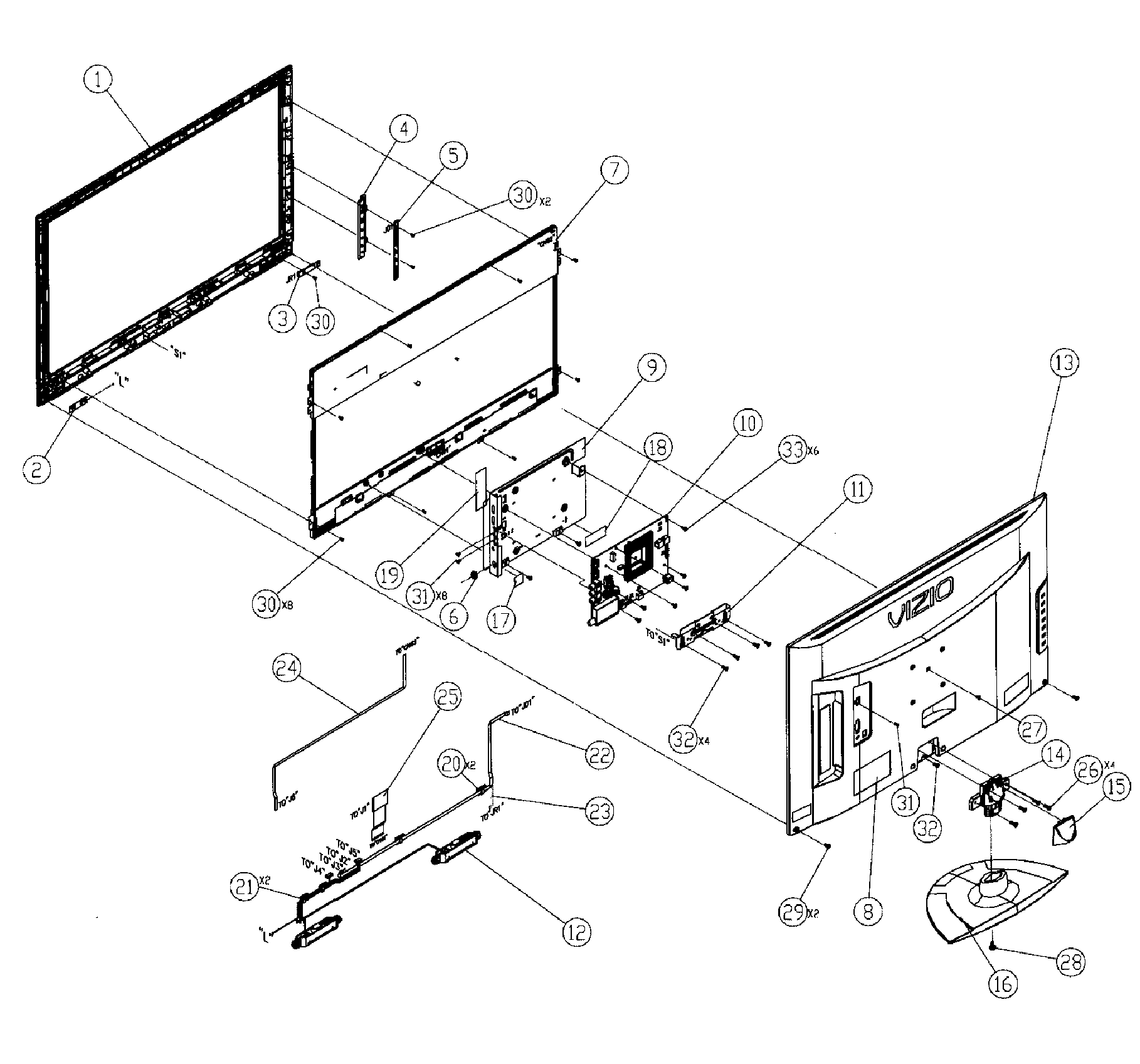

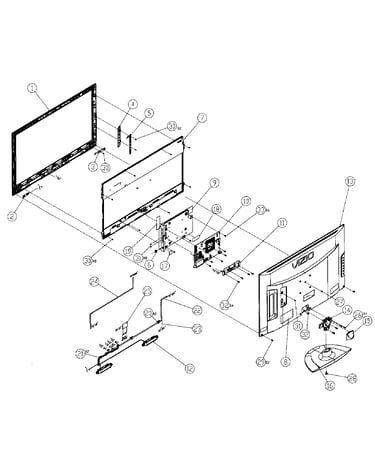

Cabinet parts diagram

Bracket

Part #171201018400

The manufacturer no longer makes this part, and there's no substitute part

Wh Ffc 10p 046028100011
#24

Cabinet parts diagram

Wh ffc 10p

Part #046028100011

The manufacturer no longer makes this part, and there's no substitute part

Wh Ffc 6p 046028060142
#23

Cabinet parts diagram

Wh ffc 6p

Part #046028060142

The manufacturer no longer makes this part, and there's no substitute part

Nut, Tuner 174950800020
#6

Cabinet parts diagram

Nut, tuner

Part #174950800020

The manufacturer no longer makes this part, and there's no substitute part

Television Screw 172110030850
#31

Cabinet parts diagram

Television screw

Part #172110030850

The manufacturer no longer makes this part, and there's no substitute part

Wh Ffc 60p 046028600471
#25

Cabinet parts diagram

Wh ffc 60p

Part #046028600471

The manufacturer no longer makes this part, and there's no substitute part

Television Power Cord 032040000250
#NI

Cabinet parts diagram

Television power cord

Part #032040000250

The manufacturer no longer makes this part, and there's no substitute part

Holder Assembly 180119546010
#4

Cabinet parts diagram

Holder assembly

Part #180119546010

The manufacturer no longer makes this part, and there's no substitute part

Screw 172110030650
#30

Cabinet parts diagram

Screw

Part #172110030650

The manufacturer no longer makes this part, and there's no substitute part

Screw 172150041020
#32

Cabinet parts diagram

Screw

Part #172150041020

The manufacturer no longer makes this part, and there's no substitute part
