Carrier 58CLA10510112 furnace Parts

Here are the diagrams and repair parts for Carrier 58CLA10510112 furnace, as well as links to manuals and error code tables, if available.

Carrier 58CLA10510112 furnace
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for58CLA10510112 Furnace

  • Rckr Swtch for Carrier 58CLA10510112 - Part L07F003

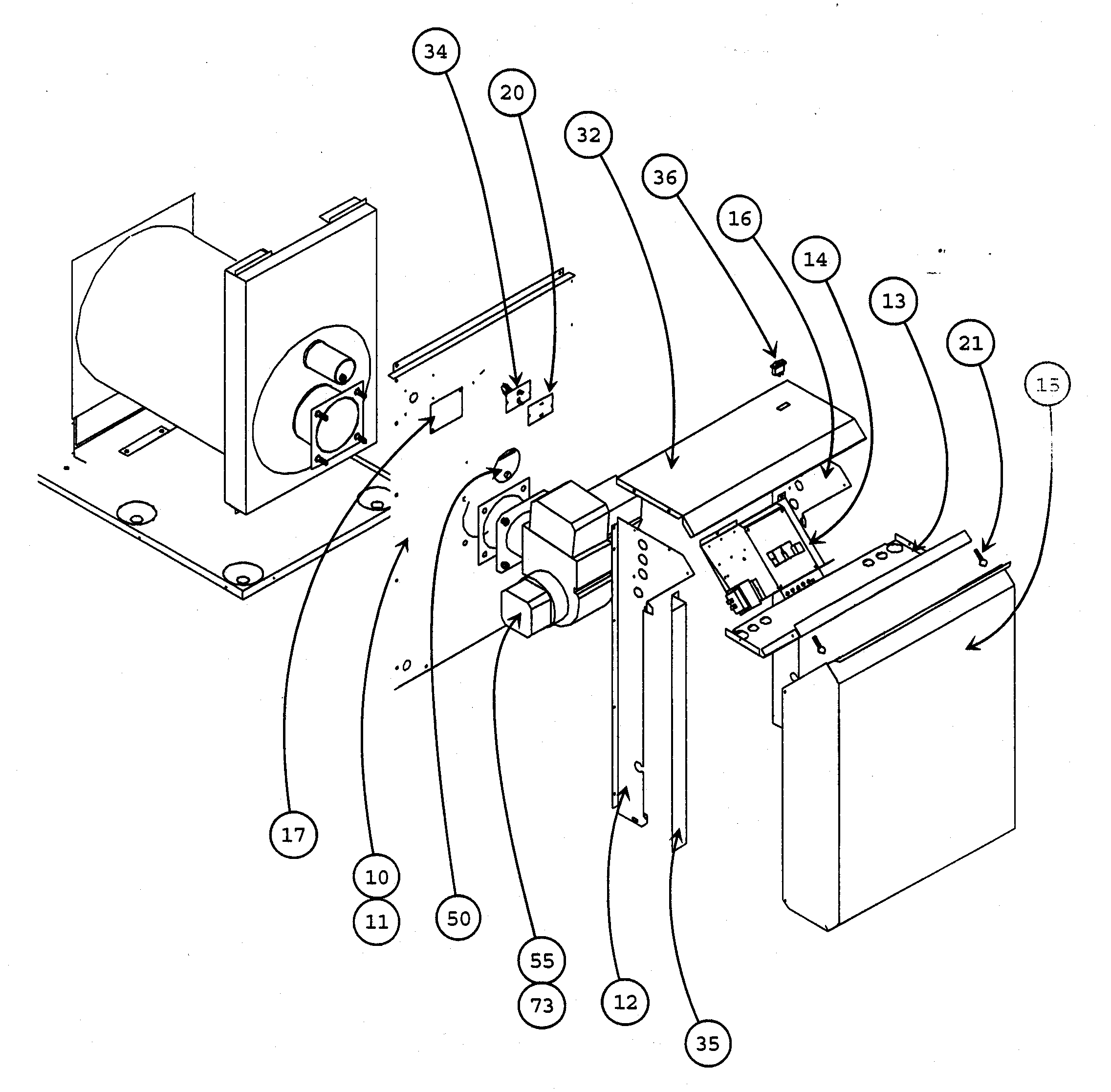

    Cabinet assy 2 diagram

    Rckr Swtch

    Part #L07F003

    The manufacturer no longer makes this part, and there's no substitute part

  • Firing Head for Carrier 58CLA10510112 - Part 69784B37

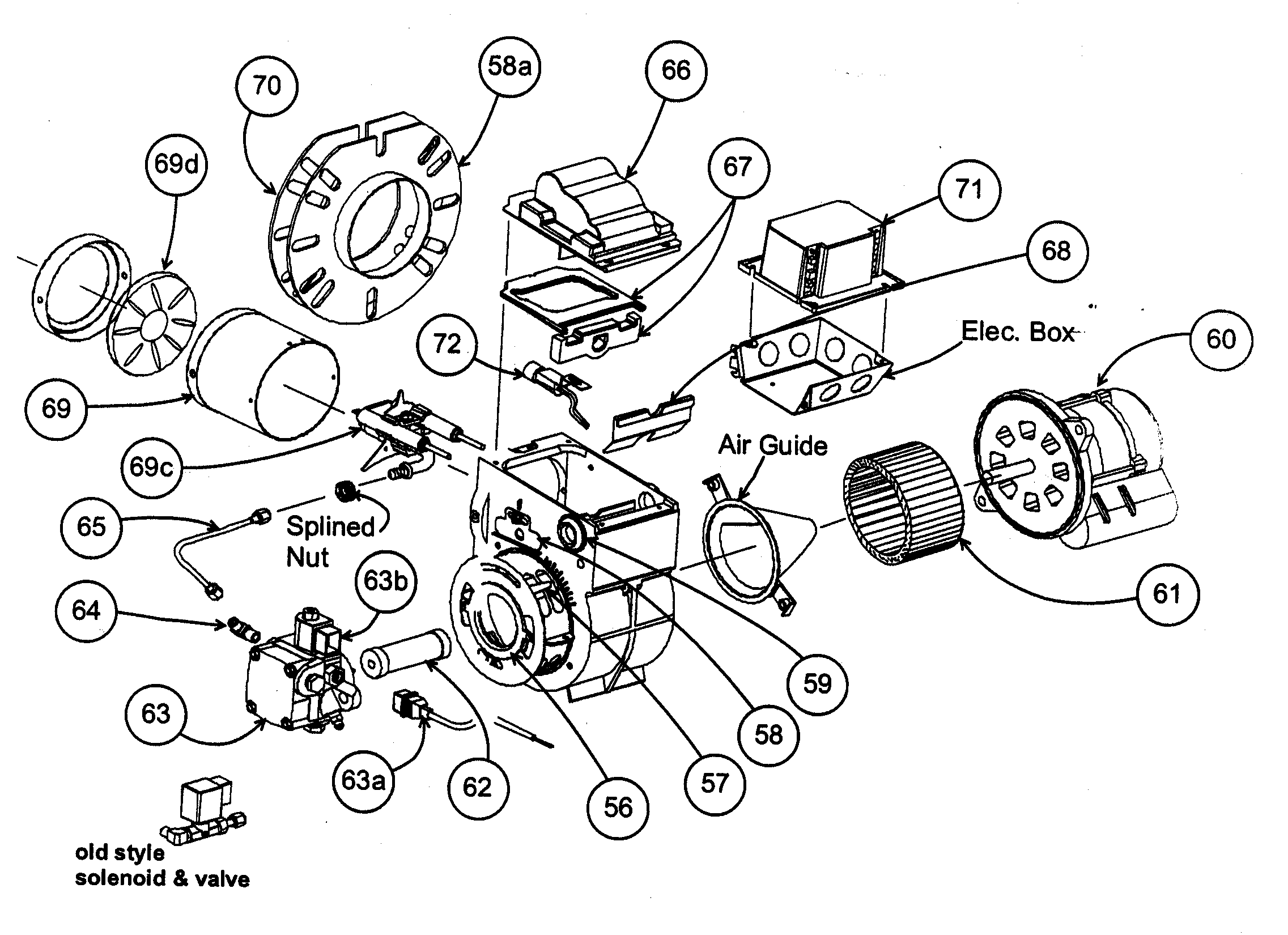

    Burner assy diagram

    Firing Head

    Part #69784B37

    The manufacturer no longer makes this part, and there's no substitute part

  • Air Band for Carrier 58CLA10510112 - Part 5151501

    Air Band

    Part #5151501

    The manufacturer no longer makes this part, and there's no substitute part

  • Flange for Carrier 58CLA10510112 - Part 31429BK

    Burner assy diagram

    Flange

    Part #31429BK

    The manufacturer no longer makes this part, and there's no substitute part

  • 6a,coil, Evaporator for Carrier 58CLA10510112 - Part N/A

    6a,coil, Evaporator

    Part #N/A

    The manufacturer no longer makes this part, and there's no substitute part

  • Housing for Carrier 58CLA10510112 - Part Z01I002

    Housing

    Part #Z01I002

    The manufacturer no longer makes this part, and there's no substitute part

  • Insulation,front Only for Carrier 58CLA10510112 - Part B01722

    Cabinet assy 2 diagram

    Insulation,front Only

    Part #B01722

    The manufacturer no longer makes this part, and there's no substitute part

  • Floor Base for Carrier 58CLA10510112 - Part B01733

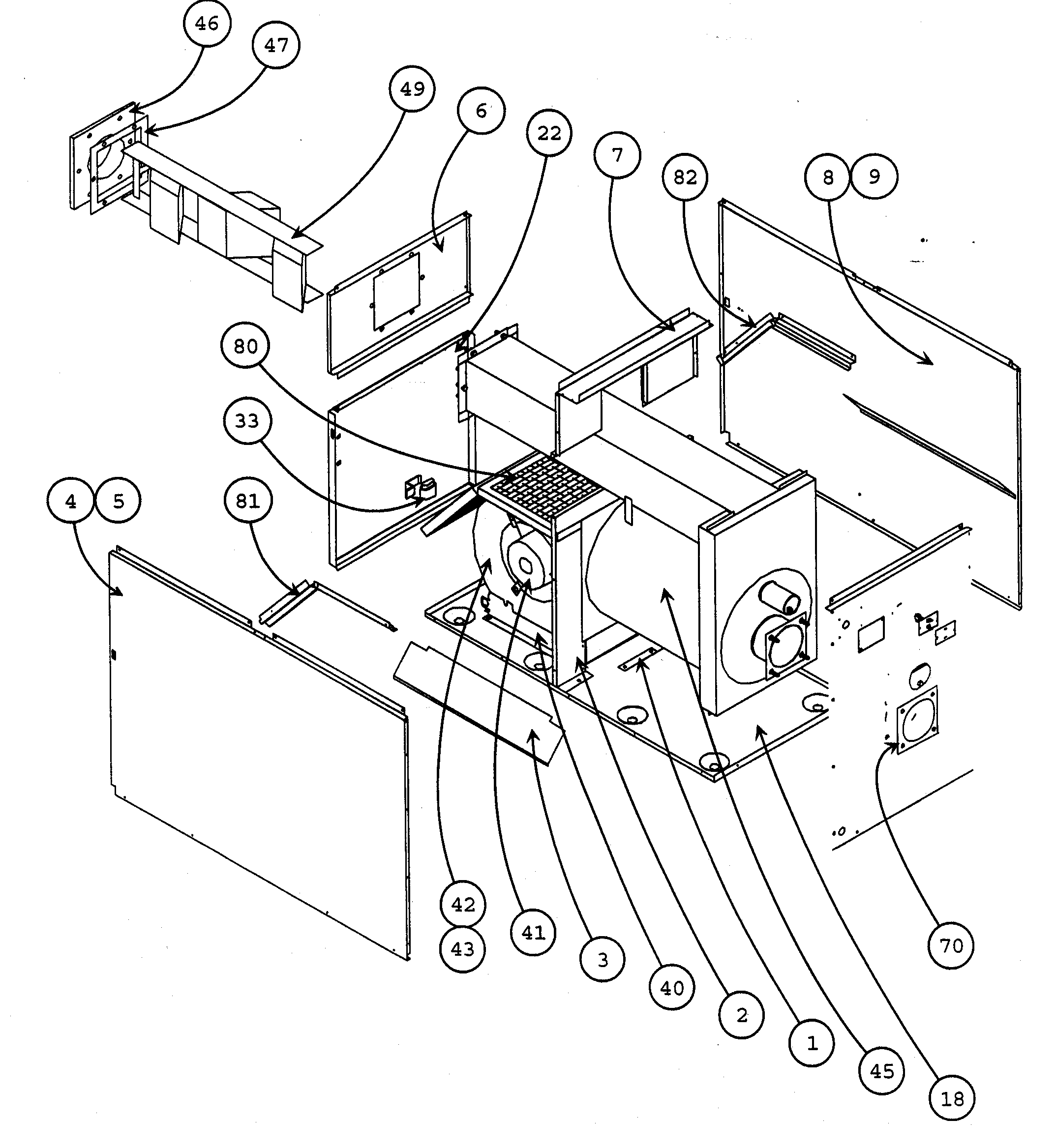

    Cabinet assy 1 diagram

    Floor Base

    Part #B01733

    The manufacturer no longer makes this part, and there's no substitute part

  • Side Panel for Carrier 58CLA10510112 - Part B01716-02

    Cabinet assy 2 diagram

    Side Panel

    Part #B01716-02

    The manufacturer no longer makes this part, and there's no substitute part

  • Harness for Carrier 58CLA10510112 - Part B01662

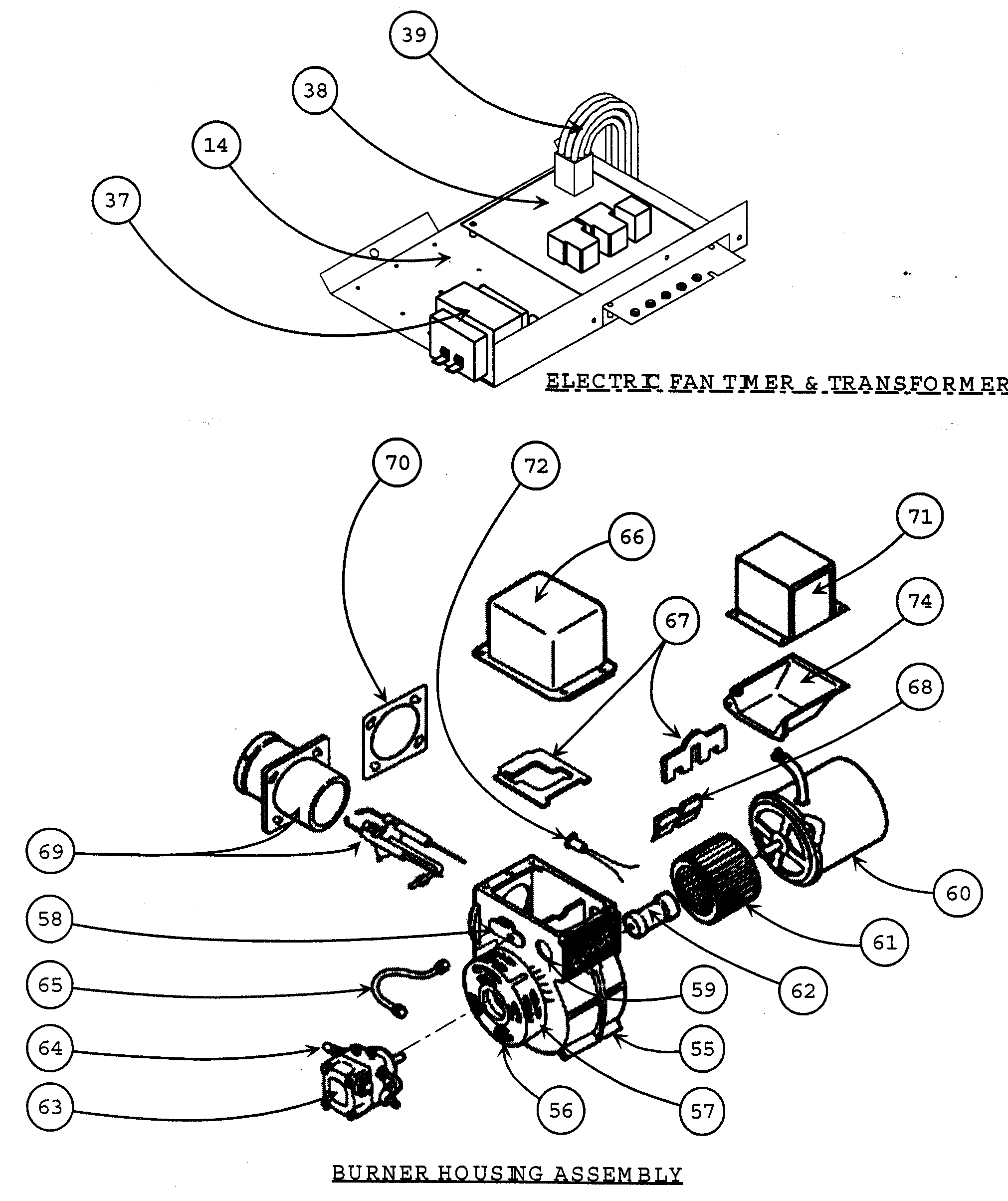

    Electric fan timer/transformer/burner housing assy diagram

    Harness

    Part #B01662

    The manufacturer no longer makes this part, and there's no substitute part
