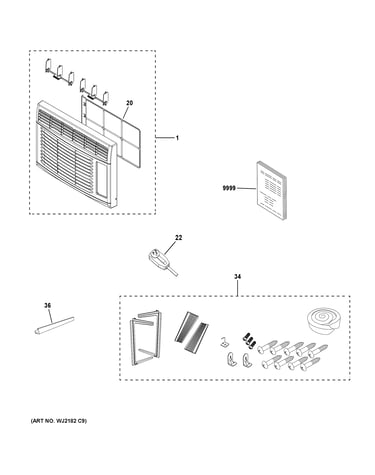

GE AWCS05BWT1 room air conditioner Parts

Yes. For a typical 12x12 room (about 144 sq. ft.), a 1-ton air conditioner is more than enough cooling capacity; most rooms that size do well with roughly 5,000 to 6,000 BTU. For a GE room air conditioner like model AWCS05BWT1, correct sizing helps it cool evenly and control humidity.

• 12x12 room = 144 sq. ft.
• Typical need = about 20 BTU per sq. ft.
• Estimated range = about 2,900 to 4,300 BTU (before adjustments)
• Common real-world pick for 144 sq. ft. = 5,000 to 6,000 BTU
• 1 ton = about 12,000 BTU (usually oversized for 144 sq. ft.)

A 1-ton unit can work, but it is usually larger than needed for a 12x12 room. Oversizing often causes short cycling (frequent on/off), which can leave the room feeling clammy.

Use 1 ton if several of these apply:

• The room gets strong afternoon sun through large windows
• Insulation is poor or there are air leaks
• Ceilings are high (over about 8 ft.)
• The room connects openly to other spaces
• You regularly have multiple people or heat-producing equipment in the room

Right-sizing improves comfort and efficiency. A properly sized room air conditioner runs long enough to remove moisture, keeps temperatures steadier, and reduces wear on components like the compressor and electronic controls.

Even with the right size, airflow matters. Clean the air filter regularly; a clogged filter restricts airflow and can reduce cooling.

• Check and clean the filter every few weeks during heavy use
• Replace it if it is damaged or will not come clean
• Use the correct replacement part for this model: filter WJ85X33815

For additional troubleshooting help if the unit displays a code or behaves oddly, use GE error codes.

Last updated: January 2026

Yes. A GE 5,000 BTU window air conditioner like model AWCS05BWT1 is a solid choice for cooling a small room (typically up to about 150 sq. ft.) when it’s installed correctly and the air filter is kept clean; the main tradeoff is that 5,000 BTU units can sound louder than larger, slower-running models.

A 5,000 BTU room air conditioner is considered “good” when it matches the room size and airflow is not restricted.

• Cools a small bedroom, office, or nursery effectively
• Runs more consistently when doors are kept closed
• Performs best with a clean, properly seated air filter
• Can seem noisy because the compressor cycles on and off more noticeably
• May feel less “precise” on temperature control than higher-end digital models

These steps solve most “it’s not that good” complaints without replacing the unit.

• Clean or replace the air filter regularly; use the correct filter WJ85X33815
• Confirm the front intake is not blocked by curtains or furniture
• Make sure the unit tilts slightly outward so condensation drains correctly
• Use a fan setting that matches comfort (higher fan can feel cooler but louder)
• Seal gaps around the window panels to prevent hot air infiltration

If the BTU rating is too small for the space, the air conditioner can run constantly and still feel warm. If it’s sized correctly, a basic GE window unit can be reliable, comfortable, and a good value.

Last updated: January 2026

The most common issues we see with the GE AWCS05BWT1 room air conditioner are weak cooling or airflow, water leaking or splashing, unusual noise or vibration, and power problems. Many of these start with basic maintenance like cleaning the air filter and checking the cord and grille for damage.

• Not cooling well: dirty filter, blocked front grille, dirty coils, or low airflow
• Weak airflow: clogged filter, obstructed grille, fan issue, or heavy dust buildup
• Water leaking indoors: unit not level, clogged drain path, or ice melt from a frozen coil
• Icing/frost on the front or coil: restricted airflow (often filter-related) or very low room temperature
• Rattling or buzzing: loose front grille, mounting vibration, or debris in the fan area
• Won’t power on: outlet or breaker issue, damaged cord, or internal electrical fault

1. Turn the unit off and unplug it.
2. Remove and clean the air filter; replace it if it’s torn or won’t come clean (use the filter WJ85X33815).
3. Make sure the front intake is clear and the grille is secure (inspect the front grille WJ71X33834).
4. Confirm the unit is slightly tilted to the outside so condensate drains outdoors.
5. Inspect the cord and plug for heat damage, cuts, or looseness (replace with the power cord WJ35X33817 if damaged).

A restricted filter or blocked grille makes the AWCS05BWT1 work harder, which reduces cooling, increases noise, and can lead to icing and water leaks. Keeping airflow and drainage correct prevents many repeat failures.

Last updated: March 2026
