Model # DW384 TYPE3 Official DeWalt circular saw

Here are the diagrams and repair parts for Official DeWalt DW384-TYPE3 circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Terminal 145332-00
#80

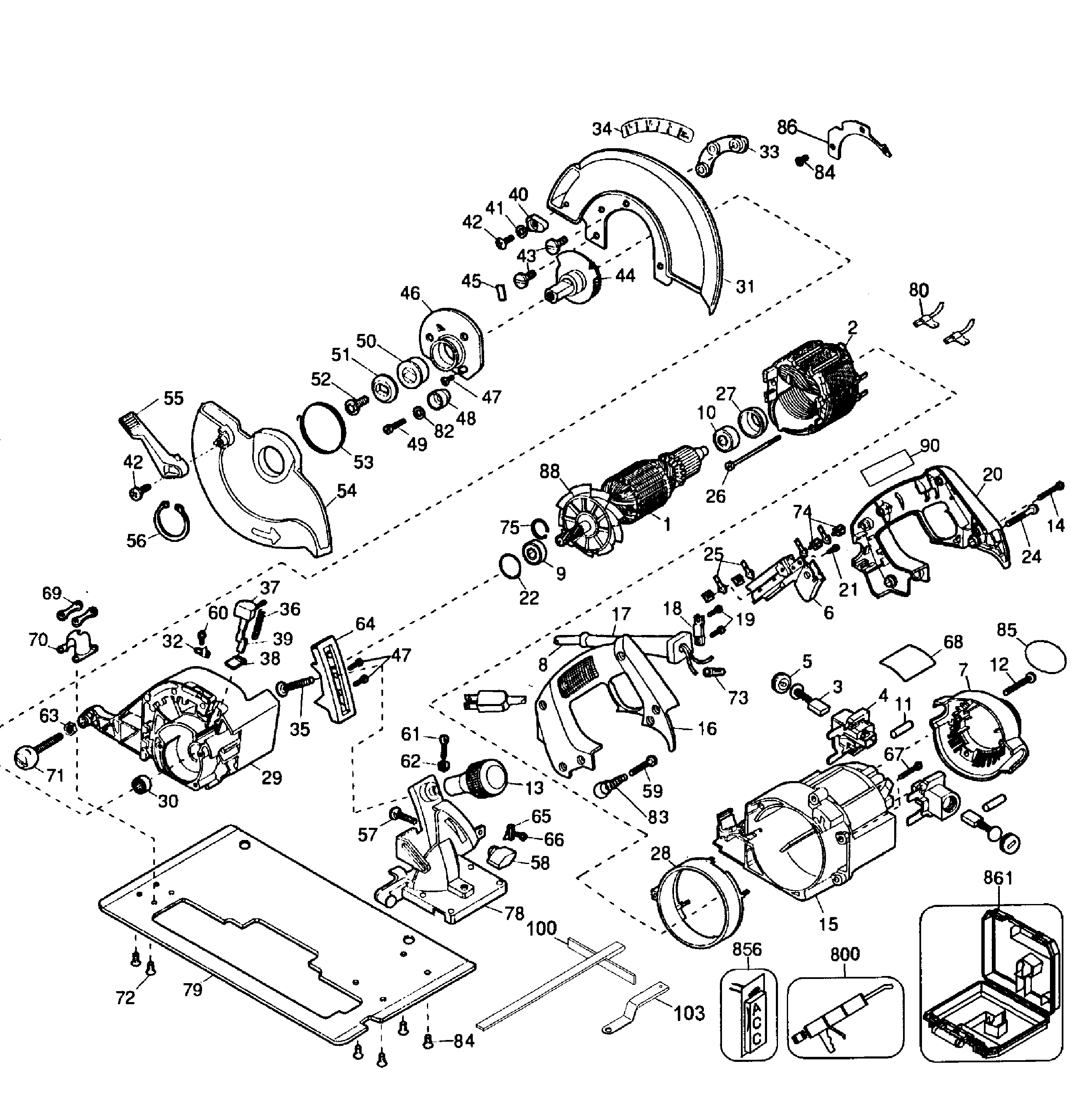

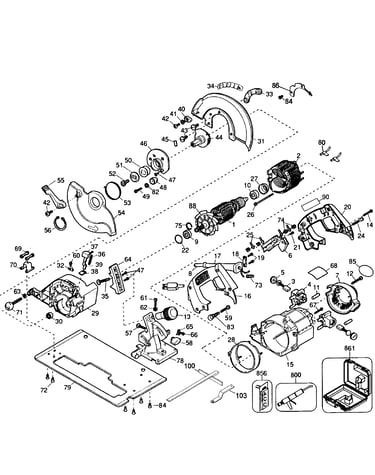

Saw circular diagram

Terminal

Part #145332-00

The manufacturer no longer makes this part, and there's no substitute part

Terminal 053650-00
#25

Saw circular diagram

Terminal

Part #053650-00

The manufacturer no longer makes this part, and there's no substitute part

Plain Washer 150246-00
#82

Saw circular diagram

Plain washer

Part #150246-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 150466-00
#36

Saw circular diagram

Spring

Part #150466-00

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 32114-01
#73

Saw circular diagram

Twist-on wire connector

Part #32114-01

The manufacturer no longer makes this part, and there's no substitute part

Foam Seal 147194-00
#45

Saw circular diagram

Foam seal

Part #147194-00

The manufacturer no longer makes this part, and there's no substitute part

Armature 144785-12SV
#1

Saw circular diagram

Armature

Part #144785-12SV

The manufacturer no longer makes this part, and there's no substitute part

Miter Saw 145439-04
#13

Saw circular diagram

Miter saw

Part #145439-04

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-14
#14

Saw circular diagram

Screw

Part #330019-14

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-20
#12

Saw circular diagram

Screw

Part #330019-20

The manufacturer no longer makes this part, and there's no substitute part
