Amana
Countertop Microwave

Model # 630.001 Official Amana microwave

Here are the diagrams and repair parts for Official Amana 630001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Side Cover, Right (avocado) M53D16
#45C

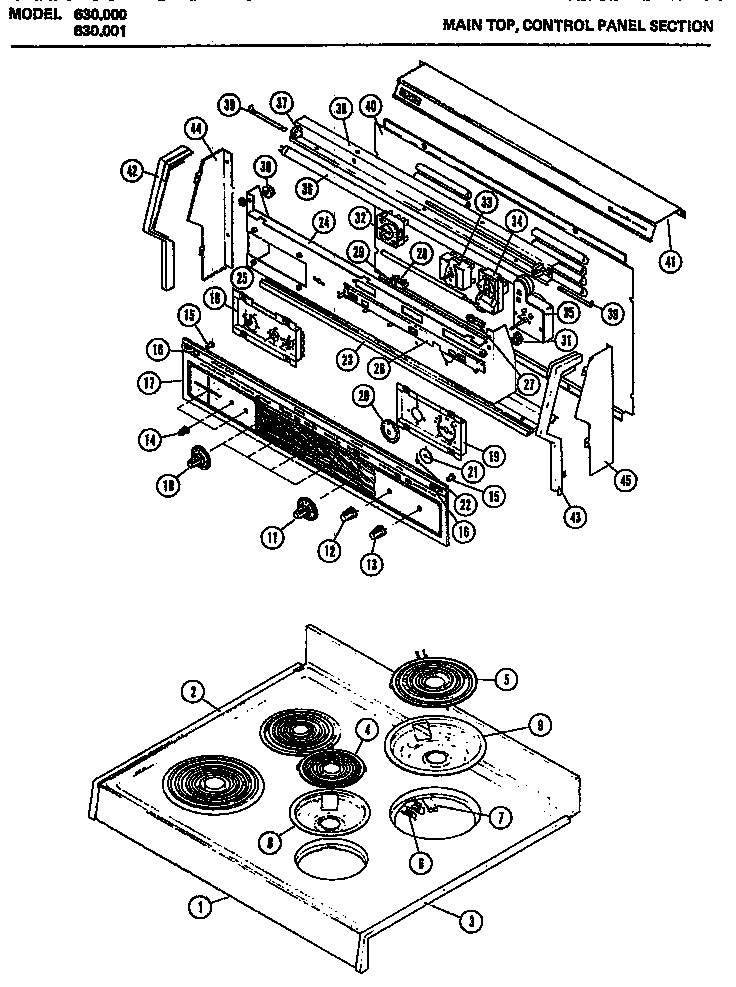

Main top (630.000) (630.001) diagram

Side cover, right (avocado)

Part #M53D16

The manufacturer no longer makes this part, and there's no substitute part

Ind. Light, Clean/surface, Microwave -- 120 V. M9D47
#27A

Main top (630.000) (630.001) diagram

Ind. light, clean/surface, microwave -- 120 v.

Part #M9D47

The manufacturer no longer makes this part, and there's no substitute part

Oven Light Cover M8D91
#57

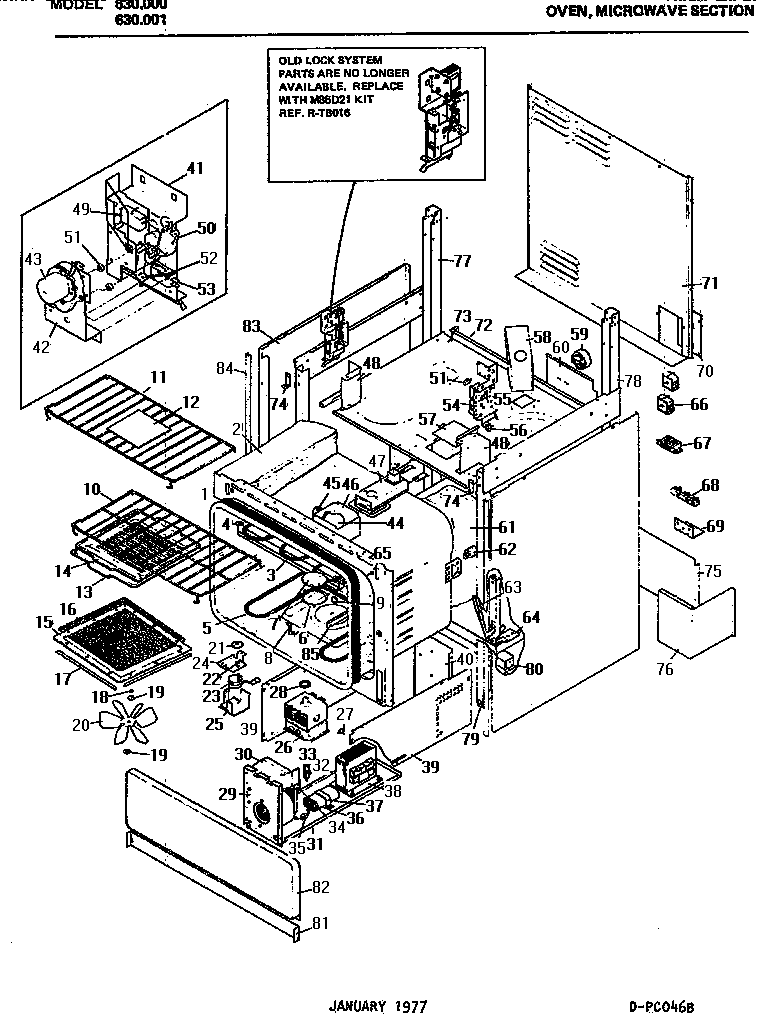

(630.000) (630.001) diagram

Oven light cover

Part #M8D91

The manufacturer no longer makes this part, and there's no substitute part

Oven Rack, Mini-shelf (standard Size) M67D10
#11

(630.000) (630.001) diagram

Oven rack, mini-shelf (standard size)

Part #M67D10

The manufacturer no longer makes this part, and there's no substitute part

Panel, Defrost Timer Mtg. M52D106
#60A

(630.000) (630.001) diagram

Panel, defrost timer mtg.

Part #M52D106

The manufacturer no longer makes this part, and there's no substitute part

Side Cover, Left (avocado) M53D12
#44C

Main top (630.000) (630.001) diagram

Side cover, left (avocado)

Part #M53D12

The manufacturer no longer makes this part, and there's no substitute part

Screw, Trim Mtg (top) M1D583
Screw, trim mtg (top)

Part #M1D583

The manufacturer no longer makes this part, and there's no substitute part

Hinge Assembly, Ove Door M8D77
#63A

(630.000) (630.001) diagram

Hinge assembly, ove door

Part #M8D77

The manufacturer no longer makes this part, and there's no substitute part

Flatwasher - Magnetron Mtg. M1D73
#26B

(630.000) (630.001) diagram

Flatwasher - magnetron mtg.

Part #M1D73

The manufacturer no longer makes this part, and there's no substitute part

Bulb, Oven Light (high Temp) M9D49
#44

(630.000) (630.001) diagram

Bulb, oven light (high temp)

Part #M9D49

The manufacturer no longer makes this part, and there's no substitute part
