Model # 502472131 Official Sears 27" lightweight bicycle

Here are the diagrams and repair parts for Official Sears 502472131 27" lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

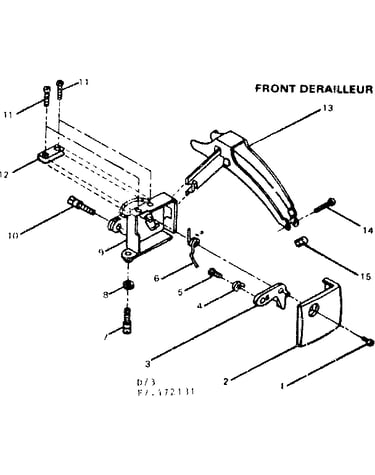

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 121 parts |

Kickstand 302336

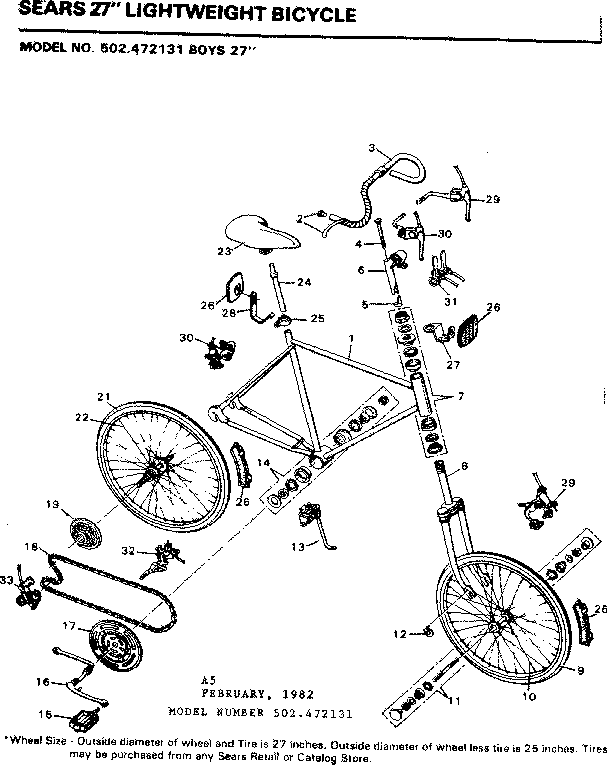

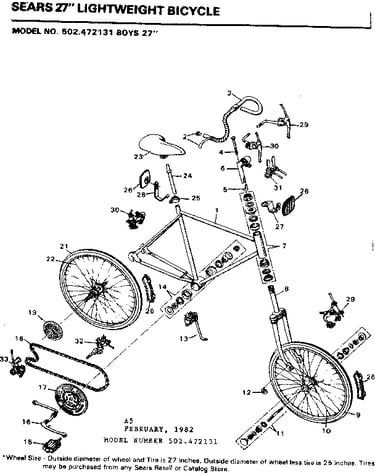

Unit parts diagram

Kickstand

Part #302336

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 304595

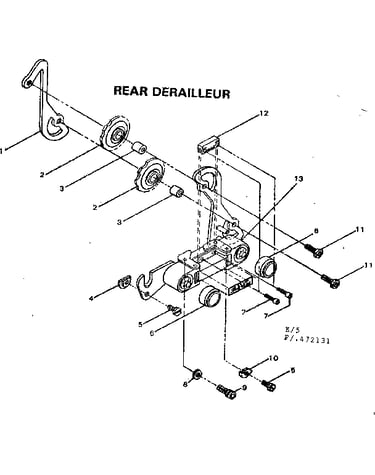

Rear derailleur diagram

Housing assembly

Part #304595

The manufacturer no longer makes this part, and there's no substitute part

R Derailleur 304596

R derailleur

Part #304596

The manufacturer no longer makes this part, and there's no substitute part

F Axle Set 303518

Unit parts diagram

F axle set

Part #303518

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe 308697

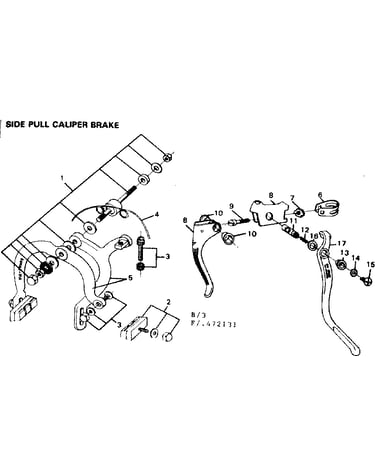

Side pull caliper brake diagram

Brake shoe

Part #308697

The manufacturer no longer makes this part, and there's no substitute part

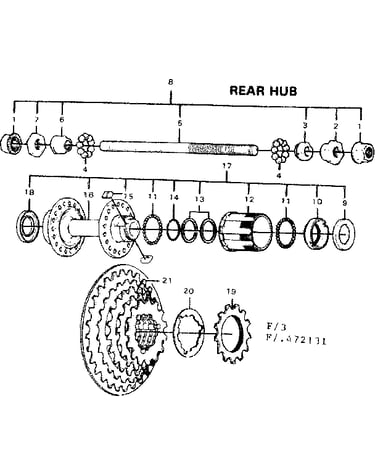

Spkt. Asm 36265PA

Unit parts diagram

Spkt. asm

Part #36265PA

The manufacturer no longer makes this part, and there's no substitute part

Shifter 304594

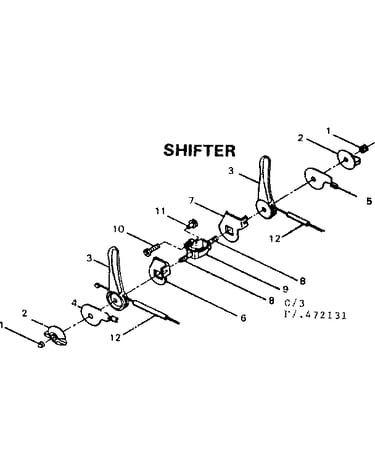

Shifter

Part #304594

The manufacturer no longer makes this part, and there's no substitute part

Brake 304255

#NI

All parts diagram

Brake

Part #304255

The manufacturer no longer makes this part, and there's no substitute part

Hanger Set 303333

Unit parts diagram

Hanger set

Part #303333

The manufacturer no longer makes this part, and there's no substitute part

Brake 304256

#NI

All parts diagram

Brake

Part #304256

The manufacturer no longer makes this part, and there's no substitute part
