White-Westinghouse
Room Air Conditioner

Model # WAC086W7A1 Official White-Westinghouse room air conditioner - 5995263216

Here are the diagrams and repair parts for Official White-Westinghouse WAC086W7A1 room air conditioner - 5995263216, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

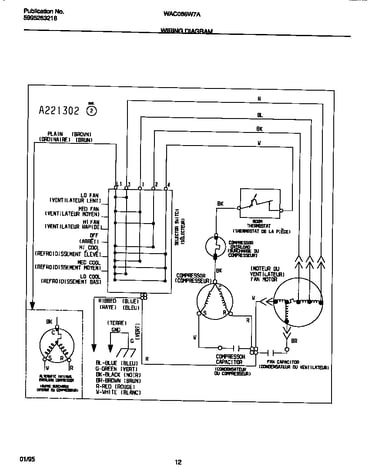

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Room Air Conditioner Filter Dryer 5300265301
#17

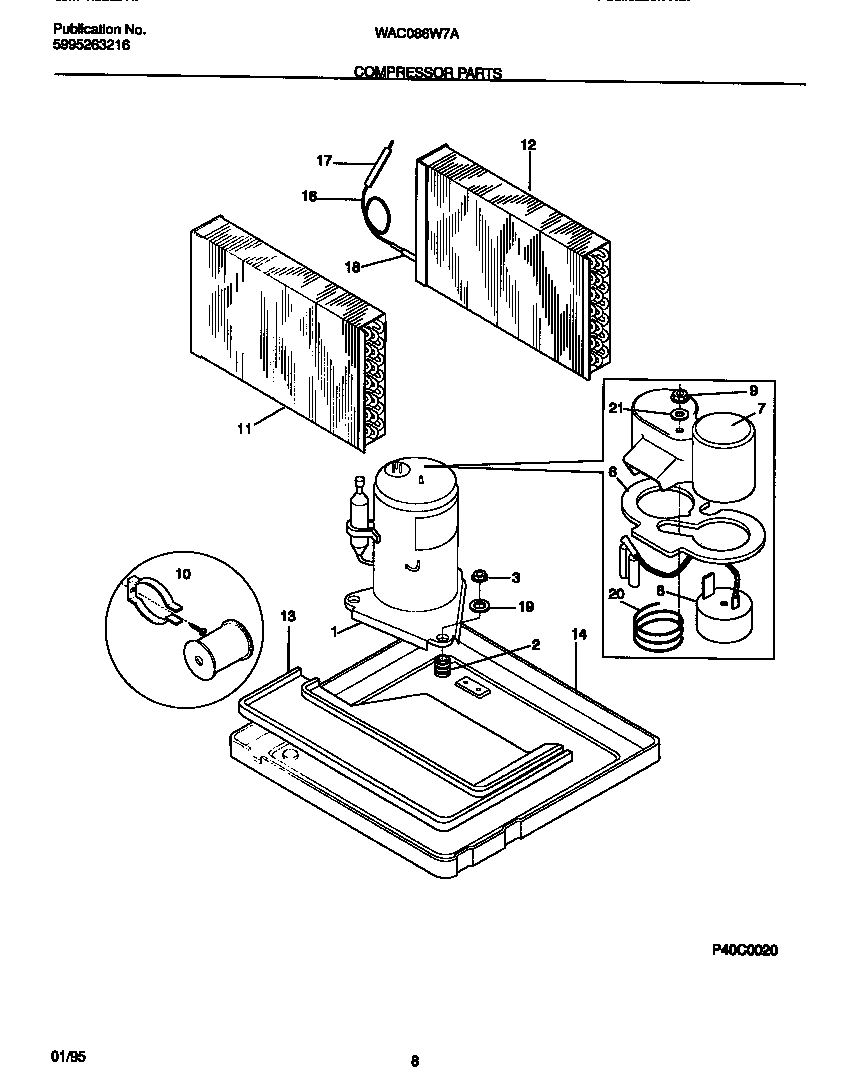

Compressor parts diagram

Room air conditioner filter dryer

Part #5300265301

$110.08
In Stock
Screw 5303303691
Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
$14.69
In Stock
Bracket Screw 3015312
#7

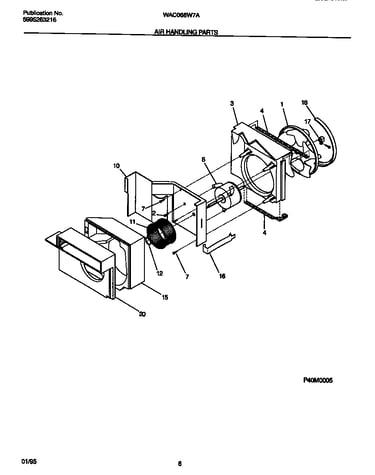

Air handling parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Bulkhead 309602401
Bulkhead

Part #309602401

$14.49
In Stock
Cover Capacitor 5303302855
#19

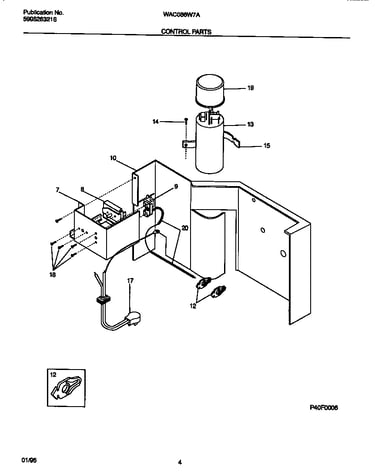

Control parts diagram

Cover capacitor

Part #5303302855

$20.78
In Stock
Wrapper 5303302856
#1

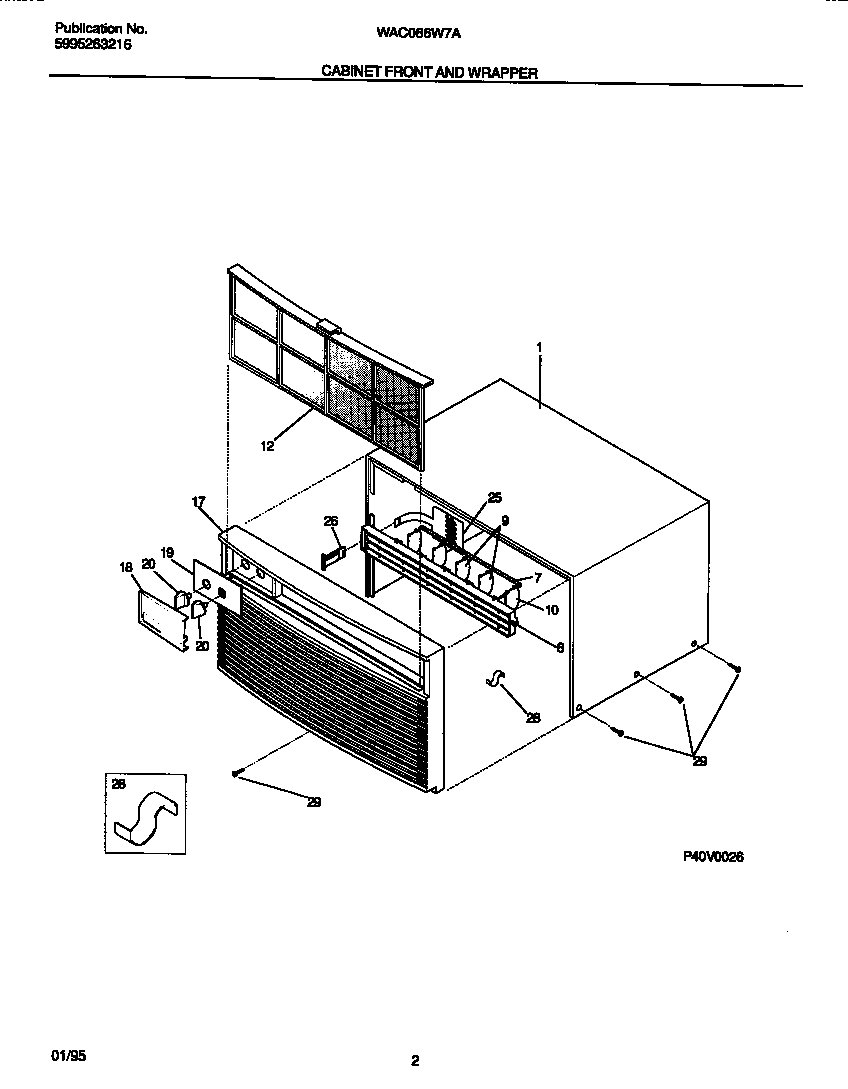

Cabinet front and wrapper diagram

Wrapper

Part #5303302856

$60.99
In Stock
Gasket 3002603
#1

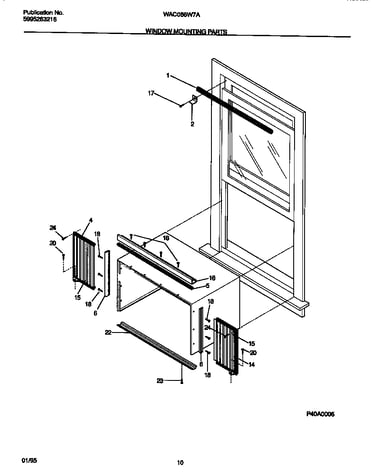

Window mounting parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Screw 3202975
#2

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Base 5303302847
#14

Compressor parts diagram

Base

Part #5303302847

The manufacturer no longer makes this part, and there's no substitute part

Frame 5303302860
#4

Window mounting parts diagram

Frame

Part #5303302860

The manufacturer no longer makes this part, and there's no substitute part
