Skil
Circular Saw

Model # 5780-01 Official Skil circular saw

Here are the diagrams and repair parts for Official Skil 5780-01 circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Lever 1619X02045
#45

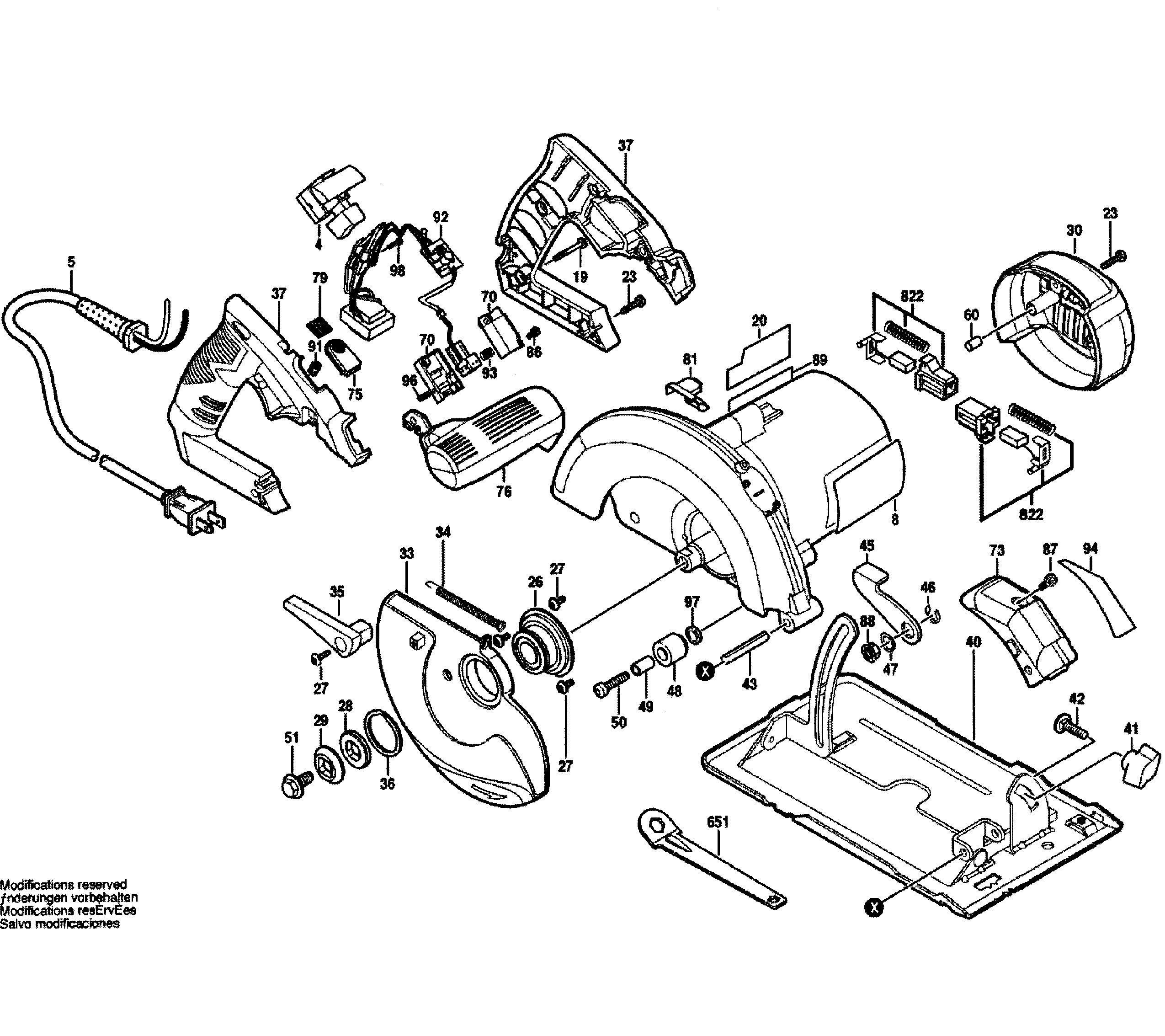

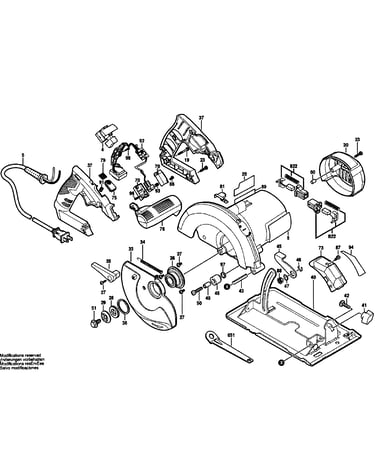

Saw circular diagram

Lever

Part #1619X02045

The manufacturer no longer makes this part, and there's no substitute part

Screw 1619X02271
#86

Saw circular diagram

Screw

Part #1619X02271

The manufacturer no longer makes this part, and there's no substitute part

Handle Assembly 1619X02073
#37

Saw circular diagram

Handle assembly

Part #1619X02073

The manufacturer no longer makes this part, and there's no substitute part

Bolt 1619X00674
#42

Saw circular diagram

Bolt

Part #1619X00674

The manufacturer no longer makes this part, and there's no substitute part

Spring 1619X02273
#91

Saw circular diagram

Spring

Part #1619X02273

The manufacturer no longer makes this part, and there's no substitute part

Cover 1619X01836
#75

Saw circular diagram

Cover

Part #1619X01836

The manufacturer no longer makes this part, and there's no substitute part

Laser Assembly 1619X02029
#92

Saw circular diagram

Laser assembly

Part #1619X02029

The manufacturer no longer makes this part, and there's no substitute part

Cord 1619X01832
#5

Saw circular diagram

Cord

Part #1619X01832

The manufacturer no longer makes this part, and there's no substitute part

Screw 1619X02011
#87

Saw circular diagram

Screw

Part #1619X02011

The manufacturer no longer makes this part, and there's no substitute part

Circular Saw Blade Washer, Inner 1619X00659
#28

Saw circular diagram

Circular saw blade washer, inner

Part #1619X00659

The manufacturer no longer makes this part, and there's no substitute part
