Model # HDC-SD9P Official Panasonic digital camcorder

Here are the diagrams and repair parts for Official Panasonic HDC-SD9P digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Rr Operate N9ZZ00000386
#26

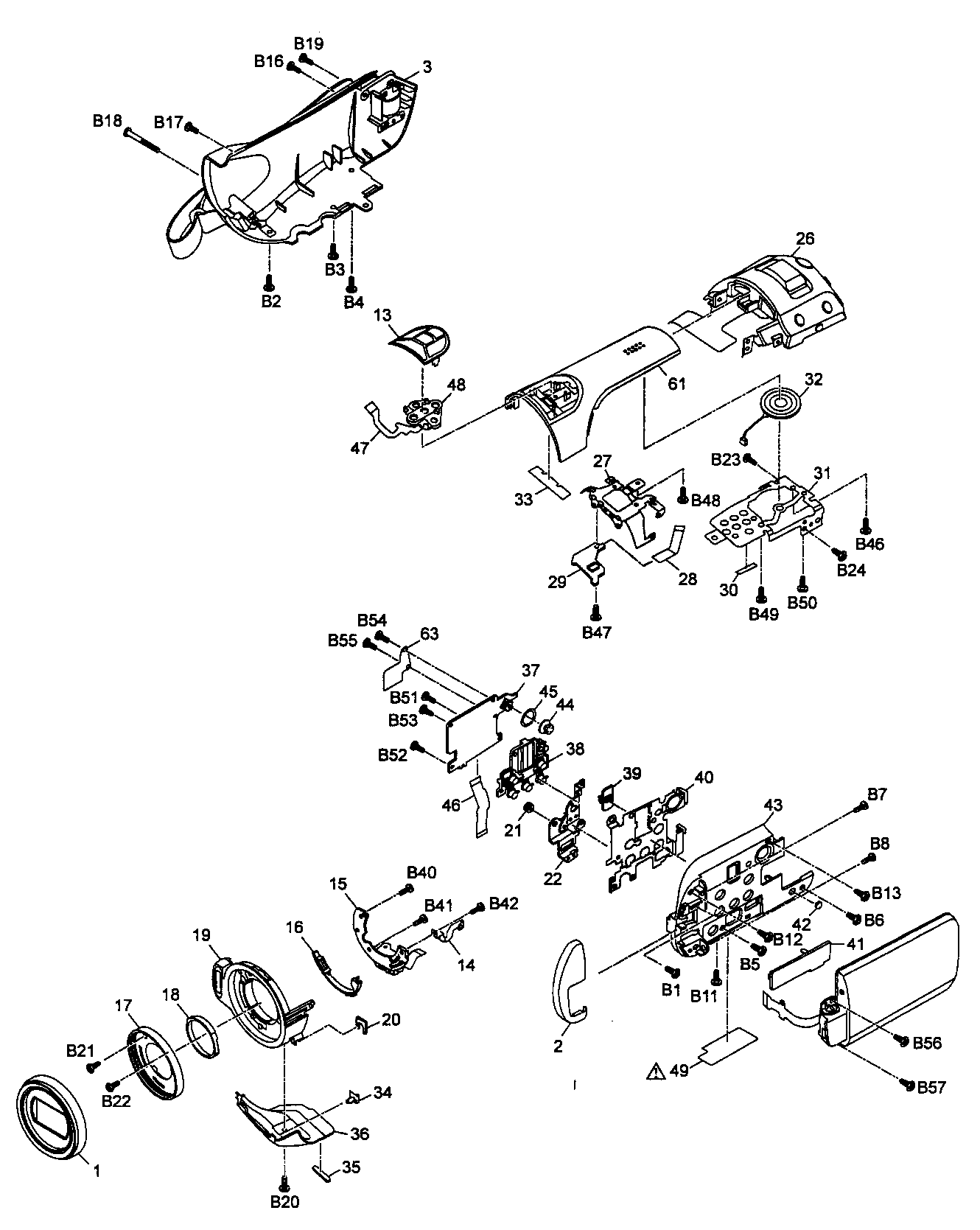

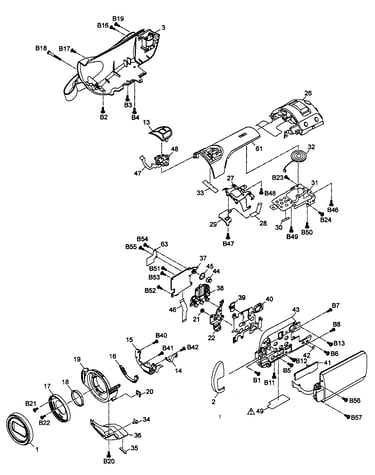

Frame and casing parts 1 diagram

Rr operate

Part #N9ZZ00000386

The manufacturer no longer makes this part, and there's no substitute part

Side Case VKM7453
#43

Frame and casing parts 1 diagram

Side case

Part #VKM7453

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Speaker L0AA02A00075
#32

Frame and casing parts 1 diagram

Camcorder speaker

Part #L0AA02A00075

The manufacturer no longer makes this part, and there's no substitute part

Sink Plate VSC5761
#4

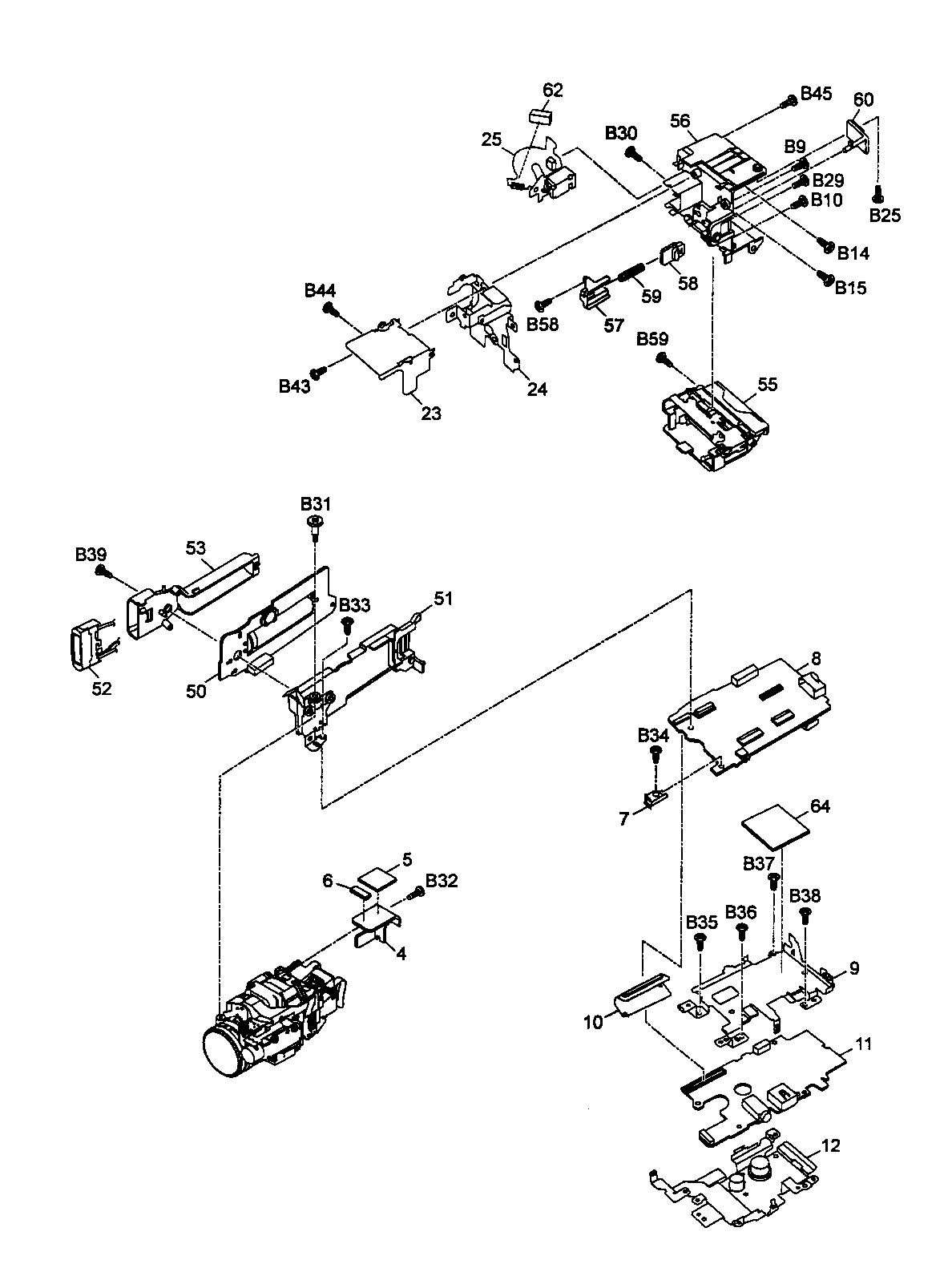

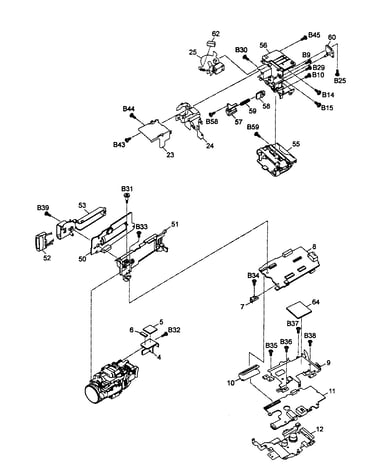

Frame and casing parts 2 diagram

Sink plate

Part #VSC5761

The manufacturer no longer makes this part, and there's no substitute part

R Cover VKM7395
#2

Frame and casing parts 1 diagram

R cover

Part #VKM7395

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C1AB00002388
#NI

Frame and casing parts 1 diagram

Integrated circuit

Part #C1AB00002388

The manufacturer no longer makes this part, and there's no substitute part

Side-r Fpc VWJ2020
#46

Frame and casing parts 1 diagram

Side-r fpc

Part #VWJ2020

The manufacturer no longer makes this part, and there's no substitute part

Prism VXQ1548
#201

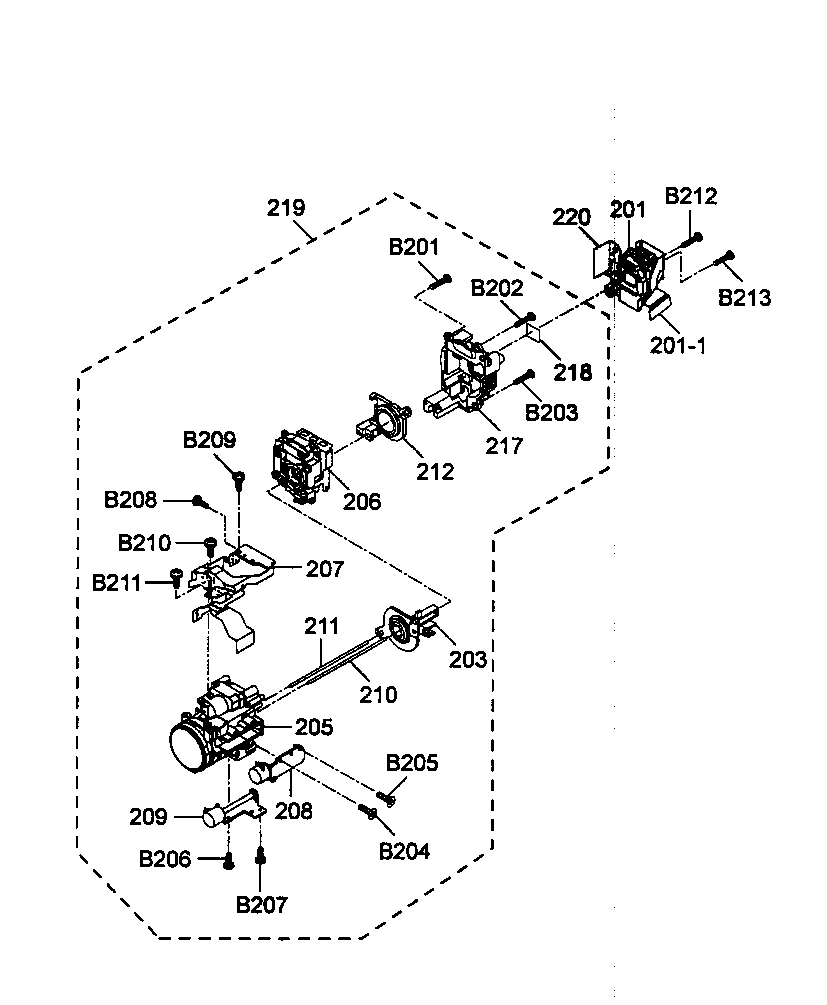

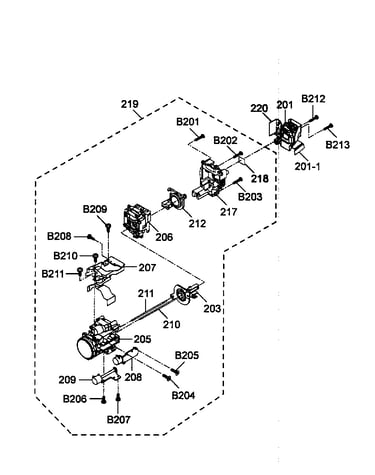

Camera lens assy diagram

Prism

Part #VXQ1548

The manufacturer no longer makes this part, and there's no substitute part

Diffusion Sheet VGL1255
#159

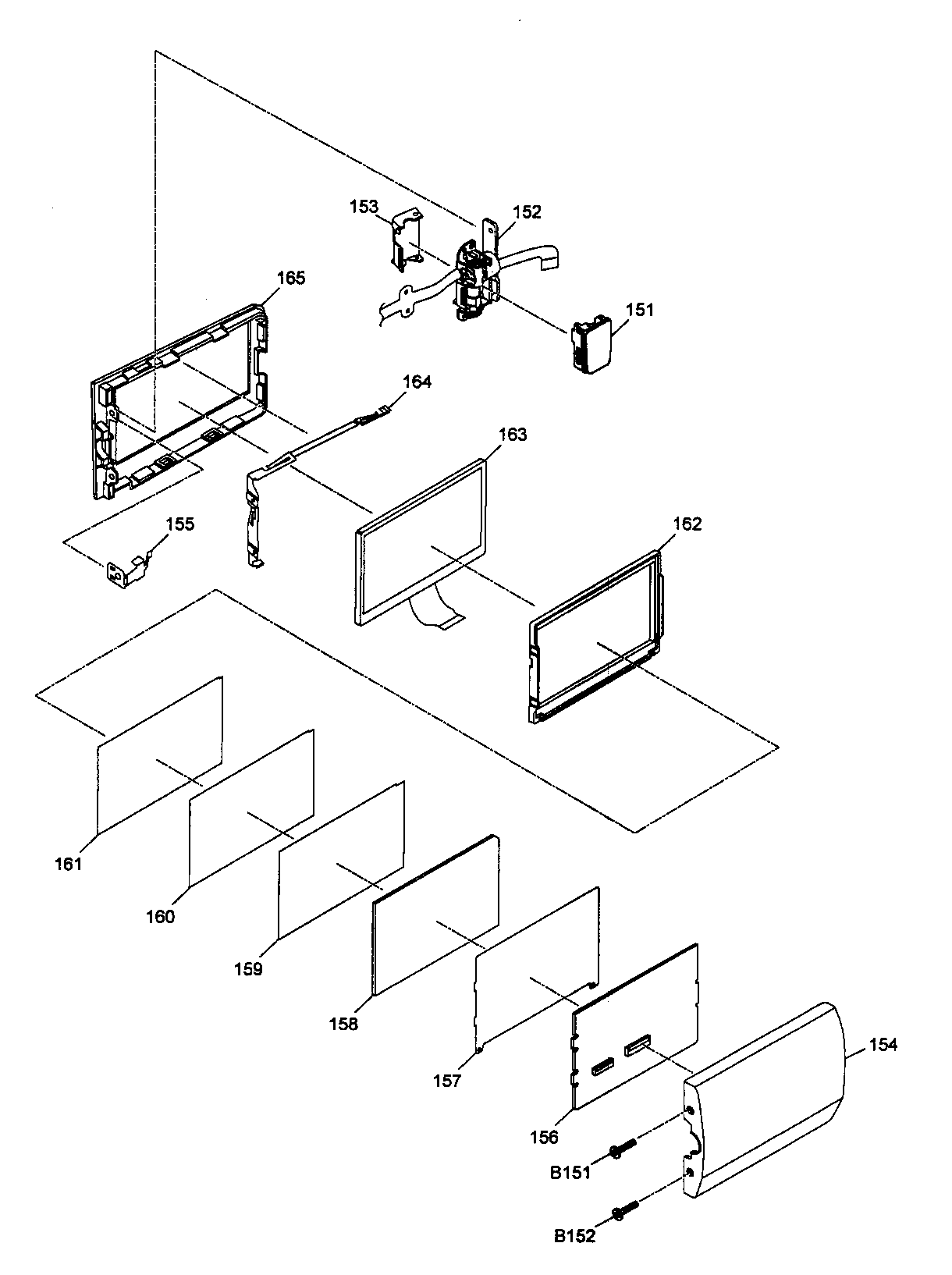

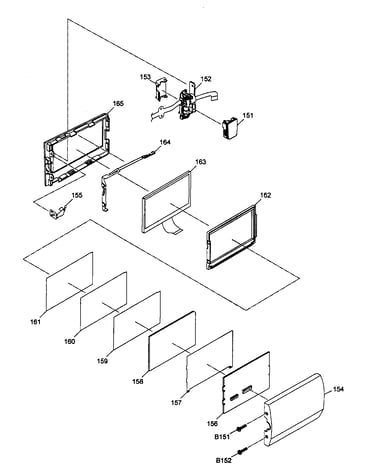

Lcd assy diagram

Diffusion sheet

Part #VGL1255

The manufacturer no longer makes this part, and there's no substitute part

Usb Cable K2KZ4CB00011
#NI

Frame and casing parts 1 diagram

Usb cable

Part #K2KZ4CB00011

The manufacturer no longer makes this part, and there's no substitute part
