Kenmore
Food Processor

Model # 400823603 Official Kenmore 7-speed food processor

Here are the diagrams and repair parts for Official Kenmore 400823603 7-speed food processor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Lead Complet 6056-701-0500
#23

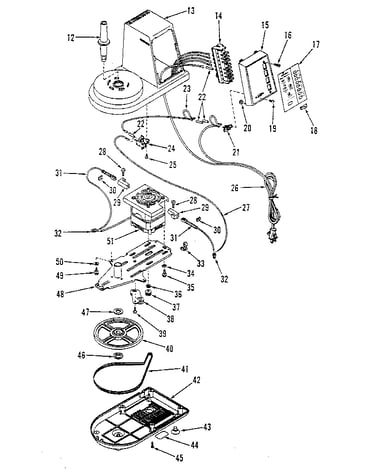

Electricals and housing diagram

Lead complet

Part #6056-701-0500

The manufacturer no longer makes this part, and there's no substitute part

Insulator 3520-654-0000
#30

Electricals and housing diagram

Insulator

Part #3520-654-0000

The manufacturer no longer makes this part, and there's no substitute part

Cord 6182-704-0100
#26

Electricals and housing diagram

Cord

Part #6182-704-0100

The manufacturer no longer makes this part, and there's no substitute part

Nut 3125-210-0000
#32

Electricals and housing diagram

Nut

Part #3125-210-0000

The manufacturer no longer makes this part, and there's no substitute part

Screw 4106-008-1803
Screw

Part #4106-008-1803

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Foot 3229-707-4400
#43

Electricals and housing diagram

Vacuum foot

Part #3229-707-4400

The manufacturer no longer makes this part, and there's no substitute part

Screw 4101-006-2024
#16

Electricals and housing diagram

Screw

Part #4101-006-2024

The manufacturer no longer makes this part, and there's no substitute part

Bowl Cover 3107-701-7000
#9

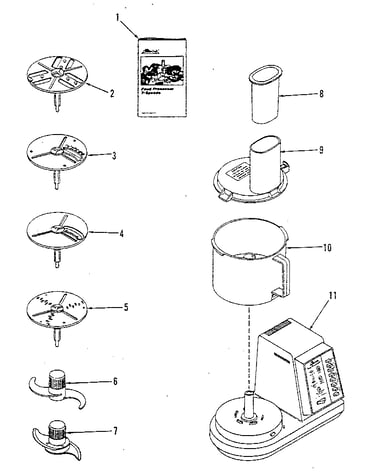

Replacement parts diagram

Bowl cover

Part #3107-701-7000

The manufacturer no longer makes this part, and there's no substitute part

Switch 3086-707-0010
#21

Electricals and housing diagram

Switch

Part #3086-707-0010

The manufacturer no longer makes this part, and there's no substitute part

Motor 6991-704-0010
#51

Electricals and housing diagram

Motor

Part #6991-704-0010

The manufacturer no longer makes this part, and there's no substitute part
