Model #2581076180 Kenmore gas outdoor grill

Here are the diagrams and repair parts for Kenmore 2581076180 gas outdoor grill, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 138 parts

    Cap Nut

    #39

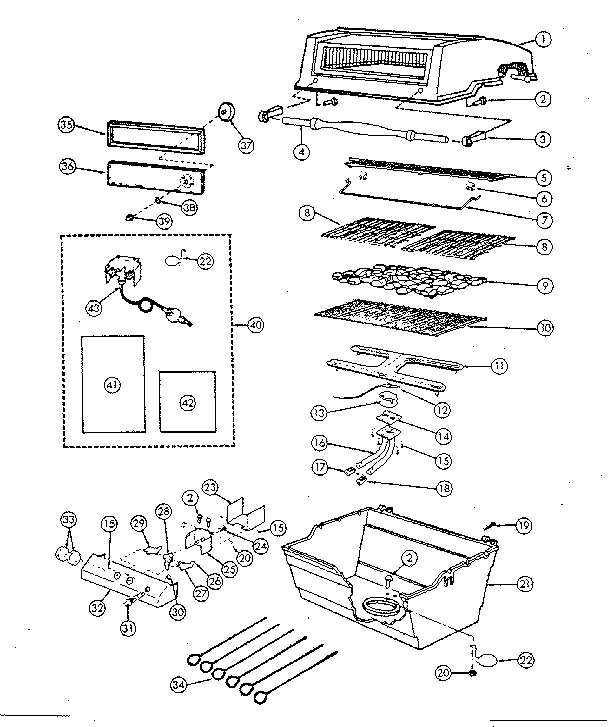

    Burner section Diagram

    Cap nut

    Part #STD541806

    The manufacturer no longer makes this part, and there's no substitute part

    Lock Washer, 8-pack

    #126

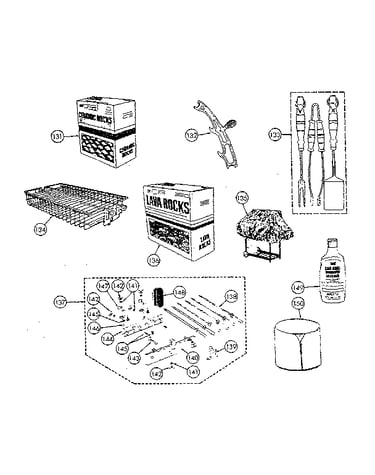

    Optional accessories Diagram

    Lock washer, 8-pack

    Part #STD551110
    ?
    Manufacturer substitution
    This part replaces STD551110. Substitute parts can look different from the original.
    This part replaces STD551110
    This item is not returnable
    $2.58

    In Stock

    Gas Grill H-Burner

    #11

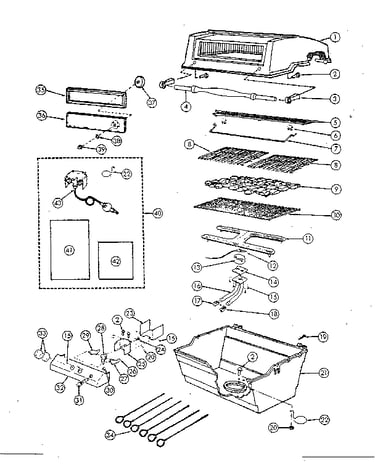

    Burner section Diagram

    Gas grill h-burner

    Part #10390312
    ?
    Manufacturer substitution
    This part replaces 10390-31. Substitute parts can look different from the original.
    This part replaces 10390-31
    $60.32

    In Stock

    Wing Nut

    #142

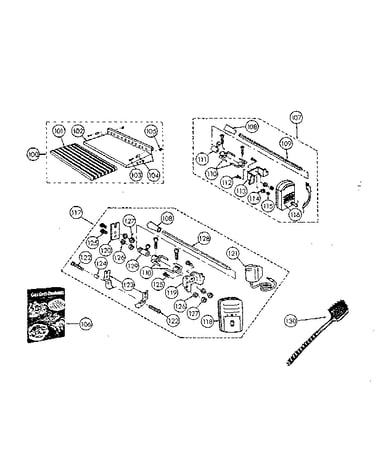

    Optional accessories Diagram

    Wing nut

    Part #STD541610

    The manufacturer no longer makes this part, and there's no substitute part

    F1 Washr Sae

    #38

    Burner section Diagram

    F1 washr sae

    Part #STD551006

    The manufacturer no longer makes this part, and there's no substitute part

    Hex Nut

    #105

    Optional accessories Diagram

    Hex nut

    Part #STD541110

    The manufacturer no longer makes this part, and there's no substitute part

    Wing Nut, 1/4-20

    #72

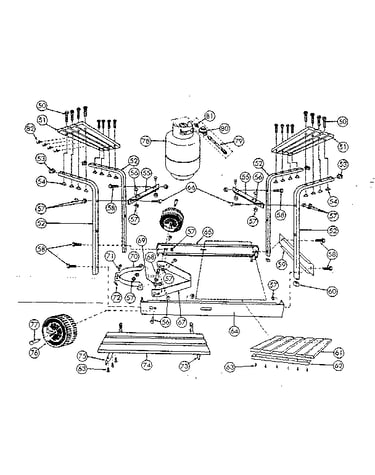

    Cart Diagram

    Wing nut, 1/4-20

    Part #STD541625

    The manufacturer no longer makes this part, and there's no substitute part

    Lock Washer

    #114

    Optional accessories Diagram

    Lock washer

    Part #STD551108

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #112

    Optional accessories Diagram

    Screw

    Part #STD510807

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #145

    Optional accessories Diagram

    Screw

    Part #STD511005

    The manufacturer no longer makes this part, and there's no substitute part
