Model # 143566232 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143566232 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

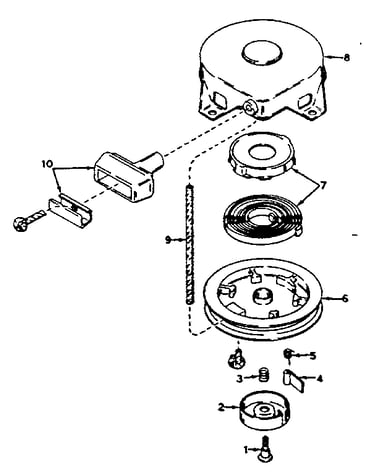

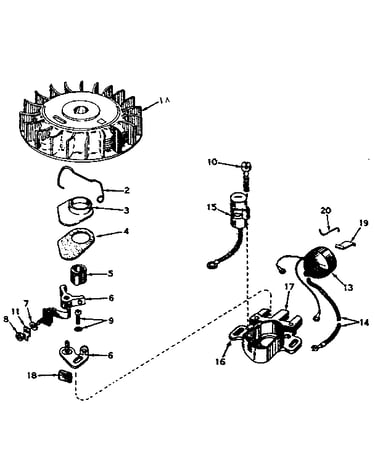

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Gasket 27110
#21

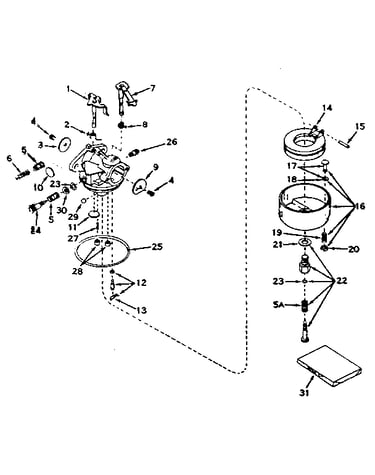

Carburetorno. 6309928 diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 631023
#14

Carburetorno. 6309928 diagram

/carb float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

Breather Element Air Filter 28424

#40

All parts diagram

Breather element air filter

Part #28424

The manufacturer no longer makes this part, and there's no substitute part

Plug Cover 27276

#157

All parts diagram

Plug cover

Part #27276

The manufacturer no longer makes this part, and there's no substitute part

Spring Retainer 630731
#2

Carburetorno. 6309928 diagram

Spring retainer

Part #630731

The manufacturer no longer makes this part, and there's no substitute part

Clip 631022
#13

Carburetorno. 6309928 diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

Chmp J8 Plug 21943

#37

All parts diagram

Chmp j8 plug

Part #21943

The manufacturer no longer makes this part, and there's no substitute part

Spool 30588A

#109

All parts diagram

Spool

Part #30588A

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#5

Carburetorno. 6309928 diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

Shutoff Valv 29683

#117

All parts diagram

Shutoff valv

Part #29683

The manufacturer no longer makes this part, and there's no substitute part
