Whirlpool MW8650XS6 microwave Parts

Here are the diagrams and repair parts for Whirlpool MW8650XS6 microwave, as well as links to manuals and error code tables, if available.

Whirlpool MW8650XS6 microwave
By Schematic
By Part

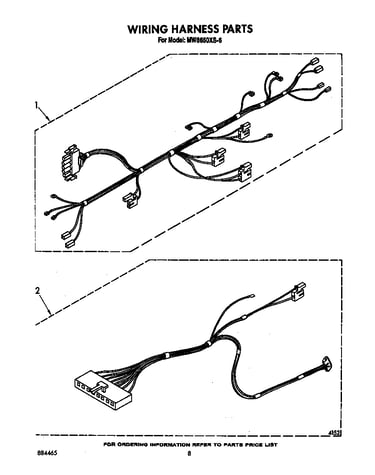

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for MW8650XS6 Microwaves

  • Power Cord for Whirlpool MW8650XS6 - Part 661160

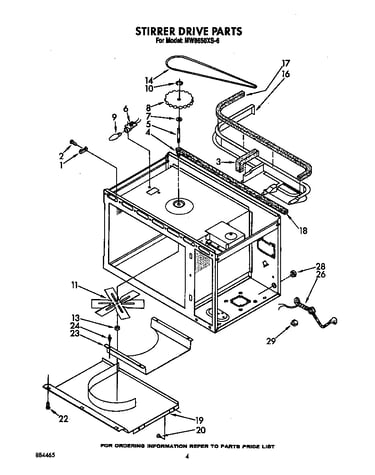

    Stirrer and drive diagram

    Power Cord

    Part #661160

    The manufacturer no longer makes this part, and there's no substitute part

  • Blower Bracket for Whirlpool MW8650XS6 - Part 313601

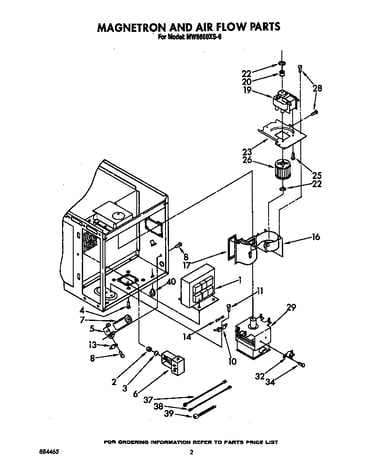

    Magnetron and air flow diagram

    Blower Bracket

    Part #313601

    The manufacturer no longer makes this part, and there's no substitute part

  • Probe Jack for Whirlpool MW8650XS6 - Part 661209

    Magnetron and air flow diagram

    Probe Jack

    Part #661209

    The manufacturer no longer makes this part, and there's no substitute part

  • Grill-air for Whirlpool MW8650XS6 - Part 3149313

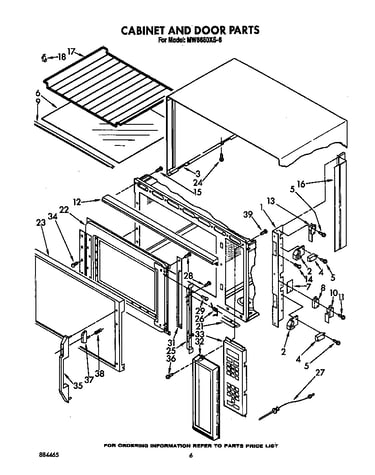

    Cabinet and door diagram

    Grill-air

    Part #3149313

    The manufacturer no longer makes this part, and there's no substitute part

  • Pulley for Whirlpool MW8650XS6 - Part 311923

    Stirrer and drive diagram

    Pulley

    Part #311923

    The manufacturer no longer makes this part, and there's no substitute part

  • Thermal Fuse for Whirlpool MW8650XS6 - Part 313855

    Stirrer and drive diagram

    Thermal Fuse

    Part #313855

    The manufacturer no longer makes this part, and there's no substitute part

  • Cookbook for Whirlpool MW8650XS6 - Part LIT311894

    #NI

    All parts diagram

    Cookbook

    Part #LIT311894

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire (yellow) for Whirlpool MW8650XS6 - Part 242832

    #NI

    All parts diagram

    Wire (yellow)

    Part #242832

    The manufacturer no longer makes this part, and there's no substitute part

  • Wire Clip for Whirlpool MW8650XS6 - Part 311311

    Stirrer and drive diagram

    Wire Clip

    Part #311311

    The manufacturer no longer makes this part, and there's no substitute part

  • Magnetron for Whirlpool MW8650XS6 - Part 660595

    Magnetron and air flow diagram

    Magnetron

    Part #660595

    The manufacturer no longer makes this part, and there's no substitute part
