White-Westinghouse
Room Air Conditioner

Model #WAC056W7A5 White-Westinghouse room air conditioner - 5995275509

Here are the diagrams and repair parts for White-Westinghouse WAC056W7A5 room air conditioner - 5995275509, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 69 parts

Cover Capacitor

#19

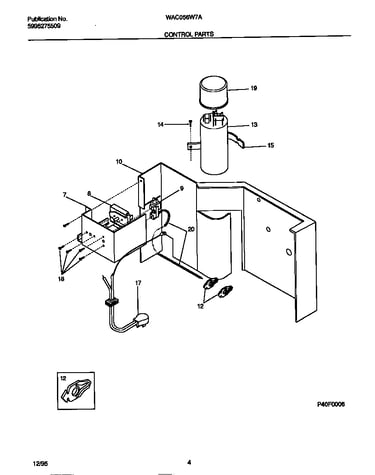

Control parts Diagram

Cover capacitor

Part #5303302855
$20.78

In Stock

Room Air Conditioner Control Knob

#20

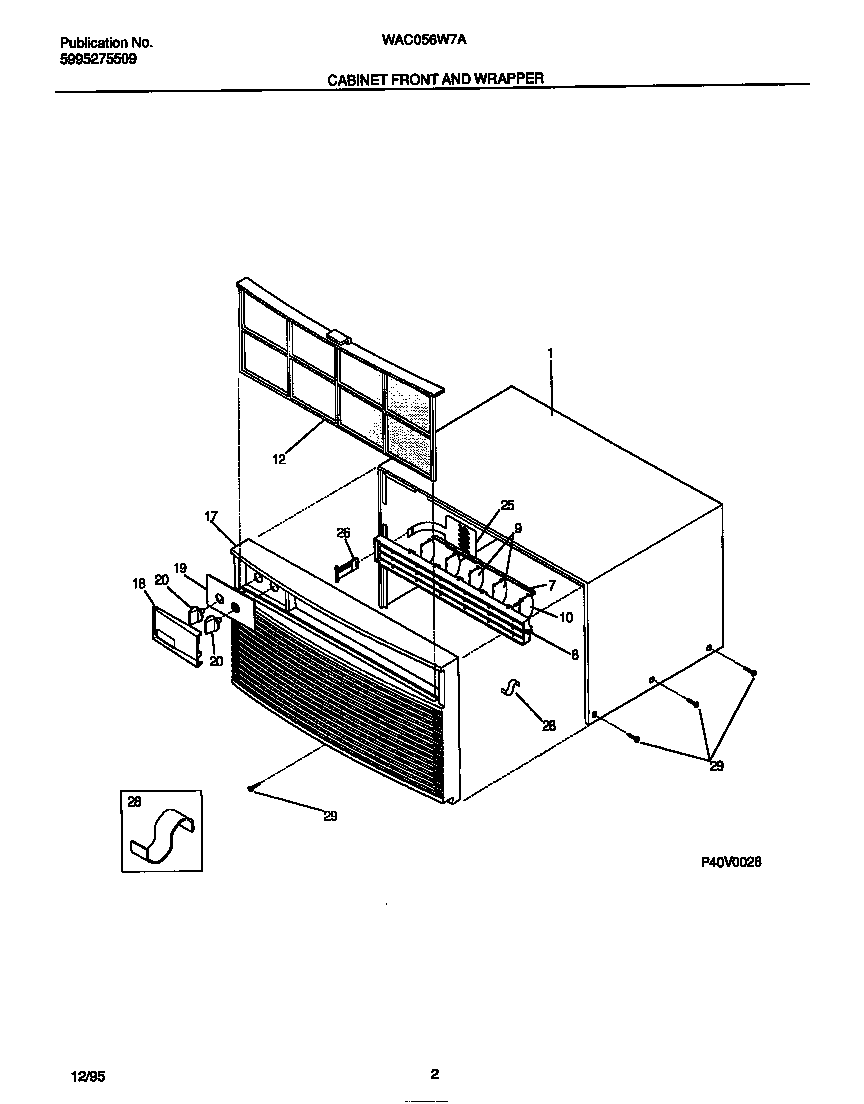

Cabinet front and wrapper Diagram

$41.09 |
14% OFF MSRP:$48.00

In Stock

Bulkhead

#10

Control parts Diagram

Bulkhead

Part #309602401
$14.49

In Stock

Room Air Conditioner Screw

#24

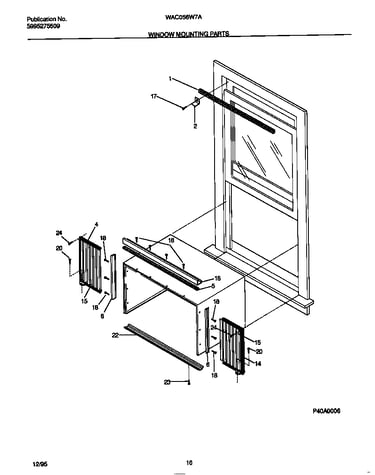

Window mounting parts Diagram

Room air conditioner screw

Part #5308002974
This item is not returnable
$2.75

In Stock

Wrapper

#1

Cabinet front and wrapper Diagram

Wrapper

Part #5303302856
$60.99

In Stock

Room Air Conditioner Filter Dryer

#17

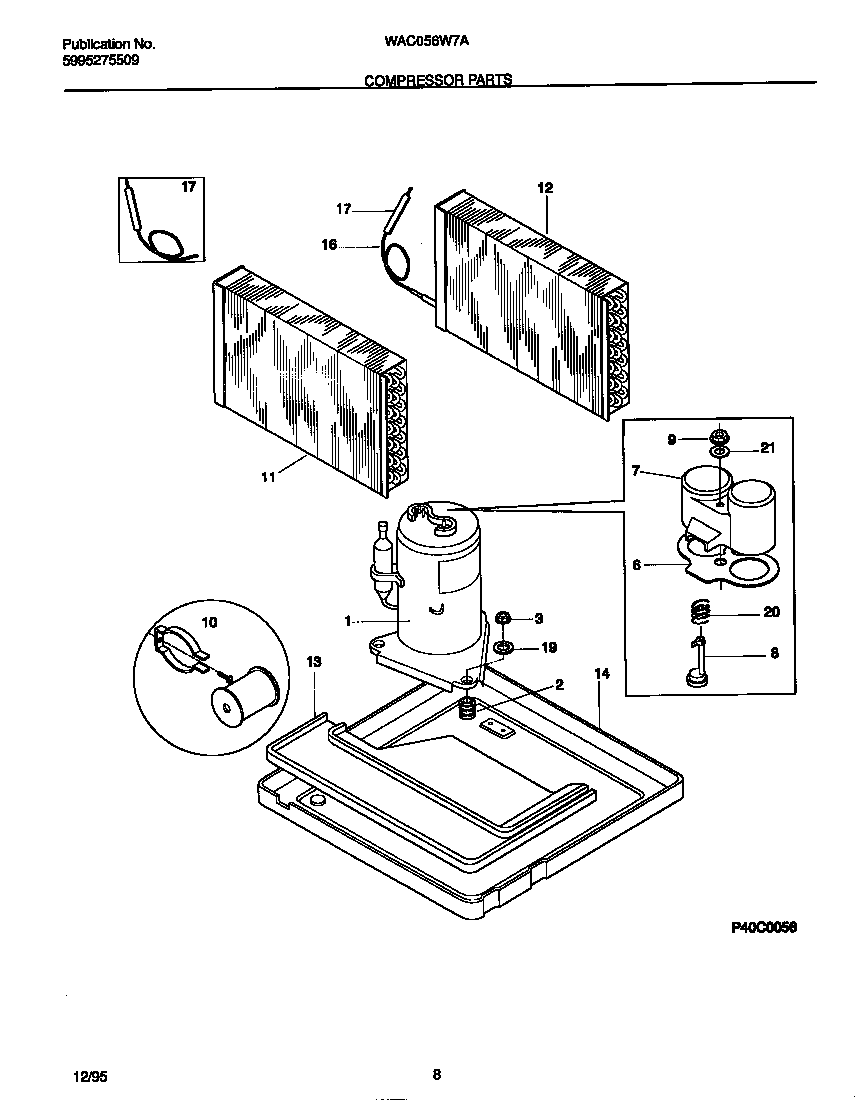

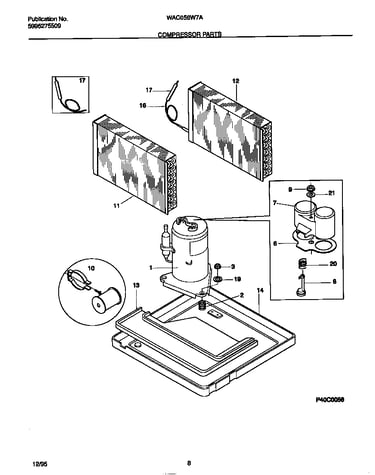

Compressor parts Diagram

$185.69

In Stock

Clamp-blade

#17

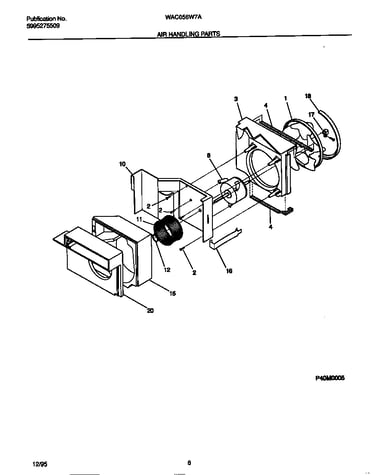

Air handling parts Diagram

Clamp-blade

Part #5308011040
$18.59

In Stock

Room Air Conditioner Screw

#2

Air handling parts Diagram

Room air conditioner screw

Part #5304410881
?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This part replaces 3202975
This item is not returnable
$4.77

In Stock

Room Air Conditioner Screw

#14

Control parts Diagram

Room air conditioner screw

Part #5303015427
?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
This part replaces 5303303691
This item is not returnable
$4.10

In Stock

Foam Strip

#1

Window mounting parts Diagram

Foam strip

Part #5304407729
?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
This part replaces 3002603
$18.20

In Stock
