Built-In Microwave

Model # MZBZ1715D/00 Official LG built-in microwave

Here are the diagrams and repair parts for Official LG MZBZ1715D-00 built-in microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Microwave Magnetron (replaces 6324w1a001h) 6324W1A001L

#5009

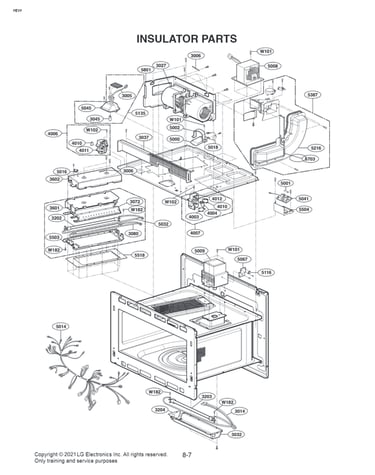

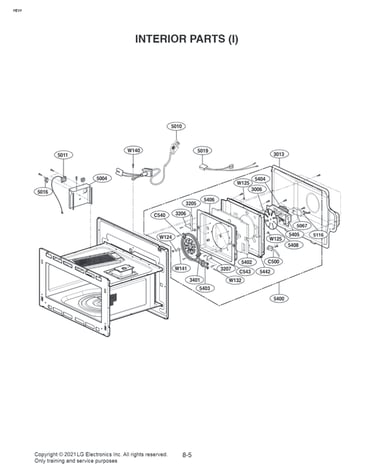

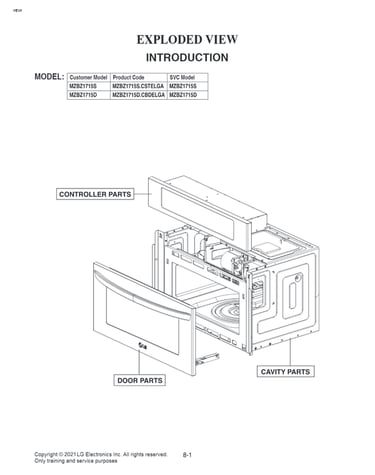

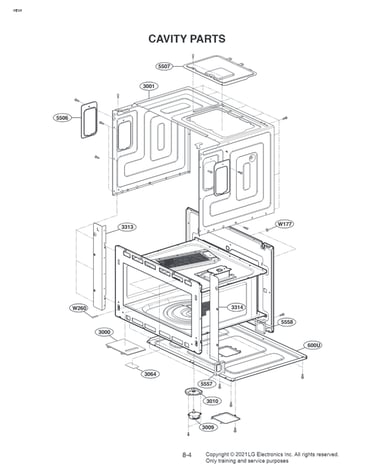

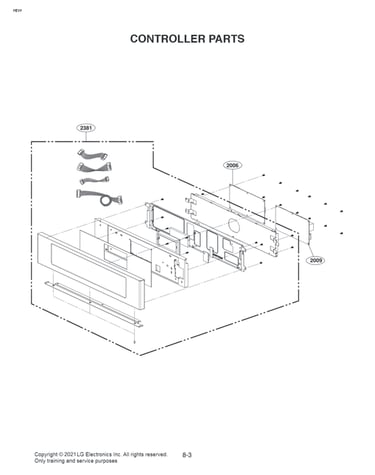

All parts diagram

Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

BEST SELLER
$91.94 |
5% OFF Phone Price : $96.94
In Stock
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C

#4003

All parts diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D

#4010

All parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave High-voltage Capacitor (replaces 0czzw1h004g, 0czzw1h004p, 6120w3h003h, Eae61082101) 0CZZW1H004B

#5000

All parts diagram

Microwave high-voltage capacitor (replaces 0czzw1h004g, 0czzw1h004p, 6120w3h003h, eae61082101)

Part #0CZZW1H004B

BEST SELLER
$28.54 |
15% OFF Phone Price : $33.54
In Stock
Microwave Halogen Light Bulb 6912A40002J

#3045

All parts diagram

Microwave halogen light bulb

Part #6912A40002J

BEST SELLER
$17.98 |
10% OFF Phone Price : $19.98
In Stock
Microwave Humidity Sensor 6501W1A013A

#5011

All parts diagram

Microwave humidity sensor

Part #6501W1A013A

BEST SELLER
$47.38 |
10% OFF Phone Price : $52.38
In Stock
Cooking Appliance Convection Fan Blade 3B72559A

#5408

All parts diagram

Cooking appliance convection fan blade

Part #3B72559A

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Turntable Motor 6549W1S018C

#3009

All parts diagram

Microwave turntable motor

Part #6549W1S018C

$64.31
In Stock
Screw 4000W4A003A

#W140

All parts diagram

Screw

Part #4000W4A003A

Replaced by #4000W4A003A

?
Manufacturer substitution
This part replaces 4000W4A003A. Substitute parts can look different from the original.
This item is not returnable
$7.89
In Stock
Microwave Screw 4B70188C

#W102

All parts diagram

Microwave screw

Part #4B70188C

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
