Model # ACC98WK Official LG audio speaker

Here are the diagrams and repair parts for Official LG ACC98WK audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |

Cover MCK41751302
#391R

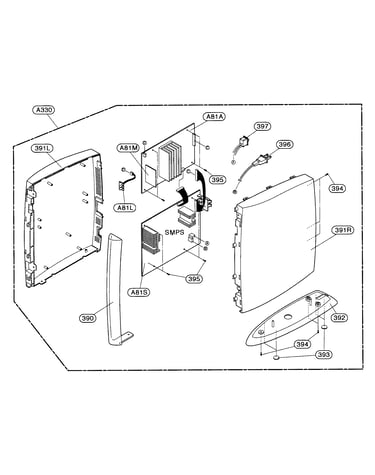

Receiver diagram

Cover

Part #MCK41751302

The manufacturer no longer makes this part, and there's no substitute part

Cover MCK41750801
#381L

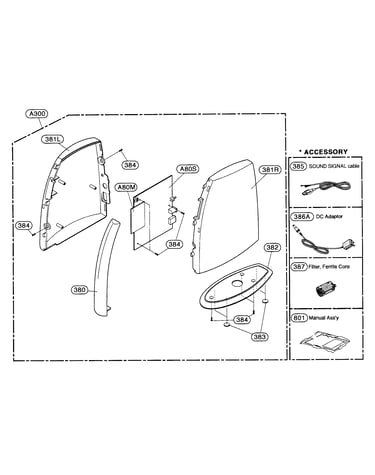

Transmiter diagram

Cover

Part #MCK41750801

The manufacturer no longer makes this part, and there's no substitute part

Cover MCK41751202
#391L

Receiver diagram

Cover

Part #MCK41751202

The manufacturer no longer makes this part, and there's no substitute part

Filter,fer 6200JB8010K
#387

Transmiter diagram

Filter,fer

Part #6200JB8010K

The manufacturer no longer makes this part, and there's no substitute part

Cover MCK41751001
#381R

Transmiter diagram

Cover

Part #MCK41751001

The manufacturer no longer makes this part, and there's no substitute part

Support MJH41752001
#382

Transmiter diagram

Support

Part #MJH41752001

The manufacturer no longer makes this part, and there's no substitute part

Pcb Asy,rx EBR30210211
#A81M

Receiver diagram

Pcb asy,rx

Part #EBR30210211

The manufacturer no longer makes this part, and there's no substitute part

Support MJH41752101
#392

Receiver diagram

Support

Part #MJH41752101

The manufacturer no longer makes this part, and there's no substitute part

Pcb Asy,rx EBR48854311
#A81L

Receiver diagram

Pcb asy,rx

Part #EBR48854311

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual AFN37095213
#801

Transmiter diagram

Owner's manual

Part #AFN37095213

The manufacturer no longer makes this part, and there's no substitute part
