Sharp AF-S80EX air conditioner Parts

Here are the diagrams and repair parts for Sharp AF-S80EX air conditioner, as well as links to manuals and error code tables, if available.

Sharp AF-S80EX air conditioner

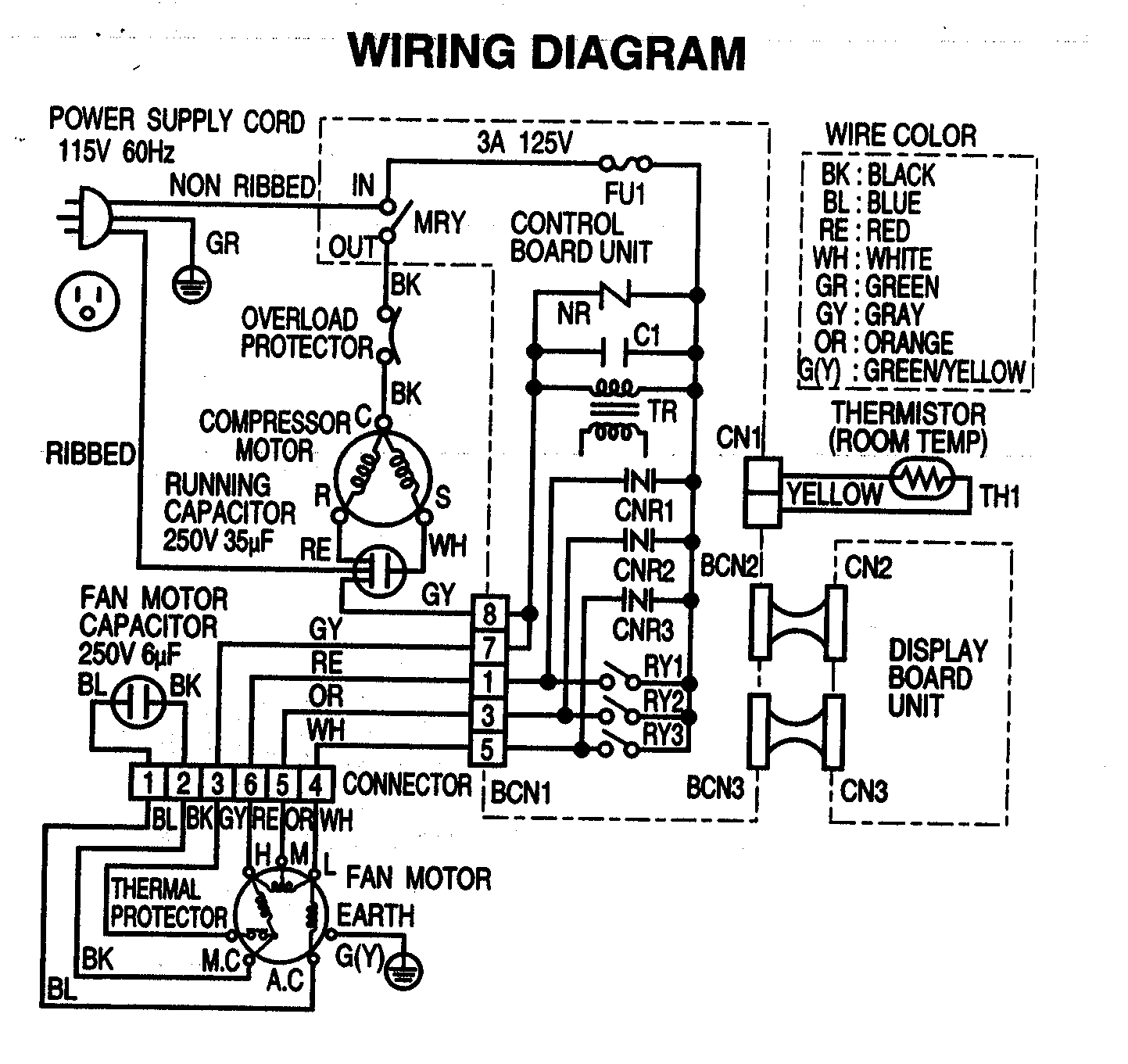

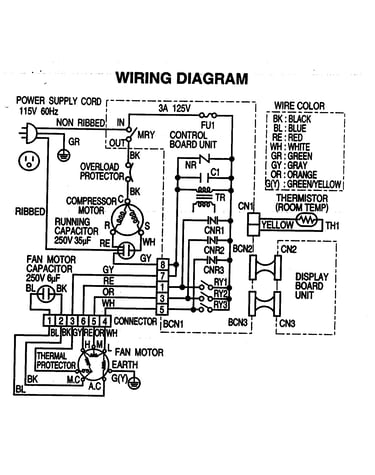

By Schematic

SELECT DIAGRAM

Browse Parts for AF-S80EX Air Conditioner

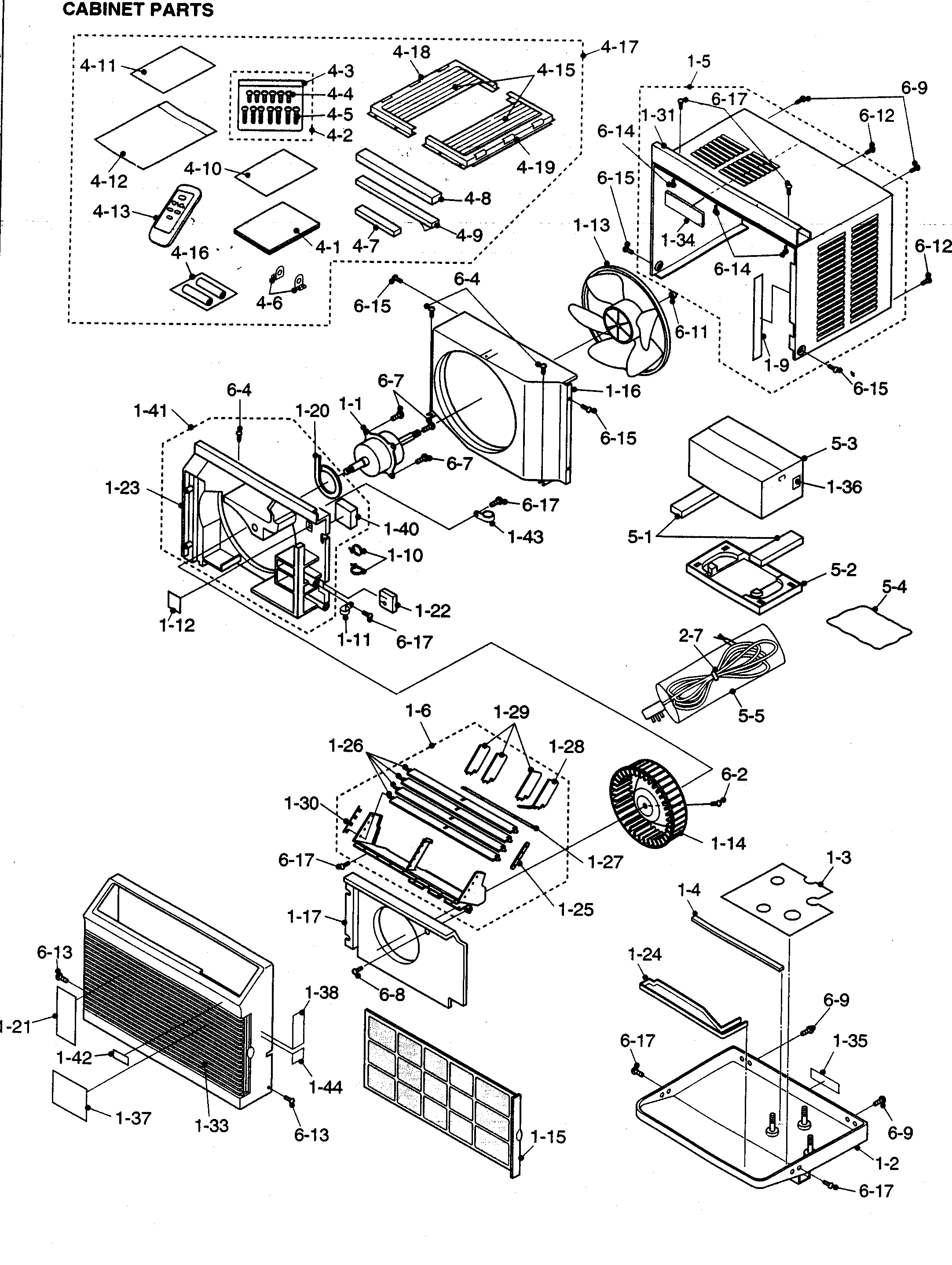

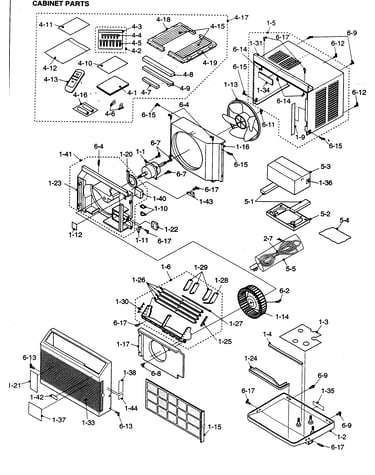

Cabinet parts diagram
Sharp Caution Label
Part #TLAB-C495JBRZ
The manufacturer no longer makes this part, and there's no substitute part

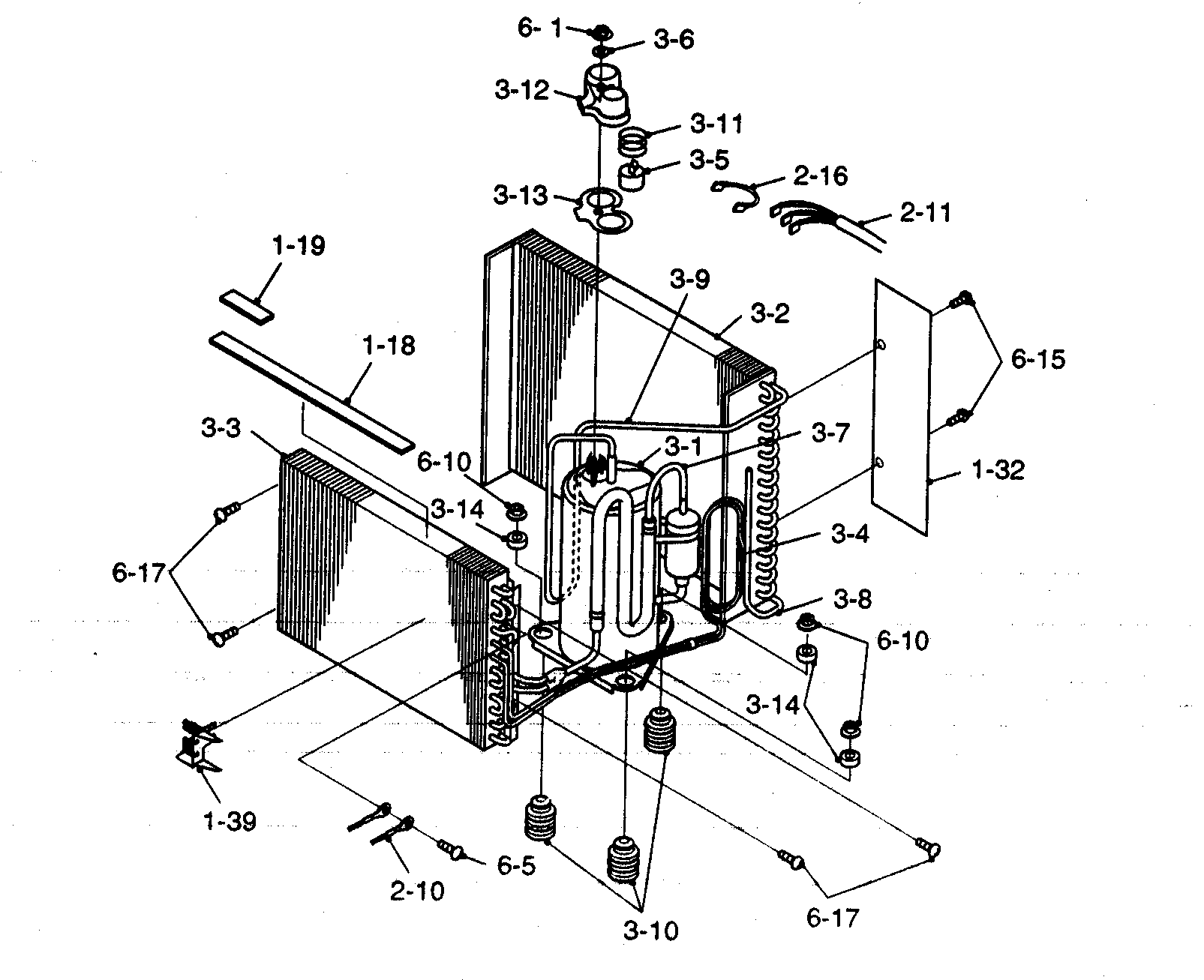

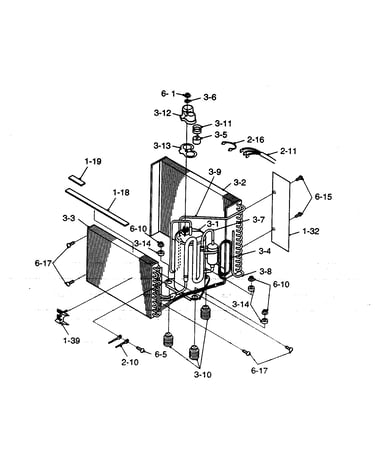

Cycle parts diagram
Condenser
Part #PCON-A436JBEZ
The manufacturer no longer makes this part, and there's no substitute part

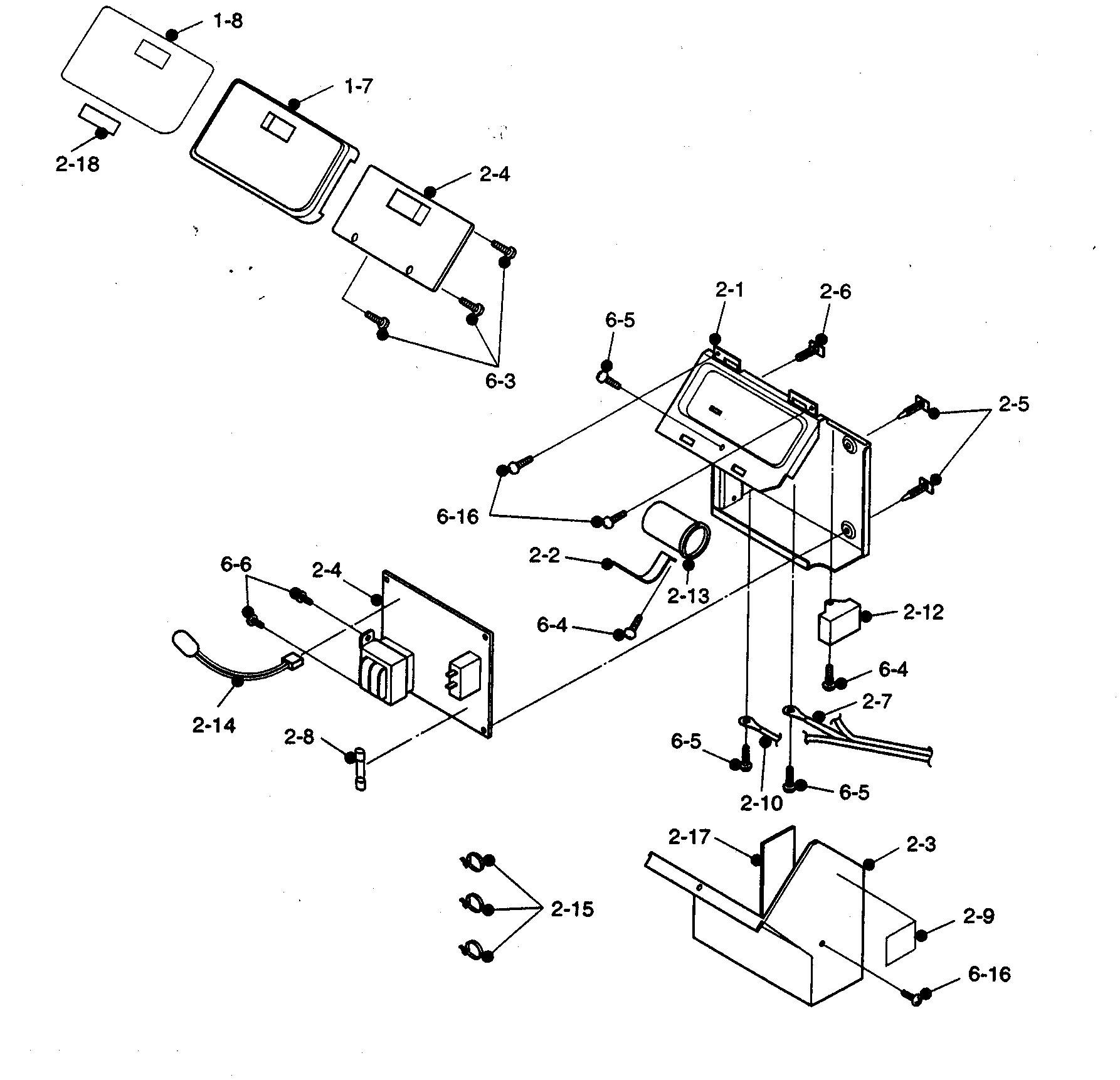

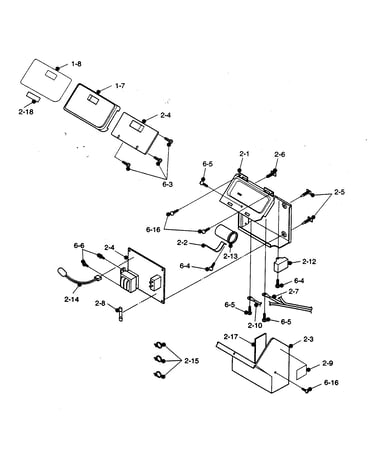

Control box parts diagram
Insulating Sheet
Part #PPLT-A300JBEZ
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Insulator
Part #PSEL-B845JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cycle parts diagram
Screw
Part #LX-BZ0107CBE0
The manufacturer no longer makes this part, and there's no substitute part
Control box parts diagram
Spacer
Part #PSPA-A085JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Seal
Part #PSEL-A994JBE0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Bulkhead Assembly
Part #DSKR-A124JBKZ
The manufacturer no longer makes this part, and there's no substitute part
Control box parts diagram
Plate
Part #DPLT-A038JBW0
The manufacturer no longer makes this part, and there's no substitute part
Cabinet parts diagram
Comp Cushion
Part #PFPFPB745JBE0
The manufacturer no longer makes this part, and there's no substitute part
