Model # DSC-HX10V/S Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-HX10V-S digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Sheet , Rl Gps 441938801
#67

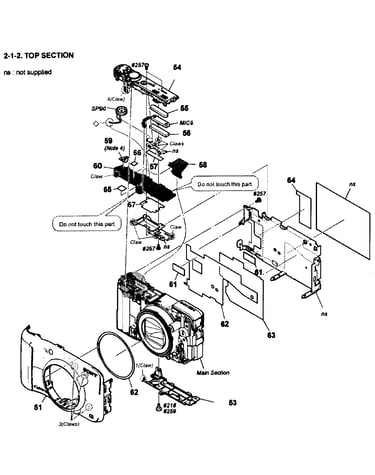

Top section diagram

Sheet , rl gps

Part #441938801

This item is not returnable
$5.88
In Stock
Owners Manual (english) 441222511
#NI

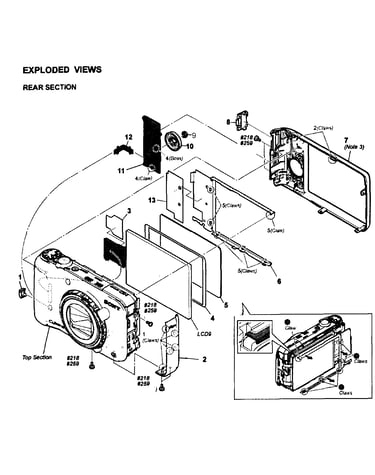

Rear section diagram

Owners manual (english)

Part #441222511

$13.39 |
13% OFF Phone Price : $15.39
In Stock
Pcb,sw587 A1861490A
#11

Rear section diagram

Pcb,sw587

Part #A1861490A

$39.31
In Stock
Cabinet,si 441662411
#2

Rear section diagram

Cabinet,si

Part #441662411

$19.46
In Stock
Sheet , Release Muffle 441938701
#66

Top section diagram

Sheet , release muffle

Part #441938701

This item is not returnable
$2.28
In Stock
Tape, Barrier 420813202
#153

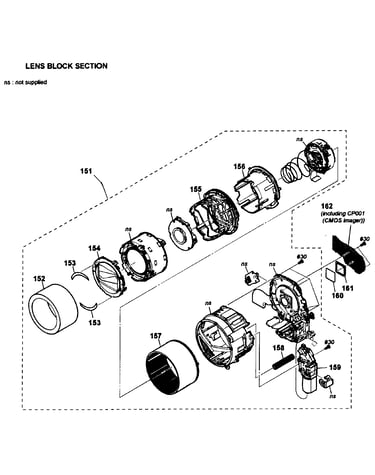

Lens block diagram

Tape, barrier

Part #420813202

This item is not returnable
$4.83
In Stock
Fp1535 Pcb 188523711
#106

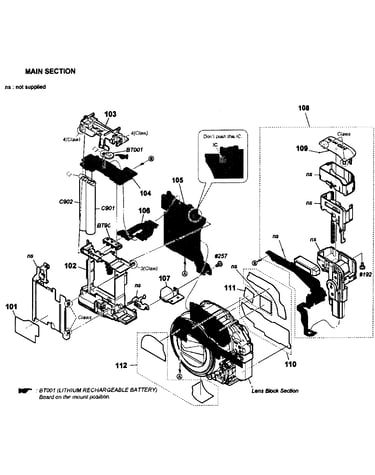

Main section diagram

Fp1535 pcb

Part #188523711

This item is not returnable
$5.80
In Stock
Screw,silv 426475151
Screw,silv

Part #426475151

This item is not returnable
$5.65
In Stock
Screw Tripler 441662101
#107

Main section diagram

Screw tripler

Part #441662101

This item is not returnable
$6.49
In Stock
Barrier A1851204A
#154

Lens block diagram

Barrier

Part #A1851204A

$35.98
In Stock
