Amana SPCG481151A/P1106007C package unit - spcg series Parts

Here are the diagrams and repair parts for Amana SPCG481151A/P1106007C package unit - spcg series, as well as links to manuals and error code tables, if available.

Amana SPCG481151A/P1106007C package unit - spcg series
By Schematic

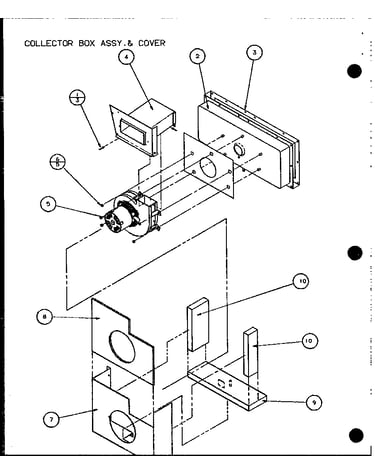

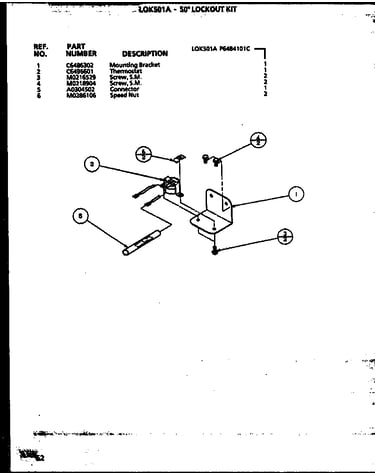

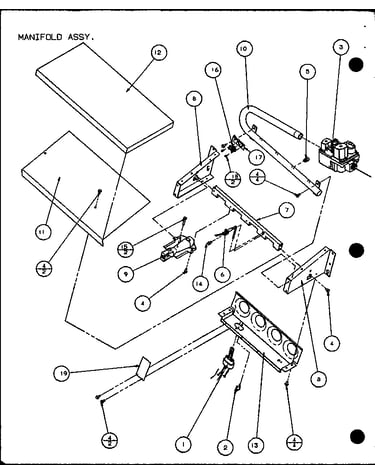

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forSPCG481151A/P1106007C Package Unit - SPCG Series

  • Contactor for Amana SPCG481151A/P1106007C - Part C6170005

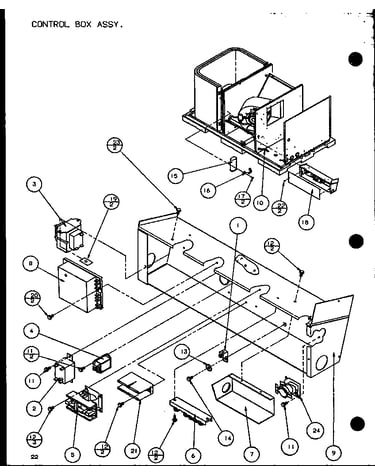

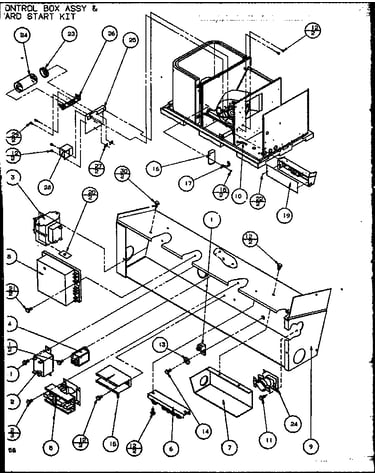

    Control box assy. (spcg600901a/p1107101c) (spcg600903a/p1107102c) (spcg601151a/p1107103c) (spcg601153a/p1107104c) (spcg601351a/p1107105c) (spcg601353a/p1107106c) (pece5a/p9850502c) (prc3a/p9850402c) (fadm3a/p9851002c) (fadm3a/p9850702c) diagram

    Contactor

    Part #C6170005

    The manufacturer no longer makes this part, and there's no substitute part

  • Package Hardware for Amana SPCG481151A/P1106007C - Part R0198540

    #NI

    All parts diagram

    Package Hardware

    Part #R0198540

    The manufacturer no longer makes this part, and there's no substitute part

  • Liquid Tube for Amana SPCG481151A/P1106007C - Part D9889801

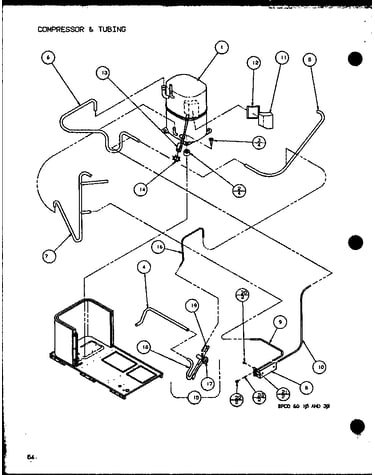

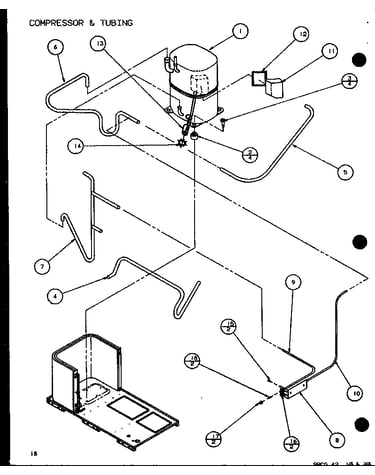

    Compressor & tubing (spcg600901a/p1107101c) (spcg600903a/p1107102c) (spcg601151a/p1107103c) (spcg601153a/p1107104c) (spcg601351a/p1107105c) (spcg601353a/p1107106c) diagram

    Liquid Tube

    Part #D9889801

    The manufacturer no longer makes this part, and there's no substitute part

  • Button Plug for Amana SPCG481151A/P1106007C - Part M0311105

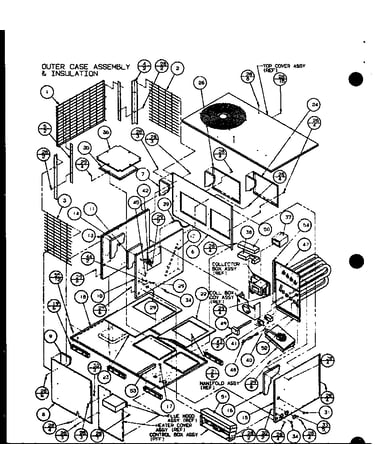

    Outer case assembly & insulation (spcg420901a/p1106001c) (spcg420903a/p1106002c) (spcg421151a/p1106003c) (spcg421153a/p1106004c) (spcg480901a/p1106005c) (spcg480903a/p1106006c) (spcg481151a/p1106007c) (spcg481153a/p1106008c) (spcg481351a/p1106009c) (spcg4 diagram

    Button Plug

    Part #M0311105

    The manufacturer no longer makes this part, and there's no substitute part

  • Set Screw for Amana SPCG481151A/P1106007C - Part M0210104

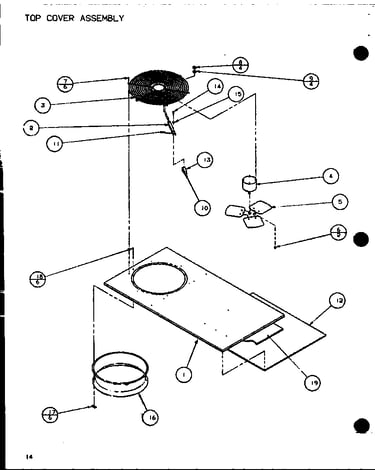

    Top cover assembly (spcg420901a/p1106001c) (spcg420903a/p1106002c) (spcg421151a/p1106003c) (spcg421153a/p1106004c) (spcg480901a/p1106005c) (spcg480903a/p1106006c) (spcg481151a/p1106007c) (spcg481153a/p1106008c) (spcg481351a/p1106009c) (spcg481353a/p110601 diagram

    Set Screw

    Part #M0210104

    The manufacturer no longer makes this part, and there's no substitute part

  • Bracket, Evaporator Coil (r) for Amana SPCG481151A/P1106007C - Part D9854904

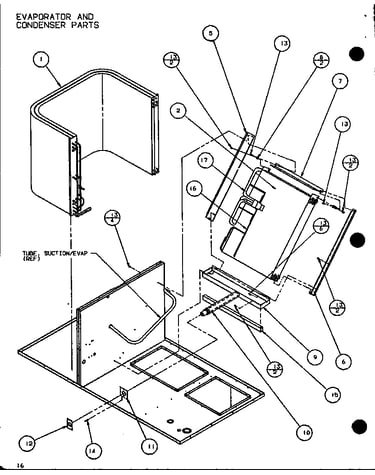

    Evaporator and condenser parts (spcg420901a/p1106001c) (spcg420903a/p1106002c) (spcg421151a/p1106003c) (spcg421153a/p1106004c) (spcg480901a/p1106005c) (spcg480903a/p1106006c) (spcg481151a/p1106007c) (spcg481153a/p1106008c) (spcg481351a/p1106009c) (spcg481 diagram

    Bracket, Evaporator Coil (r)

    Part #D9854904

    The manufacturer no longer makes this part, and there's no substitute part

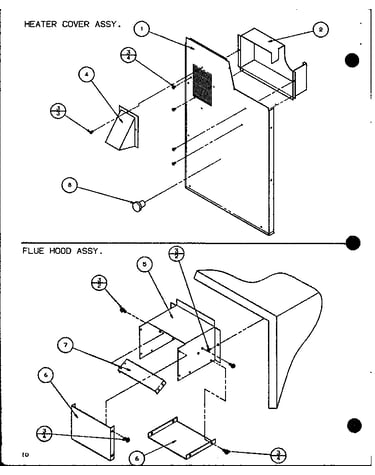

  • Heater Retainer for Amana SPCG481151A/P1106007C - Part B1389901

    Heater Retainer

    Part #B1389901

    The manufacturer no longer makes this part, and there's no substitute part

  • Orifice Protective Device, Fan Shroud for Amana SPCG481151A/P1106007C - Part 10130002

    Top cover assembly (spcg420901a/p1106001c) (spcg420903a/p1106002c) (spcg421151a/p1106003c) (spcg421153a/p1106004c) (spcg480901a/p1106005c) (spcg480903a/p1106006c) (spcg481151a/p1106007c) (spcg481153a/p1106008c) (spcg481351a/p1106009c) (spcg481353a/p110601 diagram

    Orifice Protective Device, Fan Shroud

    Part #10130002

    The manufacturer no longer makes this part, and there's no substitute part

  • Grille, Condenser Right for Amana SPCG481151A/P1106007C - Part D9828902

    Outer case assembly & insulation (spcg420901a/p1106001c) (spcg420903a/p1106002c) (spcg421151a/p1106003c) (spcg421153a/p1106004c) (spcg480901a/p1106005c) (spcg480903a/p1106006c) (spcg481151a/p1106007c) (spcg481153a/p1106008c) (spcg481351a/p1106009c) (spcg4 diagram

    Grille, Condenser Right

    Part #D9828902

    The manufacturer no longer makes this part, and there's no substitute part

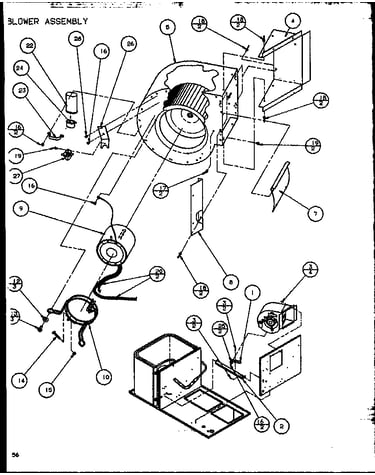

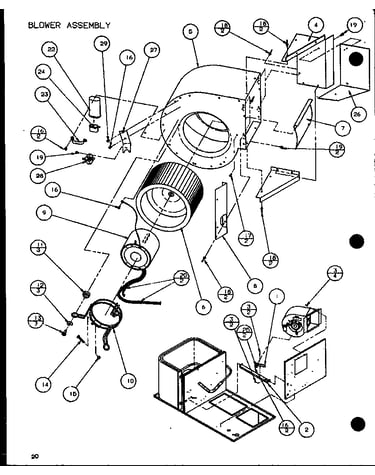

  • Tansition Blower (48/135 Mbtu Mdls) for Amana SPCG481151A/P1106007C - Part D9841101

    Tansition Blower (48/135 Mbtu Mdls)

    Part #D9841101

    The manufacturer no longer makes this part, and there's no substitute part
