Countertop Microwave

Model # ZEM200BF001 Official GE microwave

Here are the diagrams and repair parts for Official GE ZEM200BF001 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |

Microwave High-voltage Capacitor (replaces Wb27x585) WB27X10011
#25

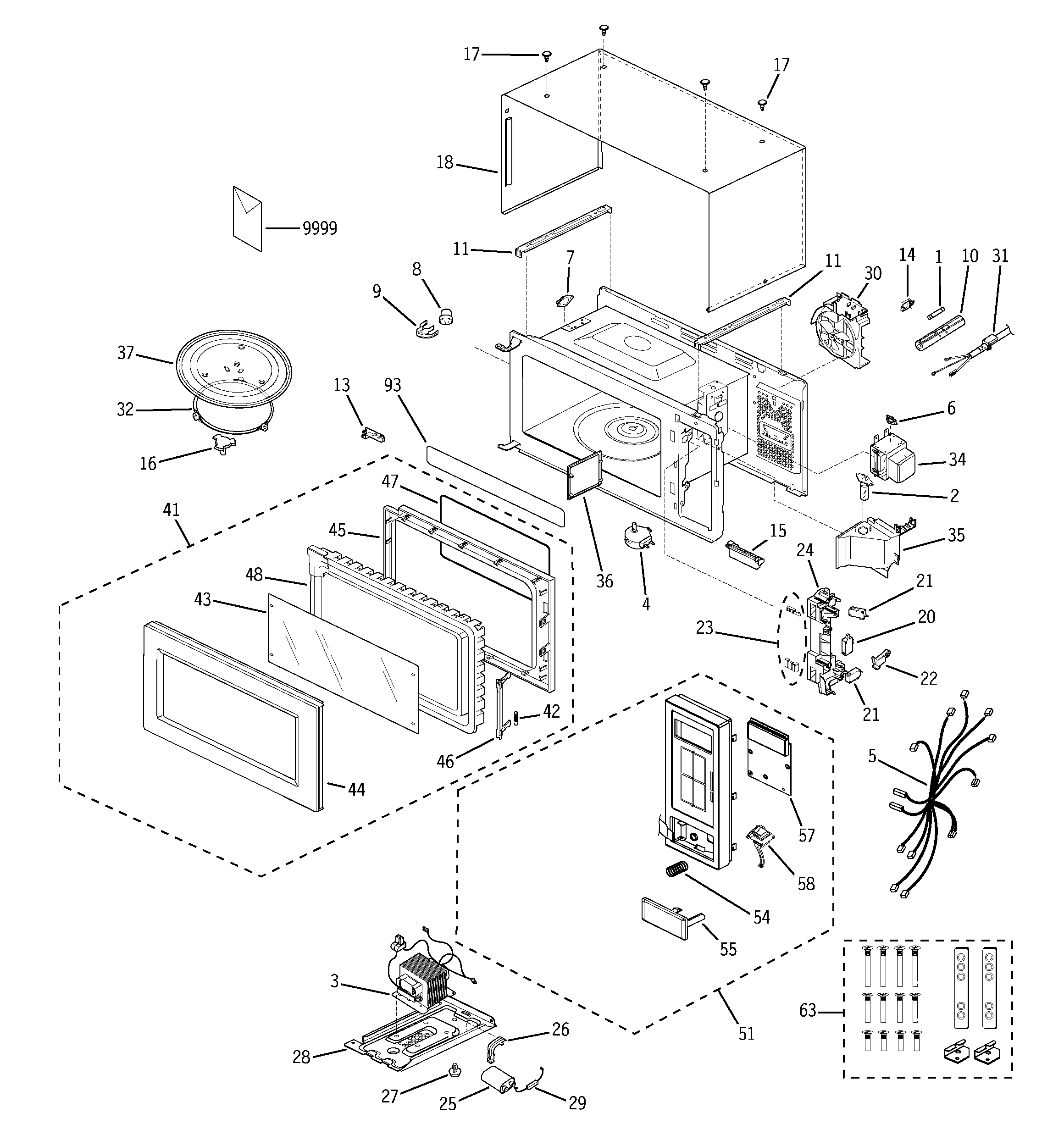

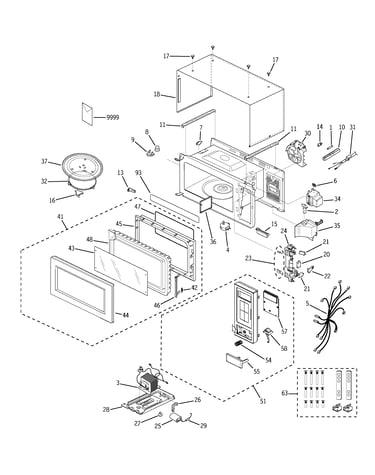

Microwave diagram

Microwave high-voltage capacitor (replaces wb27x585)

Part #WB27X10011

BEST SELLER
$46.74
10% OFF Phone Price : $51.74
In Stock
Micro-switch WB24X10075
#20

Microwave diagram

Micro-switch

Part #WB24X10075

Replaced by #WB24X830

?
Manufacturer substitution
This part replaces WB24X10075. Substitute parts can look different from the original.
$27.94
15% OFF Phone Price : $32.94
In Stock
Microwave Glass Turntable Tray WB49X10097
#37

Microwave diagram

Microwave glass turntable tray

Part #WB49X10097

$76.69
6% OFF Phone Price : $81.69
In Stock
Spring Key WB09X10019
#42

Microwave diagram

Spring key

Part #WB09X10019

In Stock
Wire Harness WB18X10215
#5

Microwave diagram

Wire harness

Part #WB18X10215

In Stock
Foot WB06X10194
#27

Microwave diagram

Foot

Part #WB06X10194

This item is not returnable
In Stock
High-voltage Capacitor Bracket WB02X10748
#26

Microwave diagram

High-voltage capacitor bracket

Part #WB02X10748

This item is not returnable
In Stock
Outer Case WB56X10322
#18

Microwave diagram

Outer case

Part #WB56X10322

In Stock
Microwave Installation Hardware Kit WX4-A019
#63

Microwave diagram

Microwave installation hardware kit

Part #WX4-A019

$85.29
6% OFF Phone Price : $90.29
In Stock
Outer Case WB56X10326
#18

Microwave diagram

Outer case

Part #WB56X10326

In Stock
