Craftsman
Lawn & Garden Engine

Model # 1431335 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 1431335 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

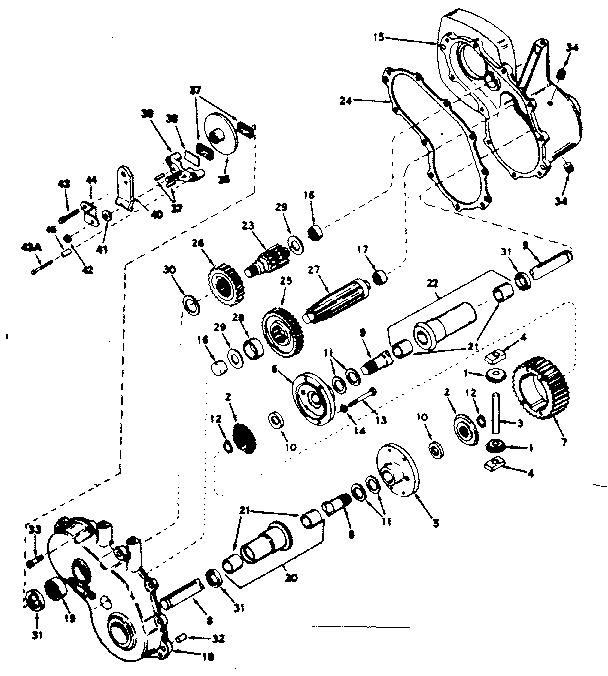

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 45 parts  |
Brake Pad 790006
#37

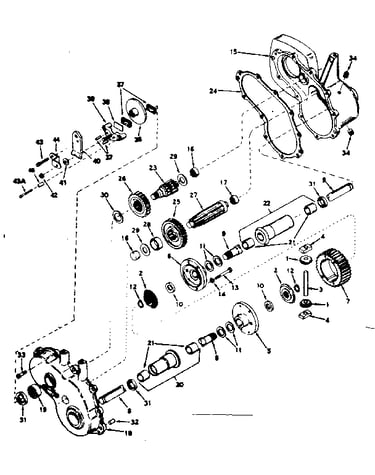

Replacement parts diagram

Brake pad

Part #790006

Replaced by #799021

?
Manufacturer substitution
This part replaces 790006. Substitute parts can look different from the original.
BEST SELLER
$10.16 |
16% OFF Phone Price : $12.16
In Stock
Plate 790007
#38

Replacement parts diagram

Plate

Part #790007

Replaced by #790007

?
Manufacturer substitution
This part replaces 790007. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.29 |
16% OFF MSRP : $6.30
In Stock
Dowel Pin 786026
#32

Replacement parts diagram

Dowel pin

Part #786026

Replaced by #786026B

?
Manufacturer substitution
This part replaces 786026. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
Screw 792085
#43A

Replacement parts diagram

Screw

Part #792085

Replaced by #792085A

?
Manufacturer substitution
This part replaces 792085. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.60 |
18% OFF Phone Price : $5.60
In Stock
Spacer 786066
#45

Replacement parts diagram

Spacer

Part #786066

Replaced by #786066

?
Manufacturer substitution
This part replaces 786066. Substitute parts can look different from the original.
This item is not returnable
$4.60
In Stock
Bracket 786086
#44

Replacement parts diagram

Bracket

Part #786086

Replaced by #786086

?
Manufacturer substitution
This part replaces 786086. Substitute parts can look different from the original.
This item is not returnable
$6.79 |
13% OFF Phone Price : $7.79
In Stock
Nut 792075
#42

Replacement parts diagram

Nut

Part #792075

The manufacturer no longer makes this part, and there's no substitute part

Washer 792076
#41

Replacement parts diagram

Washer

Part #792076

Replaced by #792076A

?
Manufacturer substitution
This part replaces 792076. Substitute parts can look different from the original.
This item is not returnable
$4.37
In Stock
Washer 780001
#29

Replacement parts diagram

Washer

Part #780001

Replaced by #780001

?
Manufacturer substitution
This part replaces 780001. Substitute parts can look different from the original.
This item is not returnable
$4.34
In Stock
Gear 778197
#1

Replacement parts diagram

Gear

Part #778197

Replaced by #778197

?
Manufacturer substitution
This part replaces 778197. Substitute parts can look different from the original.
$28.39 |
15% OFF Phone Price : $33.39
In Stock
