Model # 917250181 Official Craftsman bulldozer snowplow

Here are the diagrams and repair parts for Official Craftsman 917250181 bulldozer snowplow, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Bolt 122267
#43

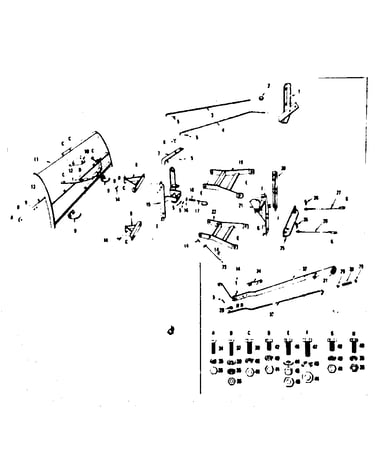

Replacement parts diagram

Bolt

Part #122267

Replaced by #74780720

?
Manufacturer substitution
This part replaces 122267. Substitute parts can look different from the original.
This item is not returnable
$4.19
In Stock
Washer 120388
#16

Replacement parts diagram

Washer

Part #120388

The manufacturer no longer makes this part, and there's no substitute part

Bolt 122119
#42

Replacement parts diagram

Bolt

Part #122119

The manufacturer no longer makes this part, and there's no substitute part

Washer 130392
#38

Replacement parts diagram

Washer

Part #130392

The manufacturer no longer makes this part, and there's no substitute part

Cotter 426663
#5

Replacement parts diagram

Cotter

Part #426663

The manufacturer no longer makes this part, and there's no substitute part

Washer 120394
#29

Replacement parts diagram

Washer

Part #120394

The manufacturer no longer makes this part, and there's no substitute part

Pivot Arm 634A143
#7

Replacement parts diagram

Pivot arm

Part #634A143

The manufacturer no longer makes this part, and there's no substitute part

Fork 606A98
#8

Replacement parts diagram

Fork

Part #606A98

The manufacturer no longer makes this part, and there's no substitute part

Rod Sup/br 626A171
#1

Replacement parts diagram

Rod sup/br

Part #626A171

The manufacturer no longer makes this part, and there's no substitute part

Mounting Angle 626A170
#21

Replacement parts diagram

Mounting angle

Part #626A170

The manufacturer no longer makes this part, and there's no substitute part
