Model #TSS-220 Ryobi compound miter saw

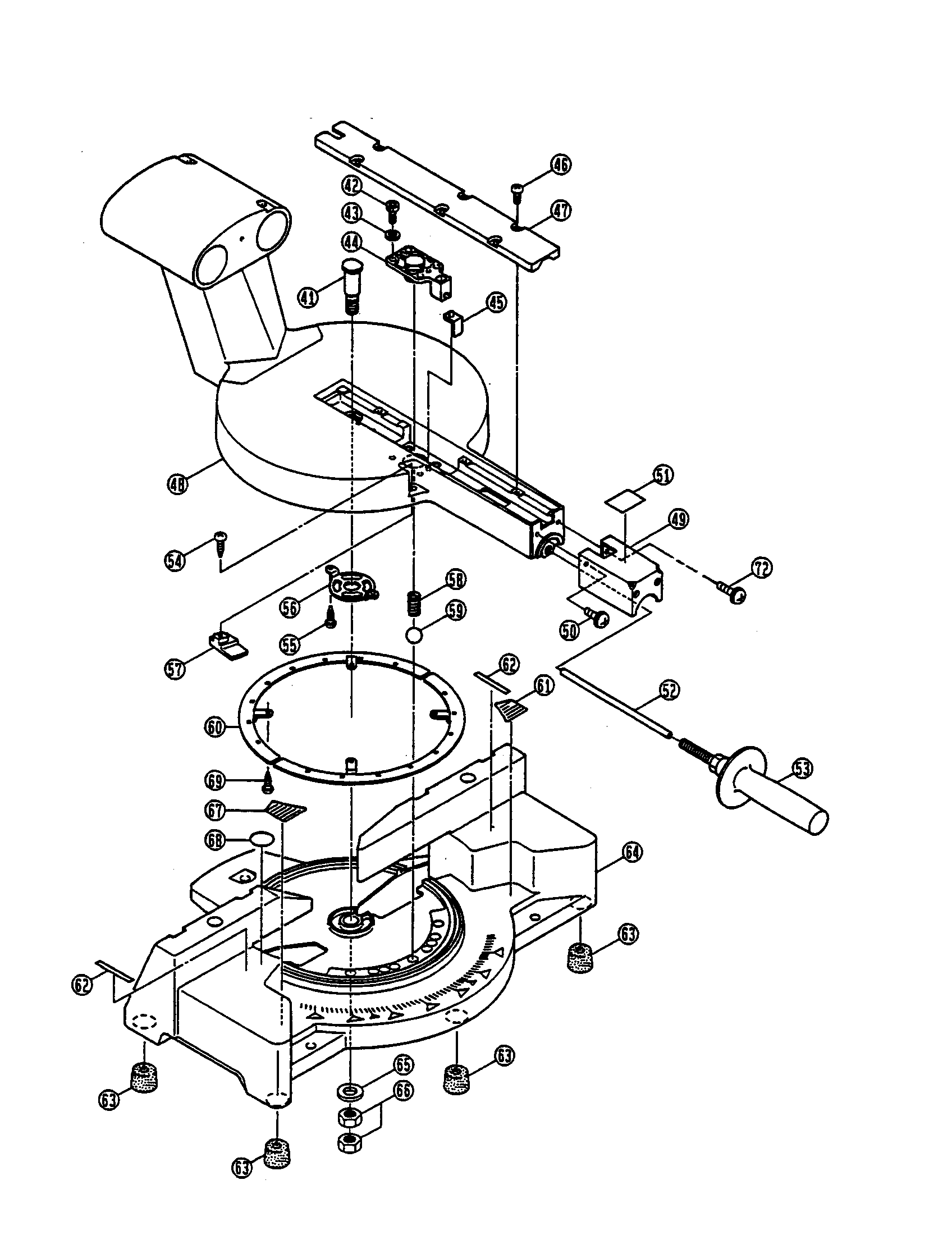

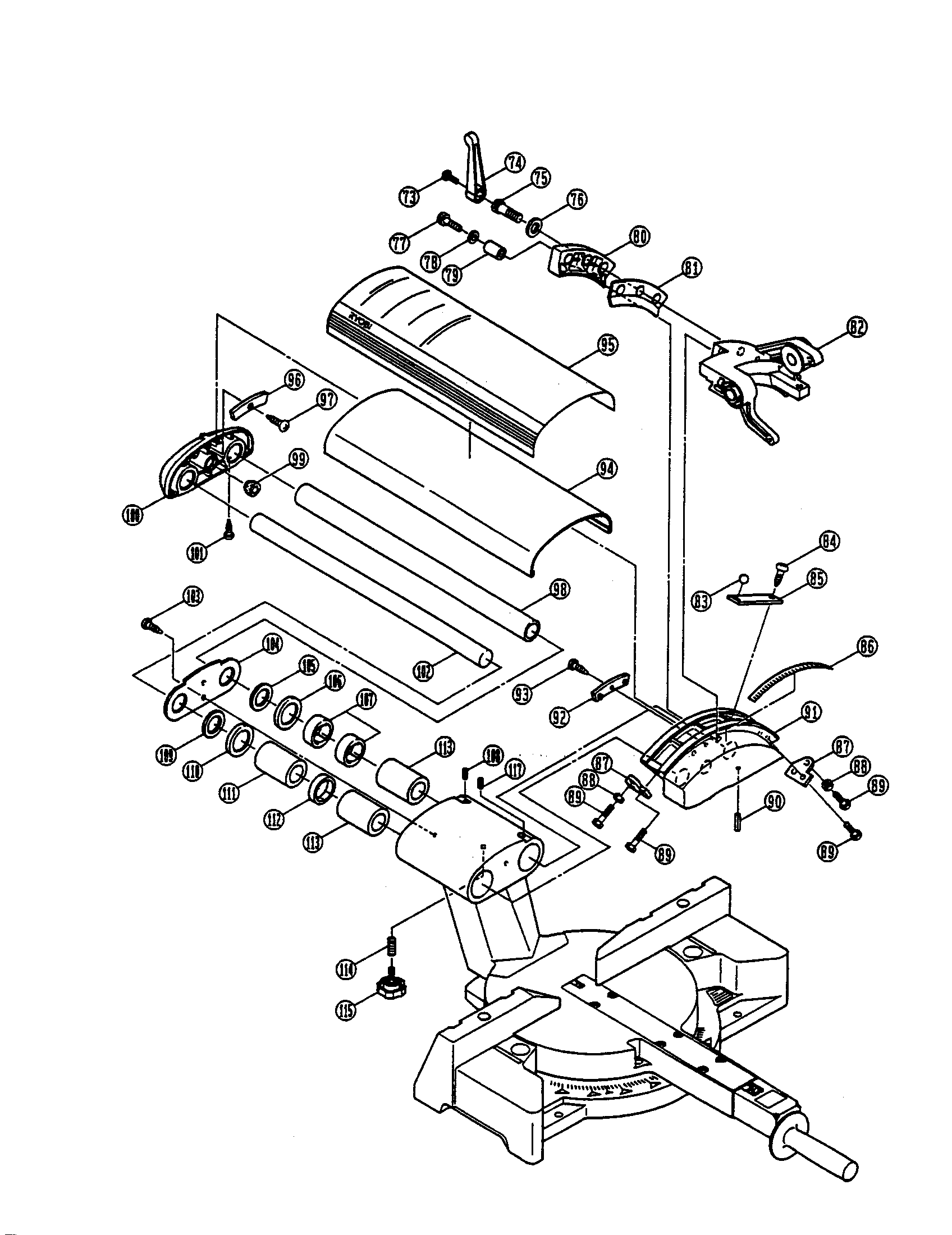

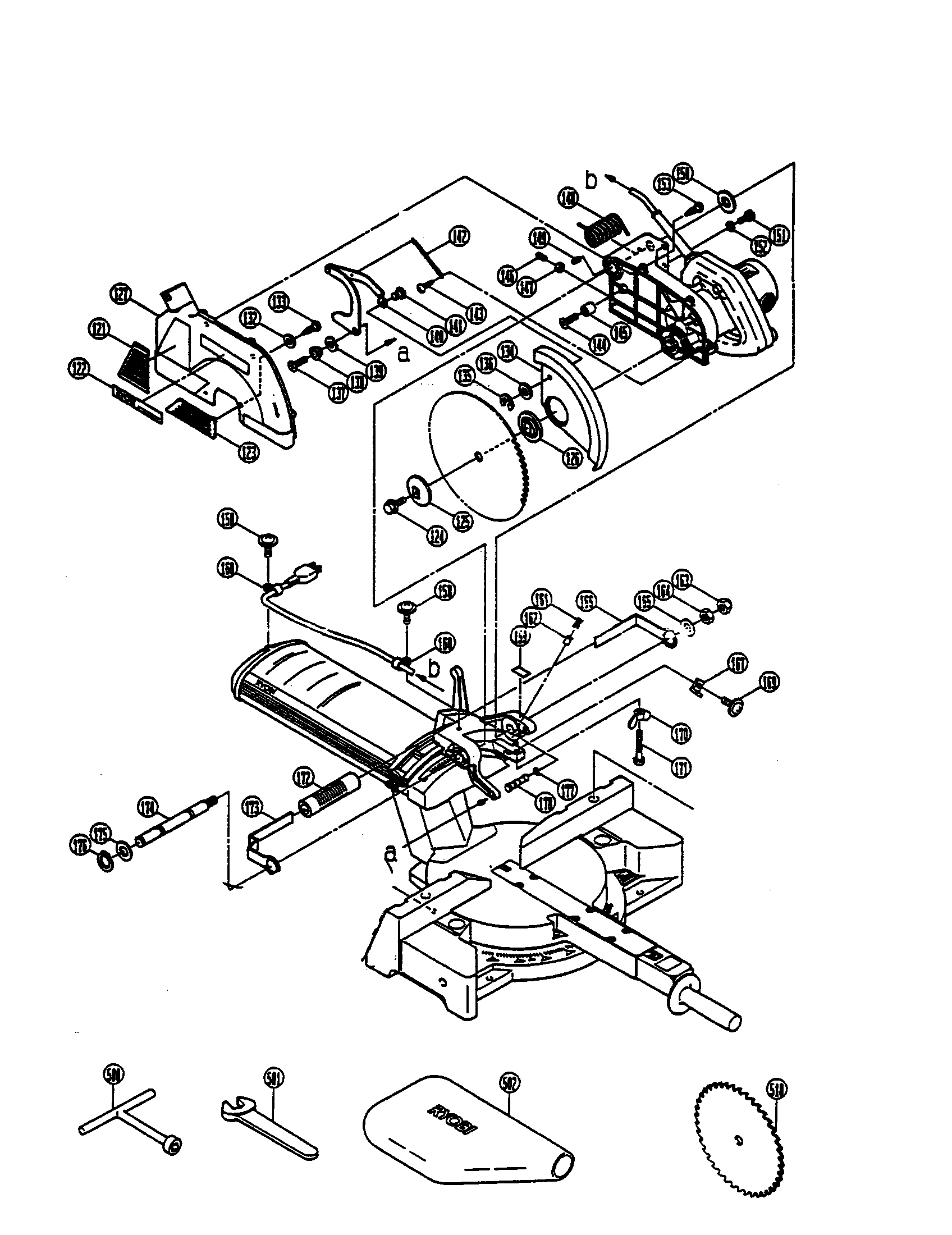

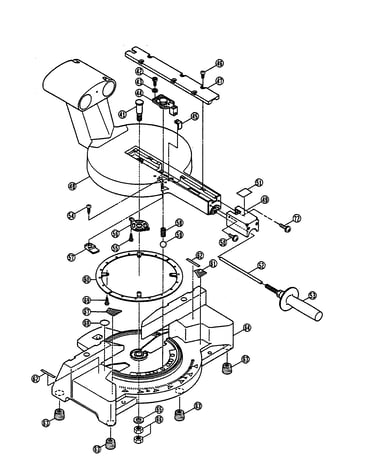

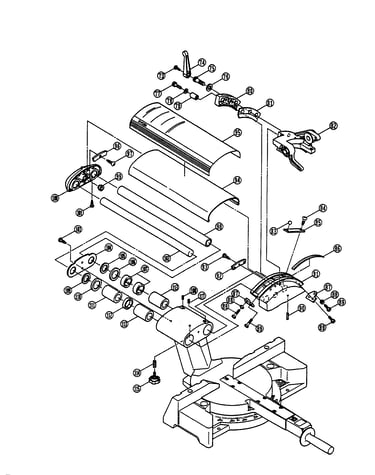

Here are the diagrams and repair parts for Ryobi TSS-220 compound miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 150 parts

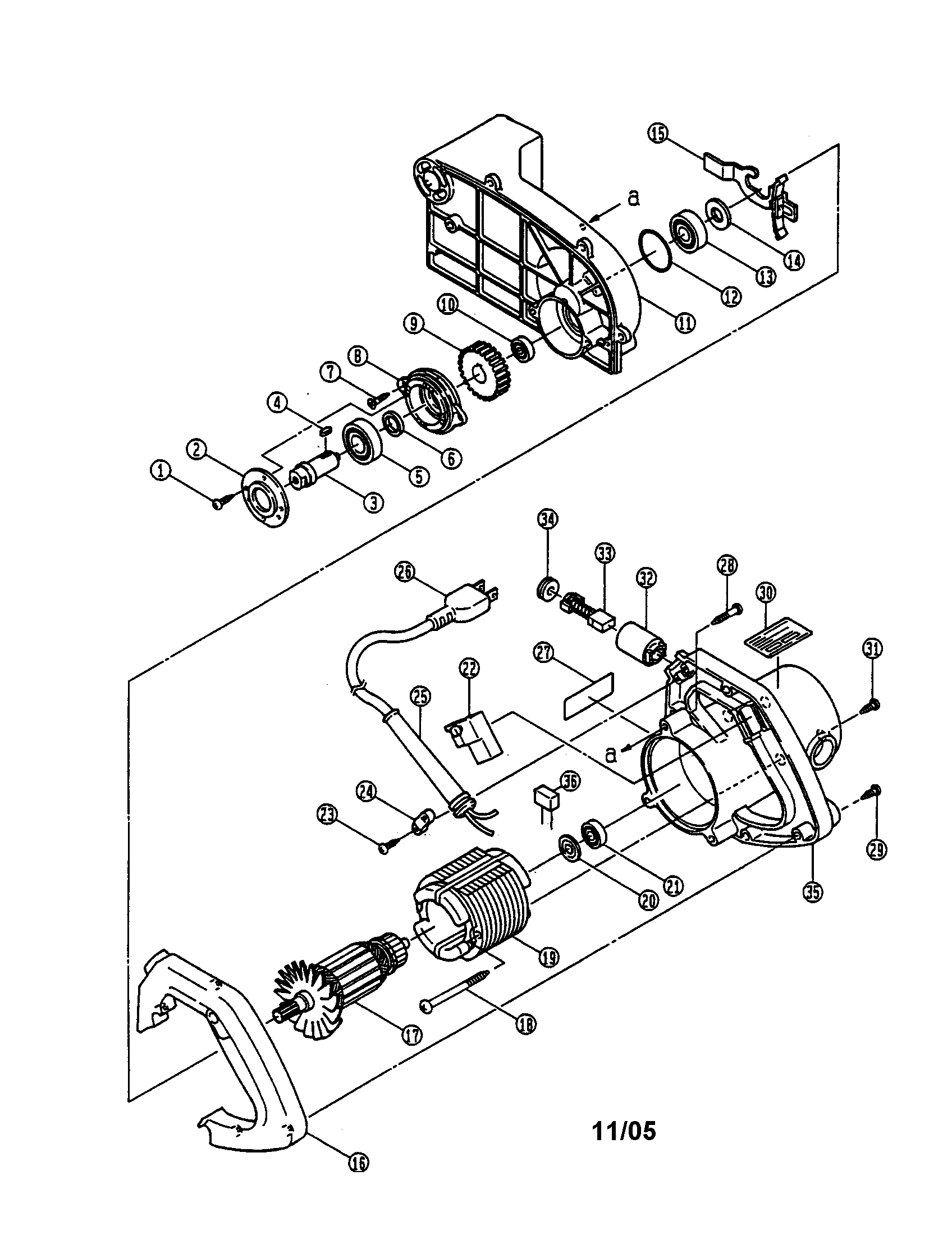

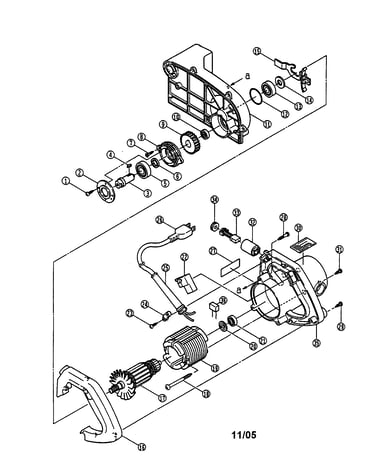

    Armature

    #17

    All parts Diagram

    Armature

    Part #6032787
    $109.21

    In Stock

    Connector

    #178B

    All parts Diagram

    Connector

    Part #6560002
    This item is not returnable
    $2.16

    In Stock

    Bearing

    #5

    All parts Diagram

    Bearing

    Part #1750001

    The manufacturer no longer makes this part, and there's no substitute part

    Screw-pan

    #143

    All parts Diagram

    Screw-pan

    Part #090404080
    ?
    Manufacturer substitution
    This part replaces 9040408. Substitute parts can look different from the original.
    This part replaces 9040408
    This item is not returnable
    $2.49

    In Stock

    Hex Nut

    #194

    All parts Diagram

    Hex nut

    Part #9300600

    The manufacturer no longer makes this part, and there's no substitute part

    Bearing

    #13

    All parts Diagram

    Bearing

    Part #9826201

    The manufacturer no longer makes this part, and there's no substitute part

    Bearing

    #21

    All parts Diagram

    Bearing

    Part #622274001

    The manufacturer no longer makes this part, and there's no substitute part

    Carbon Brush Set

    #33

    All parts Diagram

    Carbon brush set

    Part #6541203

    The manufacturer no longer makes this part, and there's no substitute part

    Plate

    #80

    All parts Diagram

    Plate

    Part #6190599

    The manufacturer no longer makes this part, and there's no substitute part

    Gear Shaft

    #3

    All parts Diagram

    Gear shaft

    Part #6110235

    The manufacturer no longer makes this part, and there's no substitute part
