Model # KHWS160VWH7 Official KitchenAid hot water dispenser

Here are the diagrams and repair parts for Official KitchenAid KHWS160VWH7 hot water dispenser, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Tank 3193069
#13

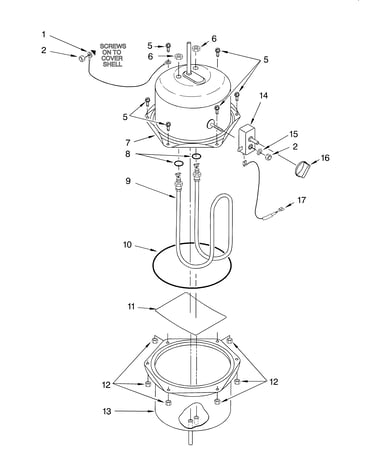

Upper and lower tank shell diagram

Tank

Part #3193069

$57.53
In Stock
Screw 4159425
#10

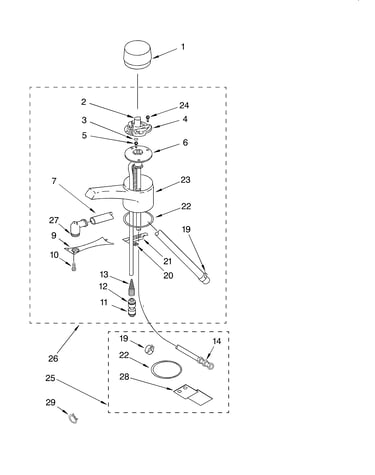

Spout unit diagram

Screw

Part #4159425

This item is not returnable
$3.29
In Stock
Wire Bushing 3192080
#1

Upper and lower tank shell diagram

Wire bushing

Part #3192080

This item is not returnable
$6.40
In Stock
Deflector 4176126
#11

Upper and lower tank shell diagram

Deflector

Part #4176126

Replaced by #240802-2

?
Manufacturer substitution
This part replaces 4176126. Substitute parts can look different from the original.
This item is not returnable
$7.04
In Stock
Screw 311932
#18

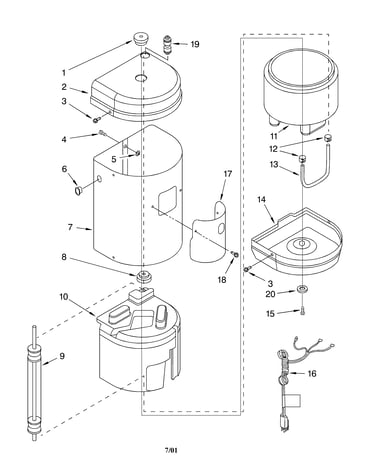

Outer cover and insulation/literature diagram

Screw

Part #311932

Replaced by #WP313808

?
Manufacturer substitution
This part replaces 311932. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Union-watr 3191383
Union-watr

Part #3191383

Replaced by #WP2198677

?
Manufacturer substitution
This part replaces 3191383. Substitute parts can look different from the original.
$19.29 |
31% OFF MSRP : $28.00
In Stock
Screw 4159230
#5

Upper and lower tank shell diagram

Screw

Part #4159230

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces 4159230. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Lock Washer 4159493
Lock washer

Part #4159493

Replaced by #4159493

?
Manufacturer substitution
This part replaces 4159493. Substitute parts can look different from the original.
$14.76
In Stock
Union 4159060
#14

Spout unit diagram

Union

Part #4159060

Replaced by #WP2198677

?
Manufacturer substitution
This part replaces 4159060. Substitute parts can look different from the original.
$19.29 |
31% OFF MSRP : $28.00
In Stock
Nut 4160076
#6

Upper and lower tank shell diagram

Nut

Part #4160076

The manufacturer no longer makes this part, and there's no substitute part
