Model #315105150 Craftsman electric drill

Here are the diagrams and repair parts for Craftsman 315105150 electric drill, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 42 parts

    Screw

    #15

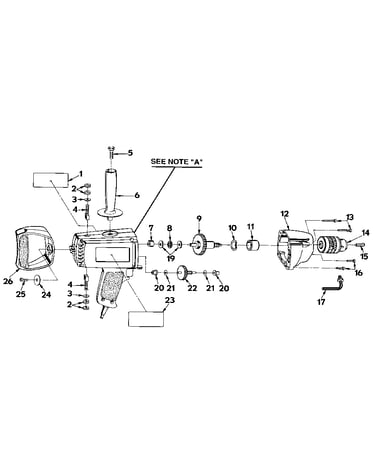

    Gear assembly Diagram

    Screw

    Part #613150003
    ?
    Manufacturer substitution
    This part replaces 613150-003. Substitute parts can look different from the original.
    This part replaces 613150-003
    $11.02

    In Stock

    Ball Brg

    #8

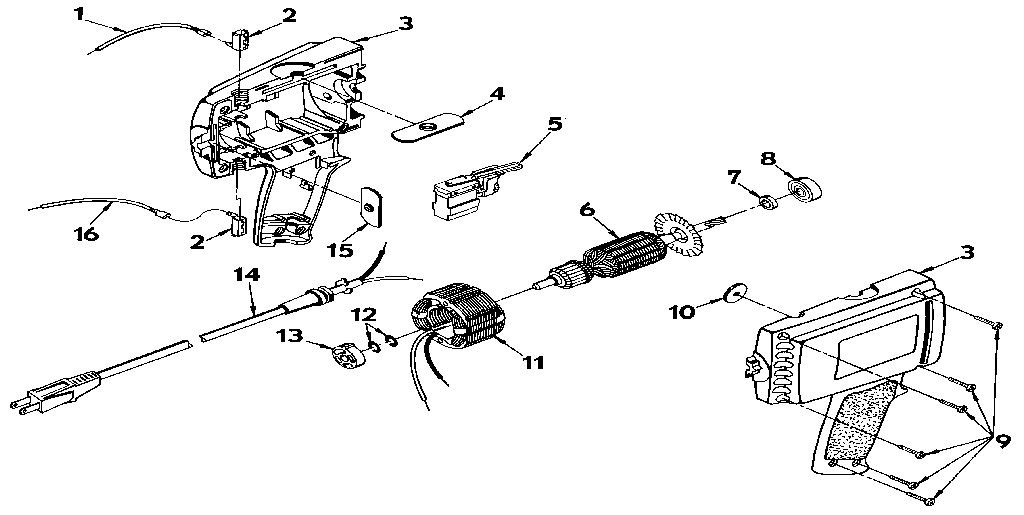

    Housing assembly Diagram

    Ball brg

    Part #621221-002

    The manufacturer no longer makes this part, and there's no substitute part

    Router Screw, #8-10 x 3/4-in

    #9

    Housing assembly Diagram

    Router screw, #8-10 x 3/4-in

    Part #660103001
    ?
    Manufacturer substitution
    This part replaces 617966-031. Substitute parts can look different from the original.
    This part replaces 617966-031
    This item is not returnable
    $3.16

    In Stock

    Flat Washer, 8-pack

    #19

    Gear assembly Diagram

    Flat washer, 8-pack

    Part #STD551031
    ?
    Manufacturer substitution
    This part replaces 624088-002. Substitute parts can look different from the original.
    This part replaces 624088-002
    This item is not returnable
    $3.22

    In Stock

    Owner's Manual

    #NI

    All parts Diagram

    Owner's manual

    Part #612547-875R

    The manufacturer no longer makes this part, and there's no substitute part

    Stator Pad

    #10

    Housing assembly Diagram

    Stator pad

    Part #623552-001

    The manufacturer no longer makes this part, and there's no substitute part

    Lead

    #1

    Housing assembly Diagram

    Lead

    Part #990618-007

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #21

    Gear assembly Diagram

    Washer

    Part #703493-817

    The manufacturer no longer makes this part, and there's no substitute part

    Washer

    #3

    Gear assembly Diagram

    Washer

    Part #706382-813

    The manufacturer no longer makes this part, and there's no substitute part

    Sleev Bearng

    #11

    Gear assembly Diagram

    Sleev bearng

    Part #606704-001

    The manufacturer no longer makes this part, and there's no substitute part
