White-Westinghouse
Room Air Conditioner

Model # AC056N7A1 Official White-Westinghouse room air conditioner - lw34090170

Here are the diagrams and repair parts for Official White-Westinghouse AC056N7A1 room air conditioner - lw34090170, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Support (replaces 000253701, 000253701, 253701, 253701, A000253701, Wa253701) 08007493
#5

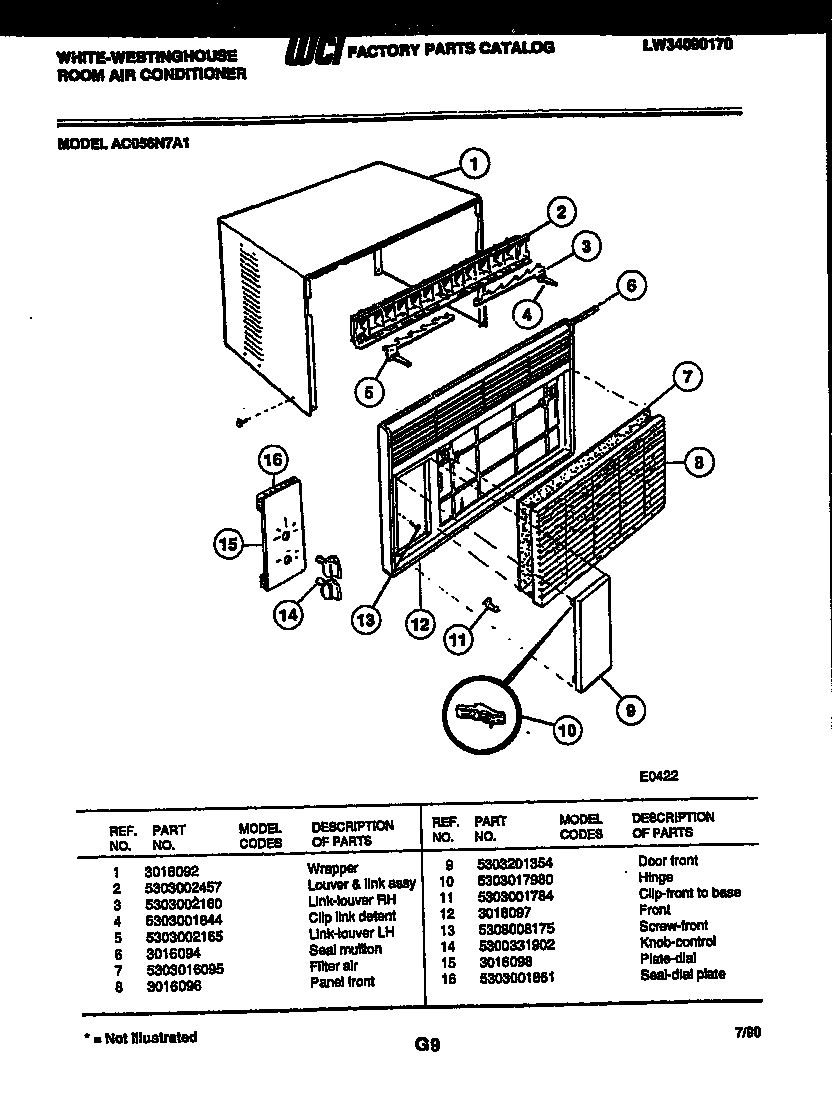

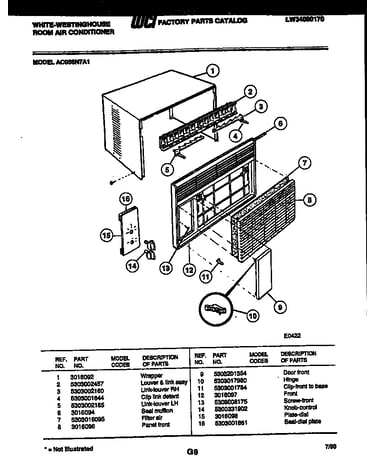

Cabinet and installation parts diagram

Support (replaces 000253701, 000253701, 253701, 253701, a000253701, wa253701)

Part #08007493

$12.99
In Stock
Room Air Conditioner Filter Dryer 5300265301
#1

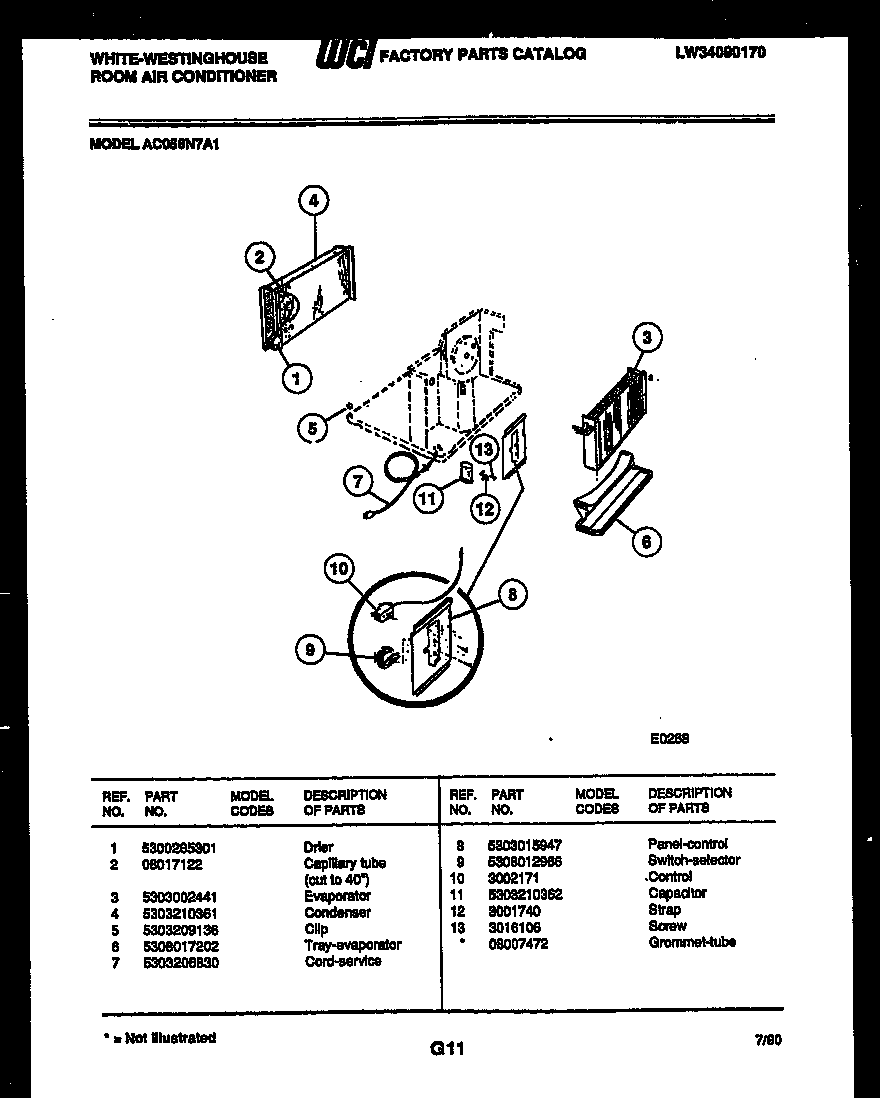

Electrical parts diagram

Room air conditioner filter dryer

Part #5300265301

$110.08
In Stock
Washer 3007766
#15A

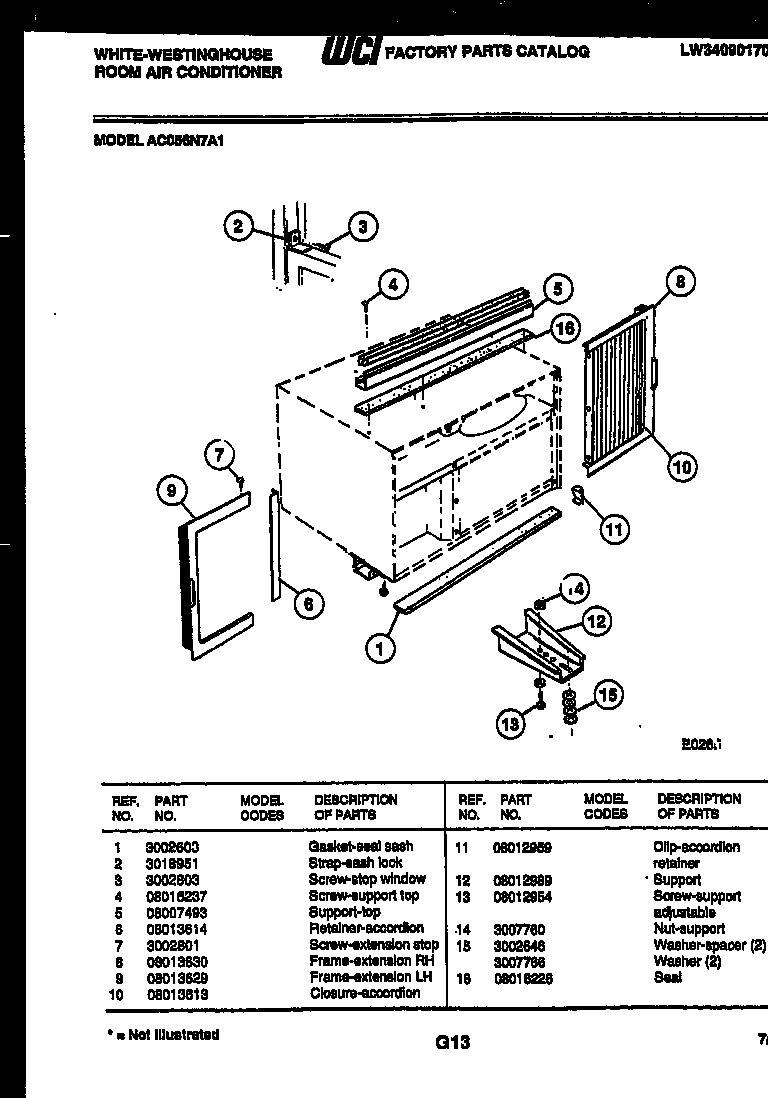

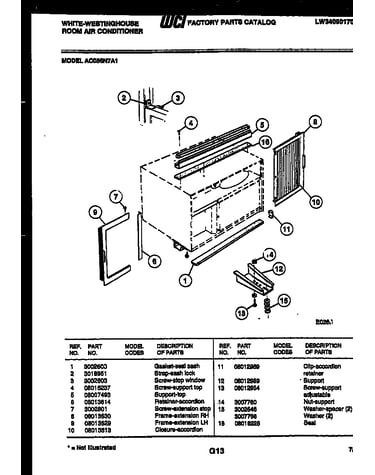

Cabinet and installation parts diagram

Washer

Part #3007766

This item is not returnable
$2.29
In Stock
Compressor 5308013813
#1

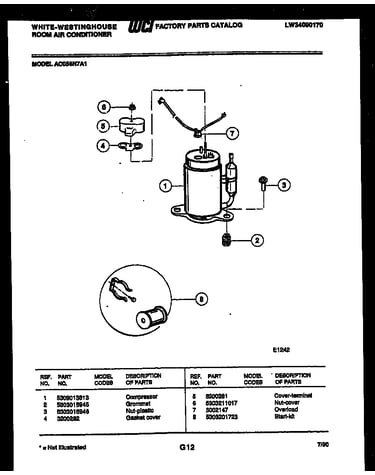

Compressor parts diagram

Compressor

Part #5308013813

$313.49
In Stock
Screw 08012954
#13

Cabinet and installation parts diagram

Screw

Part #08012954

This item is not returnable
$2.16
In Stock
Gasket 3002603
#1

Cabinet and installation parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock

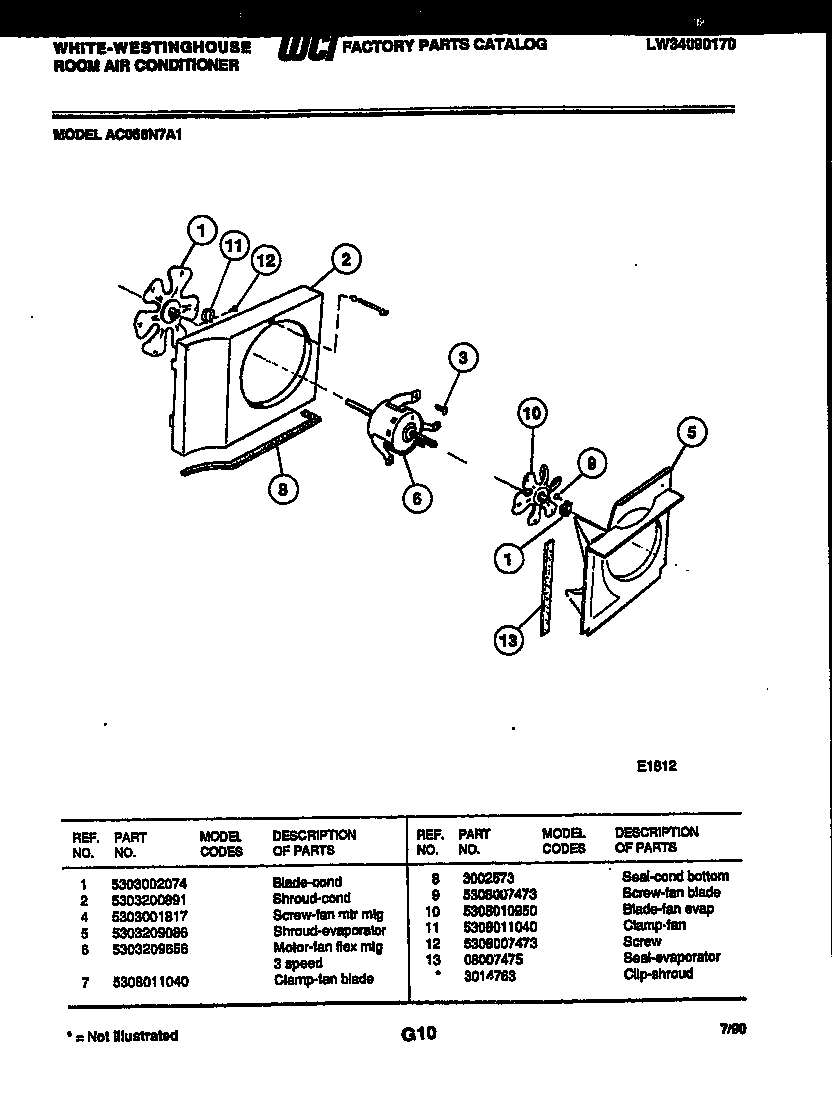

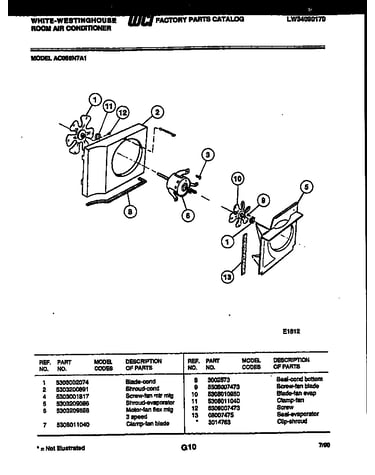

Screw 5308007473
Screw

Part #5308007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 5308007473. Substitute parts can look different from the original.
$13.26
In Stock
Screw 08016237
#4

Cabinet and installation parts diagram

Screw

Part #08016237

The manufacturer no longer makes this part, and there's no substitute part

Protector 3002147
#7

Compressor parts diagram

Protector

Part #3002147

The manufacturer no longer makes this part, and there's no substitute part

Screw 3002801
#7

Cabinet and installation parts diagram

Screw

Part #3002801

The manufacturer no longer makes this part, and there's no substitute part
